1PCS Wireless DMX512 Transmitter and 3PCS Rechargeable DMX512 Receiver 4PCS Power Cord 1PCS Packaging Box 2.4G DMX Controller

1PCS Wireless DMX512 Transmitter and 3PCS Rechargeable DMX512 Receiver 4PCS Power Cord 1PCS Packaging Box 2.4G DMX Controller

Specifications:

Product material: stainless steel and ABS

Box material: plastic + linen material

Shell color: cyan + green

Product color: Silver

Input voltage: 5V 1A

Power input: 5VDC,±5%

Power consumption: 5W

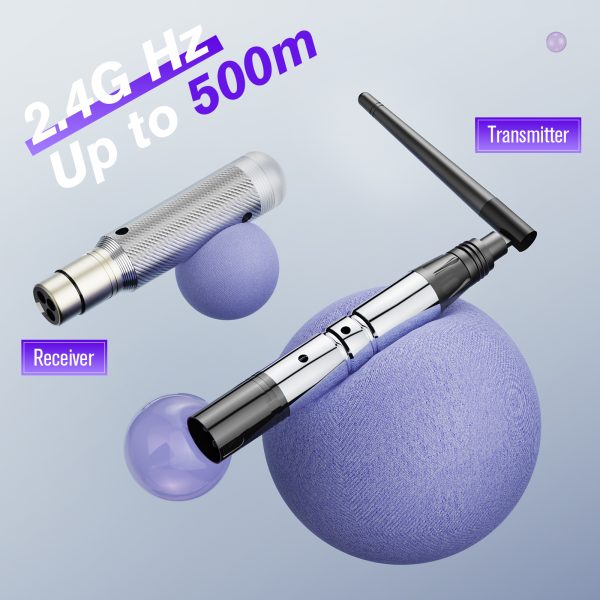

Communication distance: 400 meters working band: 2.400-2.4835GHz, ISM, 126 bands

Modulation mode: GFSK

Maximum transmit power: 23dBm

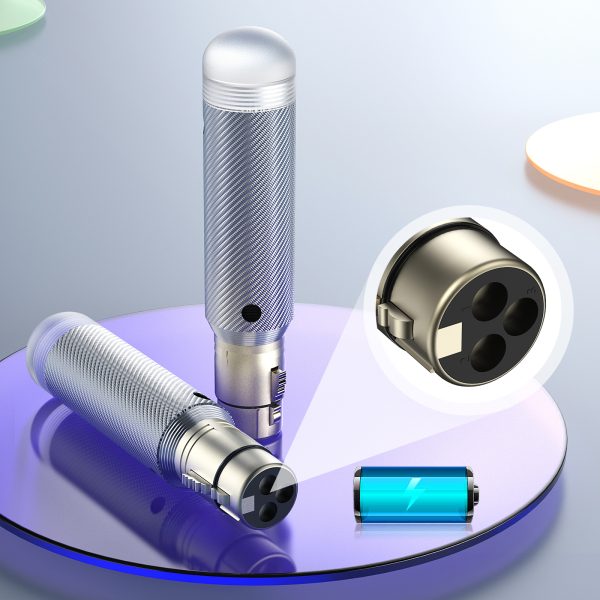

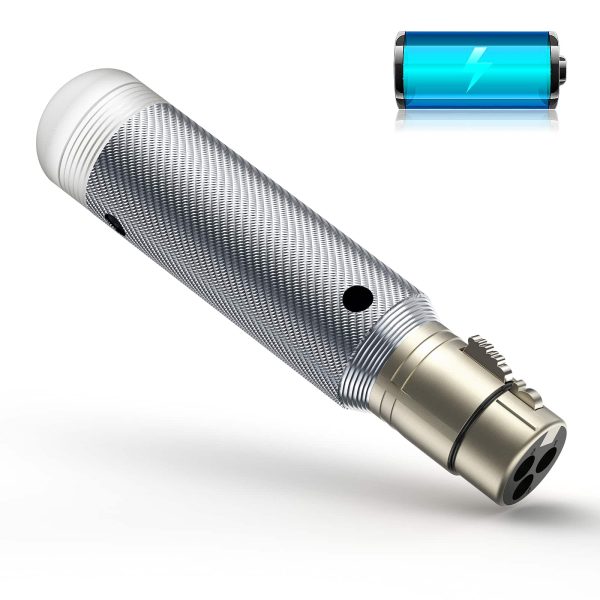

Battery capacity: 600 mA

Charging time: 2.5 hours

Use time: 16 hours

Receiving sensitivity: -94dBm

DMX signal interface: RS485

Reliability:

Auto restart timer: Built-in WDT

System information:

CPU: 32-bit ARM core

Operating temperature: -40 ~ 85 ° C, 5 ~ 95% RH

Humidity storage temperature: -65 ~ 150 ° C, 5 ~ 95% RH humidity

Control channel: DMX512

Control mode: controlled by DMX512 console. The transmitter is plugged into the dmx console, the receiver is plugged into the fixture.

Working mode:  The transmitter indicator flashes red, the receiver indicator flashes green, which is the state of signal transmission.

Service life: 10 years

Power cord length: 92cm

Scope of application: Stage lighting, large-scale cultural performances, stadium lighting, temporary stage performances, city lighting system, television TV stations, conference centers, professional theaters, theme parks, dance halls, bars and small cultural performances, etc.

Product Features:

1. Standard DMX512 three-core interface, transmission without delay, no packet loss, sending and receiving as one, automatic switching, three-color LED display working status and parameters, single key operation 126 frequency bands automatic frequency hopping, automatic selection of interference-free frequency bands, to ensure the reliability of communication.

2. 7 groups of ID codes can be set, the user can use independent 7 groups of wireless network in a place without interfering with each other wireless DMX512 transceiver YXR-512X to wirelessly transmit the standard DMX512 console data, but also to transmit the online data between the lamps and lanterns.

3. The product completely solves the wireless transmission of data between lighting console and lamp, lamp and lamp, and completely removes the twisted pair cable which has been relied on for a long time. In the process of data transmission to do no time delay, data real-time reliable!

4. The product uses 2.4G global open ISM band, license-free use. High efficiency GFSK modulation, 126 channels automatic frequency hopping communication design, strong anti-interference ability.

5. Elegant appearance and easy to carry. Replaces the traditional carton packaging and solves the pain point that customers’ wireless devices are easily lost.

Grouping operation instructions:

(Note: need to use the grouping setting items, customers must be in two transmitters at the same time to control their respective lamps, this time only need to set the grouping, if the customer has only one transmitter does not need to set anything, after the power supply plug and play)

1. Press the button to display the current ID settings, and then press the ID settings, each press the ID value plus 1.

2. Working status: LED always on: no DMX or wireless signal; red LED flashing: transmitting; green LED flashing: receiving.

Packing List:

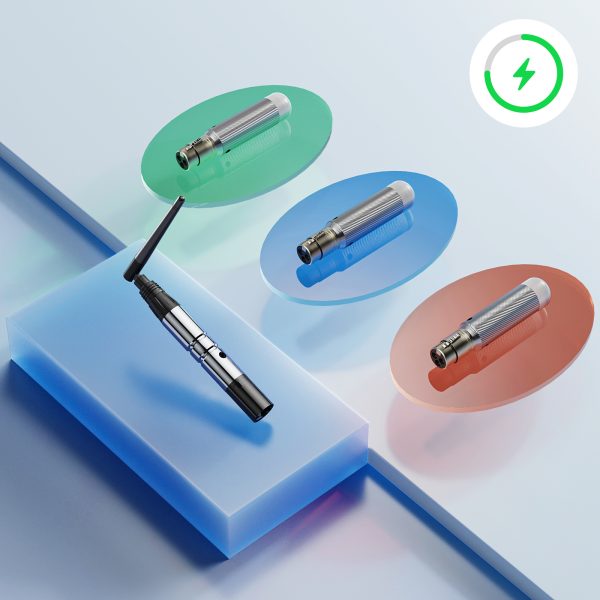

1. Transmitter *1

2. Receiver *3

3. Power cord *4

4. Packing box *1

5. Instruction manual *1
