Colorlight X12 Professional LED Controller Box VX20 VX10 VX6 X40m X20m X26m X20 X12 X7 X6 X4m X2m

Description

Colorlight X12 Professional LED Controller Box Features：

1.1 channel DVI input and 3 channels HDMI1.4 input
2.The maximum load is 7.2 million pixels, the maximum width can reach 8192 points, or the maximum can reach 4096 points
3.The maximum input resolution of a single channel is 1920×1200@60Hz, and the resolution can be set arbitrarily  High-bandwidth digital content protection technology of HDCP1.4 protocol
4.12-way Gigabit Ethernet port output, support single or dual redundant backup
5.Video source can be switched, cropped, spliced and zoomed arbitrarily
6.3-screen display, window position and size can be adjusted freely
7.Brightness, color temperature adjustment, support contrast, hue, saturation adjustment
8.Low brightness and high gray, can effectively maintain the complete display of gray scale under low brightness
9.Dual USB2.0 high-speed communication interface, used for computer debugging and arbitrary cascading between the main control
10.RS232 serial protocol control

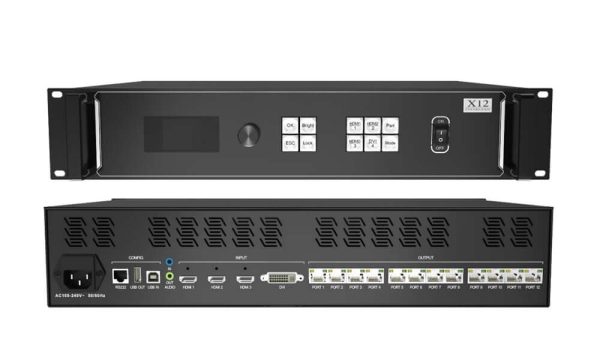

Most pictures of Colorlight X12 Professional LED Controller Box：

Download Specification:
Colorlight X12 Professional LED Controller Box Specification
