Colorlight X20-3D led Video Processor led Video Controller

Description

Colorlight X20-3D led display Professional master Controller Features：

●Input connectors: 1XDP 1.4, 1X HDMI 2.0, 2XHDMI 1.4, 2X DVI

●Loading capacity: 13 million pixels, maximum width: 16384 pixels, or maximum height: 8192 pixels

●Input resolution: up to 4096 X2160@60Hz, supporting customized setting

●Output connectors: 20XGigabit Ethernet port, 2X 10G optical fiber port

●Supports video source switching, cropping, splcing and scaling

●Supports up to 6 windows, of which the location and size can be freely adjusted

●Supports precise color management and display gamut adjustment

●Supports video sync

●Separate audio input and output

●Support analyzing and outputting the audio signals of HDMI and DP inputs

●Support LAN control

●Support control via hand-held terminal (app)

●Support RS232 protocol control

●Support 3D

●Support HDCP

●Support brightness and color temperature adjustment

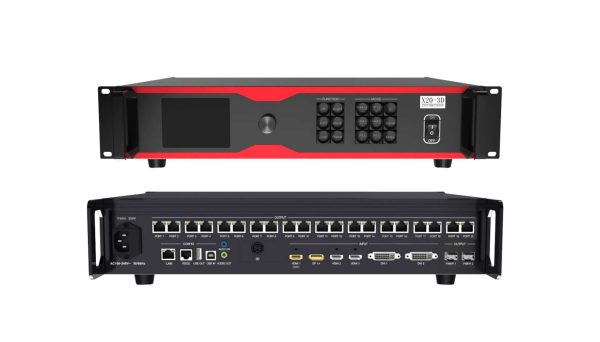

Colorlight X20-3D led display Professional master Controller pictures：

Download Specification:
Colorlight X20-3D led display Professional master Controller Specification
