Colorlight X2s Colorlight Professional LED Display Panel Controller
$96.00
Colorlight X2s Colorlight Professional LED Display Panel Controller Overview: Â Â Â X2s professional master is a professional LED display control device, with powerful video signal receiving and processing…
- Description
- Additional information
Description
Colorlight X2s Colorlight Professional LED Display Panel Controller Overview:
   X2s professional master is a professional LED display control device, with powerful video signal receiving and processing capabilities, and can receive high-definition digital signals of 1920*1200 pixels; it supports HDMI and DVI high-definition digital interfaces, and seamless switching between multiple signals ; Support arbitrary scaling and cropping of video sources.
   X2s has 2 Gigabit Ethernet port outputs, and a single machine can support LED displays with a maximum width of 4096 pixels and a maximum of 2560 pixels.
Colorlight X2s Colorlight Professional LED Display Panel Controller Features:
·X2s has 2 types of video input interfaces, including 1 HDMI and 2 DVI;
·Input resolution: up to 1920*1200@60Hz, supports arbitrary setting of resolution;
·Video output load capacity: 1.31 million pixels, up to 4096 points wide, up to 2560 points;
·Support arbitrary switching, scaling and cropping of video sources;
·Support screen shift;
·Dual USB2.0 high-speed communication interface for arbitrary cascade connection between computer debugging and main control;
·Support brightness and color temperature adjustment;
·Support low brightness and high gray;
· Support HDCP1.1;
·Support the full range of Colorlight receiving cards, multi-function cards and optical fiber transceivers.
Colorlight X2s Colorlight Professional LED Display Panel Controller Parameter:
| Input Interface | |
| HDMI | HDMI |
| DVI 1 | DVI 1 |
| DVI 2 | DVI 2 |
| Output Interface | |
| Port1/2 | RJ45，2 Gigabit Ethernet ports |
| Controlling Interface | |
| USB_OUT | USB Used for cascading between x2s |
| USB_IN | USB input, connected to PC, used to debug parameters |
| Input index | ||
| Interface | Qty | Resolution |
| HDMI | 1 | HDMI 1.4 standard，Support 1920*1200@60Hz，Support HDCP |
| DVI 1 | 1 |
DVI 1.0 standard，Support 1920*1200@60Hz，Support HDCP |
| DVI 2 | 1 | DVI 1.0 standard，Support 1920*1200，60Hz，Support HDCP |
| Specification | |
| Size | 1UÂ standard |
| Input voltage | AC100~240V |
| Rated Power Consumption | 8W |
| Working Temperture | -20~60℃ |
Â

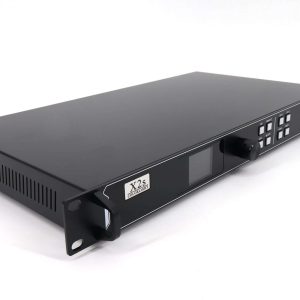

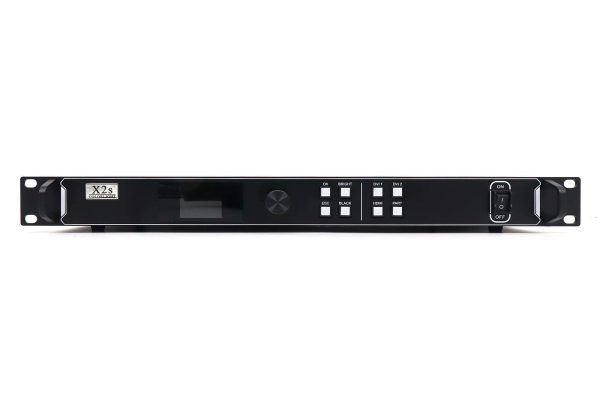

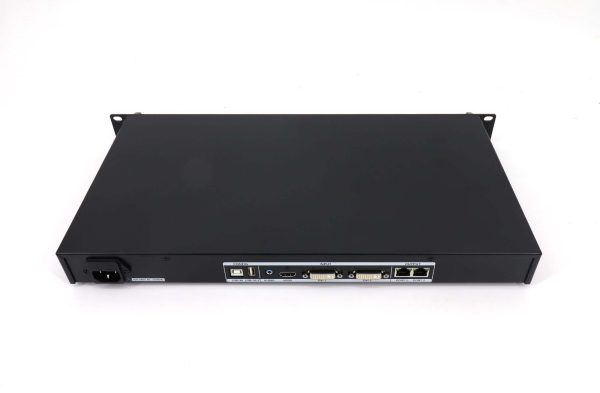

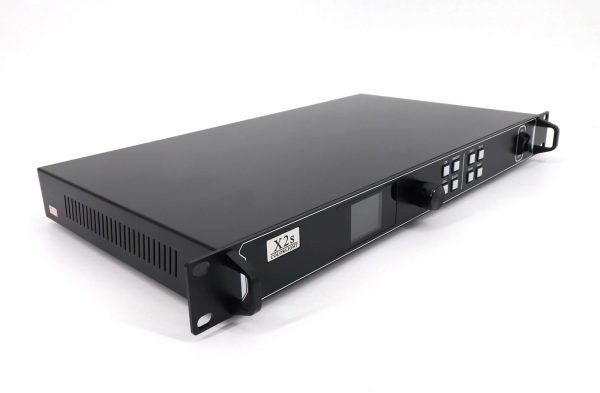

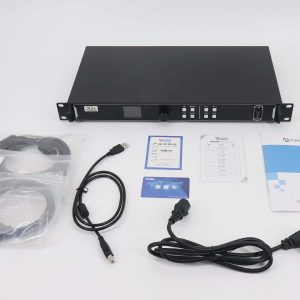

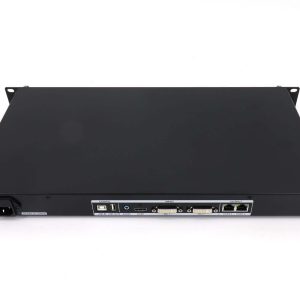

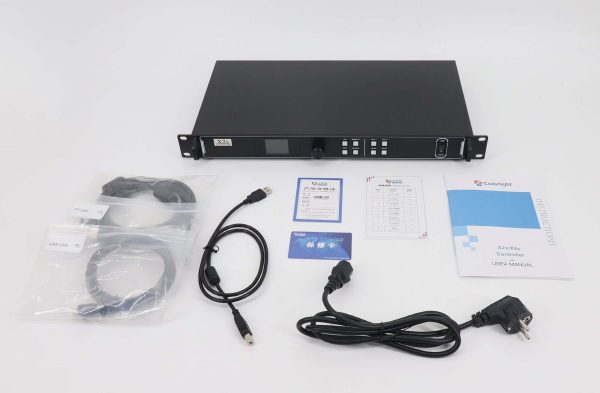

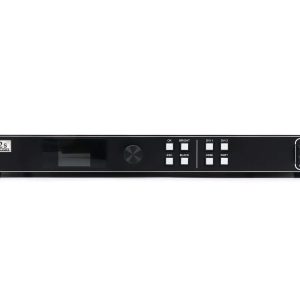

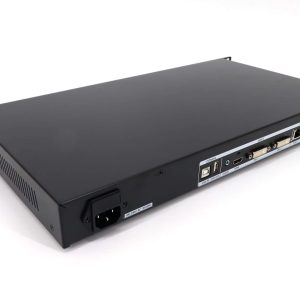

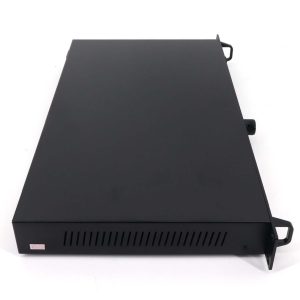

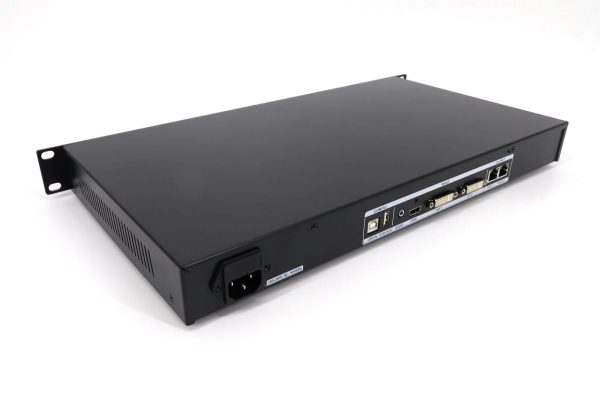

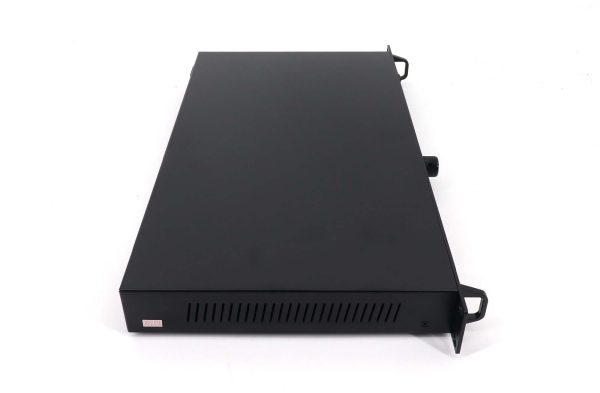

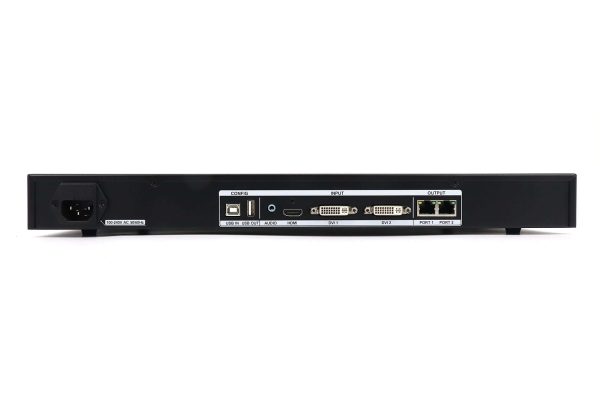

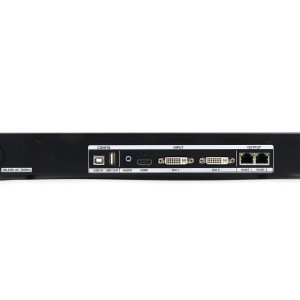

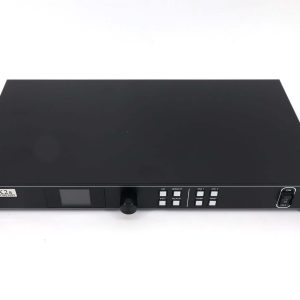

More Pictures of Colorlight X2s Colorlight Professional LED Display Panel Controller
Download Specification
Colorlight X2s Colorlight Professional LED Display Panel Controller specification
Additional information
| Weight | 7 kg |
|---|
