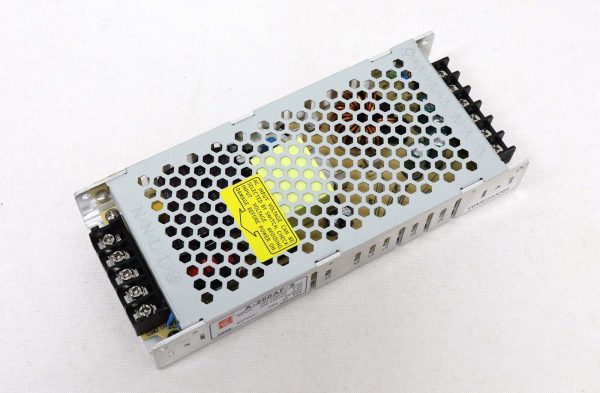

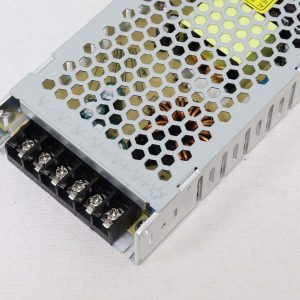

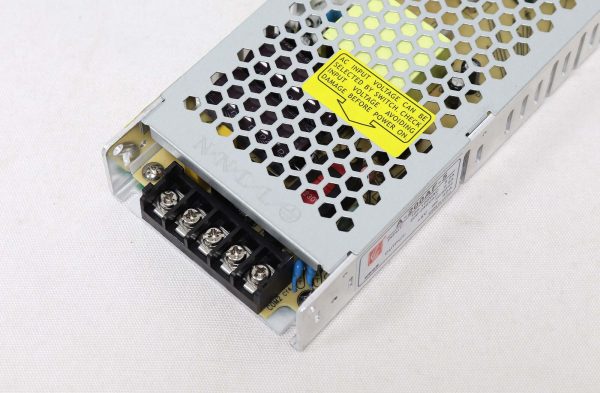

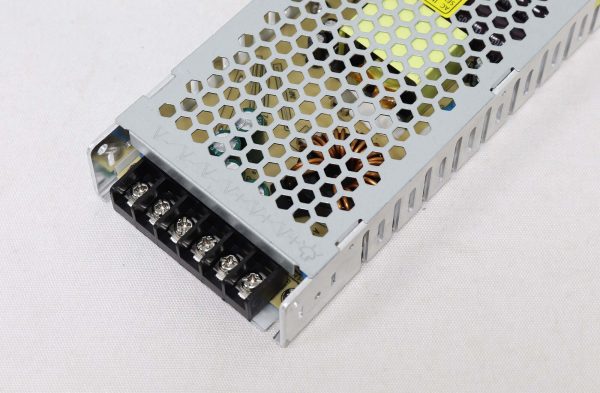

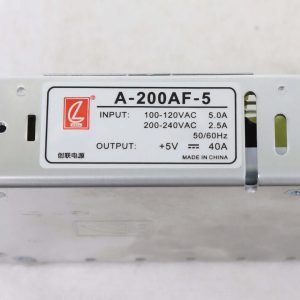

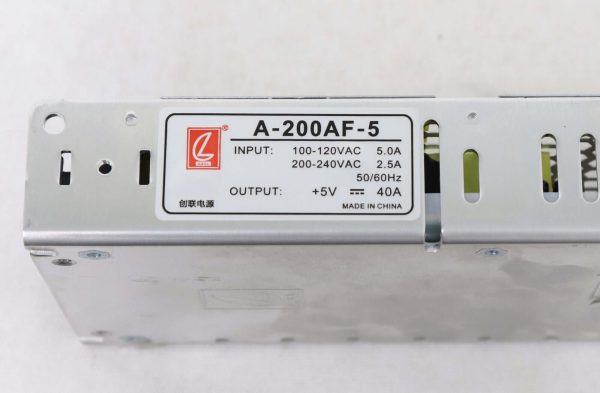

CZCL A-200AF-5 5V40A 200W Low Profile LED Power Supply
$8.80
CZCL A-200AF-5 5V40A 200W Low Profile LED Power Supply Features: 1.Low Profile: Slim Body design can be fixed in compact Die-cast aluminum rental LED Cabinet , 2.high reliability Quality, High…
- Description
- Additional information
Description
CZCL A-200AF-5 5V40A 200W Low Profile LED Power Supply Features:
1.Low Profile: Slim Body design can be fixed in compact Die-cast aluminum rental LED Cabinet ,
2.high reliability Quality, High standart quality elements parts are adopted, 100% full load high temperature aging tested.
3. Anti-dust, Anti-Moisture, Anti-Static
4. Protection: overload and short cirtuit protection
5. 2 Year Warranty
CZCL A-200AF-5 5V40A 200W Low Profile LED Power Supply Parameters:
| input voltage:200-240Vac,47-63Hz | Protection:undervoltage,Overload,Short circuit |
| Output power:200W Max | Working temperature:-30~+60℃ |
| Power factor:0.50@230Vac | Storage temperature:-40℃~+100℃，20~95%RH |
| Insulation voltage:I/P-O/P:3.0KVac | Safety standards:GB4943，UL60950-1，EN60950-1 |
| I/P-FG:1.5KVac;O/P-FG:0.5KVac,1min | Dissipate heat:cold |
| EMC Standards:: GB9254，EN55022 | Protecting Time: 50ms, 20ms over load |
| Leakage current:0.30mA@230Vac | Size:190×84×30 |
Additional information
| Weight | 0.6 kg |
|---|
