Digital Signage Outdoor Advertising LED Display Screen
$749.00
High-end Outdoor LED Digital Signage carefully designed in quality and detail, pop up aluminum cabinet with tempered glass protection with remote control software
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
IP65 Waterproof
Remote Control
Common Cathode Design
Front Maintenance
Die cast aluminum cabinet
7500cd High Brightness
Advantages
Feature Description
- – IP65 waterproof rating, long service life
- – 7500cd/m² High brightness, bright colors
- – Any size, seamless stitching
- – With remote control software
- – Pop up aluminum cabinet with tempered glass protection
- – There are cooling fans in the cabinet, better heat dissipation effect
Video
Parameters
Cabinet Specs
Customizable size and double-sided display according to requirements
Easy Maintenance
Front maintenance design pop up aluminum cabinet with tempered glass protection
Intelligent optical sensor
Light sensor change the screen’ s brightness depending on the ambient light ensuring the most suitable brightness at any time of the day.
Installation
Support vertical wall hanging and lifting
Aging test
Digital Signage Outdoor Advertising LED Display Screen Specifications
| Model | 2.5 | 2.976 | P3 | P3.91 | P4 | P5 | P6 | P8 | P10 |
| Module size(mm) | 160×160 | 250×250 | 192×192 | 250×250 | 320×160 | 320×160 | 192×192 | 320×160 | 320×160 |
| Module resolution (dot) | 64×64 | 84×84 | 64×64 | 64×65 | 80×40 | 64×32 | 32×32 | 40×20 | 32×16 |
| Scanning | 1/16S | 1/21s | 1/16S | 1/17S | 1/20S | 1/8S | 1/8S | 1/5S | 1/2S |
| SMD | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R2B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B |
| Maintenance | Front | Front | Front | Front | Front | Front | Front | Front | Front |
| Density(dot/㎡) | 160000 | 112896 | 111111 | 65410 | 62500 | 40000 | 27777 | 15625 | 10000 |
| Brightness(cd/㎡) | 4200-4500 | 3500 | 4200-4500 | 4200-4501 | 5000-6500 | 5000-6000 | 5000-6000 | 4000-5000 | 6000-7500 |
| Max. Power Consumption | 1000 | 1000 | 1000 | 1001 | 900 | 800 | 800 | 800 | 1000 |
| Average Power Consumption | 350 | 350 | 350 | 351 | 300 | 400 | 300 | 300 | 500 |
| Cabinet material | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile |
| IP rate | IP 65 | IP 65 | IP 65 | IP 66 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
| Grayscale | 10000:1 | 10000:1 | 10000:1 | 10000:2 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Refresh rate(hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3841 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
| Frame change frequency | 50/60hz | 50/60hz | 50/60hz | 50/61hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz |
| Horizontal viewing angle | >140° | >140° | >140° | >141° | >140° | >140° | >140° | >140° | >140° |
| Vertical viewing angle | >140° | >140° | >140° | >141° | >140° | >140° | >140° | >140° | >140° |
| Best viewing distance | >2.5m | >3m | >3m | >4m | >4m | >5m | >6m | >8m | >10m |
| Input Voltage | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC221V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V |
| Module Max. current | 4.5-5.5 | 4.5-5.5 | 4.5-5.5 | 4.5-5.6 | 5.5-7.5 | 5.5-7.5 | 3.5-5.5 | 5.5-7.0 | 8.0-10 |
| Temperature-operating | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～61℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ |
| Humidity-operating | 10%～90% | 10%～90% | 10%～90% | 10%～91% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Life span (H) | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,001 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 |
| MTBF (H) | >10,000 | >10,000 | >10,000 | >10,001 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 |

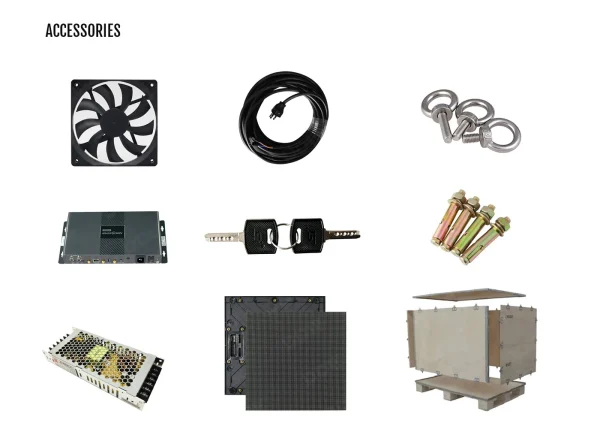

Accessories

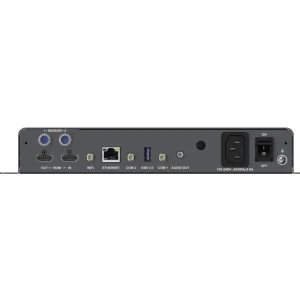

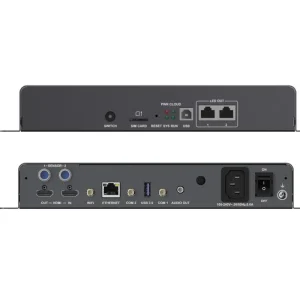

Sending box
Power Supply
Pickup card
Connecting piece
Signal line
Power line
Cooling fan
LED module
Additional information
| Weight | 70 kg |
|---|
