Flexible Curved Outdoor Rental Transparent LED Display
$298.00
- Description
- Additional information
Description

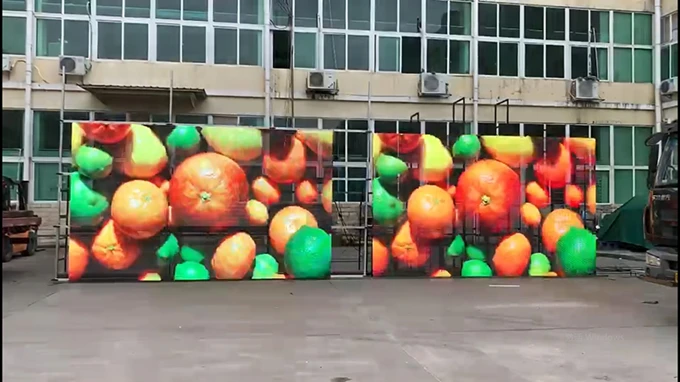

Outdoor Rental Transparent LED Screen
High Quality Outdoor Rental Transparent LED Display
High Transparency
High Brightness
Great Gray Scale
Light and Slim
3840Hz Refresh rate
IP65
Fast and Easy Installation
Flexible Design
Product Description
Light and Thin
Die-casting aluminum makes the cabinet lighter than other materials. The weight of the cabinet is less than 20kgs/㎡, which greatly reduces the stress during transportation and installation.

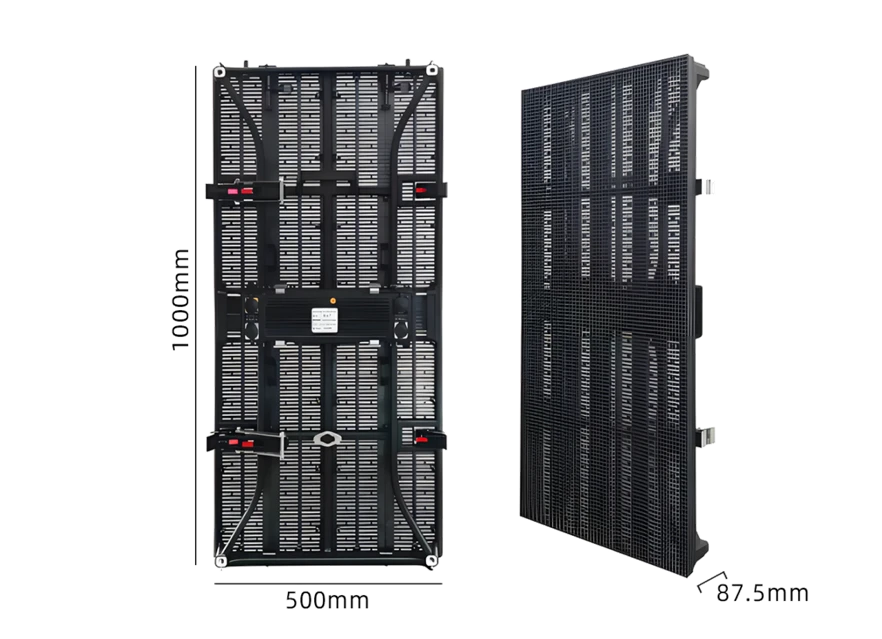

Cabinet size: 500mm*1000mm*87.5mm.
The pixel pitch P3.9-P7.8, P7.8-P7.8 are available.
High Transparency
Transparency can be up to 36% or higher, which can produce a strong perspective effect, making the images more vivid, especially at night.
High Brightness
The brightness of screen is 4500 -5800cd/㎡, so the viewing effect is great even in direct sunlight.

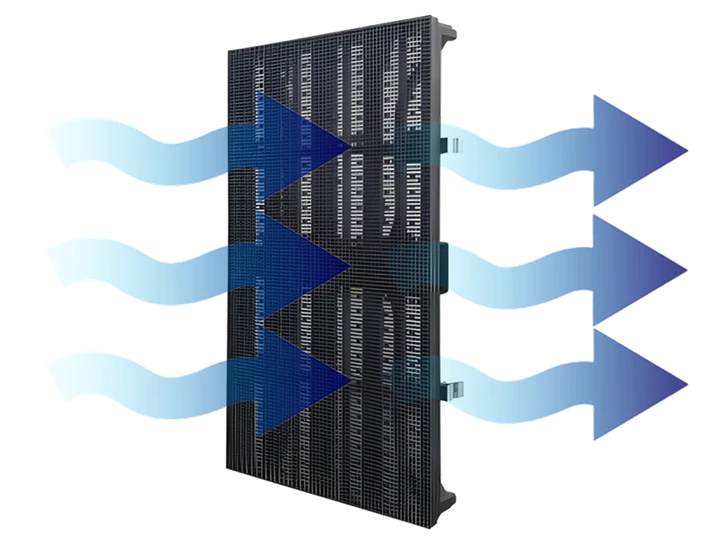

Excellent Heat Dissipation
1)Die-casting aluminum cabinet is more durable and highly stable and the heat dissipation of aluminum is much better than others in the market. 2) The cabinet is used with wind-pass design. As a result, even without fans and air conditioners, the screen can still work properly in the high temperature of below 60 degree.

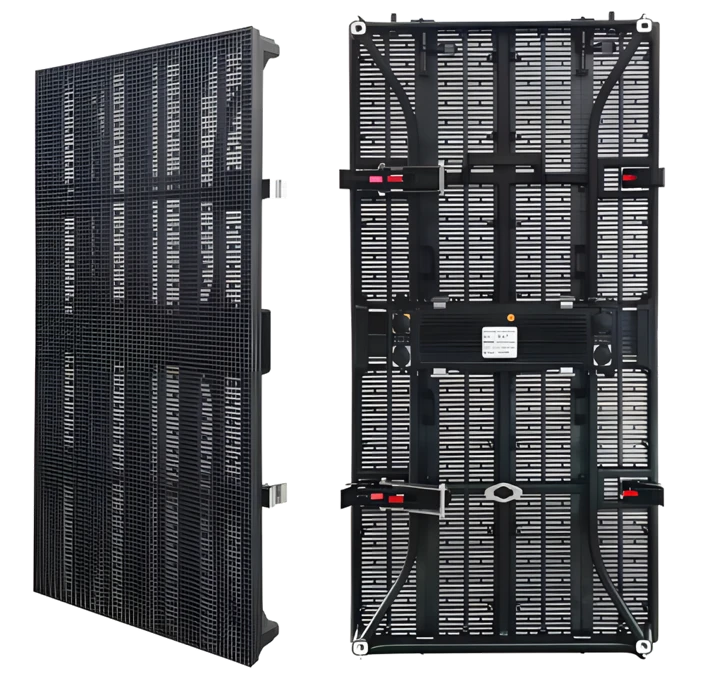

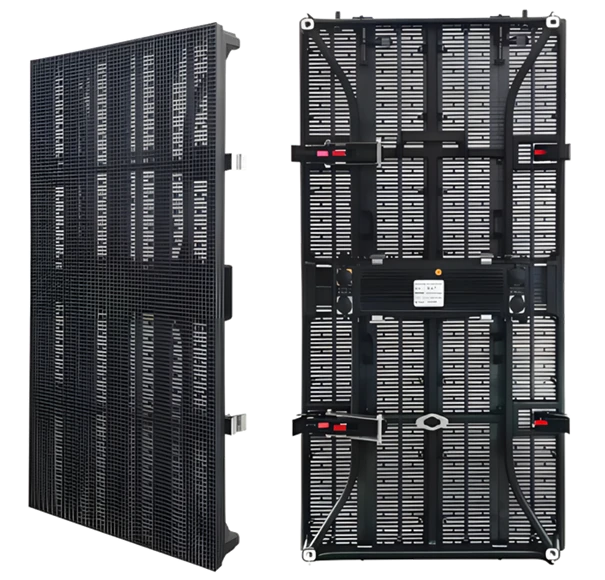

Rear Access
We install the module by screwing.The modules, power supply box, and other components can be disassembled from the back, which will not fall out from the cabinet.
Fast and Easy Installation
Our rental transparent LED display realizes the connection between the cabinets through connecting pieces and fast locks. As the cabinet uses die-cast aluminum material, the weight of the panel is only 10kgs, we also design a handle for each cabinet, so that it can be carried easily to install fast and easily.

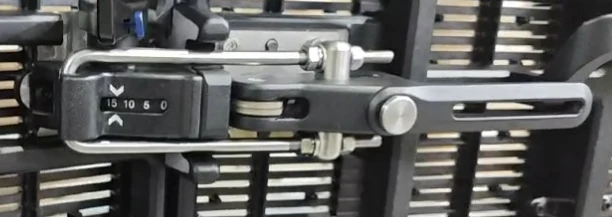

Two Curved Lock Design
There are two curved locks design ; -10 degree to 15 degree and -16 degree to 16 degree. The two different options can meet more requirements for radian.

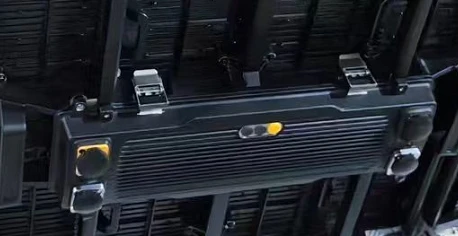

Removable Power Box
The power box of this product can be removed easily, you only need to open the lock on the back, and you can easily replace it, which reduces greatly the “downtime” in accident of events.
Multiple Options of installation
Stacking installation: Ground stacking makes your installation easier and faster during the events.
Lifting installation: The hanging bar can hang the cabinets from truss. The light weight of the cabinet will reduce the physical pressure of the frame.

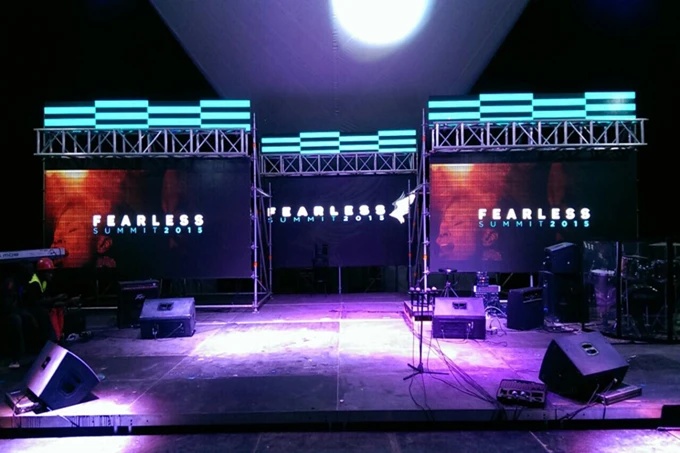

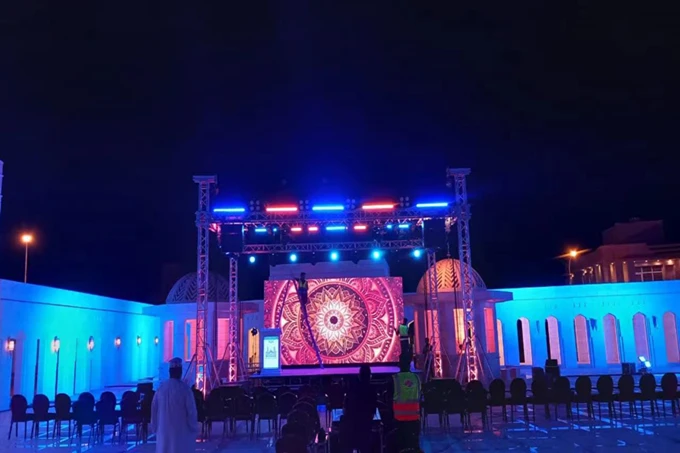

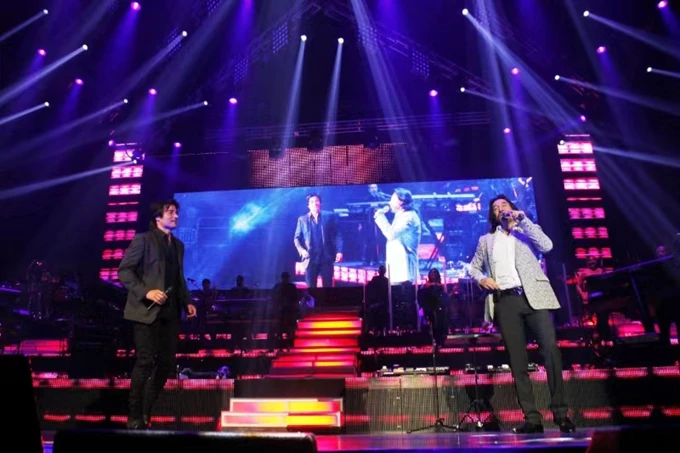

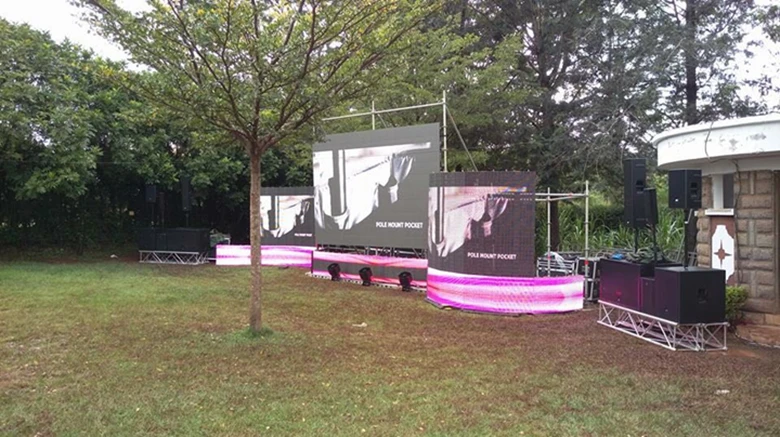

Application Fields
To fit every different scene, our product is made up of superior quality materials with the concise and strong structure. This product is usually used in:
Cinemas; Stages; Events.
Curved Flexible Waterproof Outdoor Transparent LED Screen Rental Parameter
| Item | P3.9-7.8 | P7.8-7.8 |
|---|---|---|
| Pixel Pitch | 3.91-7.81mm | 7.8-7.8mm |
| LEDÂ Type | SMD 1921 | SMD 2727 |
| Module Resolution | 64dots×64dots | 32dots×32dots |
| Driving Mode | 1/8scan | 1/4scan |
| Module Pixels | 4096dots | 1024dots |
| Module Size | 250×500mm | 250×500mm |
| Cabinet Size |  500×1000mm |  500×1000mm |
| Cabinet Resolution | 128dotsx 128dots |  64dotsx 128dots |
| Pixel Density | 32768dots/㎡ | 8192dots/㎡ |
| Minimum Viewing Distance | ≥4m | ≥7m |
| Transparency | 36% | 36% |
| Brightness | 4500-5000cd/㎡ | 4500-5000cd/㎡ |
| IPÂ Grade | IP65 | IP65 |
| Refresh Rate | 3840Hz | 3840Hz |
| Gray Scale | 14bits | 14bits |
| Viewing Angle | H:120° / V:120° | H:120° / V:120° |
| Maximum Power Consumption | 800W/m² | 800W/m² |
| Average Power Consumption | 260W/m² | 260W/m² |
| Input Voltage | DC5V/AC200-240V | DC5V/AC200-240V |
| Operating Temperature | ﹣10℃～40℃ | ﹣10℃～40℃ |
| Operating Humidity | 15%～90% | 15%～90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 20kg/㎡ | 20kg/㎡ |
| Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
Additional information
| Weight | 35 kg |
|---|
