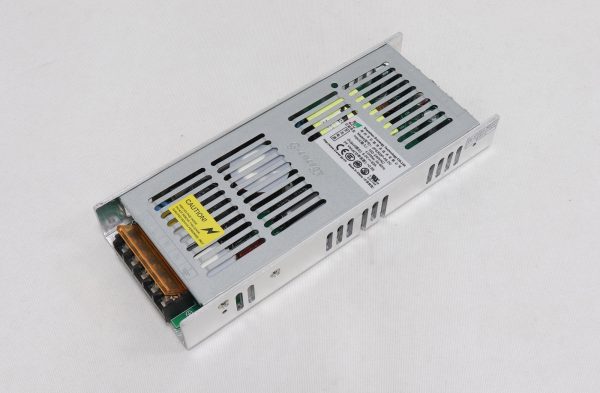

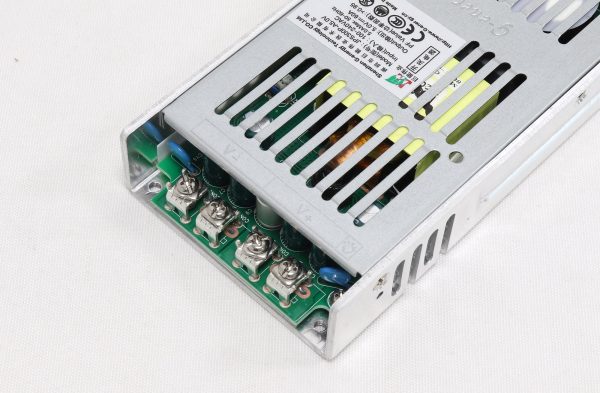

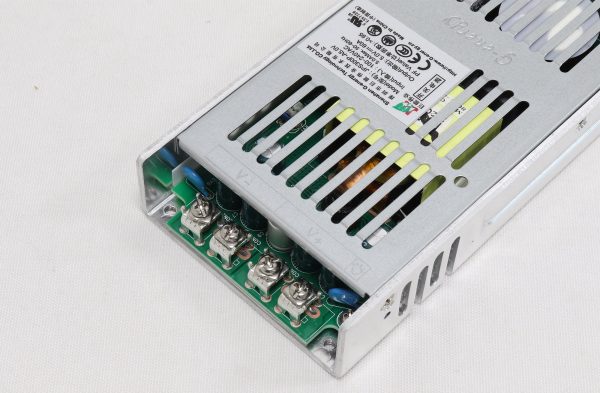

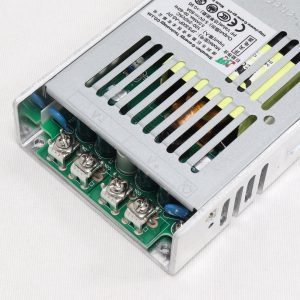

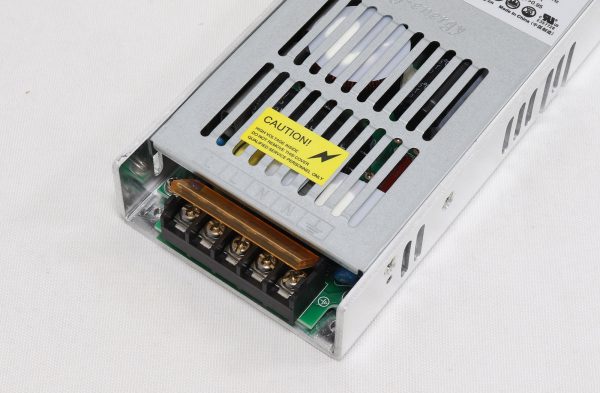

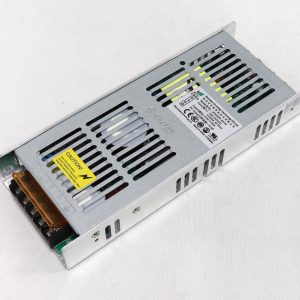

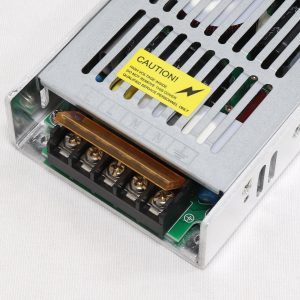

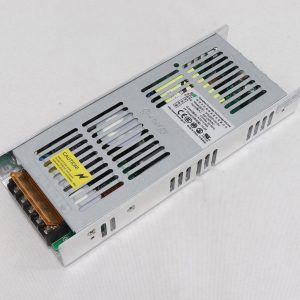

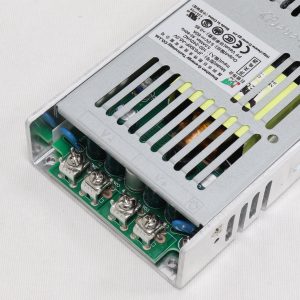

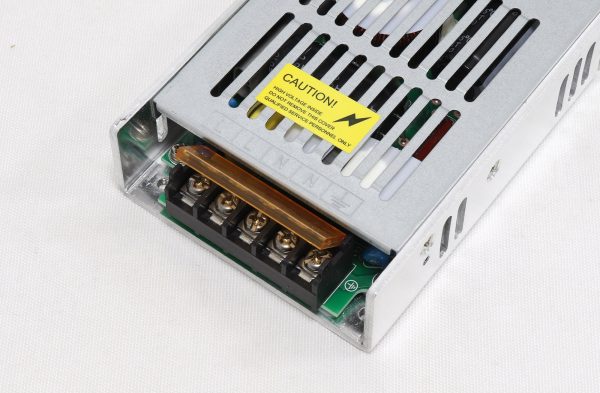

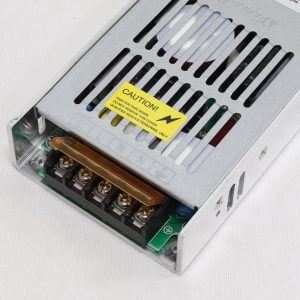

G-Energy JPS300P-A5.0V Full Color LED Video Screen Power Supply
$30.00
G-Energy JPS300P-A5.0V Full Color LED Video Screen Power Supply Features: Output power: 300W Max Leakage current: <1 mA (VIN: 230) Working temperature: -30 ° C ~ 50 °…
- Description
- Additional information
Description
G-Energy JPS300P-A5.0V Full Color LED Video Screen Power Supply Features:
Output power: 300W Max
Leakage current: <1 mA (VIN: 230)
Working temperature: -30 ° C ~ 50 ° C
Cooling method: self-cooling
Storage temperature: -40~80°C
Input voltage: 100-240VAC, 47-63Hz
Insulation voltage: I / P-O / P: 3.0KVac; I / P-FG: 1.5KVAC; O / P-FG: 0.5KVAC
Safety standards: GB4943, EN60950
Protection function: input undervoltage, overload protection, short circuit protection
Power factor:Â 0.95@230Vac
Size: length × width × height = 213 × 85 × 30
G-Energy JPS300P-A5.0V Full Color LED Video Screen Power Supply Parameter:
| Model | Classification | Output voltage | Output current | Ripple & Noise | Efficiency |
| JPS300P-A5.0V | Constant pressure | 5V | 0-60A | ≤200mV | ≥88% |
Additional information
| Weight | 0.8 kg |
|---|
