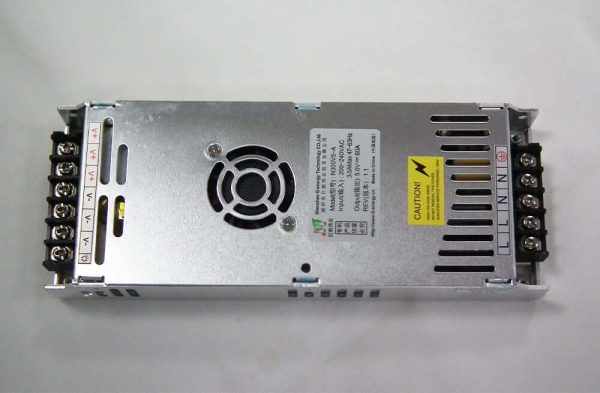

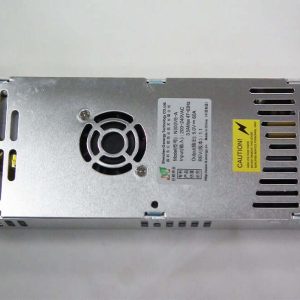

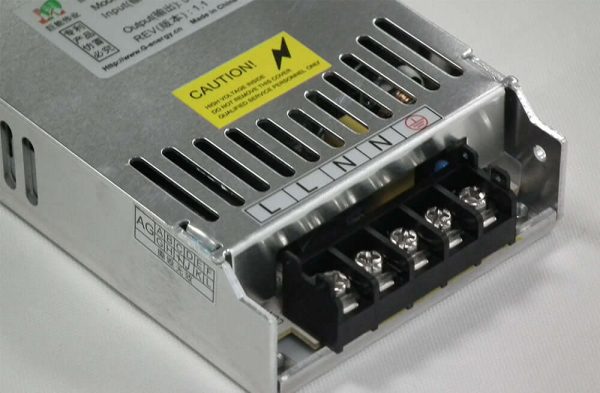

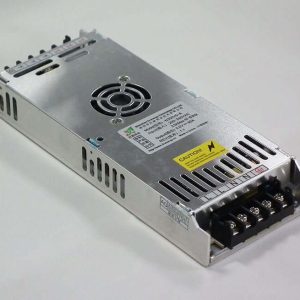

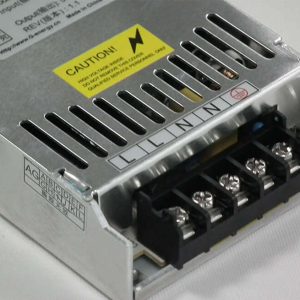

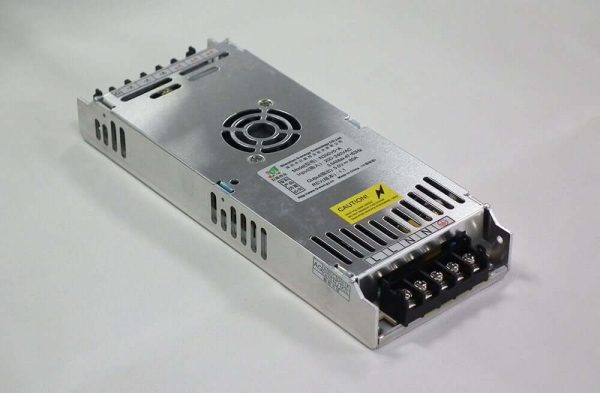

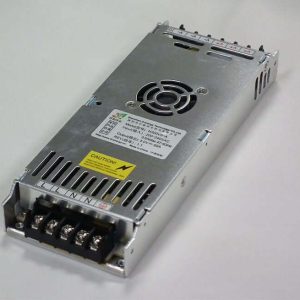

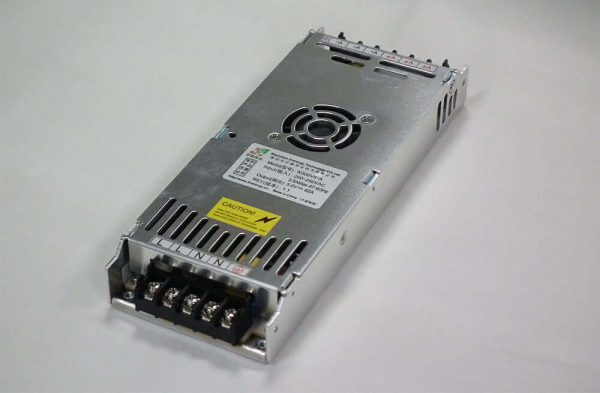

G-Energy N300V5-A 300W LED Display Power Supply
$15.20
G-Energy N300V5-A 300W LED Display Power Supply Main Perameter input voltage:200-240Vac,47-63Hz Protection:undervoltage,Overload,Short circuit Output power:300W Max Working temperature:-30~+60℃ Power factor:0.50@230Vac Storage temperature:-40~+100℃ Insulation voltage:I/P-O/P:3.0KVac Safety standards:GB4943,EN60950 I/P-FG:1.5KVac;O/P-FG:0.5KVac Dissipate…
- Description
- Additional information
Description
G-Energy N300V5-A 300W LED Display Power Supply Main Perameter
| input voltage:200-240Vac,47-63Hz | Protection:undervoltage,Overload,Short circuit |
| Output power:300W Max | Working temperature:-30~+60℃ |
| Power factor:0.50@230Vac | Storage temperature:-40~+100℃ |
| Insulation voltage:I/P-O/P:3.0KVac | Safety standards:GB4943,EN60950 |
| I/P-FG:1.5KVac;O/P-FG:0.5KVac | Dissipate heat:Air cooling |
| Leakage current:0.30mA@230Vac | Size:212×83×30 |
Download Specification:
G-Energy-N300V5-A-00W-LED-Display-Power-Supply-Specification
Additional information
| Weight | 1.03 kg |
|---|
