HD LED Screens for Broadcast and TV Studio LED Display
$238.00
- Description
- Additional information
Description

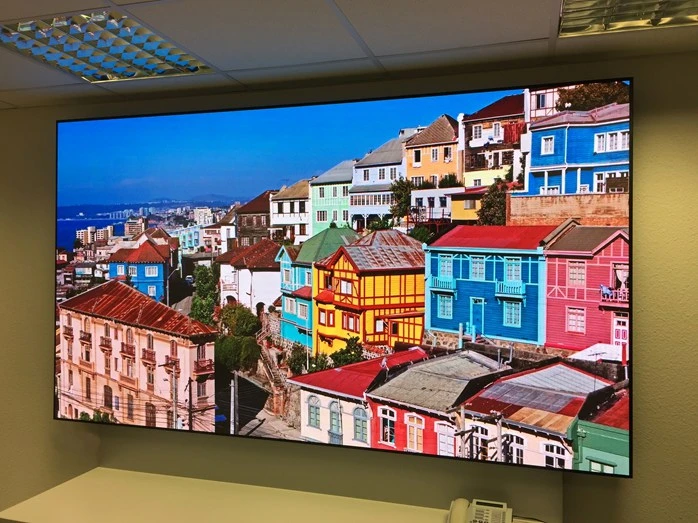

LED Walls for Broadcast and TV Studios
TV Studio LED Display-P1.875
Without moire
7680Hz
Anti-collision
Softer light
Lightweight
50% Energy Saved
Fully Front Access
Large Viewing Angle
Product Description

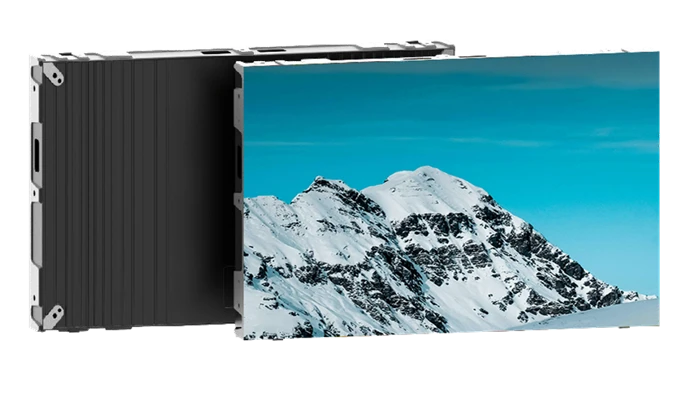

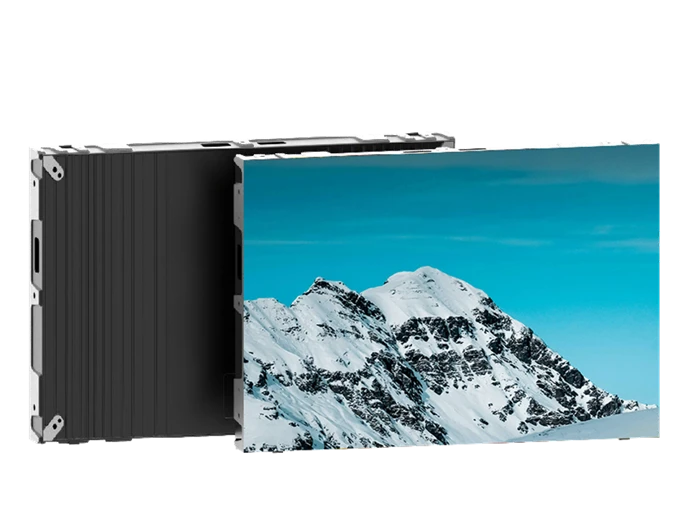

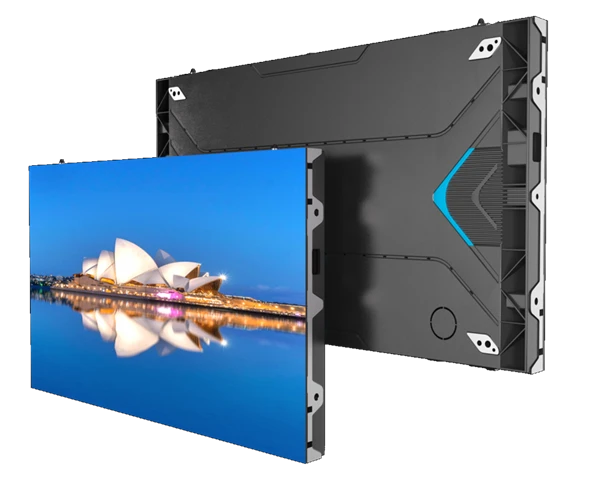

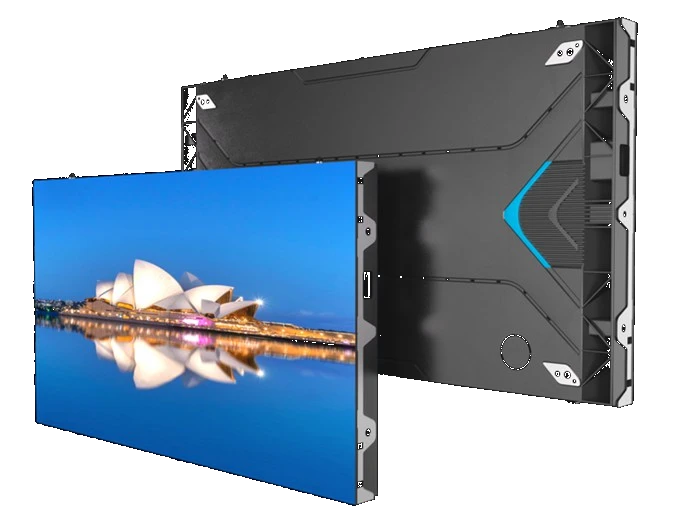

Two cabinet designs
600(w)mm×337.5(h)mm. 36mm thickness. 4.3kg/panel. Die-casting Aluminum
600(w)mm×337.5(h)mm. 57mm thickness. 5.6kg/panel. Die-casting Aluminum

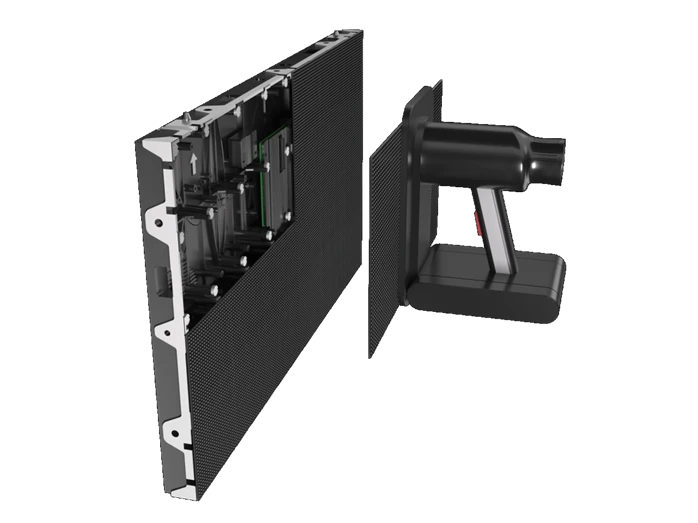

Fast Front Access
The power supply, receiving card, and module can be removed from the front side. This kind of concise and easy design allows removing and replacing modules fast in an emergency, especially when the technician wonders which part has issues. Fast problem-solving saves a large amount of labor costs.

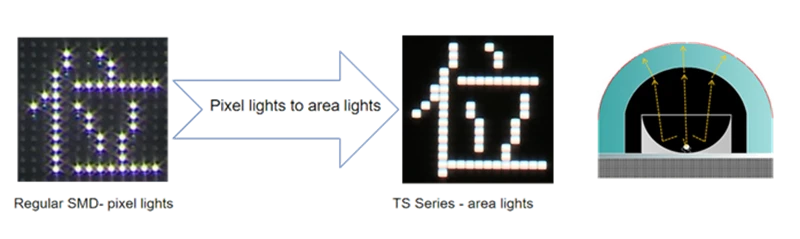

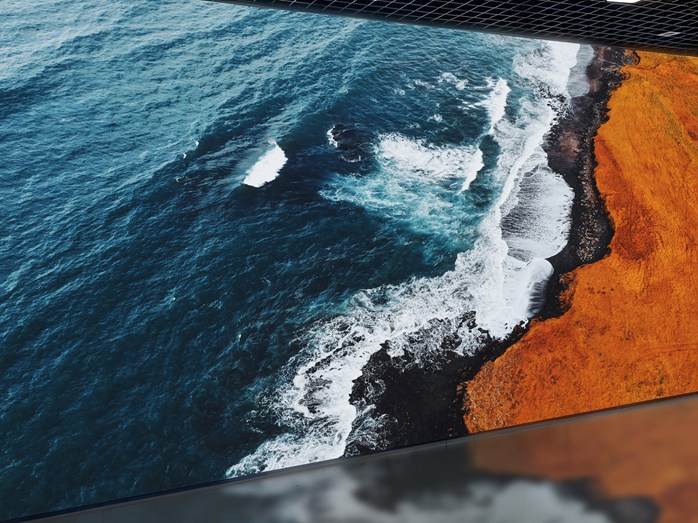

Zero Visual Gap
Compared with the traditional SMD panel, LED Display backdrop for Broadcasting and Tv Studio series changes from pixel light to surface light, which makes the picture light more uniform and soft. Ensure pixel continuity without visual gaps.
Blue light resistance
Usually, the brightness can reach 500 nits, and the color is realistic. At the same time, the bright and soft picture is achieved, and the screen definition is not dazzling. But also can effectively shield 90% of LED blue light damage.

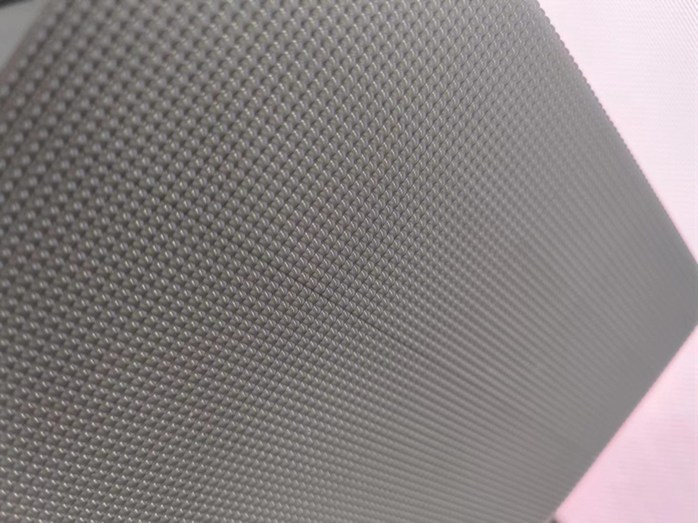

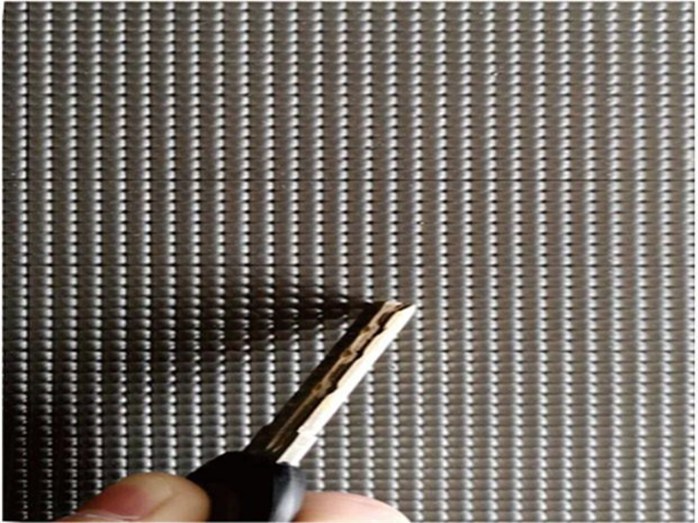

Anti-collision
A physical protective layer is applied to prevent the lamp beads.effectively solve the problem of traditional indoor LED display screen (water, dust and bumps). Also improve light utilization and enhance light contrast; The power consumption is reduced to one-third of that of small-pitch LEDs of the same area.
Easy to clean
Each lamp bead has a separate space to prevent static electricity damage and the screen can be wiped for easy cleaning. The entire structure is coated with a moisture-proof layer to safeguard the lamp beads and prolong their lifespan. The failure rate is extremely low. Even if a failure occurs, it can be solved through simple single-point maintenance, which improves usage efficiency and maintenance convenience.
No moire pattern
It enhances light utilization and converts it into eye-friendly comfortable lighting. Additionally, it effectively eliminates over 80% of moire patterns on the screen, achieving 100% in specific circumstances. This is a patented product that is specifically designed for use in television studios. It eliminates the moire pattern when taking photos.
7680Hz refresh rate， no screen flicker
LED screens for TV studios & broadcast series uses optical lens to improve the diffuse reflection effect, reduce screen flicker, and enhance user comfort. The high refresh rate ensures the smoothness of every frame of the images thus the LED display won’t appear flicking on the highspeed camera.
Grid display technology & independent shadowcasting structure design
This display uses advanced grid display technology (WGHL) and has a unique shadowcasting structure design to make the picture clearer and more realistic. Through subtle pixel arrangement, each image displays exquisite colors and precise details,transporting you into a vivid visual world. At the same time, the independent shadowcasting structure design not only ensures the stability of the display effect but also makes the visual experience more comfortable, making every moment you are immersed in it full of fun and surprises.

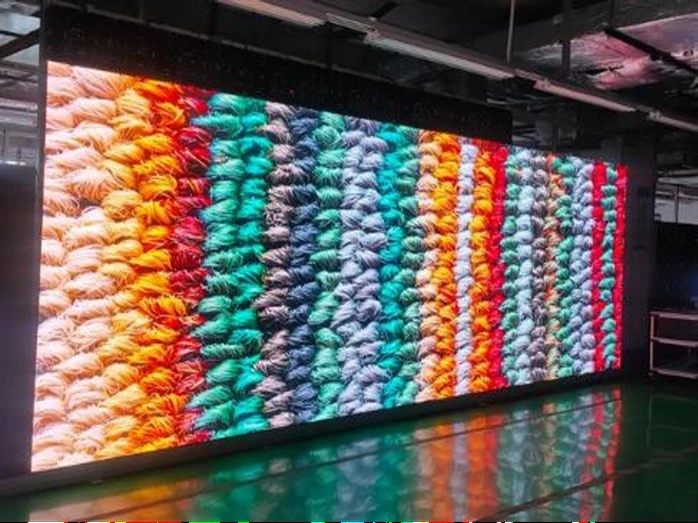

Super color restoration ability & high color gamut coverage
LED video walls for virtual productions series products stand out for their excellent color reproduction capabilities and wide color gamut coverage. These products can not only accurately restore the subtle changes of each color, allowing you to see colors in the real world, but also present more delicate, vivid, and clear pictures. For example, when you watch a movie, Led displays for TV, VR, XR Studio & Broadcast series products can make you feel the saturation and realism of the colors in every picture as if you are immersed in the scene. Moreover, the color gamut coverage of LED Display for TV Studio series products is so high that you are no longer limited by color limitations when viewing pictures or videos, but can see richer and richer color expressions, making your visual experience more enjoyable. Go up one floor. In short, TV Studio LED Display series products not only have super color restoration capabilities, but also have high color gamut coverage, bringing you an immersive visual feast.

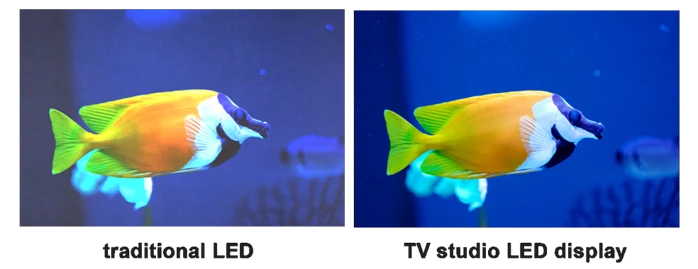

Excellent Color Contract Ratio
LED Display Solutions For Broadcasting And TV Room series utilizes a distinctive light emission method to achieve an exceptional contrast ratio exceeding 150,000:1. The resulting light is gentle and realistic, with colors adjusted to match those of actual objects. This high contrast ratio boosts visual sharpness, making colors appear more vivid and enhancing the overall viewing experience.
Low heat and low noise
All die-casting aluminum material is more durable and highly stable than traditional steel. Meanwhile, heat dissipation of die-casting aluminum is much better than others in the market. As the electronic components can be cooled down quickly, their lifespan will be longer. By utilizing its proprietary super power processing technology, the display can operate for 3 hours with the screen temperature increasing by no more than 3℃. With a fanless design and operating noise below 2 decibels, it relies on its aluminum structure to dissipate heat from the screen, providing customers with a peaceful environment.

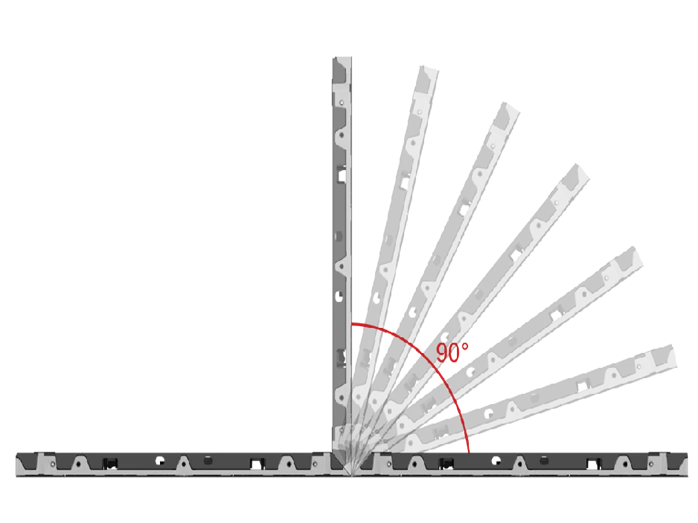

Customizable from multiple angles
0°-90° can be customized, and the display screen can perfectly fit any architectural curvature, creating a seamless, integrated, wrap-around visual experience.
Cleaning method
To clean the surface of the module, please use a soft-bristled brush and brush gently. It is prohibited to use any liquid substance to clean the module surface, otherwise it may damage the Curved LED Screen TV Studio Background series products.
Application Files

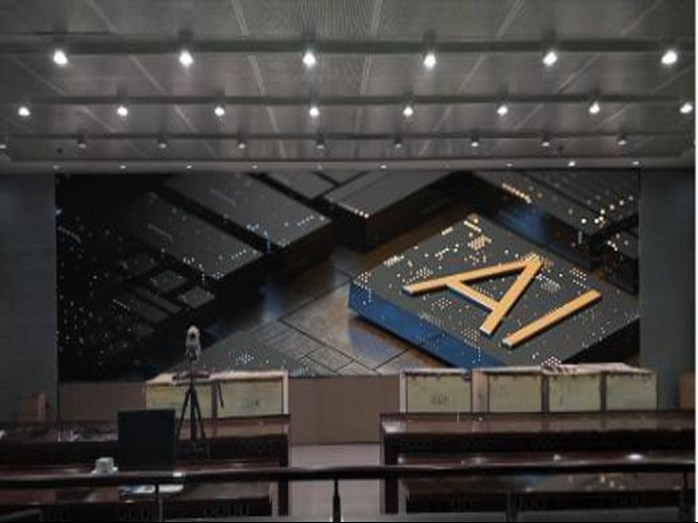

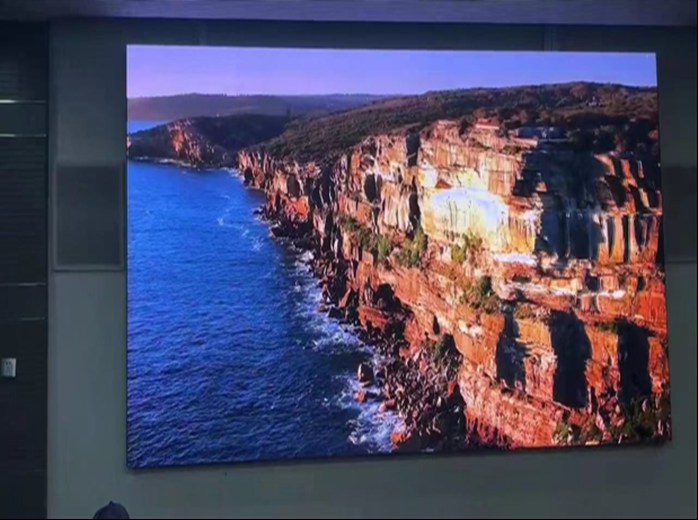

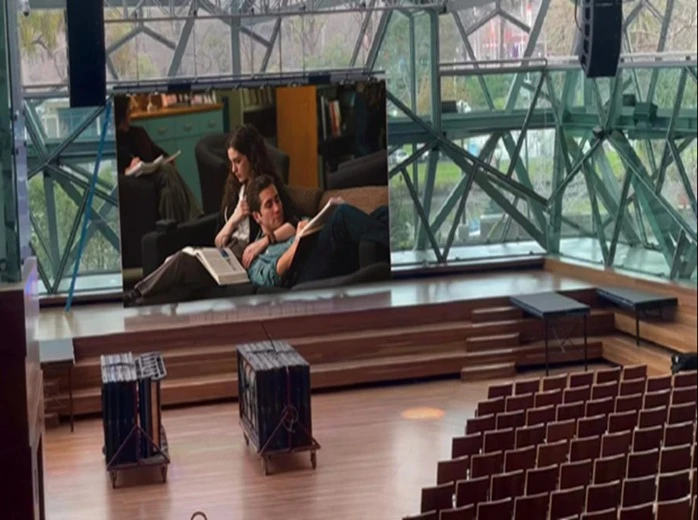

TV Studio. Commercial film and television. Conference room. Exhibition hall. Classroom
HD LED Display Screen virtual productions LED Video Wall backdrop for Broadcasting and TV Studio Parameter
| Item | P1.875 |
|---|---|
| Pixel Pitch | 1.875mm |
| LED Type | Mirco COB |
| Module Resolution | 160dots×90dots |
| Driving Mode | 1/54scan |
| Module Pixels | 14,400dots |
| Module Size | 300mm×168.75mm |
| Cabinet Size | 600mm×337.5mm |
| Cabinet Resolution | 320dots×180dots |
| Pixel Density | 284,444dots/㎡ |
| Minimum Viewing Distance | ≥1.875 m |
| Brightness | 500nits |
| IP Grade | IP50 |
| Refresh Rate | 3840Hz |
| Gray Scale | 16bits |
| Viewing Angle | H:170° / V:170° |
| Maximum Power Consumption | 680W/m² |
| Average Power Consumption | 100W/m² |
| Input Voltage | AC110V-220V@ 50Hz/60Hz |
| Operating Temperature | ﹣20℃～60℃ |
| Operating Humidity | 10%~90% |
| Cabinet Material | Die-casting Aluminum |
| Cabinet Weight | 4.3kgkg/panel or 5.6kg/panel |
| Operating System | Windows (Win7, Win8, etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
Additional information
| Weight | 35 kg |
|---|
