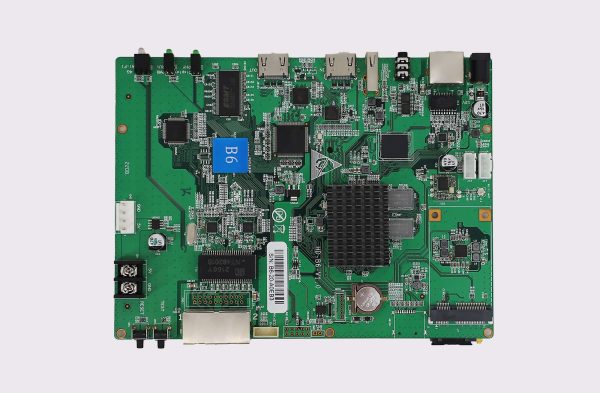

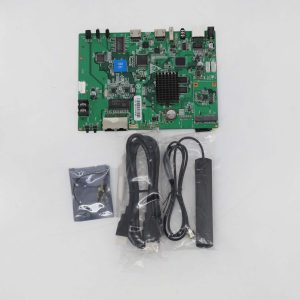

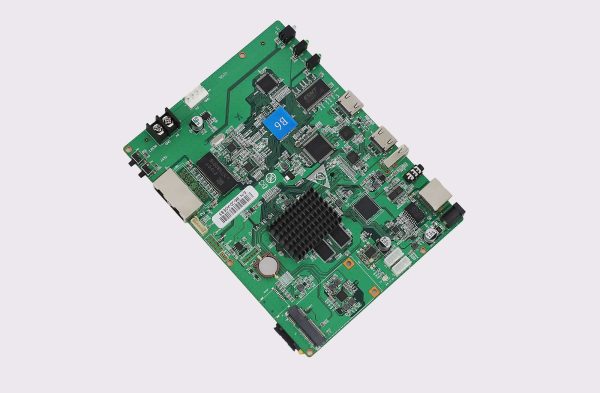

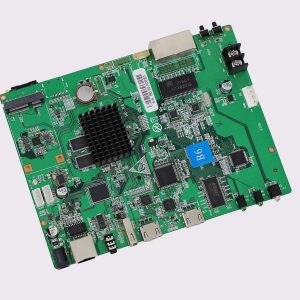

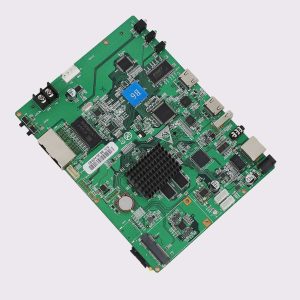

HUIDU HD-B6L Advertising Machine Splicing Special Control Card

Module Type

Compatible with   indoor and outdoor full color and single color module

Support   conventional chip and mainstream PWM chip

Scan Mode

Static to 1/64 scan mode

Control Range

One B6 control range: 1.3 million pixel, widest 3840,   highest 2048;

HDMI multiple B6   splicing control range: 2.3   million pixel, widest 3840, highest 4096.

Gray Scale

256-65536 (adjustable)

Basic Functions

Video, Pictures,   Gif, Text, Office, Clocks, Timing, etc.

Remote,   Temperature, Humidity, Brightness, PM Value, etc.

Support   Synchronized picture auto-zooming, Playing live screen without video   processor.

Video Format

HD video hard decoding, 60Hz frame rate output.

AVI, WMV, RMVB, MP4, 3GP, ASF, MPG, FLV,   F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.

Image Format

Support BMP, GIF, JPG, JPEG, PNG, PBM, PGM, PPM, XPM, XBM, etc.

Text

Text editing, Image, Word, Txt, Rtf, Html, etc.

Document

DOC, DOCX, XLSX, XLS, PPT, PPTX, etc.

Office2007   Document format

Time

Classic Analog Clock, digital clock and various of   clock with image background

Audio output

Double track stereo audio output

Memory

8GB   Flash Memory, Expanding memory by U-disk

Communication

100M/1000M RJ45 Ethernet,   Wi-Fi, 3G/4G, LAN, USB

Working Temp

-40℃-80℃

Port

IN：12V Power Adapter*1, 1Gbps   RJ45*1, USB 2.0*1, Test Button*1, GPS, 4G(Optional), Sensor port*1, HDMI*1

OUT：1Gbps RJ45*1，AUDIO*1，HDMI*1

Power

18W
