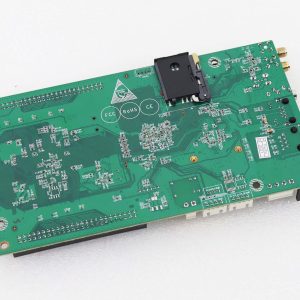

HUIDU HD-C36 HD-C36C HD-C16L Full Color Asynchronous LED Screen Control Card - Image 1

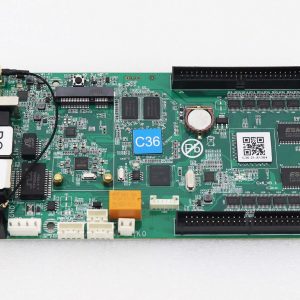

HUIDU HD-C36 HD-C36C HD-C16L Full Color Asynchronous LED Screen Control Card - Image 2

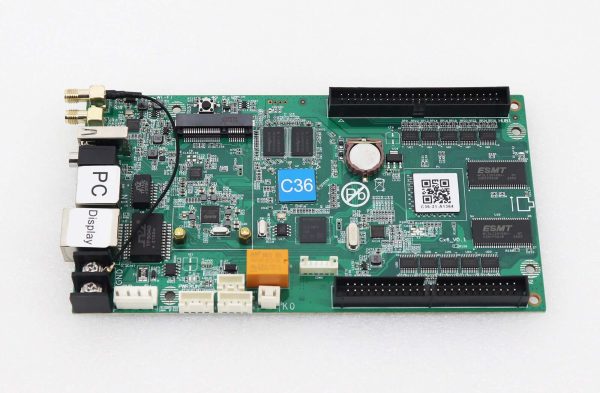

HUIDU HD-C36 HD-C36C HD-C16L Full Color Asynchronous LED Screen Control Card - Image 3

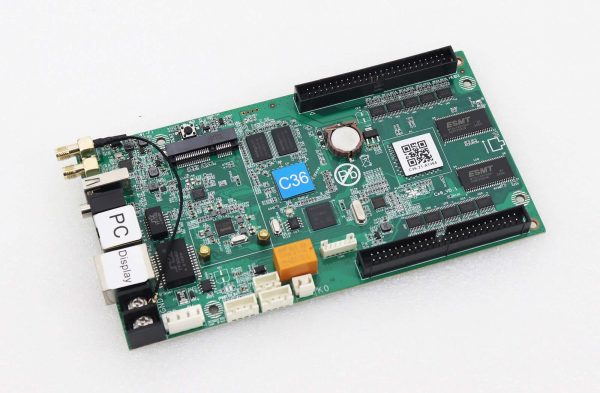

HUIDU HD-C36 HD-C36C HD-C16L Full Color Asynchronous LED Screen Control Card - Image 4

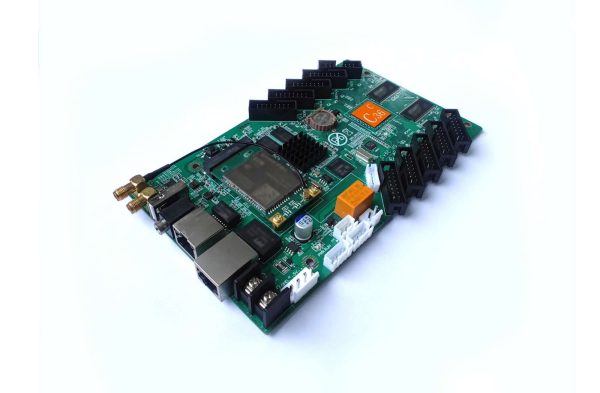

HUIDU HD-C36 HD-C36C HD-C16L Full Color Asynchronous LED Screen Control Card - Image 5

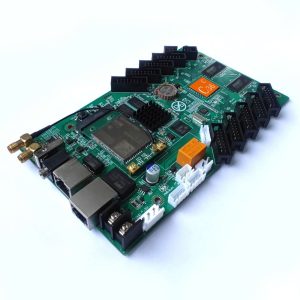

HUIDU HD-C36 HD-C36C HD-C16L Full Color Asynchronous LED Screen Control Card - Image 6

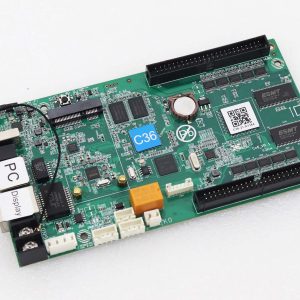

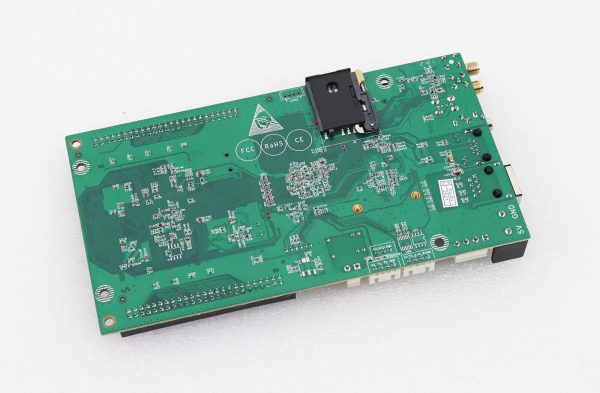

HUIDU HD-C36 HD-C36C HD-C16L Full Color Asynchronous LED Screen Control Card

HUIDU-HD-B6L Dual-mode LED Display Screen Control Card
Huidu HD-D15 HD-D16 Asynchronous Controller Card for LED Screen Display

HUIDU HD-C36 HD-C36C HD-C16L Full Color Asynchronous LED Screen Control Card

$80.00 – $143.00

In stock
0 out of 5

$80.00 – $143.00

HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card Features： Control Range: 524,288 pixels. 4GB memory, support expending memory by U-disk. Support HD video hardware decoding, 60Hz…

SKU: 6941773660351 Category: Tag:
Add to wishlist

Description

HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card Features：

  • Control Range: 524,288 pixels.
  • 4GB memory, support expending memory by U-disk.
  • Support HD video hardware decoding, 60Hz frame rate output.
  • Support widest 8192 pixel, Highest 1024.
  • No need set IP address, it could be identified by controller ID automatically.
  • Unified management of more LED display through Internet or LAN.
  • Come wiht Wi-Fi, Mobile APP management.
  • With a relay to control the power supply remotely.
  • Equipped 3.5mm standard audio interface output.
  • Support 4G connect to Internet (Optional).
  • HD C36 is equipped with 2-wire 50PIN HUB, which can be used for a receiving card.

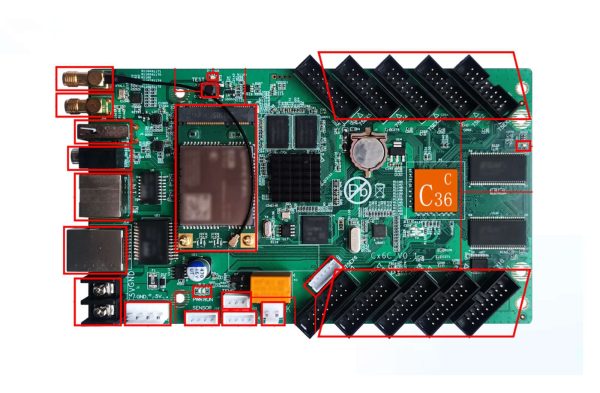

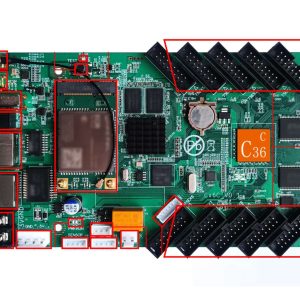

  • HD C36C is equipped with 10-wire HUB75E, which can be used for a receiving card.

 HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card Control Mode：

  1. Internet unified management: The play box can be connected to the Internet through 4G (optional), network cable connection, or Wi-Fi Bridge.
  1. Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN (cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.

HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card Parameter:

Function Parameters
Module type Compatible   with indoor and outdoor full color and single color module

Support   conventional chip and mainstream PWM chip
Scan Mode Static to 1/64 scan mode
Control   Range 1024*512, widest 8192, highest 1024
Gray Scale 256-65536
Basic   functions Video, Pictures, Gif, Text, office,   Clocks, Timing etc.

Remote, Temperature, Humidity,   Brightness etc.
Video format Support 1080P HD video hardware   decoding, direct transmission, without transcoding waiting.

60Hz frame frequency   output；

AVI,   WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.
Image Format Support BMP, GIF, JPG, PNG, PBM, PGM, PPM,   XPM, XBM etc.
Text Text editing, Image, Word, Txt, Rtf,   Html etc.
Document DOC, DOCX, XLSX, XLS, PPT, PPTX etc. Office2007Document   format.
Time Classic Analog clock, digital clock and   of clock with image background.
Audio output Double track stereo audio output.
Memory 4GB Flash memory; Indefinite   expanding of U-disk memory.
Communication Ethernet LAN port, 4G network (optional),   Wi-Fi, USB.
Working   Temperature -20℃-80℃
Port INPUTS: 5V DC*1, 100 Mbps RJ45*1, USB 2.0*1, test   button*1, sensor port*1, GPS port*1.

OUT:1Gbps RJ45*1, AUDIO*1
Power 8W



Additional information

Weight 0.3 kg
Model Number

HD-C36, HD-C36 with 4G module, HD-C36C, HD-C36C with 4G module
