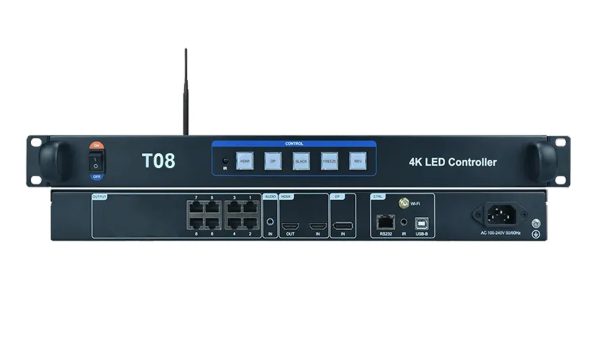

Huidu HD-T08 4K Synchronous LED Display Controller HD-T16 HD-T902x2 T902x1 HD-T901 HD-T901B

Description

HD-T08 (T08 for short) is a transmitter with powerful video signal reception capabilities, supporting either DP1.4 or HDMI 2.0 source inputs. It supports a maximum of 5.2 million pixels, a maximum width or height of 8192 pixels, and a maximum of 4096×2160@60Hz 4K video signal input, which can greatly meet the configuration requirements of ultra-long, ultra-high and ultra-large screens on site. Integrated 8 Gigabit network port output, can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that need synchronous playback, while T08 is equipped with Wi-Fi function as standard, supporting wireless control of PC software.

Product Features

Input:
 Support 1channel of DP 1.4, 1 channel of HDMI 2.0signal input, two video signals can be switched arbitrarily;
 Support 1 TRS 3.5mm standard two-channel audio input, can be connected to a multi-function card to transmit audio.
Output:
 Standard configuration of 8 Gigabit Ethernet ports, directly cascaded to the receiving card;
 1 channel HDMI OUT, used for display screen program preview;
 The maximum control is 5.2 million pixels, the maximum horizontal support is 8192 pixels, and the maximum vertical support is 8192 pixels.
Function:
 Support 4096×2160@60Hz synchronous signal input, point-to-point display;
 Standard Wi-Fi, support PC software wireless control;
 Support key black and freeze function;
 Support multiple units seamless splicing;
 Support infrared remote control (optional).

Connection Diagram
