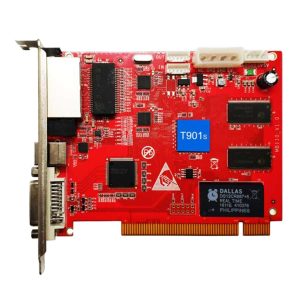

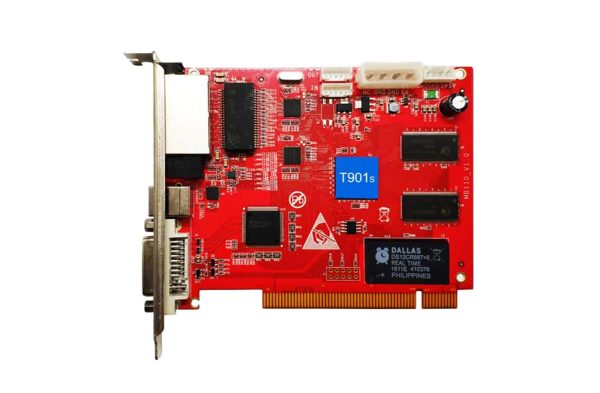

HUIDU HD-T901S HD-T902x2 T902x1 HD-T901 LED screen synchronous sending card
Original price was: $124.00.$100.00Current price is: $100.00.
HUIDU HD-T901S LED screen synchronous sending card Features： 1. Support 1~64 scan, compatible with indoor and outdoor full color and single color module. 2. Control range: 1.3 million pixels,…
- Description
- Additional information
Description
HUIDU HD-T901S LED screen synchronous sending card Features：
1. Support 1~64 scan, compatible with indoor and outdoor full color and single color module.
2. Control range: 1.3 million pixels, the widest 3840, and the highest 2048.
3. One DVI video input.
4. Supports up to 65536 grayscale level.
5. Support cascading with serial port to configure multiple sending cards, support sending card cascade to control screen in high resolution.
HUIDU HD-T901S LED screen synchronous sending card Parameters
| Function | Parameters |
| Module type | Compatible with indoor and outdoor full  color and single color module;
Support PWM Â chips and conventional chip |
| scanning method | Supports  any scanning method from static to 1/64 scan |
| Control range | 1280*1024@60Hz, 1024*1200@60Hz, Â 1600*730@60Hz, 1920*640@60Hz,
2048*640@60Hz, 3840*340@60Hz, 512*2048@60Hz 2048*1024@30Hz, 1600*1170@30Hz,  1920*1024@30Hz, 3840*546@30Hz, 1024*2048@30Hz etc. |
| Grayscale | Support  0-65536 level adjustable |
| Program update | DVI Â synchronous display |
| Temperature of working environment | -20℃-80℃ |
| interface | Input: 5V power supply terminal, DVIx1, USB 2.0 Â x1, PCI finger x1, serial cascade x1, Audio x1
Output: 1000M RJ45 x2, serial for cascadingx1 |
| Power | 5W |
Additional information
| Weight | 0.8 kg |
|---|
