Huidu HD-VP410S 3-in-1 LED Display Video Processor HD-1620C/1220C HD-VP4060/3060 HD-VP2060 HD-VP1640AV1240A HD-820AV620A HD-VP830/630 HD-VP820/620 HD-VP410H/210H HD-VP410S/210S HD-KV4101210

Description

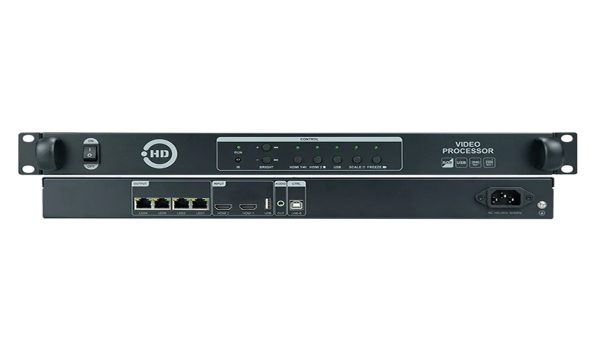

HD-VP410S is a three-in-one video processor that integrates traditional video processor, 4-way Gigabit network port output, and U disk playback functions. It not only simplifies the construction of the on-site environment, but also improves the reliability of the product. It supports 2 channels of synchronous signal input and 1 channel of USB input, and can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that require synchronous playback; in addition, the device also supports point-to-point input/output to allow the LED display to display A clearer picture.

Connection Diagram

Features

Input
 Supports 2 channels of HDMI, which can be switched at will;
 1 channel USB input supports direct playback of videos and pictures in various mainstream formats in the root directory of the USB flash drive, and supports up to 1920×1080@30Hz high-definition video playback;
 Supports 2 channel HDMI audio input (choose one of two playback).
Output
 Comes standard with 4-way Gigabit network ports, which can be directly cascaded to the receiving card;
 The maximum loading capacity is 2.6 million pixels, with a maximum width support of 3840 pixels or a maximum height support of 2500 pixels;
 1 channel TRS 3.5mm standard two-channel audio output.
Features
 Support limited transfer to complete;
 Support one-touch brightness adjustment;
 Supports locking buttons to prevent misuse of the display from causing abnormalities;
 Video signals can be switched, cropped, and zoomed arbitrarily;
 Support infrared remote control (optional).
