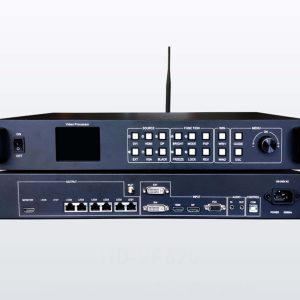

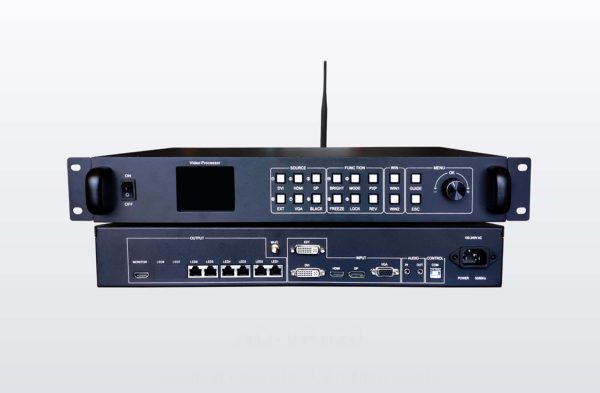

HUIDU HD-VP620 powerful two-in-one LED video processor
Original price was: $420.00.$272.00Current price is: $272.00.
HUIDU HD-VP620 powerful two-in-one LED video processor Features：1）Integrated video processing, sending card function, 6 gigabit network port output, total pixels 3.9 million points；2）5-channel high-definition digital and analog video…
- Description
- Additional information
Description
HUIDU HD-VP620 powerful two-in-one LED video processor Features：
1）Integrated video processing, sending card function, 6 gigabit network port output, total pixels 3.9 million points；
2）5-channel high-definition digital and analog video input, up to 4K@60Hz input；
3）Multiple audio input and output；
4）Support dual pictures PIP、POP；
5）Free switching of any channel；
6）Parameter setting and saving function, scene preset saving and recall；
7）”Navigation Settings” function, convenient for quick settings；
8）The “connection setting” function no need computer control, and directly sets the connection parameters of each cabinet through the panel buttons;
9）The device can be debugged and controlled through panel buttons, USB, Wi-Fi (mobile APP, developing)
HUIDU HD-VP620 powerful two-in-one LED video processor Parameter:
| Function | Parameter |
| DVI Input | Interface form: DVI-I socket
Signal standard: DVI1.0 Resolution: VESA standard, PC to 1920×1080, HD to 1080p |
| HDMI Input | Interface form: HDMI-A
Signal standard: HDMI2.0 backward compatible Resolution: VESA standard,≤3840×2160@60Hz |
| DP Input | Interface form ：DP
Signal standard:DP1.2backward compatible Resolution: VESA standard,≤3840×2160@60Hz |
| VGA Input | Interface form: DB15 socket
Signal standard: R, G, B, Hsync, Vsync: 0 to 1Vpp ± 3dB (0.7V Video + 0.3v Sync ) 75 ohm black level: 300mV Sync-tip: 0V Resolution: VESA standard,≤1920×1080p@60Hz |
|
EXT Input |
DVI or SDI，Default standard DVI |
| AUDIO IN | Input x1，3.5mm audio port |
| AUDIO OUT | Output x1，3.5mm audio port |
| Network port Output | 6-way network port output interface，connected to the acceptance card，total pixels 5.2 million，Widest 8000 dots, Highest 3840dots. |
| MONITOR | Synchronous monitoring of HDMI output interface, external LCD display，1920×1080@60Hz |
| Square USB port (Type B) | Connect to the PC, debug the parameters of the sending card and receiving card, and program upgrades through HDSet software. |
| Wi-Fi | Support mobile phone APP for sending card, receiving card parameter debugging, program upgrade, etc.— developing |
| Power interface | 100-240V~50/60Hz |
| Whole machine power | <=75W |
| Weight | <=3.6kg |
| Size（mm） | Case size：（Length）482mm*（width）302.8mm*（hight）65.5mm |
| Machine case | 1.5U standard industrial chassis |
Download Specification
Additional information
| Weight | 7 kg |
|---|
