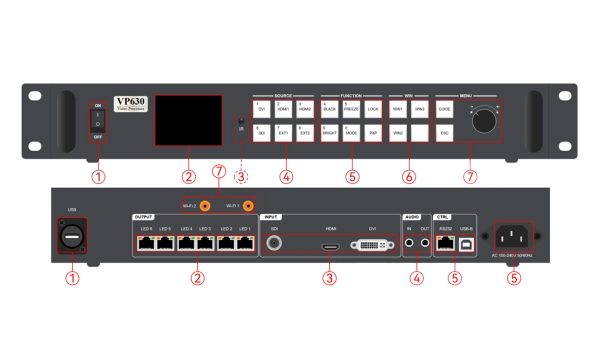

Huidu HD-VP630-TP 2-in-1 LED Display Video Processor HD-1620C/1220C HD-VP4060/3060 HD-VP2060 HD-VP1640AV1240A HD-820AV620A HD-VP830/630 HD-VP820/620 HD-VP410H/210H HD-VP410S/210S HD-KV4101210

Description

HD-VP630-TP is a new architecture LED display 2-in-1 video processor, integrated with 6 Gigabit Ethernet port outputs, supports three-screen arbitrary display; standard Wi-Fi function, supports mobile phone APP wireless control and computer wireless debugging, supports mobile phone/tablet wireless screen projection; has 1 HDMI, 1 SDI and 1 DVI signal input, multiple synchronous signals support seamless switching, can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that require synchronous playback.

Connection Diagram

Features

Input
 Support 1 HDMI, 1 DVI, 1 SDI, multiple video signals seamless switching;
 Support 1 TRS 3.5mm standard two-channel audio input and HDMI audio input.
Output
 6 Gigabit Ethernet ports as standard, directly cascade receiving card;
 Maximum control of 3.9 million pixels, maximum horizontal support of 8192 pixels, maximum vertical support of 4096 pixels;
 1 TRS 3.5mm standard dual-channel audio output.
Features
 Wi-Fi as standard, support mobile phone APP wireless control;
 Infrared wireless remote control function as standard;
 Support RS232 centralized control (connect to central control device);
 Support instant storage technology, automatic parameter saving;
 Support brightness adjustment and key lock function;
 Support 8 scene presets and calls;
 Support three-screen display, support picture-in-picture (PIP) and picture-out-picture (POP) functions.

Download Specification:
Huidu HD-VP630-TP 2-in-1 video processor Specification(Chinese)
