HuiDu HD-VP830 Two-in-one Full Color LED Screen video processor

Description

HuiDu HD-VP830 Two-in-one Full Color LED Screen video processor features:

enter
1. Support 2 channels of HDMI, 1 channel of DVI, 1 channel of SDI, seamless switching of multiple video signals;
2. Support 1 TRS 3.5mm standard two-channel audio input and HDMI audio input.

output
3. Equipped with 8 Gigabit Ethernet ports as standard, directly cascaded to the receiving card;
4. The maximum control is 5.2 million pixels, the maximum horizontal support is 8192 pixels, and the maximum vertical support is 4096 pixels;
5.1 TRS 3.5mm standard two-channel audio output.

Function
1. Standard Wi-Fi, support mobile phone APP wireless control;
2. Standard infrared wireless remote control function;
3. Support RS232 centralized control (connect to central control equipment);
4. Support instant saving technology, parameters are automatically saved;
5. Support brightness adjustment and key lock function;
6. Support 8 scene presets and calls;
7. Support three-screen display, support picture-in-picture (PIP) and picture-outside-picture (POP) functions

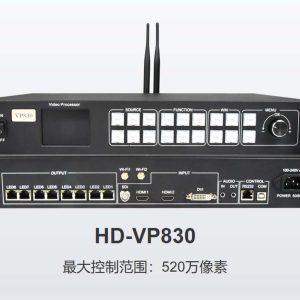

Most picttures of HuiDu HD-VP830 Two-in-one Full Color LED Screen video processor:

Download Specification:
HuiDu HD-VP830 2-in-1 Full Color LED Screen Video Processor Specification
