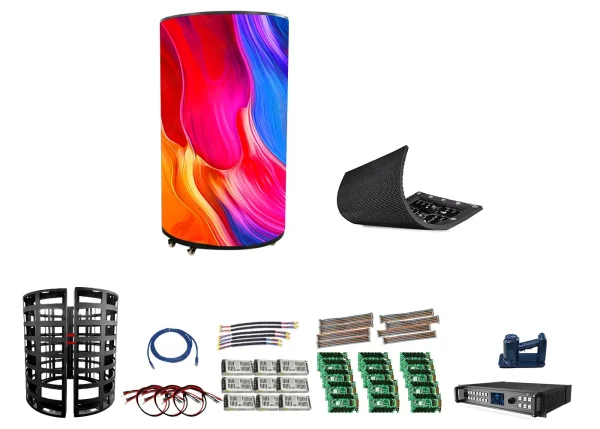

Indoor Cylinder LED Screen Soft Flexible LED Display
$451.00

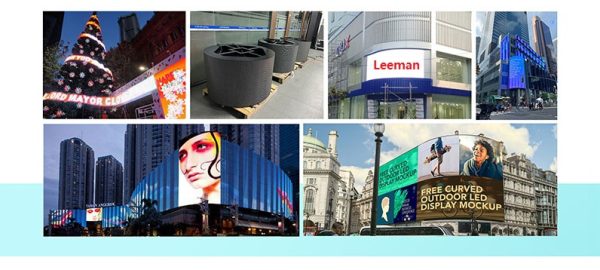

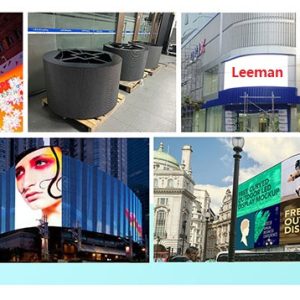

P0.9 P1.25 P1.5 P1.8 P2 P2.5 Indoor Cylinder LED Screen Soft Flexible LED Display 240×120 320×160 flexible led modules, widely used for airports, shopping malls, science exhibitions, concerts, theaters, television studios, creative exhibition halls,nightclubs,weddings and other multimedia fields.
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
Arc installation
High Flexibility
Magnetic Suction Installation
Front Maintenance
Die Cast Aluminum
Low Power Consumption
Advantages
Feature Description
- – Soft silicone back shell High contrast ratio
- – Ultra-light and ultra-thin
- – 160° Wide Viewing angle
- – Remain picture clearly & seamless, no delay
- – Simple & fast to maintain
Video
Parameters
Module Specs

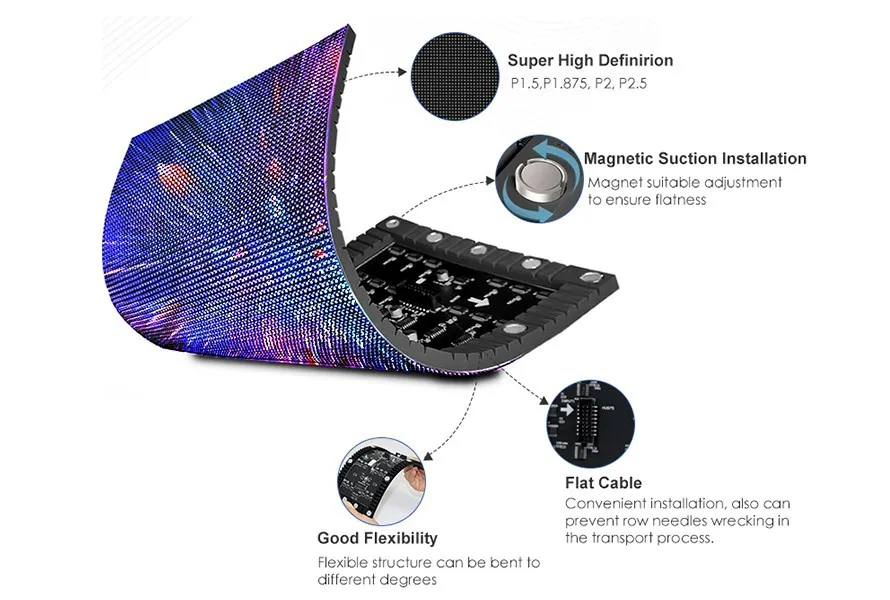

The dimensions of flexible led modules are 240 * 120 (mm) and 320 * 160 (mm). These modules will be the basic elements to build the entire screen.
Magnetic suction installation
Magnet suitable adjustment to ensure flatness
Paste by Magnets,Easy installation
There’re multiple strong magnets on rear of each module. You need to just paste on the frame surface during the assembly process.When the frame surface is uneven and there is a gap, it allows us to adjust flexibly. We can also easily remove the module and restore it back.
Installation
Installation steps
Various installation mode
Aging test
Indoor Cylinder LED Screen Soft Flexible LED Display Specifications
| Pixel pitch | P1.56 | P1.875 | P2 | P2.5 |
| Module size/mm | 320*160 | 320*160 | 320*160 | 320*160 |
| Weight | 190g | 170g | 170g | 170g |
| Color | 1R1B1G | 1R1B1G | 1R1B1G | 1R1B1G |
| Modulator tube | SMD1010 | SMD1010 | SMD1010 | SMD1515 |
| Resolution | 409600 | 284444 | 250000 | 160000 |
| View angle | 140° | 140° | 140° | 140° |
| Brightness cd/m² | 800-1200 | 800-1200 | 800-1200 | 800-1200 |
| Best view distance/m | >1.56 | >1.875 | >2 | >2.5 |
| Frame rate | ≥60/sec | ≥60/sec | ≥60/sec | ≥60/sec |
| Protective Grade | IP31 | IP31 | IP31 | IP31 |
| Drive mode | Dynamic scan | Dynamic scan | Dynamic scan | Dynamic scan |
| Refresh rate/Hz | 3840 | 3840 | 3840 | 3840 |
| Scan Mode/s | 1/48 | 1/32 | 1/32 | 1/32 |
| Maximum power w/m² | 700 | 700 | 700 | 700 |
| Average power w/m² | 350 | 350 | 350 | 350 |
| Working temperature | -15℃~+40℃ | -15℃~+40℃ | -15℃~+40℃ | -15℃~+40℃ |
| Storage Humidity | -25%~+70% | -25%~+70% | -25%~+70% | -25%~+70% |
| Controlling system | Synchronous | Synchronous | Synchronous | Synchronous |

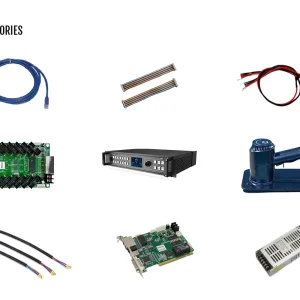

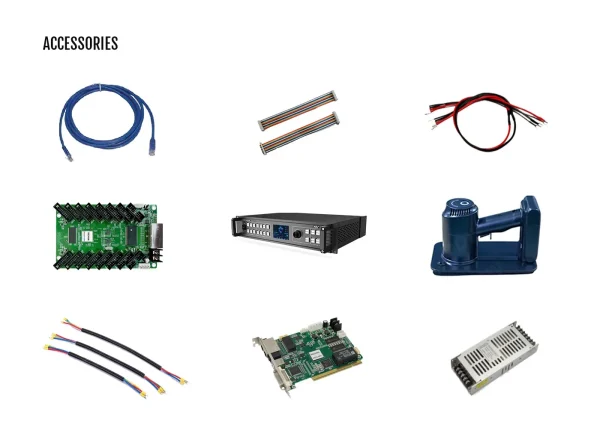

Accessories
Sending box
Power Supply
LED suction cup
Receiving card
Video processor
Power cable-Flat cable
CAT cable 5V Power-cable
Power cabinet
Additional information
| Weight | 50 kg |
|---|
