Indoor Interactive LED Dance Floor Panels Display
$285.00
- Description
- Additional information
Description
Interactive LED Dance Floor Screens
Indoor Floor Tile LED Screen-P2.5, P2.6, P2.9, P3.9, P4.8,P5.2,P6.25
Stable mask
Interactivity
IP54
High load-bearing capacity
Fast and Easy Maintenance
900nits-1500nits
3840Hz ~ 7680Hz
14bits~22bits
Product Description

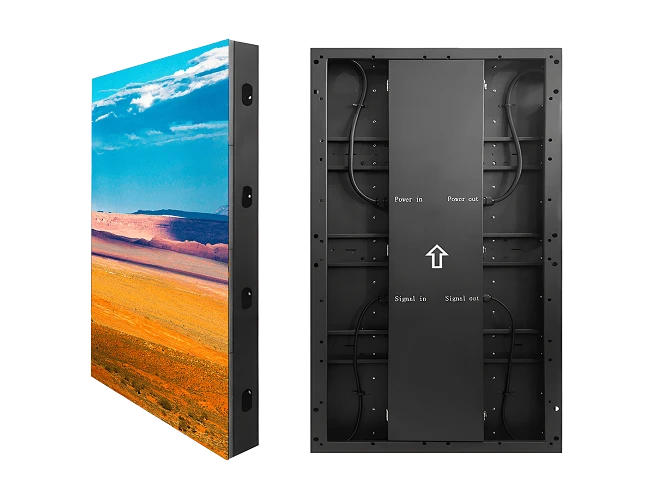

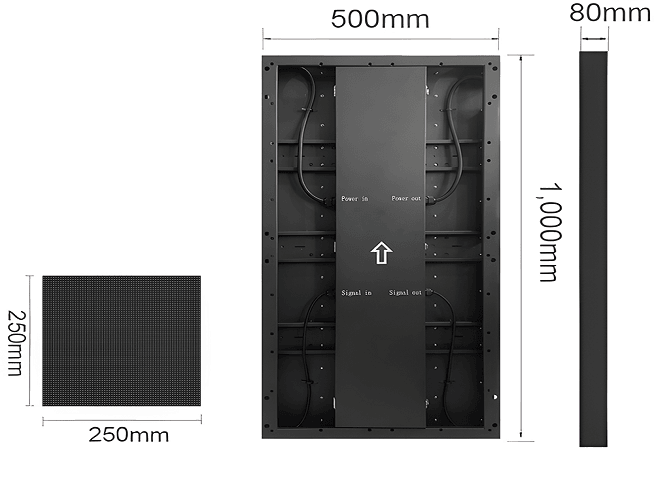

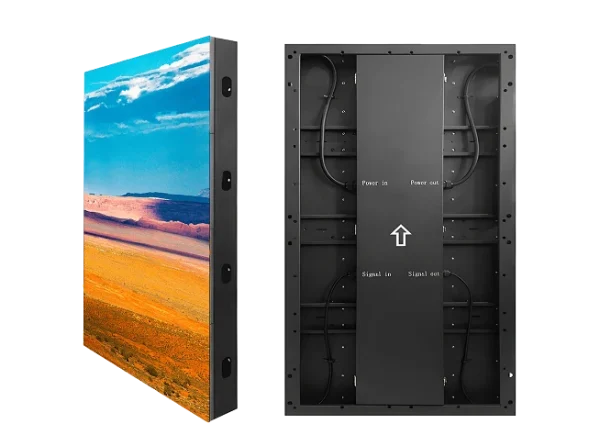

Slim and lightweight design
The iron cabinet only weights 23kgs which is lighter than conventional cabinets in the market. Thickness 80mm, lighter cabinets provide more convenience for installation and maintenance. 0.5m by 1m panel size can be easily assembled into big screen of different dimensions.

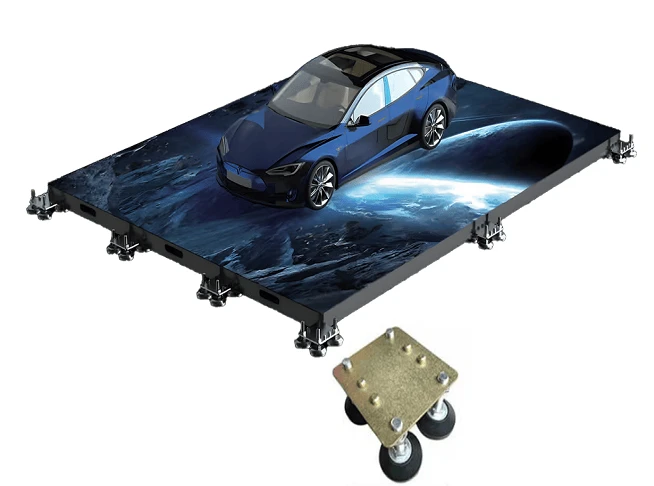

High Load-bearing Capacity
Each square meter can bear 2200kg, it has excellent load-bearing performance thanks to 1)the cabinet material is strong, and the board is 1.5, 2)multilayer subdivision PC mask is used, 3)one cabinet with 4 adjustable feets which support adjustable height: 130mm-170mm. Special reinforcement structure and wire buckle design greatly enhance the stability of the cabinet.

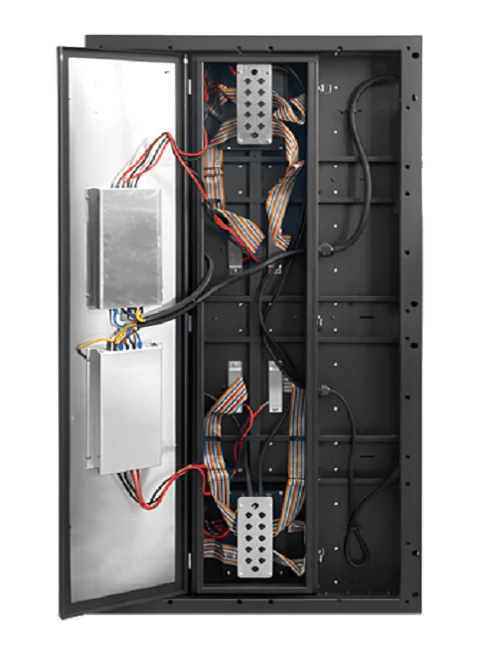

Good heat dissipation
The back cover of cabinet and power box are made of aluminum, which makes the cabinet more durable and highly stable. Meanwhile, heat dissipation of aluminum is much better than other materials in the market. As the eletronic components can be cooled down quickly, their lifespan will be longer.

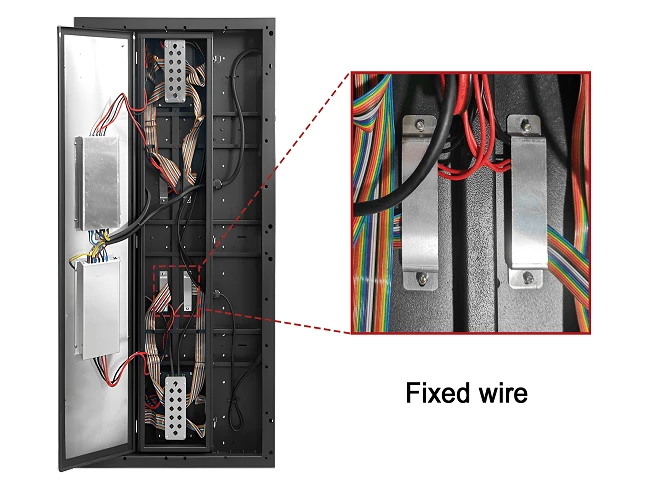

Patch design to fix cables
Each cabinet has patches for fixing cables.The vibration generated when stepping on the screen will not cause the wire to loosen. And the inner layout will be neater.

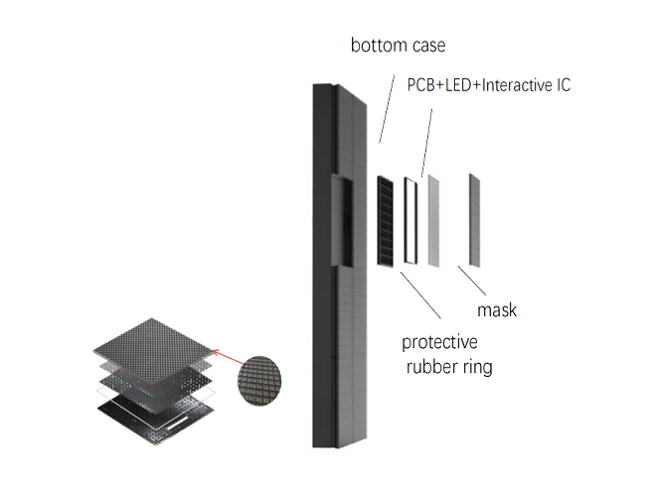

Strong PC Mask Design
1)Using private mode anti-scratch mask. 2)The mask convex design enhances the wear resistance and scratch resistance of the module surface. 3)IP54 Protective rubber ring enhances waterproof performance. 4)Enough distance reserved between the LEDs and the mask so the LEDs won’t be influenced when people standing on. 5)Multilayer subdivision PC mask is stronger to realize high protection level.

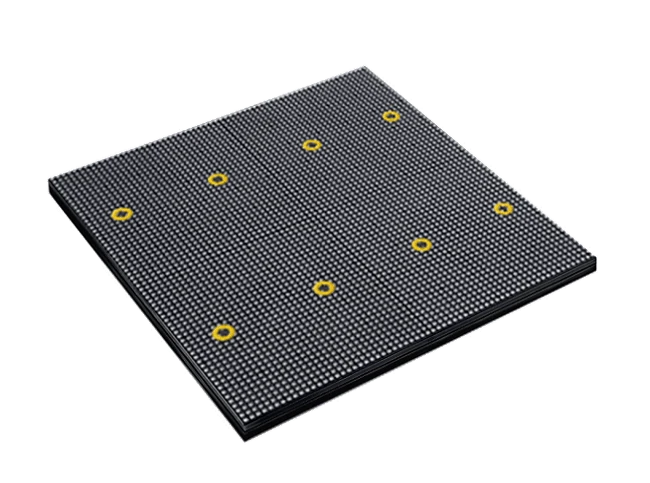

Interactive Induction
One module has 8 built-in chips to achieve the fast response time: 0.016s.Adjustable sensitivity. The reaction speed and time can be changed on the software according to different needs. The response speed of the built-in chip is much faster than that of the radar sensor.

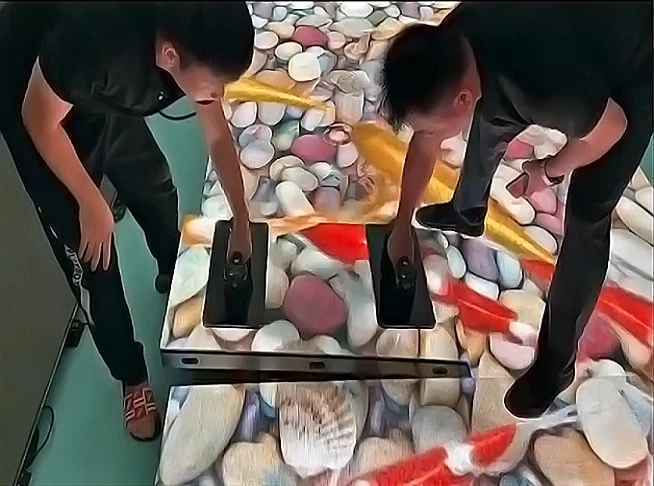

Cabinet Front Maintenance
Magnetic suction cabinet design, supporting arbitrary removal of the cabinet without affecting the normal operation of other parts. Also it’s more convinent for replacing the modules.
High brightness up to 1500nits
Unlike the regular indoor screens only reach 800nits brightness, our product can reach 1500nits since we use outdoor LEDs. And it has better moisture resistance.

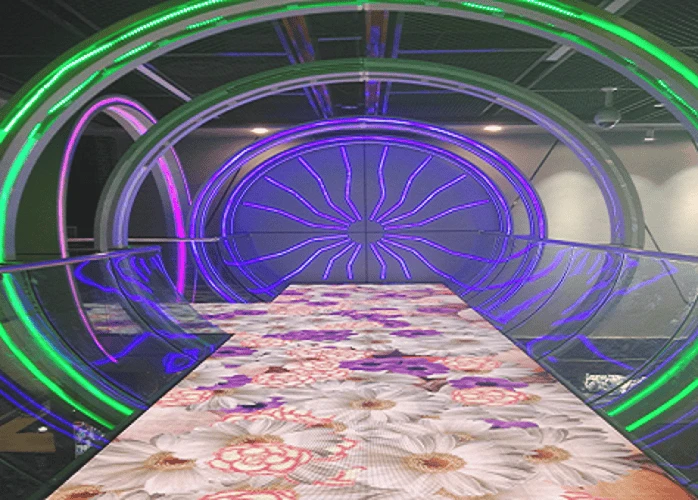

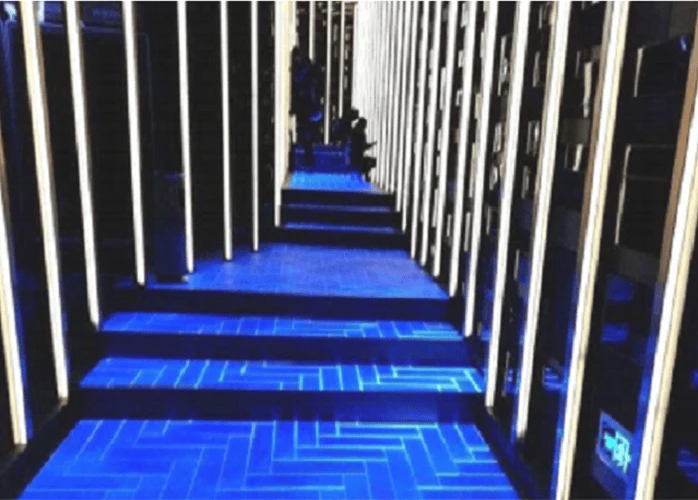

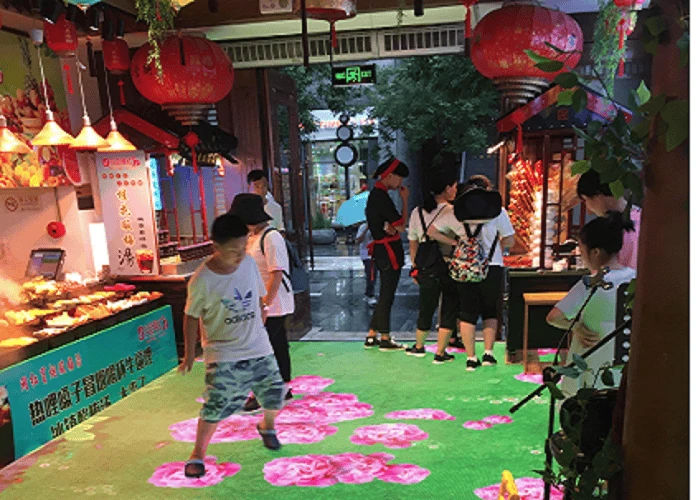

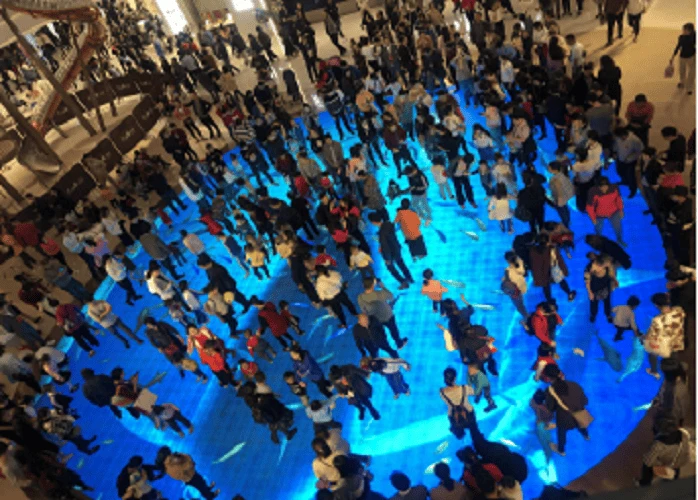

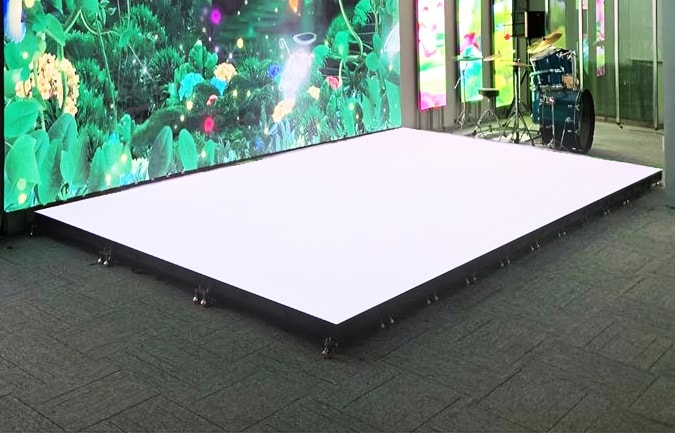

Application Files
This indoor LED panel is usually be used for:
Shopping Mall; Hotel and Restaurants; Exhibition Center; Entertainment Center.etc.
Indoor GOB Interactive Stage Dance Floor LED Display Parameter
| Item | P2.5 | P2.6 | P2.9 | P3.9 |
|---|---|---|---|---|
| Pixel Pitch | 2.5 | 2.6 | 2.976 | 3.91 |
| LED Type | SMD1415 | SMD1415 | SMD1415 | SMD1921 |
| Module Resolution | 100dots x 100dots | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots |
| Driving Mode | 1/21scan | 1/21scan | 1/21scan | 1/16scan |
| Module Pixels | 10000dots | 9216dots | 7056dots | 4096dots |
| Module Size | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm |
| Cabinet Size | 500mm x 1000mm | 500mm x 1000mm | 500mm x 1000mm | 500mm x 1000mm |
| Cabinet Resolution | 200dots x 400dots | 192dots x 384dots | 168dots x 336dots | 128dots x 256dots |
| Pixel Density | 160000dots/㎡ | 147456dots/㎡ | 112896dots/㎡ | 65536dots/㎡ |
| Minimum Viewing Distance | ≥2.5m | ≥2.6m | ≥2.9m | ≥3.9m |
| Brightness | 900nits-1500nits | 900nits ~1500nits | 900nits~1500nits | 900nits~1800nits |
| IP Grade | IP54/IP45 | IP54/IP45 | IP54/IP45 | IP54/IP45 |
| Refresh rate | 3840-7680Hz | 3840-7680Hz | 3840-7680Hz | 3840-7680Hz |
| Gray Scale | 14bits ~ 22bits | 14bits ~ 22bits | 14bits ~ 22bits | 14bits ~ 22bits |
| Viewing Angle | 160°/160°(H/V) | 160°/160°(H/V) | 160°/160°(H/V) | 160°/160°(H/V) |
| Maximum Power Consumption | 400W/Panel | 400W/Panel | 400W/Panel | 400W/Panel |
| Average Power Consumption | 200W/Panel | 200W/Panel | 200W/Panel | 200W/Panel |
| Input Voltage | 100~240V AC 50-60Hz | 100~240V AC 50-60Hz | 100~240V AC 50-60Hz | 100~240V AC 50-60Hz |
| Operating Temperature | -10℃~+60℃ | -10℃~+60℃ | -10℃~+60℃ | -10℃~+60℃ |
| Operating Humidity | 10~90%RH | 10~90%RH | 10~90%RH | 10~90%RH |
| Cabinet Material | Iron | Iron | Iron | Iron |
| Cabinet Weight | 24kg | 24kg | 24kg | 24kg |
| Operating System | Windows(win7,win8,etc) | Windows(win7,win8,etc) | Windows(win7,win8,etc) | Windows(win7,win8,etc) |
| Signal Source Compatibility | DVI , HDMI | DVI, HDMI | DVI, HDMI | DVI, HDMI |
Additional information
| Weight | 50 kg |
|---|
