IP68 LED Screen Outdoor Advertising LED Display Video Wall
$391.00
- Description
- Additional information
Description
IP68 Waterproof Outdoor LED Display
Outdoor Front and Rear Access LED Display
Lightweight
High stability
Cable Free
3,840Hz
10000nits
50% Energy Saved
Aluminium Module Case
IP66
Product Description

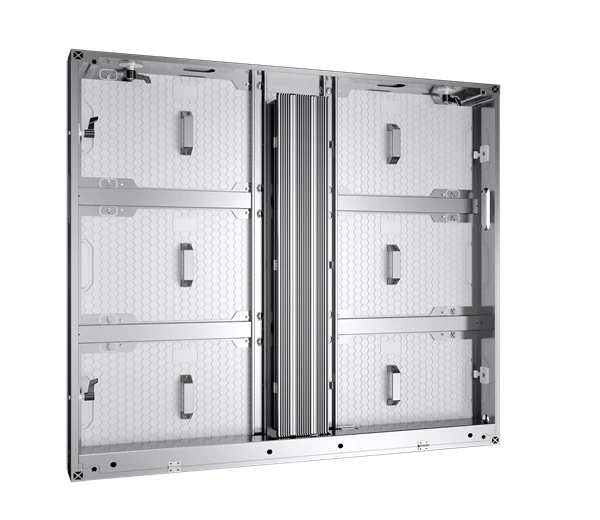

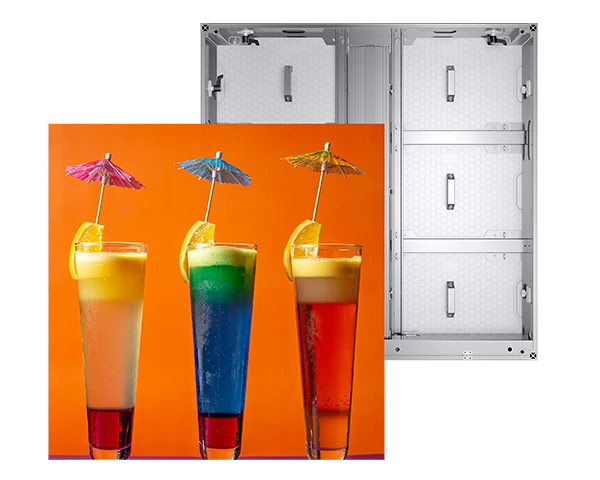

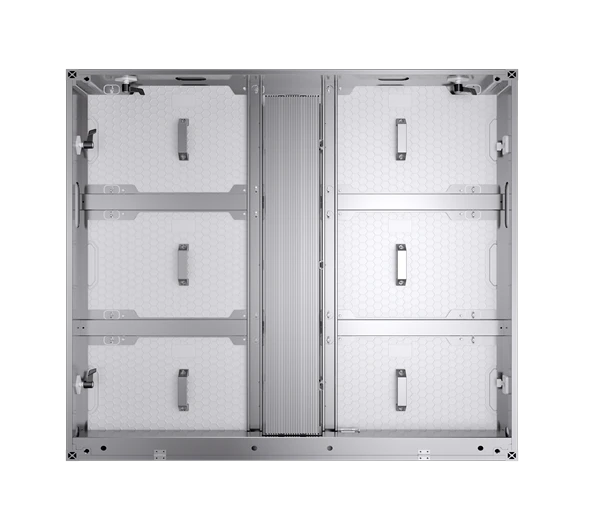

Slim and lightweight design
The aluminum cabinet is designed to be 25kgs/sqm lighter than conventional cabinets in the market. Lighter cabinets provide more convenience for installation. Multiple panel sizes can be easily assembled into a big screen of different dimensions.960(w)mm x 960(h)mm,82mm thickness,25kgs/sqm weight.The pixel pitch p4.4, P5.71, P6.67, P8 and P10 are available.

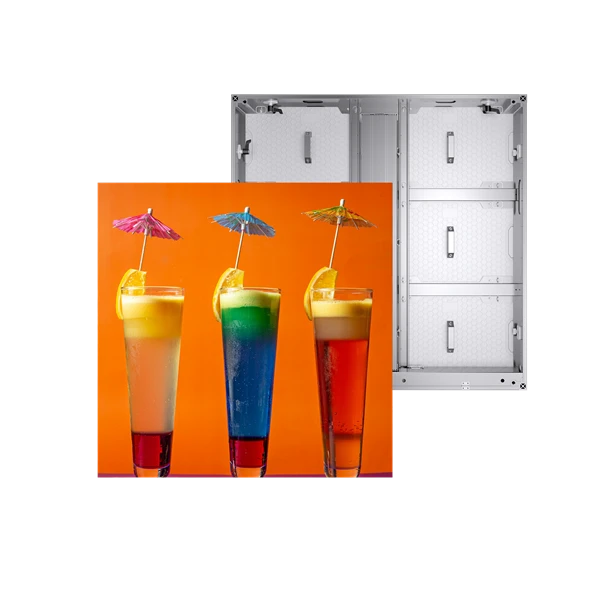

Front and Rear Access
The power supply, receiving card, and module can be removed from the front or rear side. This kind of concise and easy design allows removing and replacing modules fast in an emergency, especially when the technician wonders which part has issues. Fast problem-solving saves a large amount of labor costs.

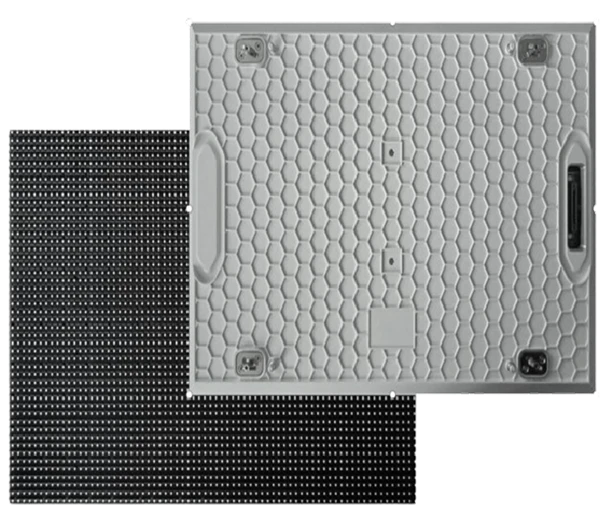

Cable free module with signal row pin socket
This design doesn’t require the ribbon cable, so the signal connection of the modules is much better than common designs in the market.What’s more, we use single row pin sockets, its characteristics are:High precision: Its precise pin spacing ensures stable connections between electronic components and improves the overall performance of the circuit board.High reliability: It is made of high-quality materials, has good electrical conductivity and corrosion resistance, and can ensure the stable operation of the circuit.
Protective Method: IP68
The LED screen in outdoor scenes will face more challenges than the indoor ones such as the damage of dust and water. To make the LED screen function safely and stably in outdoor scenes, we adopt advanced protective methods to withstand heavy rain and strong winds for a long time. The IP68 design can isolate electronic parts from humidity and dust, so the screen is more reliable.
Hight Brightness up to 10,000nits
To display clearly what is on the LED screen in outdoor scenes, we adopt the new methods of superior PCB design and LED chip to make brightness reach more than 10000nits. With the ultra-high brightness, refresh rate, and gray scale, the visual performance of the screen is unexceptionable.
High refresh rate and high grayscale
A refresh rate greater than or equal to 7680Hz is used to capture high dynamic range images, which helps to eliminate scan lines and flickering on the display. A high grayscale level of 14bits-22bits ensures excellent visual quality, and the LED display provides vivid visual effects.

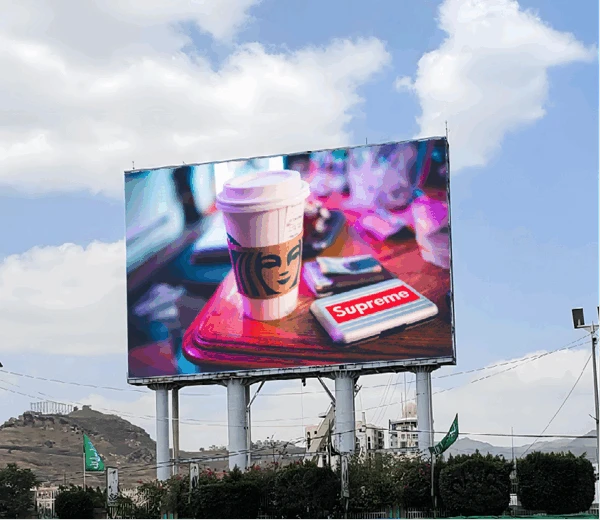

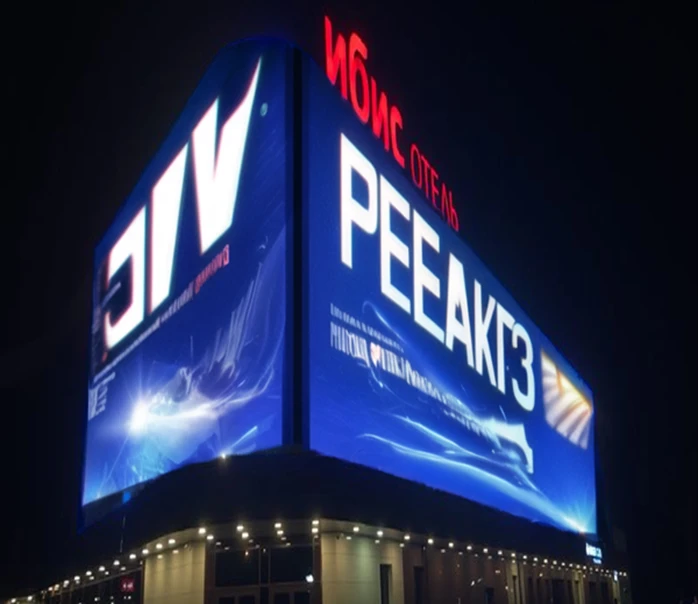

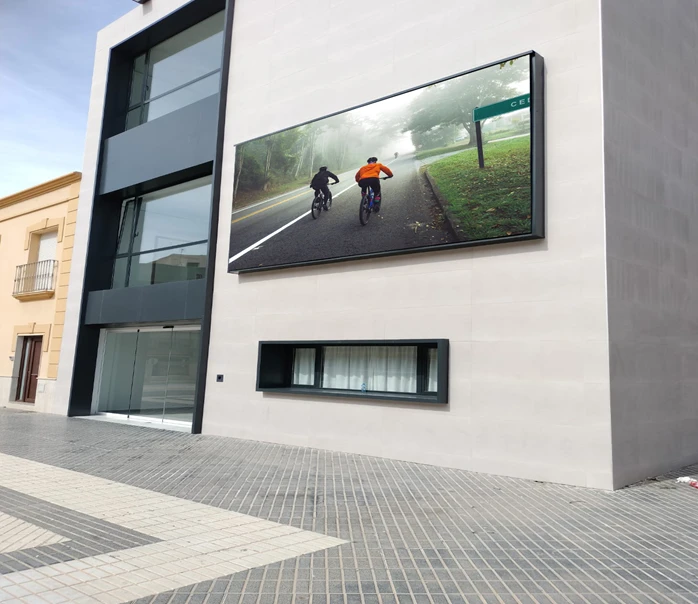

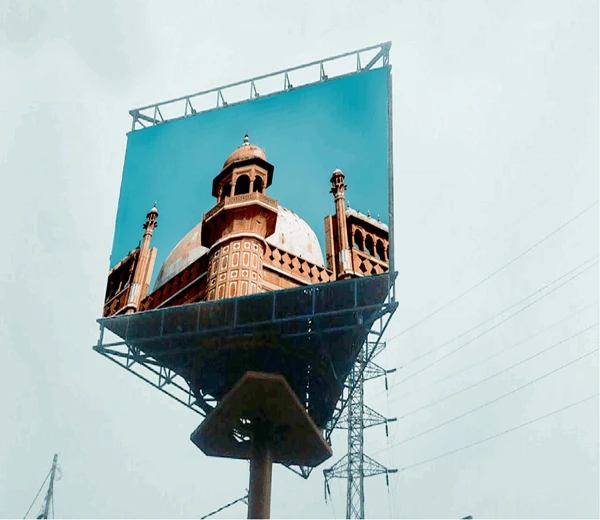

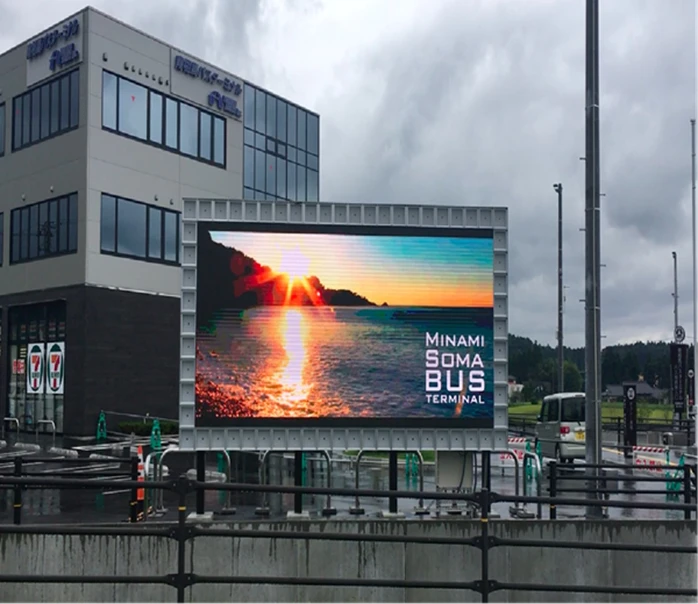

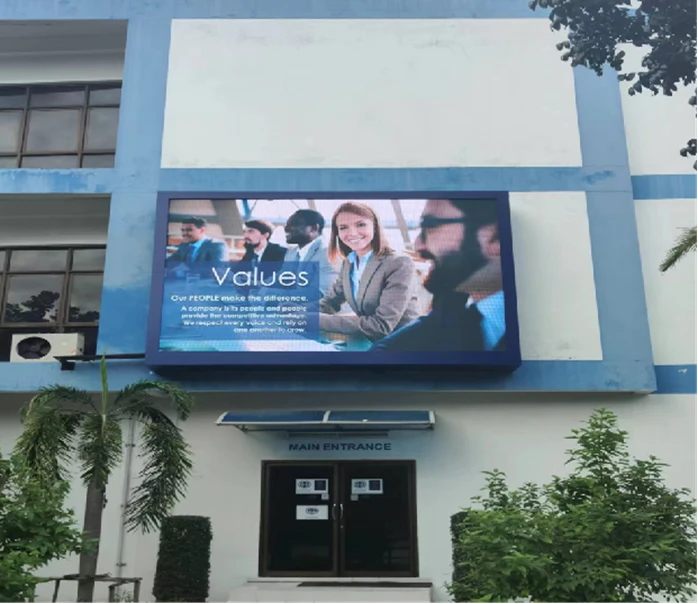

Application Fields
To fit every different scene, our products utilize superior materials with the concise and strong structure, and various installation methods make it flexible and easy to apply. This product is usually used in.
Truck Trailers; Scoreboards; Digital Out Of Home(DOOH).
Front Maintenance Energy Saving Common Cathode Outdoor Aluminum IP68 LED Screen Parameter
| Leeman Front Maintenance Front Service Waterproof IP68 Outdoor LED Display 960×960 Specification | |||||
| Model name | LEEMAN P4 | LEEMAN P5 | LEEMAN P6.67 | LEEMAN P8 | LEEMAN P10 |
| Pixel Pitch (mm) | 4 | 5 | 6.67 | 8 | 10 |
| Pixel Density (dot/m2) | 62500 | 40000 | 22478 | 15625 | 10000 |
| Gold Wire LED Chip | NationStar Gold Wire | NationStar Gold Wire | NationStar Gold Wire | NationStar Gold Wire | NationStar Gold Wire |
| LED sealing Type | SMD1921 | SMD2525 | SMD2727 | SMD3535 | SMD3535 |
| Module Size (mm * mm) | 480*320 | 480*320 | 480*320 | 480*320 | 480*320 |
| Module Resolution (PX* PX) | 120*80 | 96*64 | 72*48 | 60*40 | 48*32 |
| Brightness (cd/m2) | 6500 | 7000 | 7500 | 8000 | 8500 |
| Grey Scale（bit） | ≥16 – 24 | ≥16 – 24 | ≥16 – 24 | ≥16 – 24 | ≥16 – 24 |
| Driving IC | ICN2153SÂ ICN2165 | ICN2153SÂ ICN2165 | ICN2153SÂ ICN2165 | ICN2153SÂ ICN2165 | ICN2153SÂ ICN2165 |
| Refresh Rate (Hz) | 3840 – 7680 | 3840 – 7680 | 3840 – 7680 | 3840 – 7680 | 3840 – 7680 |
| Maximum Cabinet Power Consumption (W) | 500 | 500 | 500 | 500 | 500 |
| Average Cabinet Power Consumption (W) | 150 | 150 | 150 | 150 | 150 |
| Cabinet Size (mm * mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
| Cabinet Weight (Kg) | Â 25KG | Â 25KG | Â 25KG | Â 25KG | Â 25KG |
| Cabinet Thickness(mm) | 75 | 75 | 75 | 75 | 75 |
| Horizontal Viewing Angle (Deg) | 160 | ||||
| Vertical Viewing Angle (Deg) | 140 | ||||
| Input Voltage (V) | 110-220V/200-240V | ||||
| Contrast ratio | 6000:1 | ||||
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | ||||
| Working Temperature (℃) | -20~ +40 | ||||
| Working humidity（RH） | 10%~90% | ||||
| Storage temperature range | -40~ +80 | ||||
| Operation humidity (RH): | 10%~90% | ||||
| Waterproof Level | IP68 | ||||
| working life | 10,0000H | ||||
| Working Environment: | Outdoor and Indoor | ||||
| Installtion Method | Rental and Fixed Installation | ||||
| Maintenance method | Dual Service, Front Maintenance and Back service | ||||
| Warranty time | 5 years warranty time and free lifetime technical support | ||||
| Certification | UL CE ETL ROHS EMC FCC ISO, IECEE, CB | ||||
Additional information
| Weight | 40 kg |
|---|
