LINSN MINI908M LED Receiver Card

Description

Mini908M is a high-end and full-featured ultra-small size mini-receiver card. Compared with traditional receiver, Mini908M uses high-density BTB connector. It is more flexible and it adapts to a variety of electronic circuit structure, achieving a card suitable for all applications, which will considerably reduce the types of purchasing receiver card.

The system, specific circuits and program design of Mini908M, can effectively reduce the electromagnetic radiation and effectively help products easily pass through the EMC test.

Features of LINSN MINI908M LED Receiver Card

Dimensions: 70mm*45mm

1. It has all functions of 8th and 9th generation receiver cardsand it is completely compatible with them;
2. Supports 24-group parallel RGB data output mode；
3. Supports 64-group serial data output mode；
4. Realizes high refresh and high gray level effect；
5. Supports general driver IC and PWM IC；
6. Supports any typeofscan within 32 scan, and supports 595 and other serial decoding scan；
7. Supports brightness and color pixel-by-pixel calibration；
8. Maximum supports 1024X256 pixels；
9. Supports 12-bit HDMI colors input (requires the 9th generation sending card)；
10. Use 18-bit signal processor, maximum supporting 18-bit (260,000) greyscale (each of red, green and blue)；
11. Supports single-card color space conversion；
12. Supports configuration file readback；
13. Supports pixel fault detection(requires a dedicated chip) ；
14. Supports hot backup with dual receiver cards, dual power supplier, etc.；
15. RoHS compliant；
16. CE-EMC compliant

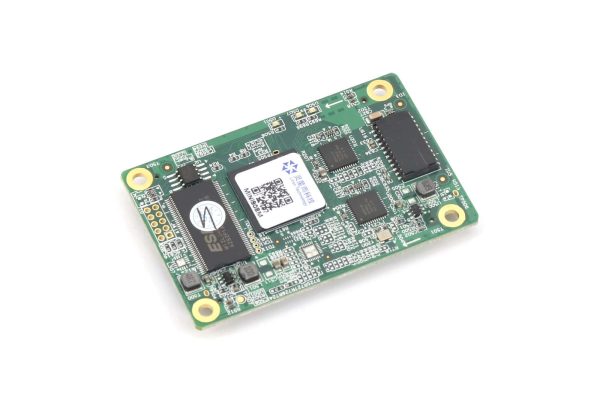

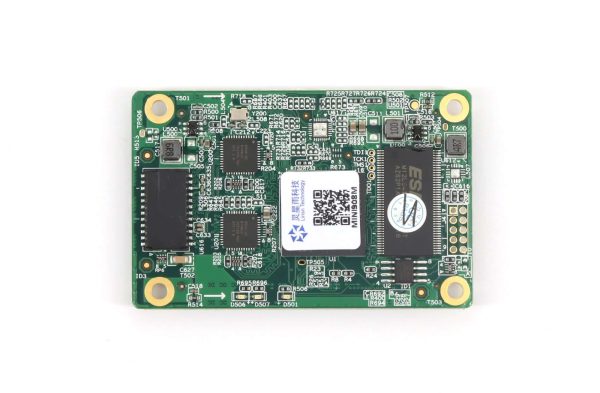

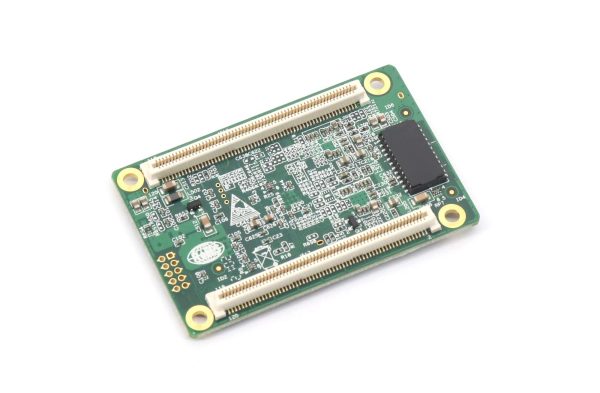

More Pictures of LINSN MINI908M LED Receiver Card

Download Specification

LINSN MINI908M LED Receiver Card Specification
