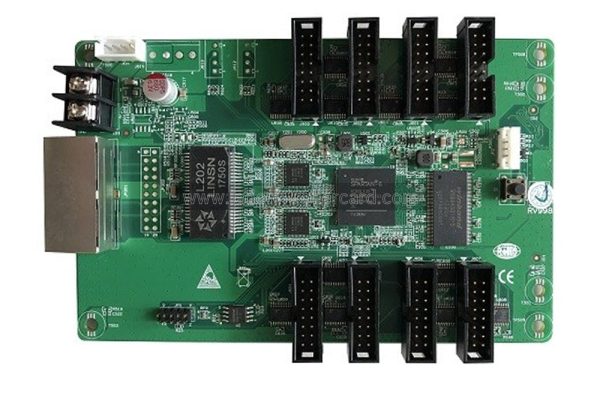

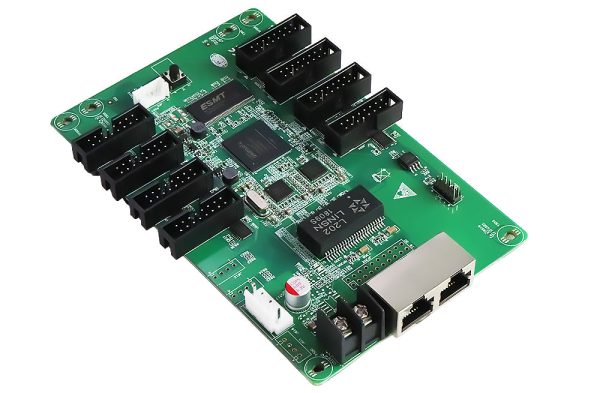

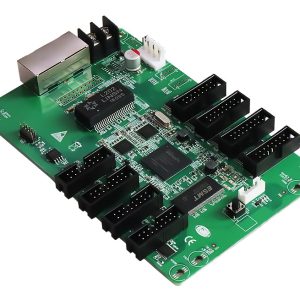

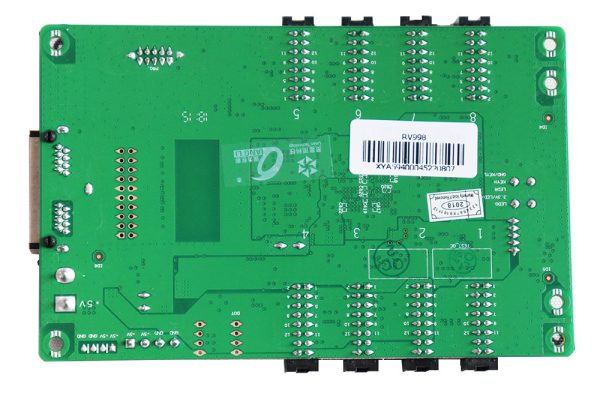

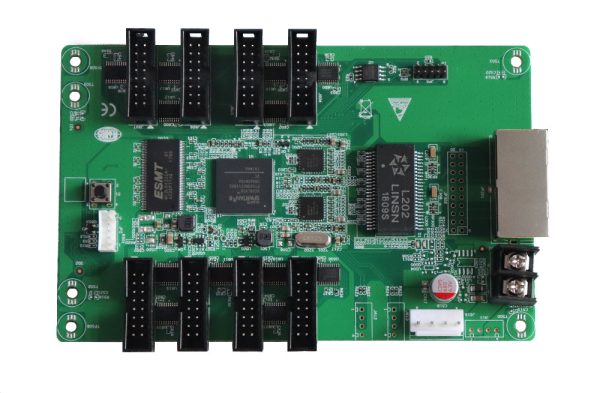

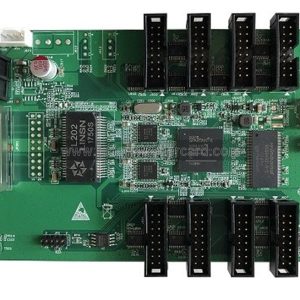

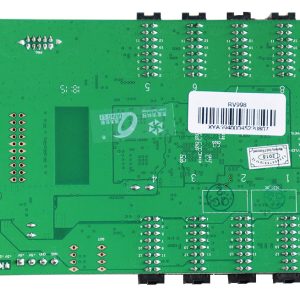

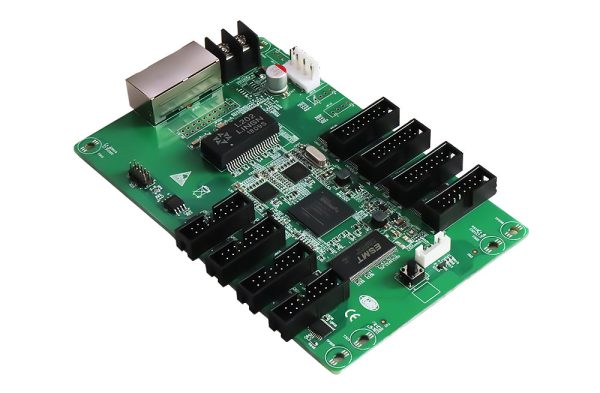

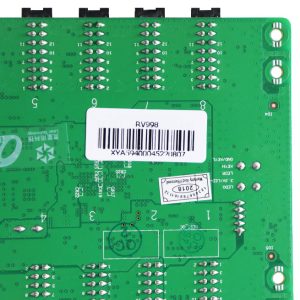

LINSN RV998 LED Screen Receiver Control Card

Description

Features of LINSN RV998 LED Screen Receiver Control Card:

1) On-board 8 HUB75 (supports 32 scans) 16P interface;

2) The single card can support 256X1024 or 512X512 pixels.

3) A single card supports a maximum of 16 groups of RGB data;

4) Support 138 decoding, 595 serial decoding and other decoding methods;

5) Supports single-card color space conversion, chroma-by-point correction, and brightness-by-point correction;

6) Support high refresh and high grayscale display;

7) Support universal driver chip, most PWM driver chip;

8) Support configuration file readback;

9) Support network cable error test;

10) Meet EU RoHs standards;

11) Conform to the EU CE-EMC Class B standard
