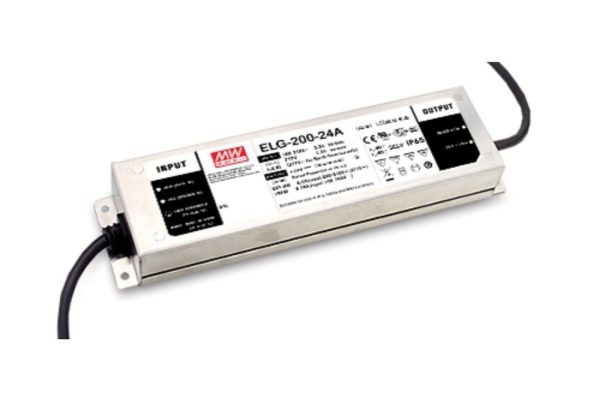

Meanwell ELG-200-24 / ELG-200-36 / ELG-200-48 LED Lighting Power Supply

Constant Voltage + Constant Current mode output

Metal housing design with functional Ground

Built-in active PFC function

No load / Standby power consumption <0.5W

lP67 / lP65 rating for indoor or outdoor installations

Function options: output adjustable via potentiometer;

3 in 1 dimming (dim-to-off); Smart timer dimming;

Typical Iifetime>50000 hours

ELG-200 series is a 200W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-200 operates from 1 00’-3O5VAC and offers models with different rated voltage ranging between 1 2V and 54V. Thanks to the high efficiency up to 93%, with the fan less design, the entire series is able to operate for -40°C +90°C case temperature under free air convection. The design of metal housing and 1P67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system
