Meanwell RD-125A long life LED Power Supply
$25.50
Features of Meanwell RD-125A long life LED Power Supply · Protections: Short circuit / Overload / Over voltage· Cooling by free air convection· LED indicator for power on·…
- Description
- Additional information
Description
Features of Meanwell RD-125A long life LED Power Supply
· Protections: Short circuit / Overload / Over voltage
· Cooling by free air convection
· LED indicator for power on
· 100% full load burn-in test
· All using 105℃ long life electrolytic capacitors
· Withstand 300VAC surge input for 5 second
· High operating temperature up to 70℃
· Withstand 5G vibration test
· High efficiency, long life and high reliability
· 3 years warranty
Parameters of Meanwell RD-125A long life LED Power Supply
| Output Voltage | 5 VDC |
| Output Current | 7.70 A |
| Power Rating | 130.9 W |
| Family | RD-125 |
| Additional Output Voltages (VDC) | 12 |
| Input Voltage | 88 VAC to 264 VAC |
| Efficiency | 82% |
| Input Frequency | 47 Hz to 63 Hz |
| Maximum Input Current | 3 A |
| Output Connector Type | Screw Terminal Block |
| Number of Outputs | 2 |
| Product Type | AC to DC Power Supply |
| Agency Approvals | UL, CUL, TUV, CB, CE, EN, EAC |
| Minimum Isolation Voltage | 3000V |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | 70°C |
| Length | 7.8 in. |
| Width | 3.9 in. |
| Height | 1.5 in. |
| Color | Silver |
| Style | Multiple Output |
| Output Voltage (Channel 1) | 5 VDC |
| Output Current (Channel 1) | 7.7 A |
| Output Voltage (Channel 2) | 12 VDC |
| Output Current (Channel 2) | 7.7 A |

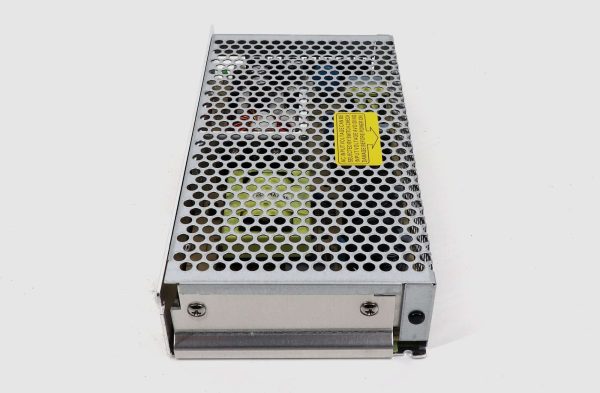

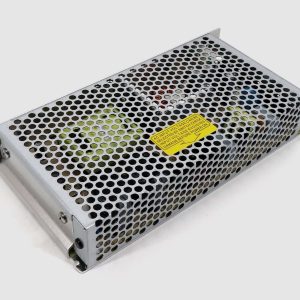

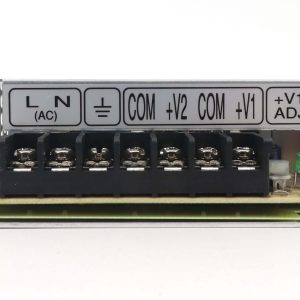

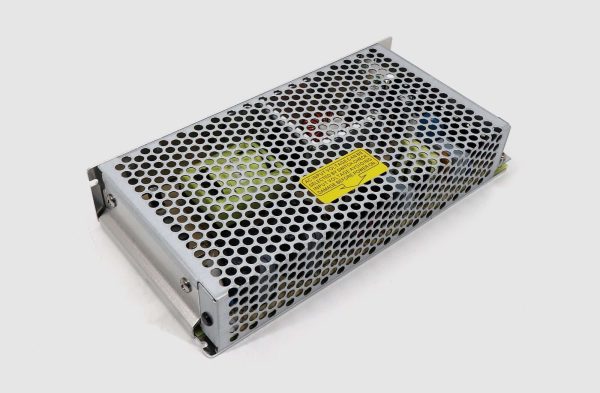

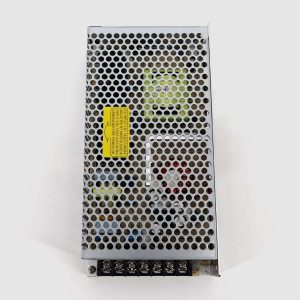

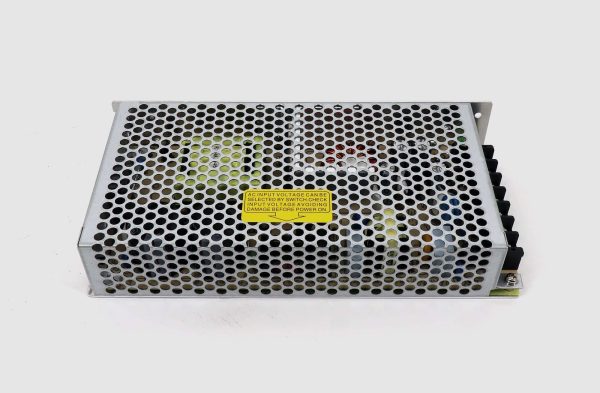

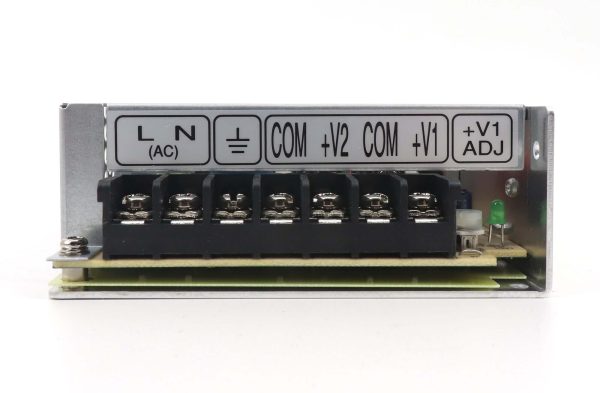

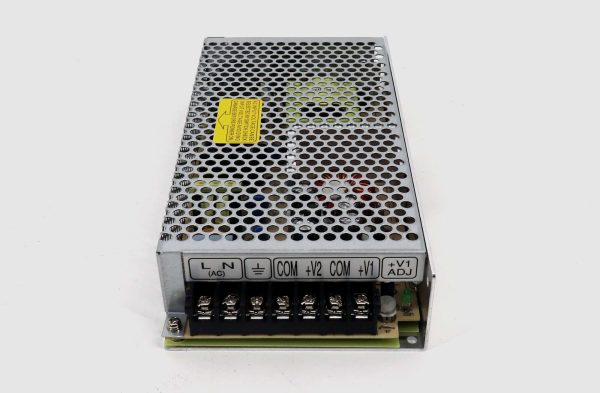

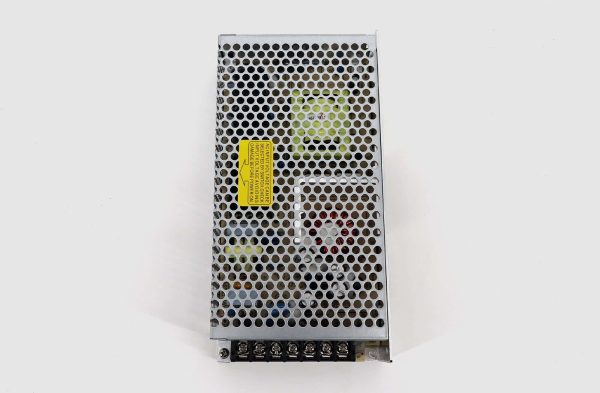

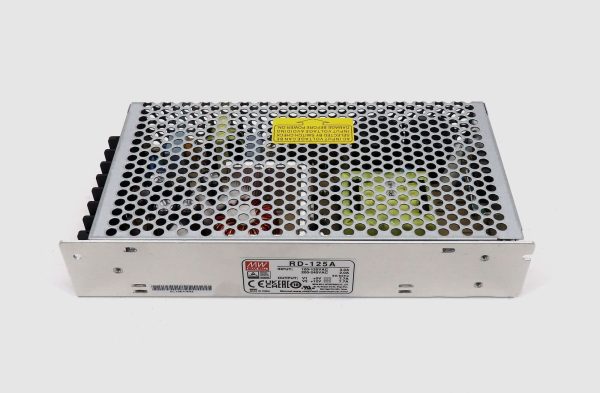

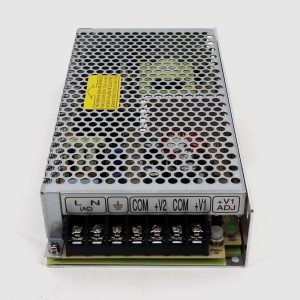

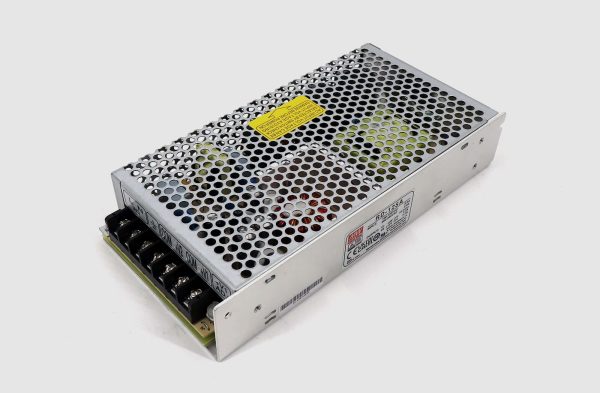

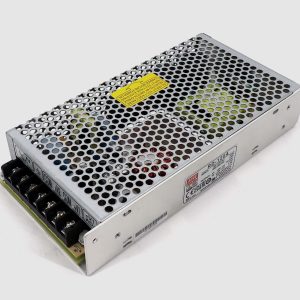

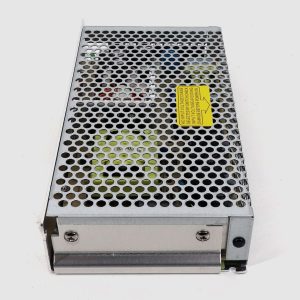

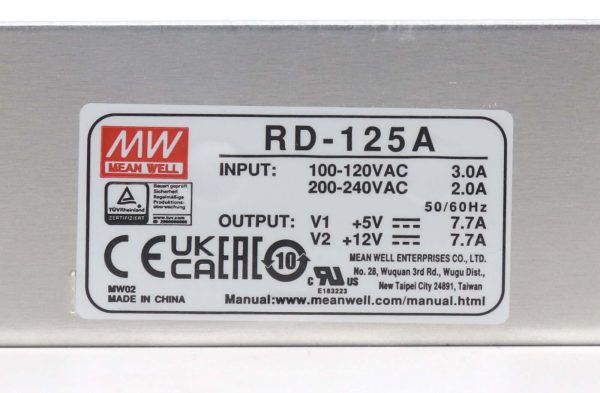

More Pictures of Meanwell RD-125A long life LED Power Supply
Additional information
| Weight | 0.8 kg |
|---|
