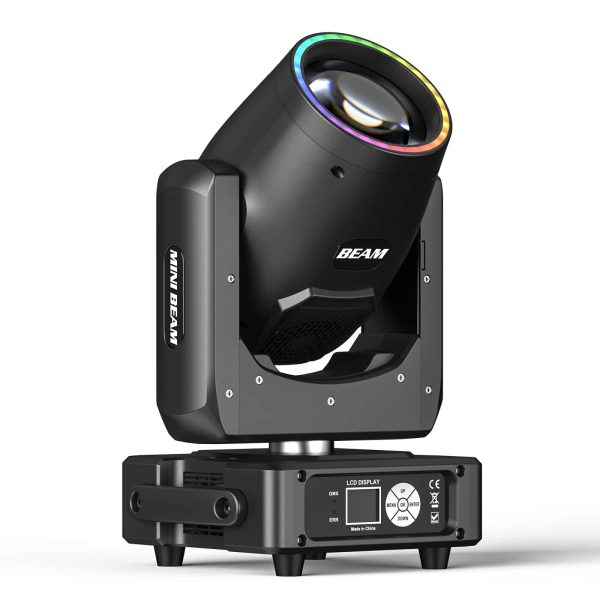

Mini 230W LED Moving Head RGBW Stage Lights with Strip Lights with 14 Gobos 13 Colors 18 Channels Activated by DMX 512 Voice Activation for Wedding Disco Parties and Indoor Events

Mini 230W LED Moving Head RGBW Stage Lights with Strip Lights with 14 Gobos 13 Colors 18 Channels Activated by DMX 512 Voice Activation for Wedding Disco Parties and Indoor Events

Light Source：1PCS white 230WLED + 27PCS 0.5w RGBW three and a LED lamp beads

Color temperature: 7000K-8000K

Lamp output luminous flux: 9800lm

LED average life: 50000H

Optical systems：

Angle of light: 2.3°

Effective control distance: 5-30M

Illumination: 230000Lux@10 meters

Prism/fogging piece：

1PCS 48 ling honeycomb mirror

colorful fogging: rainbow effect + fogging effect

Color plate: 13+1 color plate (13 color pieces + 1 white light hole)

Fixed gobo disk: 14+1(14 patterns + 1 white light hole)

Other Effects：

Motorized focusing system：focusing angle range: 2-8°

Multiple speed strobe effect：1-10Hz

X/Y axis：

X-axis：540°

Y-axis：270°

X-axis/Y-axis position out-of-step auto-correction

X-axis/Y-axis: 16 bit precision scanning

Fixed lock: horizontal/vertical lock

Control and Programming：

Control p rotocol: Standard DMX512 protocol+ RDM protocol

Channel Mode: self-propelled, voice-activated, master-slave, DMX512

Control channel: 18CH

Control panel: LCD display

Electrical and Interfaces：

Input voltage range: AC110V-240V 50/60Hz

Rated power: 450W

Data Connection: Three-core XLR input/output

 Power Outlet: Power Connector Input/Output, Straight Outlet

Light Specification：

Light dimensions: 290x240x450mm ；Net weight 10.2kg

Carton size:370x350x500mm；Weight: 12kg

Working environment：

Maximum ambient temperature: 45°C

Minimum Operating Temperature: -10°C

Maximum surface temperature: 60°C

Protection class: IP20

Product Features：

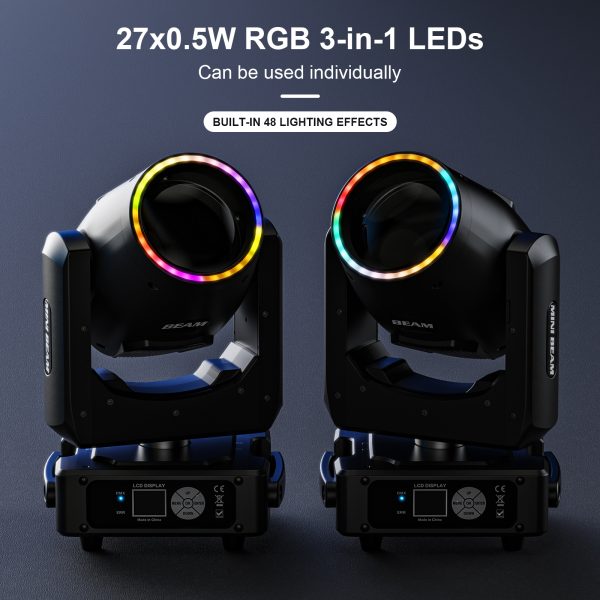

1. [Varied lighting]:Built-in 27pcs 0.5W RGB 3-in-1 LEDs support individual use, providing 48 different lighting effects that can be flexibly combined to increase the diversity of lighting performance.
2. [Special optical effects]:Equipped with 48 prims for dynamic honeycomb prism effect and fog effect, capable of creating rainbow effect. The prisms can be positioned and rotated at any angle to achieve precise electronic focusing and enhance the visual effect.

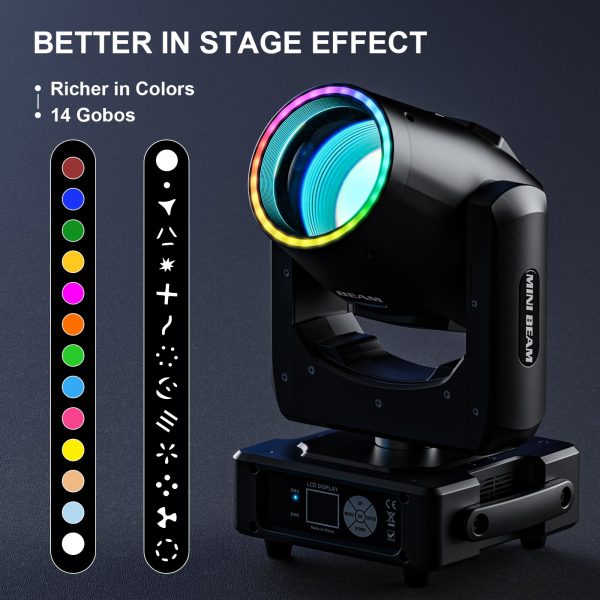

3. [Rich colour options]: Provides 13 kinds of colours plus white light with half-colour effect, and the speed of colour change can be controlled to meet the colour requirements  of different scenes.
4. [Flexible pattern function]: With 14 kinds of fixed pattern plus white light, support pattern flowing effect and vibration effect, can be positioned at any angle and rotate clockwise and anti-clockwise, increasing the variety of visual performance.
5. [Advanced control function]: support 18 standard DMX512 channels and RDM protocol, with two-way addressing function. Built-in microphone realises voice control effect, capable of detecting sound and prompting by ERR indicator.

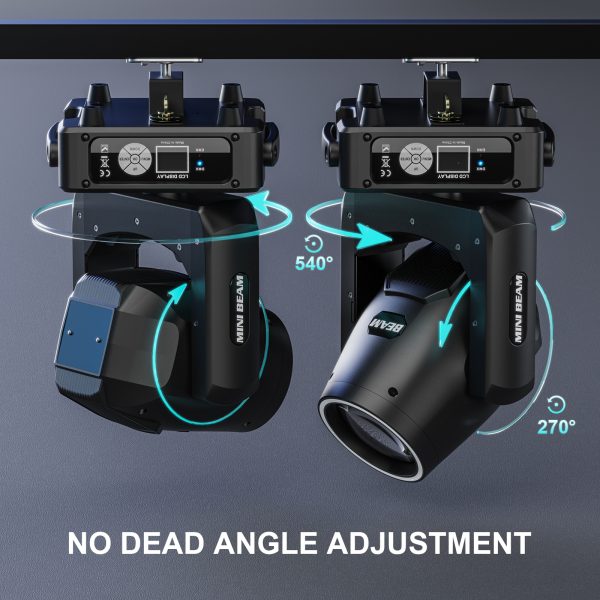

6. [Flexible motion control]: X-axis up to 540 °, Y-axis up to 270 °, with automatic error correction, as well as independent X / Y axis speed adjustment and rotation fine tuning function to provide more flexible motion control.
7. [Error display and handling]: When the machine is in trouble, the ERR indicator light is always on, and the fault trouble is displayed in the status message, which is convenient for timely handling.
8. [Convenient installation design]: Each machine is equipped with two quick-lock lamp hook brackets for quick installation and removal, improving the mobility and flexibility of the equipment.
9. [Lamp series connection function]: Support ohm head input/output interface series connection, can easily connect 4-6 devices, reducing wiring cost and complexity, improving system scalability and flexibility.

 Packing List:

1. Stage light *1
2. Stand *2
3. Power cord *1
4. Instruction manual *1
