Mobile LED Screen Trailer Van For Sale
$314.00
- Description
- Additional information
Description

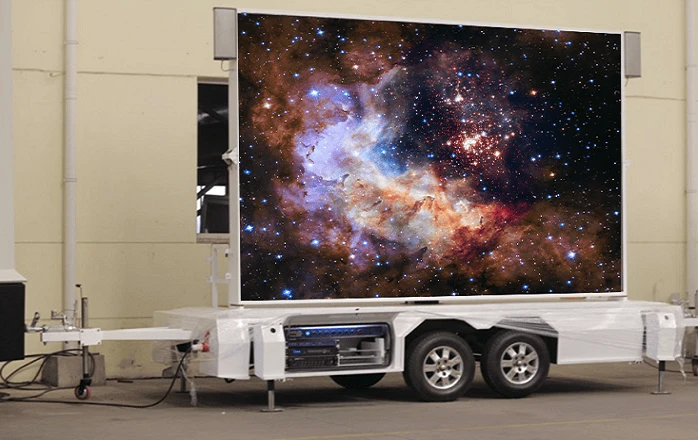

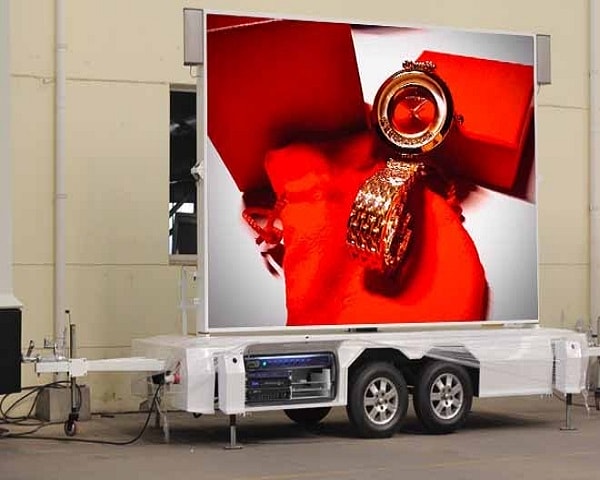

Mobile LED Screen Trailer For Sale
Trailer LED Display-P2.5, P4, P5, P6, P8, P10.
High Quality Hydraulic System
High Quality SMD LED
Stable Trailer
Easy Setup
Foldable Design Frame
3840Hz ~ 7680Hz
14bits ~ 22bits
Safe Operation
Product Description
High Quality SMD LED
By using high quality SMD LED screen, the viewing angle is up to 160 degree, and the visual effect is extraordinary. The pixel pitches are P4, P5, P6, P8 and P10.
Stable Trailer
The frame of screen is foldable design, so the height of the screen can be folded during the transportation, which makes the trailer much more stable.
Easy, Accurate and Safe
The frame is also rotatable design, so that brings lots of convenience during the setup. Meanwhile, the screen is supported by high quality hydraulic system. The operation is more accurate and safer.
Application Fields
Because of the convenience of operation and high-definition of this Mobile LED screen, it can be used in:
Warnings for schools, passerbys or road engineering areas; Road closure or detour notification; Promotion of activities like musical festivals; Product advertisements; Real estate development.
Large Outdoor Digital Mobile LED Trailers For Sale | Mobile LED Screen Display Parameter
| Item | P4 | P5 | P6 |
|---|---|---|---|
| Pixel Pitch | 4mm | 5mm | 6mm |
| LED Type | SMD1921 | SMD2727 | SMD2727 |
| Module Resolution | 64dots × 32dots | 64dots × 32dots | 32dots × 32dots |
| Driving Mode | 1/8scan | 1/8scan | 1/8scan |
| Module Pixels | 2,048dots | 2,048dots | 1,024dots |
| Module Size | 256mm × 128mm | 320mm × 160mm | 192mm × 192mm |
| Cabinet Size | 1,280mm × 1,024mm | 960mm × 960mm | 1,152mm × 768mm |
| Screen Size | 3,840mm × 2,048mm (optional) | 3,840mm × 1,920mm (optional) | 3,840mm × 1,920mm (optional) |
| Screen Resolution | 960dots × 512dots | 768dots × 384dots | 640dots × 320dots |
| Pixel Density | 62,500dots/㎡ | 40,000dots/㎡ | 27,777.78dots/㎡ |
| Minimum Viewing Distance | ≥4m | ≥5m | ≥6m |
| Brightness | 6,000nits～7,000nits | 6,000nits～6,500nits | 6,000nits～6,500nits |
| IP Grade | IP65 | IP65 | IP65 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 14bits～22bits | 14bits～22bits | 14bits～22bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 800W/㎡ | 800W/㎡ | 800W/㎡ |
| Average Power Consumption | 230W/㎡ | 230W/㎡ | 230W/㎡ |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Iron | Iron | Iron |
| Cabinet Weight | 60kg/㎡ | 60kg/㎡ | 60kg/㎡ |
| Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
| Trailer External Dimension | 5,900mm × 1,600mm × 2,200mm | 5,900mm × 1,600mm × 2,200mm | 5,900mm × 1,600mm × 2,200mm |
| Trailer Turning Radius | 8m | 8m | 8m |
| Trailer Gross Weight | ≈ 2,100kg (excluding generator) | ≈ 2,100kg (excluding generator) | ≈ 2,100kg (excluding generator) |
| Max Speed | 60km/h | 60km/h | 60km/h |
| Braking System | Hydraulic braking | Hydraulic braking | Hydraulic braking |
| Tire Size | 14 inch | 14 inch | 14 inch |
| Tire Quantity | 4 pcs | 4 pcs | 4 pcs |
| Towing Head | European type (optional) | European type (optional) | European type (optional) |
| Wheel Hub Material | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Lift System | Hydraulic lifting system | Hydraulic lifting system | Hydraulic lifting system |
| Lifting Height | 1,200mm | 1,200mm | 1,200mm |
| Rotating Type | Hydraulic rotary system | Hydraulic rotary system | Hydraulic rotary system |
| Rotation Angle | 360 degree | 360 degree | 360 degree |
| Trailer Supporting Legs | 4pcs (lifting height 300mm & each affords 5t) | 4pcs (lifting height 300mm & each affords 5t) | 4pcs (lifting height 300mm & each affords 5t) |
Additional information
| Weight | 40 kg |
|---|
