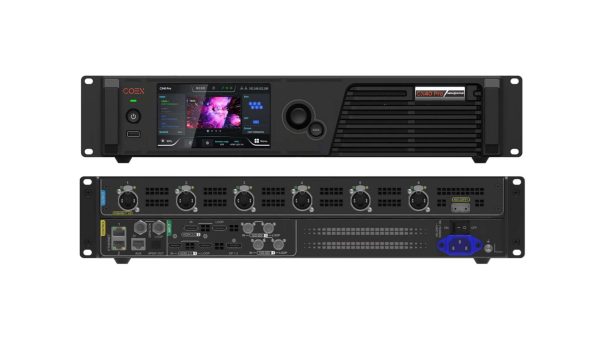

Novastar CX40 Pro led display screen Control Server CX80 Pro & CX40 Pro / CA50E / VMP
Original price was: $5,083.00.$4,169.00Current price is: $4,169.00.
Novastar CX40 Pro Control Server Features： Inputs and Outputs： 3 types of inputs  2x HDMI 2.0 (with loop through)  1x DP 1.2  2x 12G-SDI (with loop through) 12-bit, 10-bit…
- Description
- Additional information
Description
Novastar CX40 Pro Control Server Features：
Inputs and Outputs：
3 types of inputs
- Â 2x HDMI 2.0 (with loop through)
- Â 1x DP 1.2
- Â 2x 12G-SDI (with loop through)
12-bit, 10-bit and 8-bit video inputs
3 types of outputs
-  6x 5Gbps Ethernet ports, load capacity up to 9 million pixels
- 1x 40Gbps optical port
- 1x SPDIF digital audio port
3 types of controls
- 1x Genlock signal input (with loop through)
- 2x Ethernet control ports
- 1x Auxiliary port
Advanced Functions：
3 independent layers
Support up to 3x 4K layers and layer priority adjustment in Z order.
Image scaling
Support 3 image scaling modes: custom, pixel to pixel, and snap to canvas
Color Replacement
Support free replacement of any color on the image without affecting the performance of other colors. Replacement of highly saturated colors
is recommended for better effect.
14Ch Color Correction
Support precise adjustment to hue, saturation and brightness of black, white and the 12 derived standard colors of the red, green and
blue primary colors.
Curves
Support adjustment to the image RGBWÂ mapping curves.
Download Specification：
Novastar CX40 Pro Control ServeSpecification
Download Manual：
Novastar CX40 Pro Control ServeManual
Additional information
| Weight | 11.5 kg |
|---|
