Novastar DH436 DH3208 MRV432 Small Pitch Video LED Screen Receiving Card

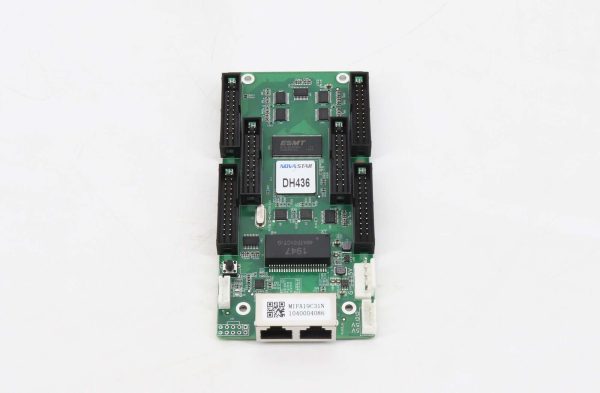

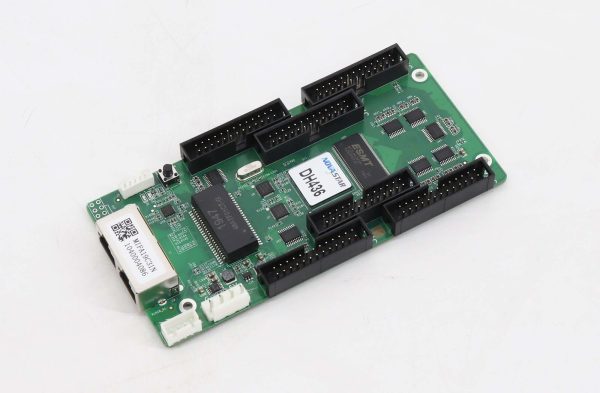

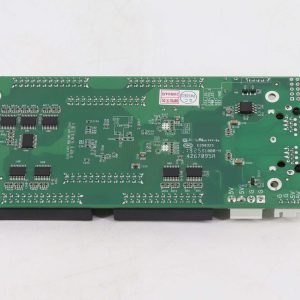

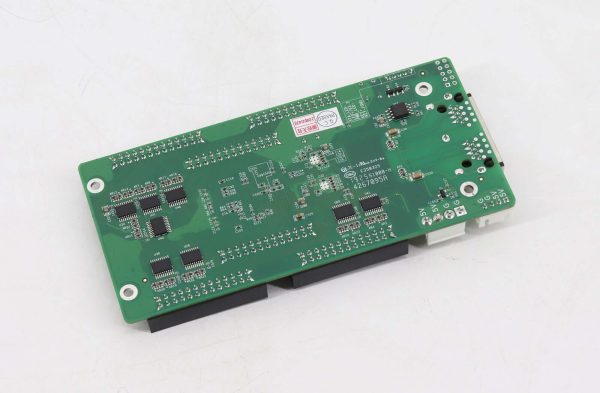

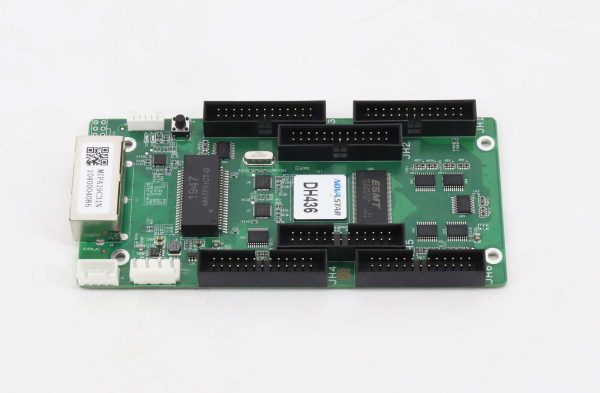

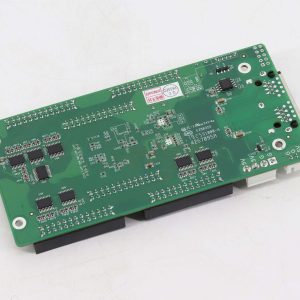

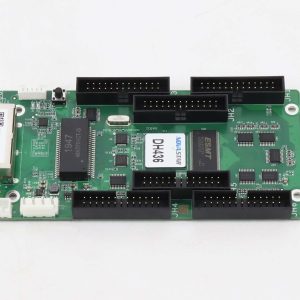

The Novastar DH436 Small Spacing Video LED Screen Receiving Card is a small-pitch receiving card from Nova Technology. The single card has a maximum load of 512 × 256 pixels..

Product Type : Small spacing special receiving card

On-load pixel: 512 × 256

RGB data: 24 groups of RGB

Connect the monitoring card:

Light Board Flash:

Onboard: 6 HUB320 (26pin) interfaces

Certification : RoHs

Supports up to 24 sets of RGB parallel data. With 6 HUB320 (26pin) interfaces, it has high stability and high reliability, and is suitable for construction in a variety of environments.

The hardware design and software design of the DH436 takes into account the scenarios of user deployment, operation, and maintenance, making deployment easier, more stable, and more efficient.

Support for lighting chromaticity correction

Support fast bright and dark line adjustment

Support for 3D functions

Support RGB independent Gamma adjustment

Support for Mapping function

Support receiving card pre-stored screen settings

Support temperature and voltage monitoring

Support box liquid crystal display

Support error monitoring

Support firmware program and configuration parameters readback

Support loop backup, configuration parameter double backup, dual program backup

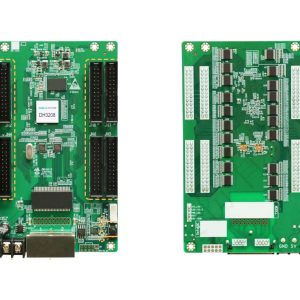

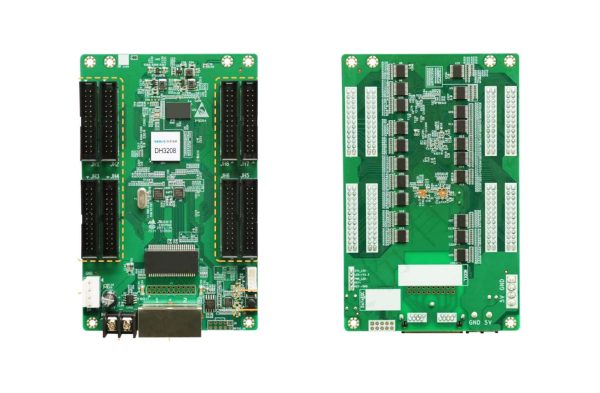

DH3208 is a general-purpose receiver card launched by Novastar. It supports point-by-point brightness chroma correction, fast bright and dark line adjustment, 3D and RGB independent Gamma adjustment, 90-degree screen rotation and other functions to improve the screen display effect and user experience.

DH3208 adopts 8 HUB320 interfaces for communication, supporting up to 32 groups of RGB parallel data, or 64 groups of serial data.

The hardware design complies with EMC standards, which improves the electromagnetic compatibility of the product and is suitable for the construction of a variety of field environments.

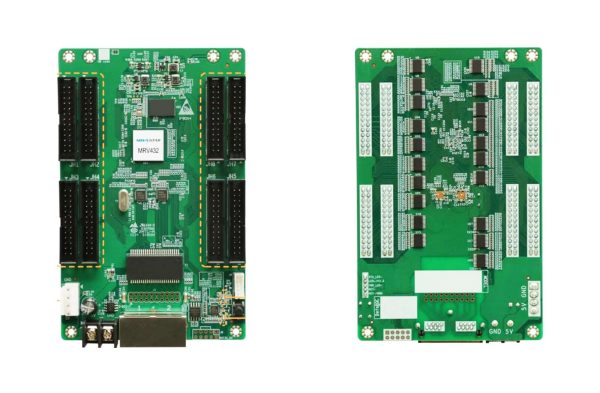

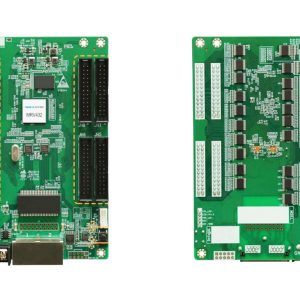

The MRV432 is a universal receiver card developed by NovaStar.

A single MRV432 can be loaded with up to 512×512 pixels.

The MRV432 supports various features such as pixel-level brightness and chroma calibration, quick adjustment of dark or bright lines, 3D, individual Gamma adjustment of RGB, and image rotation in 90-degree increments, which can greatly improve the display and user experience.

The MRV432 uses eight HUB320 connectors for communication. It supports up to 32 sets of parallel RGB data or 64 sets of serial data. Thanks to its EMC-compliant hardware design, the MRV432 offers better EMC compatibility for a variety of field settings.
