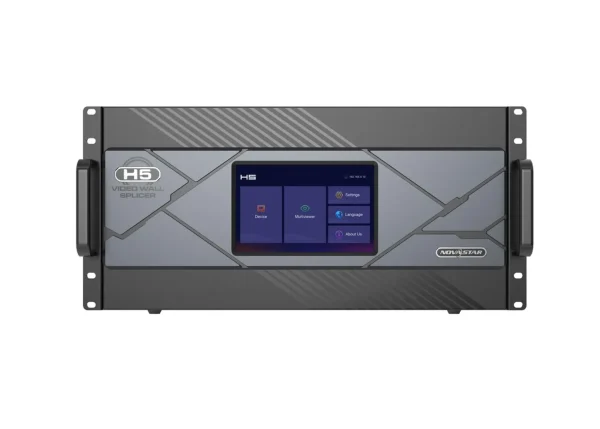

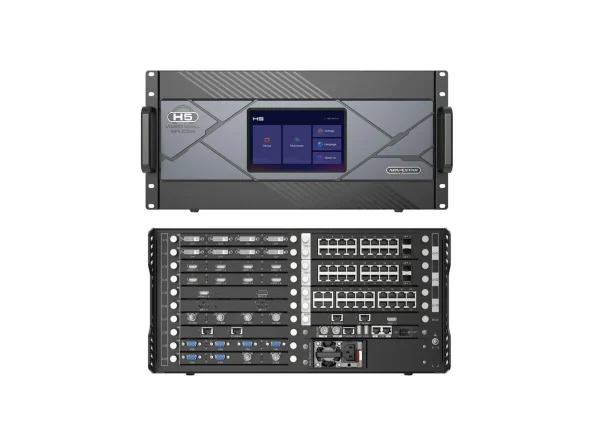

Novastar H5 LED Video Wall Splicer
$799.00
H5 Series Video Processor for Large Scale Video Wall Applications
- Description
- Additional information
Description
Features
Feature Description
- – Supports 3D display
- – Supports EDID and sequence management
- – Supports BKG and OSD layers
- – Supports web and mobile control
- – Supports input monitoring and output display readback
- – Supports special shaped splicing
Descriptions

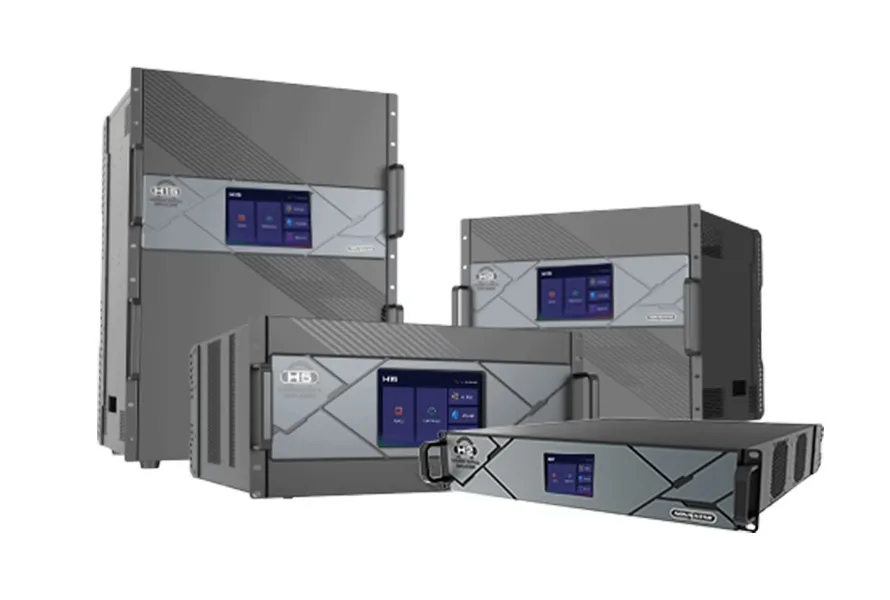

All-in-One — Simple design, yet complex integration
While utilizing module mainframe connectivity, the H series highly integrates splice processing and display control to achieve true All-in-One, which simplifies system interconnection structure for customers. It will also reduce equipment failure rates, and improve equipment operation and maintenance to a whole new level.
True 4K — Display every pixel in its intended beauty
H Series achieves true 4K (4K x 2K@60Hz, RGB 4:4:4, 10bit) signal collection, processing, and output. It can be configured with DP1.2, HDMI2.0, or other high-definition 4K daughterboards to realize ultra-high-resolution display.

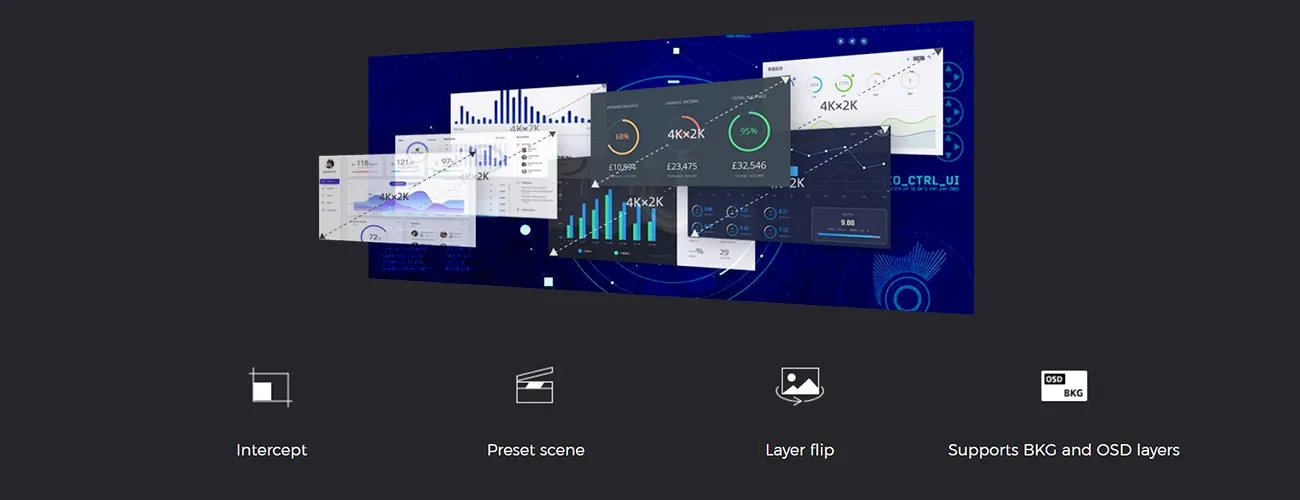

True flexibility — Awakens new sensory experience
H series supports numerous layers with an unrestricted arrangement. Each output daughterboard provides 16 layers (Up to 16 layers maximum per port). The layers can freely cross different output loading areas while keeping layer size the same. Layers can be in any position, overlapped, or unlimited scaled. It supports functions such as image capture, layer configuration, layer flip, and more. This all helps you realize your creativity and create a captivating visual effect.
Novastar H5 LED Video Wall Splicer Specifications
| Model | H5 | |
| Rack Unit | 5U | |
| Max. Input Cards | 10 | |
| Max. Input Channels | 40 | |
| Max. Output Cards | 3 | |
| Max. Output Channels | put Channels 12 | |
| Max. Loading | H_16xRJ45+2xfiber sending card |
31.2 million pixels |
| H_20xRJ45 sending card |
39 million pixels | |
| H_4xfiber sending card | 62.4 million pixels | |
| Max. Layers | 48 | |
| Electrical Specifications |
Power connector | 100–240V~, 50/60Hz, 10A–5A Note: The H5 comes with a single power supply. A redundant power supply is optional. |
| Power consumption | 400 W | |
| Operating | Temperature | 0°C to 45°C |
| Environment | Humidity | 0% RH to 80% RH, non-condensing |
| Storage Environment |
Temperature | –10°C to +60°C |
| Humidity | 0% RH to 95% RH, non-condensing | |
| Physical Specifications |
Dimensions | 482.6 mm × 532.8 mm × 228.2 mm |
| Net weight | 17 kg (chassis) | |
| Gross weight | 21.3 kg (chassis) | |
| Noise Level ( typical at 25°C /77°F) | ＜45 dB (A) | |
| Packing Information |
Packing box | Packing box 780 mm × 615 mm × 345 mm |
| Accessories | 1x Power cord 1x RJ45 Ethernet cable 1x Grounding cable 1x HDMI cable 1x Quick Start Guide 1x Certificate of Approval 1x Safety Manual 1x Custom Letter |
|

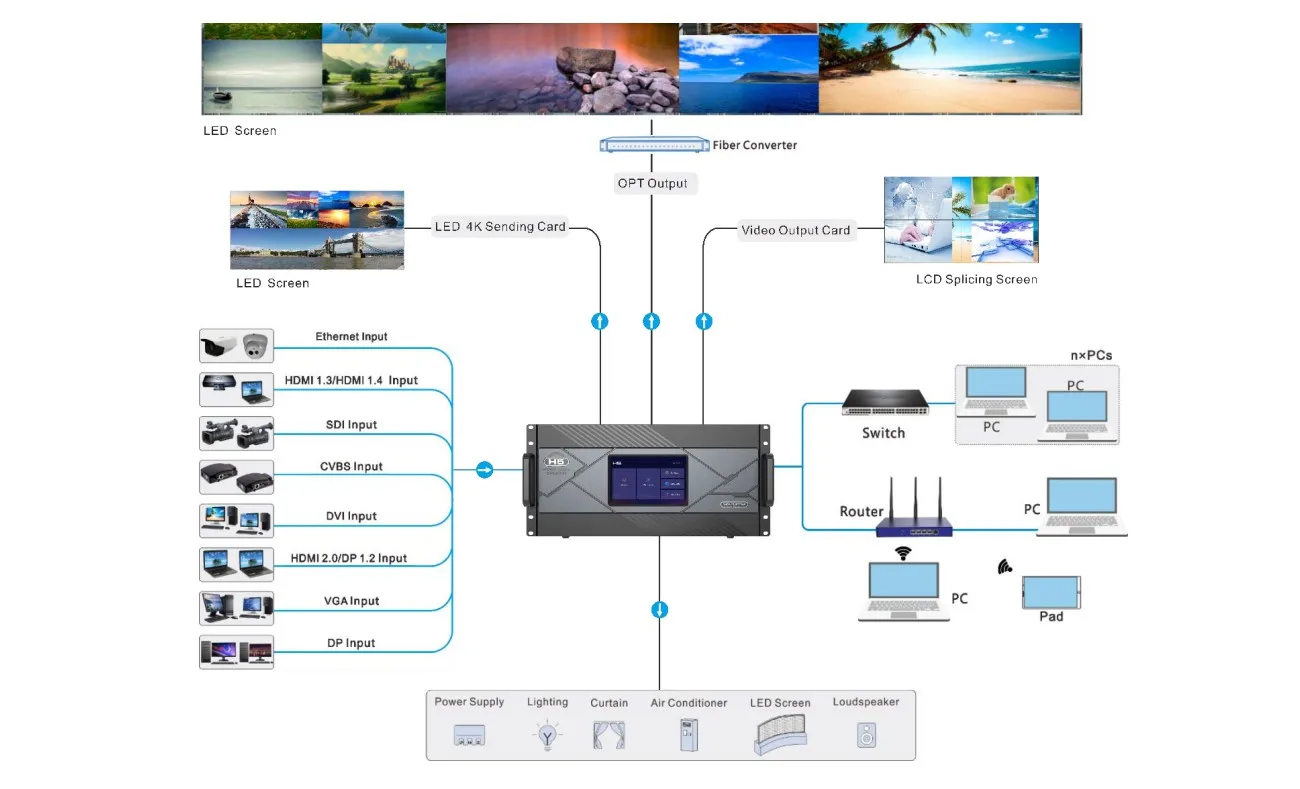

Diagram
