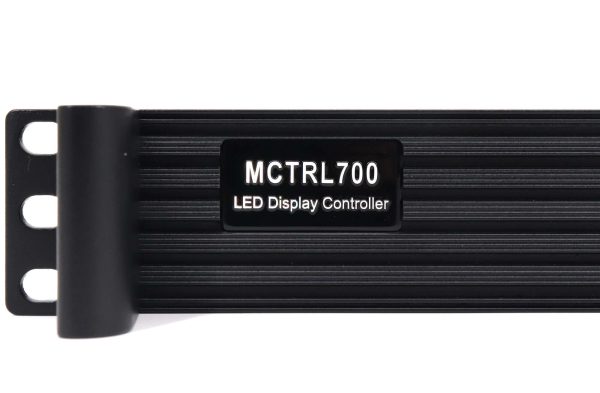

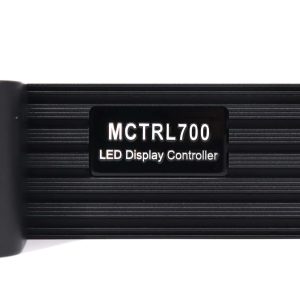

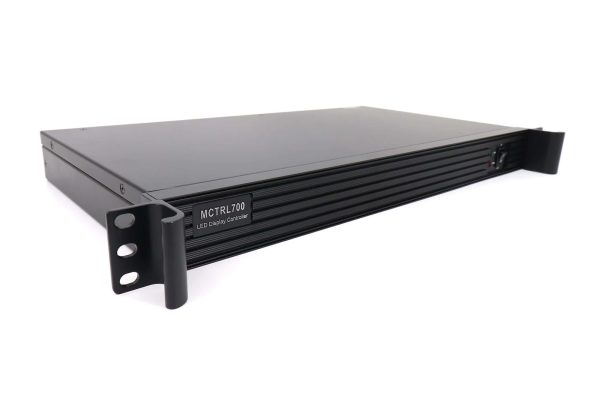

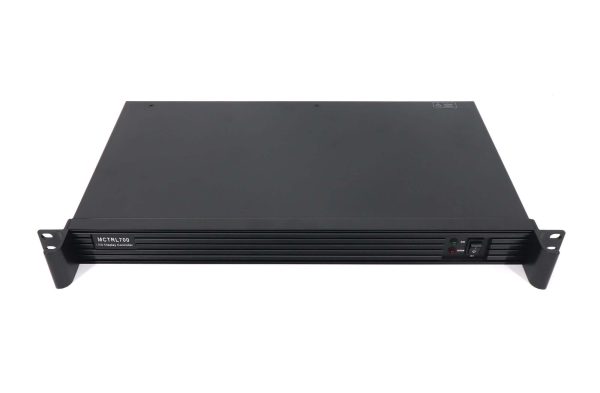

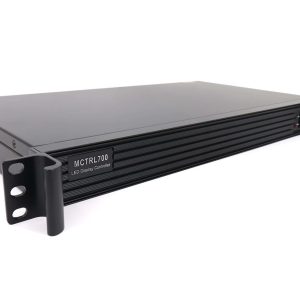

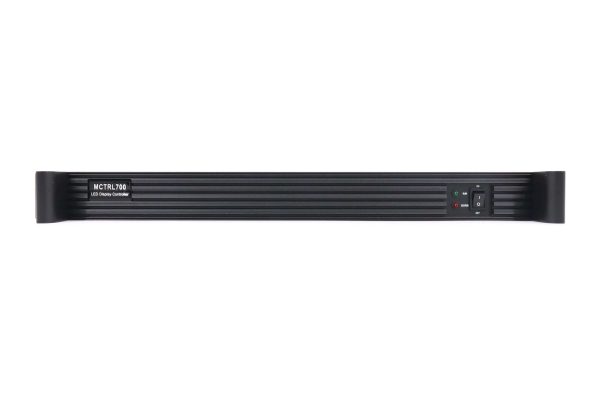

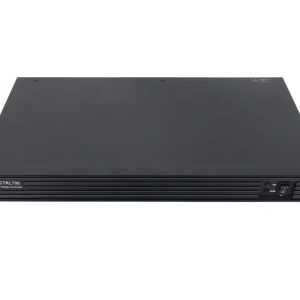

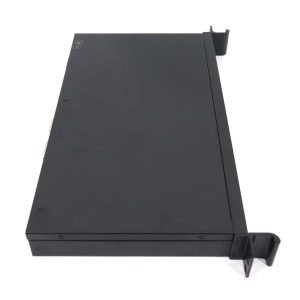

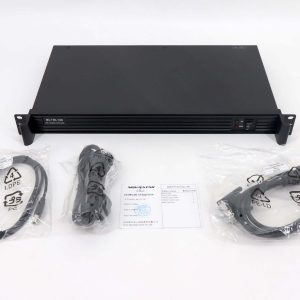

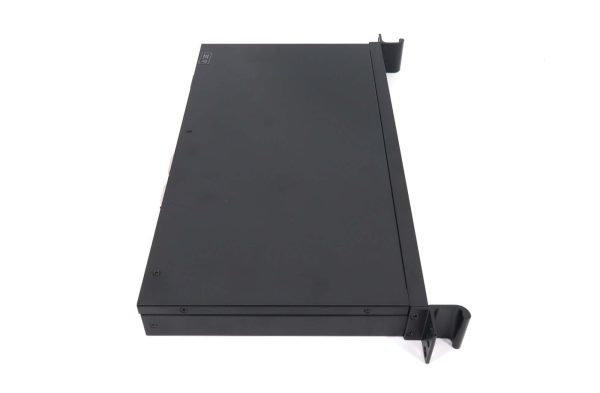

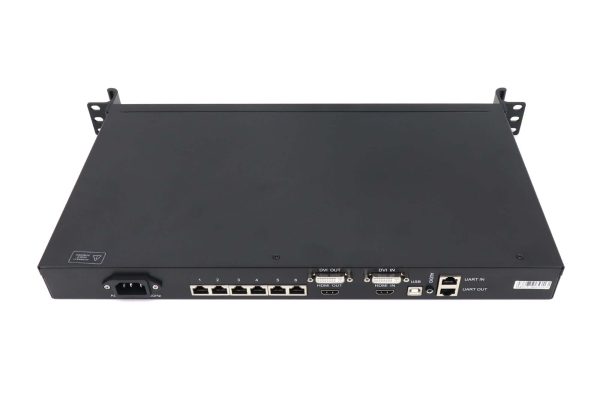

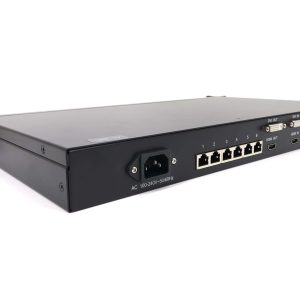

Novastar MCTRL700 LED Screen Video LED Control Box
Original price was: $240.00.$100.00Current price is: $100.00.
Novastar MCTRL700 LED Screen Video LED Control Box. The specific features are as follows: 1) Support 1 channel of DVI video source input. 2) Support 1 HDMI video…
- Description
- Additional information
Description

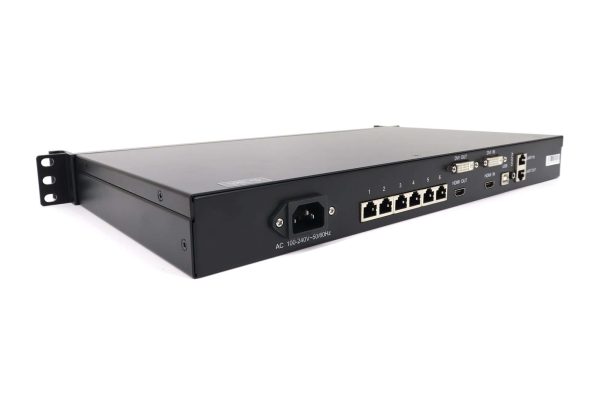

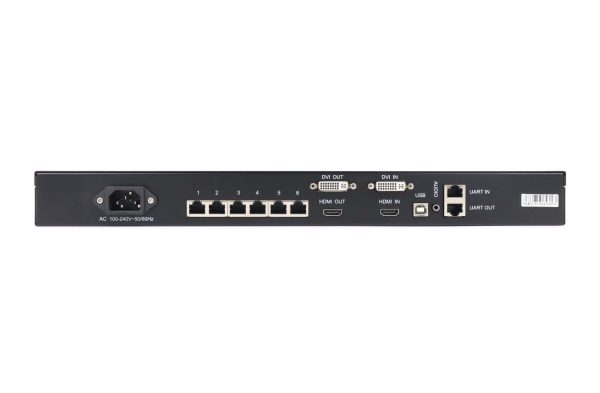

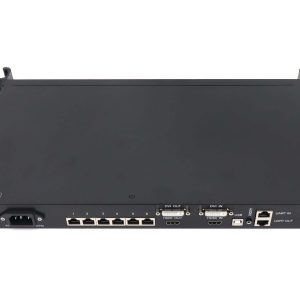

Novastar MCTRL700 LED Screen Video LED Control Box. The specific features are as follows:
1) Support 1 channel of DVI video source input.
2) Support 1 HDMI video source input.
3) Support 1 channel of audio input.
4) Support 6-channel Gigabit Ethernet port output, each network port supports up to 650,000 pixels.
5) Support 1 channel DVI video source output for cascading or monitoring.
6) Support 1 HDMI video source output for cascading or monitoring.
7) Support 1 way port USB control interface.
8) Supports RS232 IN and RS232 OUT control interfaces for device cascading.
9) Support 2 channels of 100M network port, with square port USB interface, device cascading.
10) Maximum load resolution 2048×1152@60Hz or 1920×1200@60Hz.
Novastar MCTRL700 LED Screen Video LED Control Box Parameter:
| Input indicator | ||
| Port | Quantity | Resolution specification |
| DVI IN | 1 | VESA |
| HDMI | 1 | EIA/CEA-861 standard, compliant with HDMI-1.3 standard, HDCP support |
| Machine specification | ||
| power consumption | 16W | |
| Operating temperature | -20℃~60℃ | |
| Working humidity | 0%RH~95%RH | |
| Net Weight | 2.9 Kg | |
| USB Line | 1.5 M | |
| DVI Line | 1.5 M | |
Additional information
| Weight | 7.3 kg |
|---|
