Description

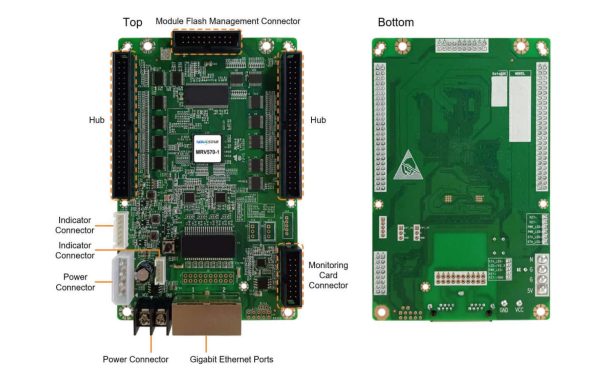

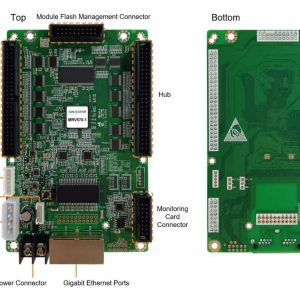

Novastar MRV570-1 receiving card Features:
- Module Flash management to store calibration coefficients and module information
- Pixel level brightness and chroma calibration
- Support for setting of a stored image in the receiving card
- Configuration parameter readback
- Temperature monitoring
- Ethernet cable communication status monitoring
- Power supply voltage monitoring
- Support for connection of a monitoring card
Â
Novastar MRV570-1 receiving card Specifications:
|
Maximum Resolution
|
512×256@60Hz
|
|
Electrical Specifications
|
Input voltage
|
DC 3.8 V to 5.5 V
|
|
Rated current
|
0.5 A
|
| Rated power consumption |
2.5 W
|
|
|
Operating Environment
|
Temperature
|
–20°C to +70°C
|
|
Humidity
|
10% RH to 90% RH, non-condensing
|
|
|
Storage Environment
|
Temperature
|
–25°C to +125°C
|
|
Humidity
|
0% RH to 95% RH, non-condensing
|
|
|
Physical Specifications
|
Dimensions
|
145.8 mm × 91.5 mm × 18.4 mm
|
|
|
Packing Information
|
Packing specifications
|
An antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains
100 receiving cards
|
|
Packing box dimensions
|
625.0 mm × 180.0 mm × 470.0 mm
|
Â
Download Specification:
Novastar MRV570-1 receiving card SpecificationÂ
