Novastar MX6000 Pro Two-in-One led display Controller Server NovaStar 8K Modular Designed LED Processor MX6000 Pro & MX2000 Pro
Original price was: $20,850.00.$19,872.00Current price is: $19,872.00.
Novastar MX6000 Pro Two-in-One led display Controller Server Features： Inputs and Outputs8x input card slots, users may choose input cards of the following 7 types:− 4K input cards4x…
- Description
- Additional information
Description

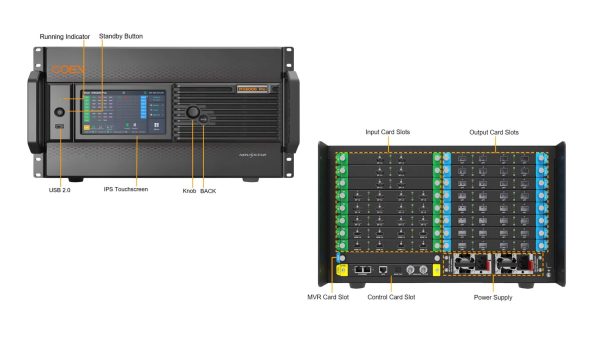

Novastar MX6000 Pro Two-in-One led display Controller Server Features：
- Inputs and Outputs
8x input card slots, users may choose input cards of the following 7 types:
− 4K input cards
4x HDMI 2.0, 4x DP1.2, 4x 12G-SDI
− 8K input cards
2x HDMI 2.1, 2x DP 1.4
− VoIP cards (Video over IP)
1x SMPTE ST 2110 (25G), 1x NDI - Authentic 12bit video input
12-bit/10-bit/8-bit supported - 8x output card slots, users may choose input cards of the following 2 types:
− CX_1x40G_Fiber output card
Work with CVT8-5G fiber converter to achieve 5G transmission (capable of loading 2,600,000 pixels in a single Ethernet cable).
− MX_4x10G_Fiber output card
Work with CVT10 fiber converter to achieve 1G transmission (capable of loading 650,000 pixels in a single Ethernet cable). - Supports real-time previewing and monitoring of the video source input and LED screen display status.
- Supports frame rates of up to 360 Hz (max frame rate is decided by the screen’s hardware configuration)
Download Specification：
Novastar MX6000 Pro COEX Embedded Controller ServerSpecification
Download Manual:
Novastar MX6000 Pro COEX Embedded Controller ServerManual
Additional information
| Weight | 38 kg |
|---|
