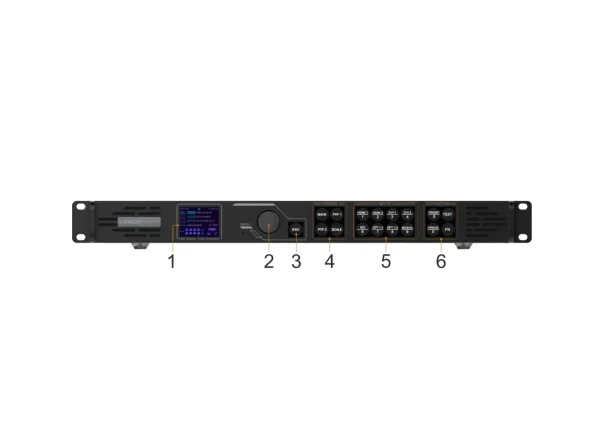

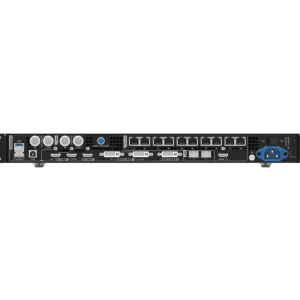

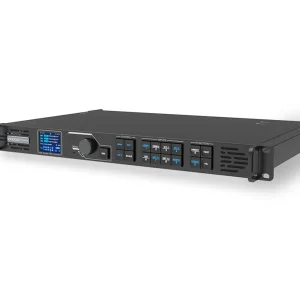

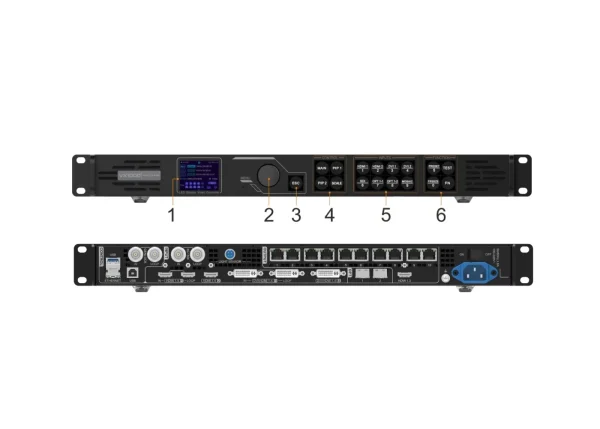

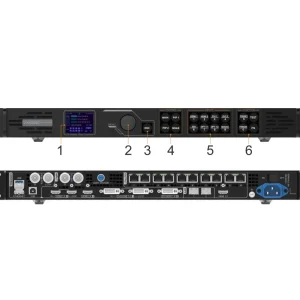

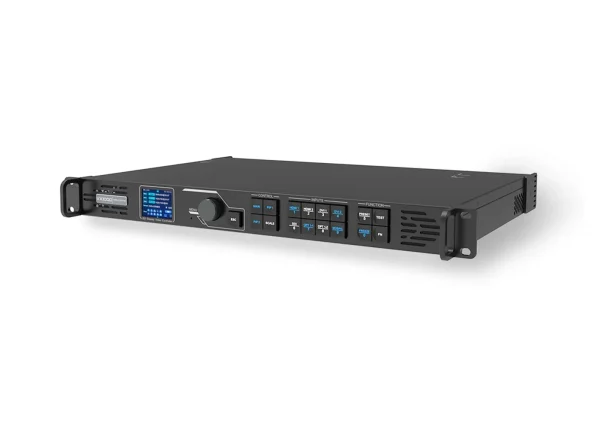

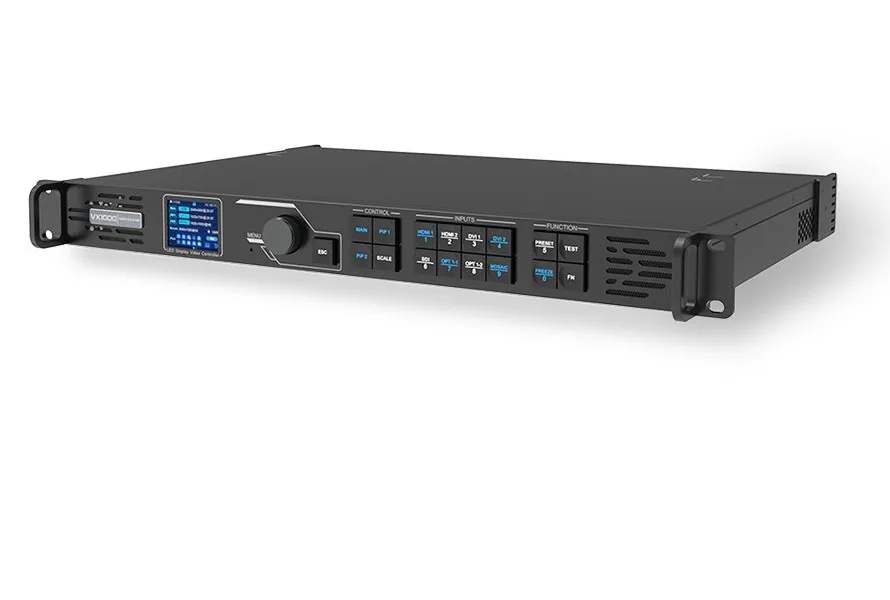

Novastar VX1000 LED Video Processor
$999.00
VX1000 SIMPLICITY MEETS POWER
- Description
- Additional information
Description
Features
Feature Description
- – Ultra-low 1 frame latency
- – 10 customizable presets
- – 3D solution
- – Long-distance optical transmission
Descriptions

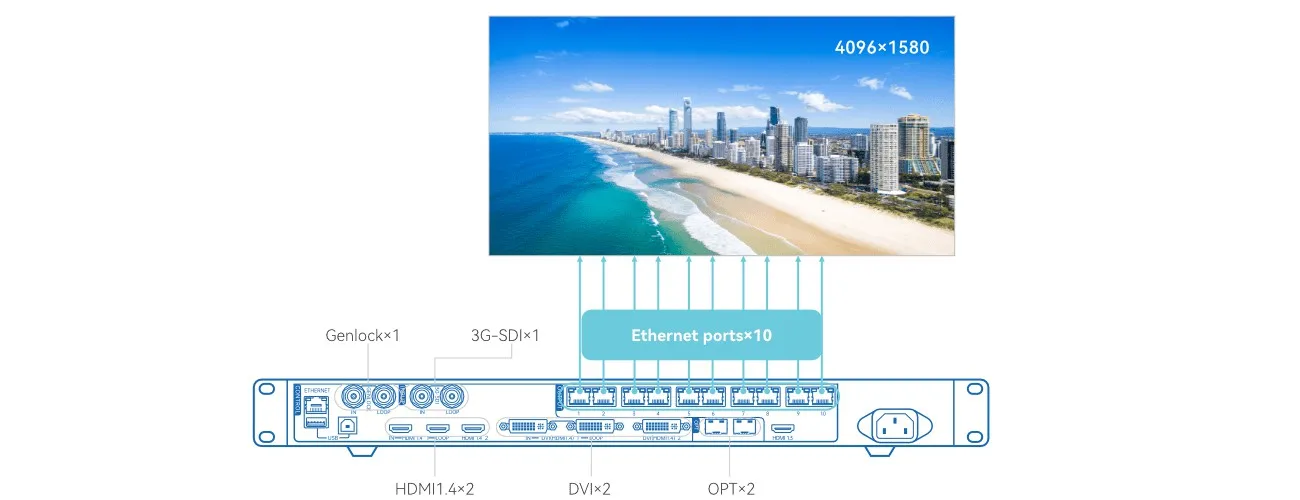

10 Ethernet ports just the right amount
10 Ethernet ports of output provide 6.5 million pixels of loading capacity A single unit can output a maximum width of 10,240 pixels, with a maximum height of 8,192 pixels

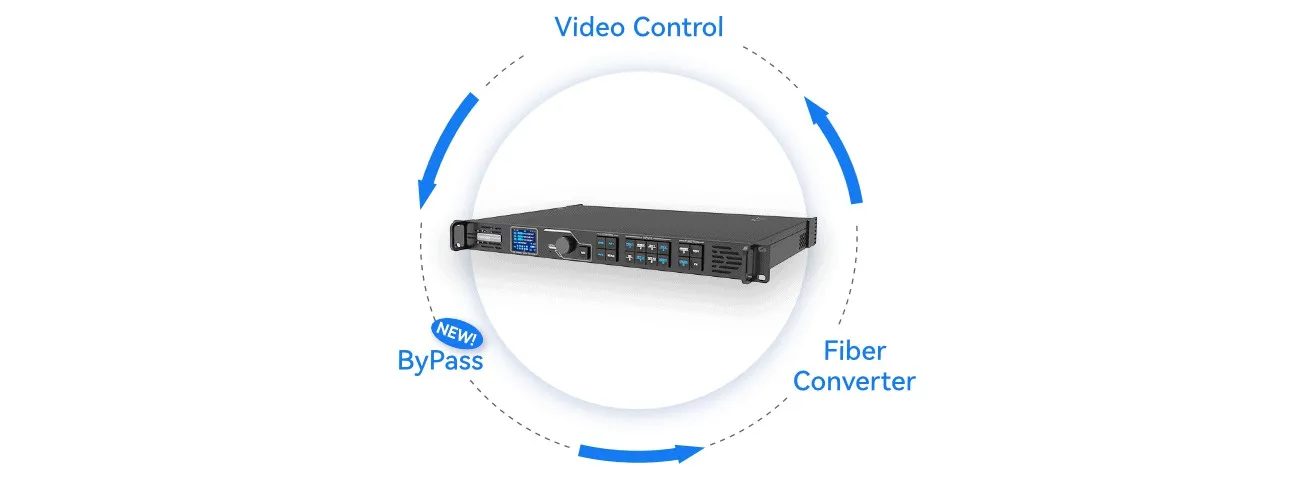

One device3 working modes
Video Controller, ByPass, Fiber Converter, free switching between three modes
Complete redundant system for maximum stability
Support for redundant input source, system configuration, ethernet ports, and devices Providing total security from start to finish
Novastar VX1000 LED Video Processor Specifications
| Electrical Parameters |
Power connector | 100–240V~, 1.6A, 50/60Hz | |
| Rated power consumption |
28 W | ||
| Operating Environment |
Temperature | 0°C to 45°C | |
| Humidity | 20% RH to 90% RH, non-condensing | ||
| Storage | Temperature | –20°C to +70°C | |
| Humidity | 10% RH to 95% RH, non-condensing | ||
| Physical Specifications |
Dimensions | 483.6 mm × 351.2 mm × 50.1 mm | |
| Net weight | 4 kg | ||
| Packing Information |
Accessories | Flight Case | Carton |
| 1x Power cord 1x HDMI to DVI cable 1x USB cable 1x Ethernet cable 1x HDMI cable 1x Quick Start Guide 1x Certificate of Approval 1x DAC cable |
1x Power cord 1x HDMI to DVI cable 1x USB cable 1x Ethernet cable 1x HDMI cable 1x Quick Start Guide 1x Certificate of Approval 1x Safety Manual 1x Customer Letter |
||
| Packing size | 521.0 mm ×517.0 mm ×102.0 mm | 565.0 mm ×175.0 mm ×450.0 mm | |
| Gross weight | 10.4 kg | 6.8 kg | |
| Noise Level ( typical at 25°C/77°F) | 45 dB (A) | ||

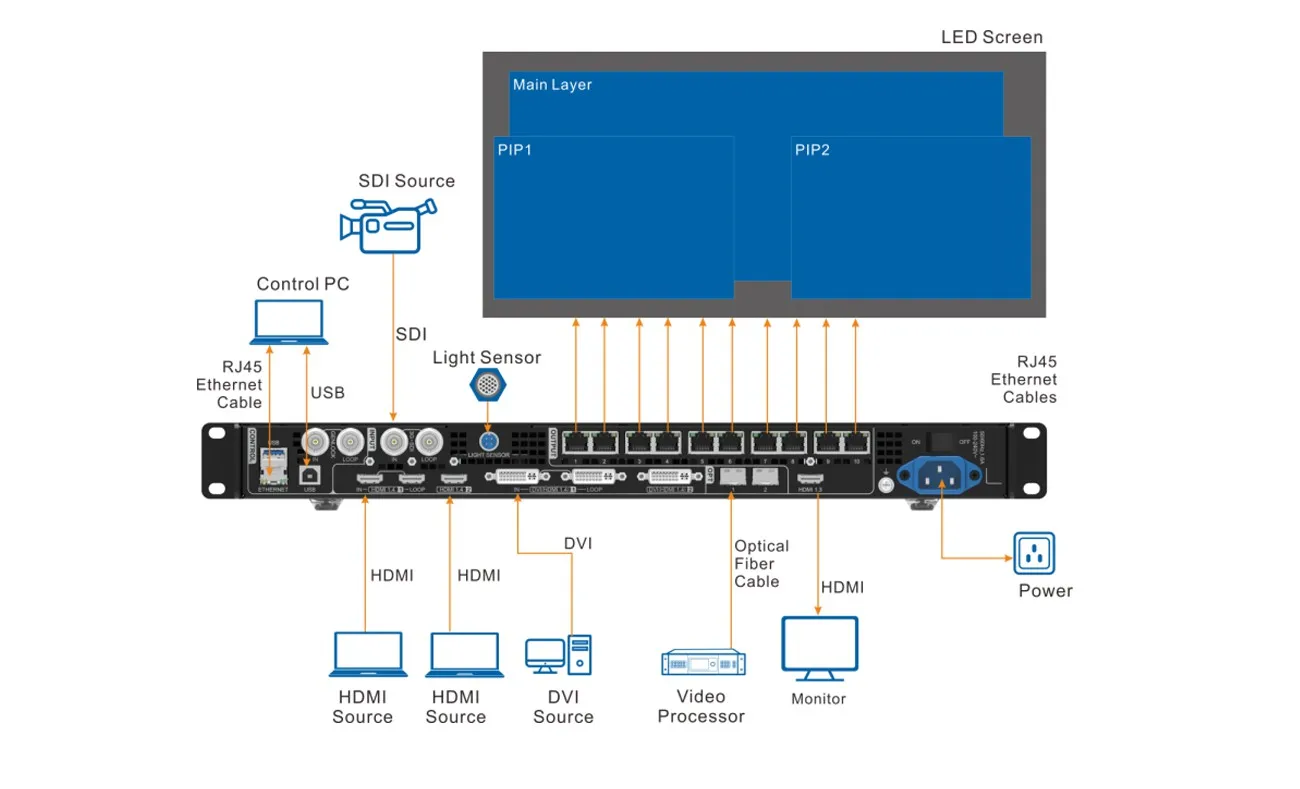

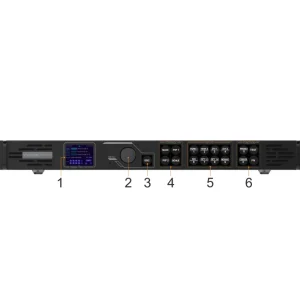

Diagram
Additional information
| Weight | 15 kg |
|---|
