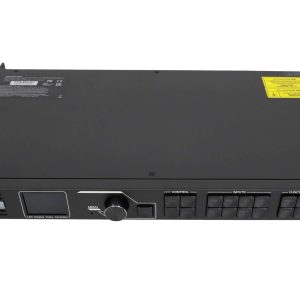

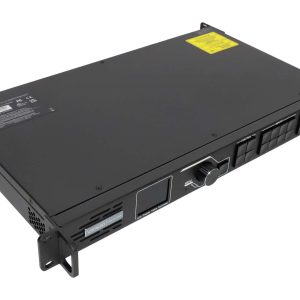

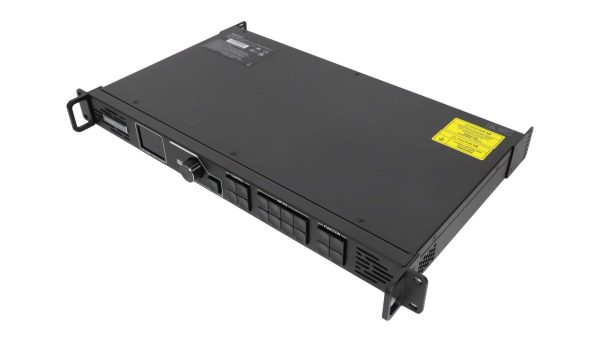

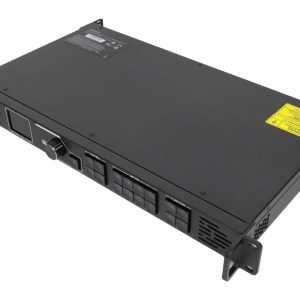

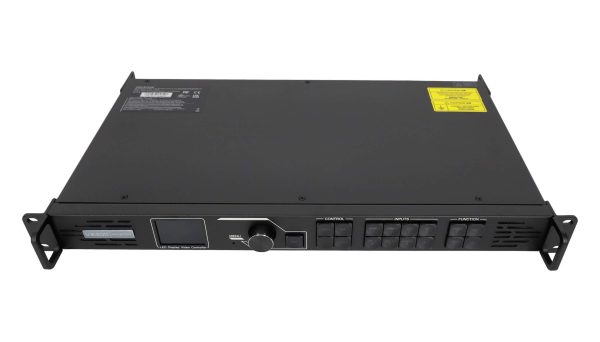

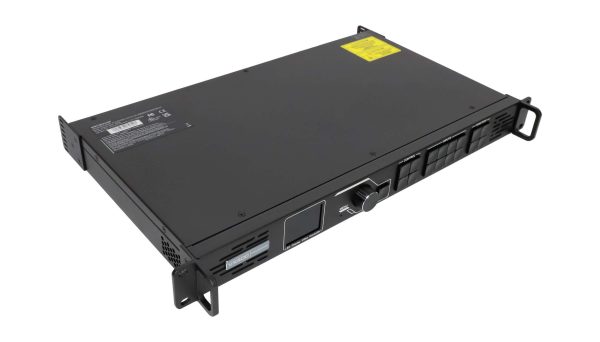

Novastar VX400 All-in-One LED video Controller
Original price was: $910.00.$805.00Current price is: $805.00.
Novastar VX400 All-in-One LED video Controller features： Input connectors − 1x HDMI 1.3 (IN & LOOP) − 1x HDMI 1.3 − 1x DVI (IN & LOOP) − 1x 3G-SDI…
- Description
- Additional information
Description
Novastar VX400 All-in-One LED video Controller features：

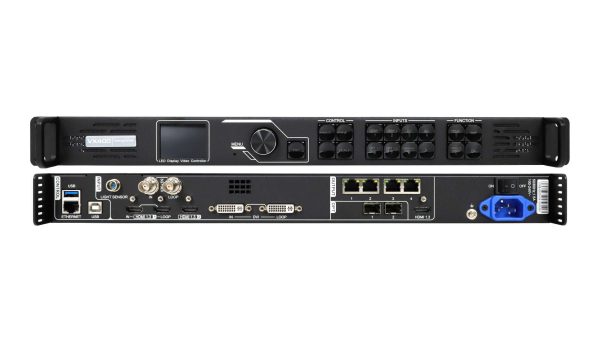

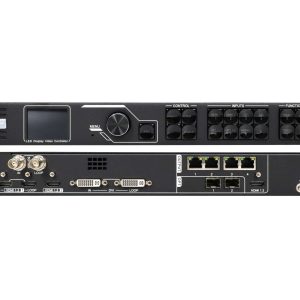

Input connectors
− 1x HDMI 1.3 (IN & LOOP)
− 1x HDMI 1.3
− 1x DVI (IN & LOOP)
− 1x 3G-SDI (IN & LOOP)
− 1x optical fiber port (OPT1)

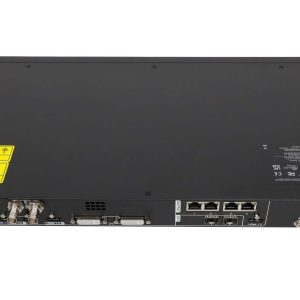

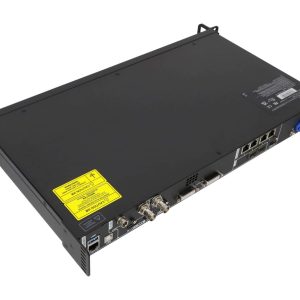

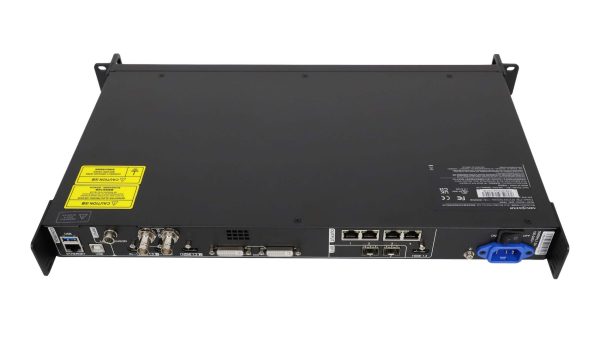

Output connectors
−4x Gigabit Ethernet ports
A single device unit drives up to 2.6 millionpixels, with a maximum width of 10,240pixels and a maximum height of 8192 pixels.
− 2x Fiber outputs
OPT 1 copies the output on 4 Ethernet ports.OPT 2 copies or backs up the output on 4Ethernet ports.
− 1x HDMI 1.3
For monitoring or video output
Self-adaptive OPT 1 for either video input or sending card output
Thanks to the self-adaptive design, OPT 1 canbe used as either an input or output connector,depending on its connected device.
Audio input and output
− Audio input accompanied with HDMI inputsource
− Audio output via a multifunction card
− Output volume adjustment supported
Low latency
Reduce the delay from the input to receivingcard to 20 lines when the low latency function and Bypass mode are both enabled
2x layers
− Adjustable layer size and position
− Adjustable layer priority
Output synchronization
An internal input source can be used as the sync source to ensure the output images of all ascaded units in sync.
Additional information
| Weight | 10 kg |
|---|
