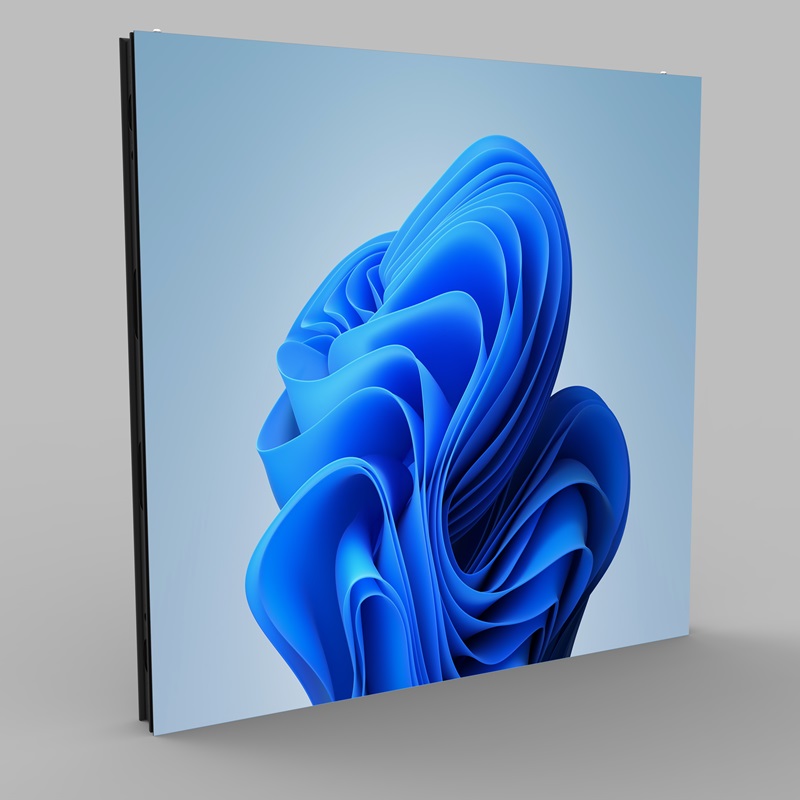

Name: Outdoor Common Cathode Energy Saving LED Screen DOOH LED Display Solution
SKU: Outdoor Common Cathode Energy Saving LED Screen
Availability: InStock

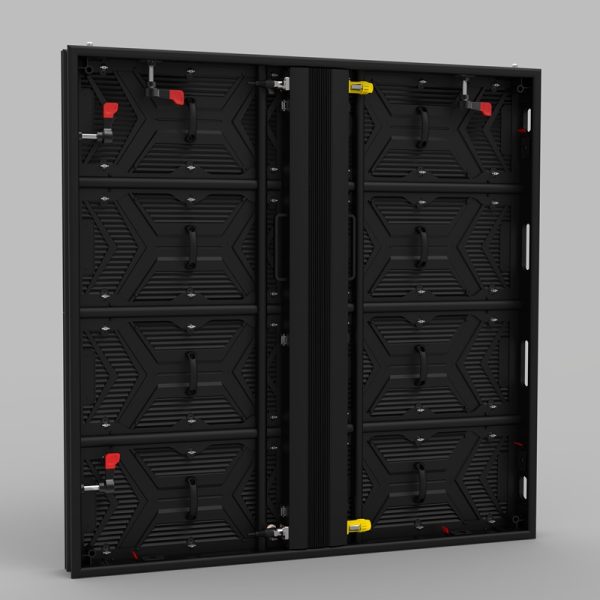

image_1712457456_LED-1000X1000-Fixed-Installation-Biilboard-(1)

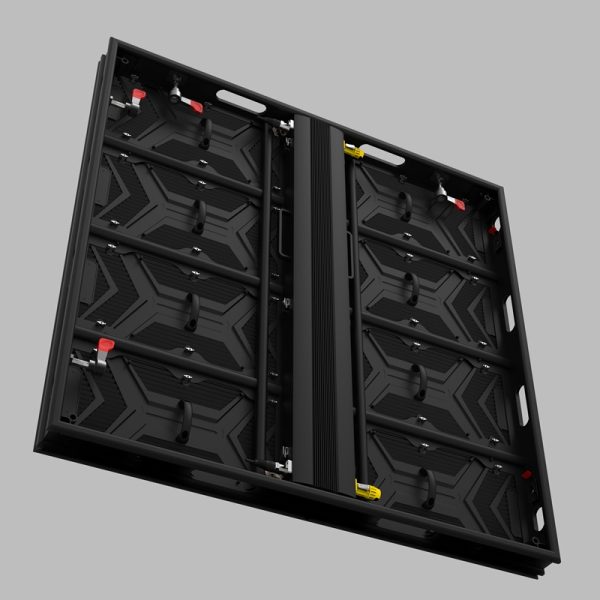

image_1712457464_LED-1000X1000-Fixed-Installation-Biilboard-(2)

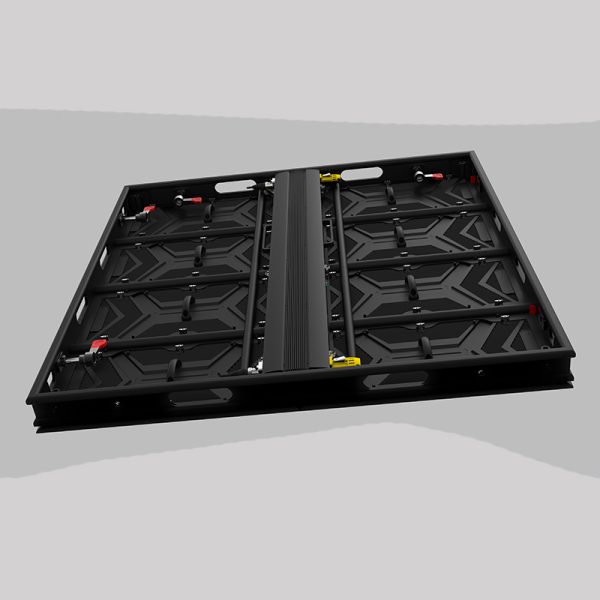

image_1712457472_LED-1000X1000-Fixed-Installation-Biilboard-(4)

image_1712457468_LED-1000X1000-Fixed-Installation-Biilboard-(3)

Outdoor Common Cathode Energy Saving LED Screen DOOH LED Display Solution - Image 1

Outdoor Common Cathode Energy Saving LED Screen DOOH LED Display Solution

0 out of 5

$399.00

Outdoor Common Outdoor high-end energy-saving LED screen is made of all aluminum material, lighter and thinner, IP65 outdoor waterproof level, ultra-wide viewing angle

SKU: Outdoor Common Cathode Energy Saving LED Screen Categories: Leeman LED Display Screen, Outdoor LED Display Tag: Leeman LED Display

Add to wishlist

Description
Additional information

Description

Features

3840 Hz

Wide Viewing Angles

IP65 Waterproof

High Flexibility

Common Cathode Design

Front Rear Maintenance

Die Cast Aluminum

6500cd High brightness

Advantages

Feature Description

– High precision Aluminum cabinet frame
– Electric power saving up to 30%

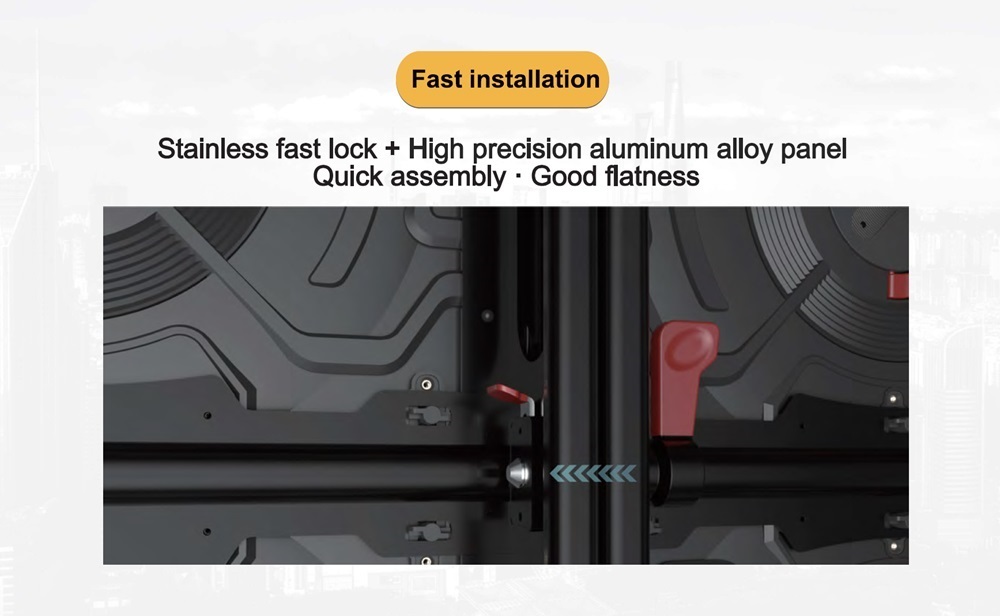

– Steel material fast lock system
– 10000:1 High contrast ratio
– Hub board front access

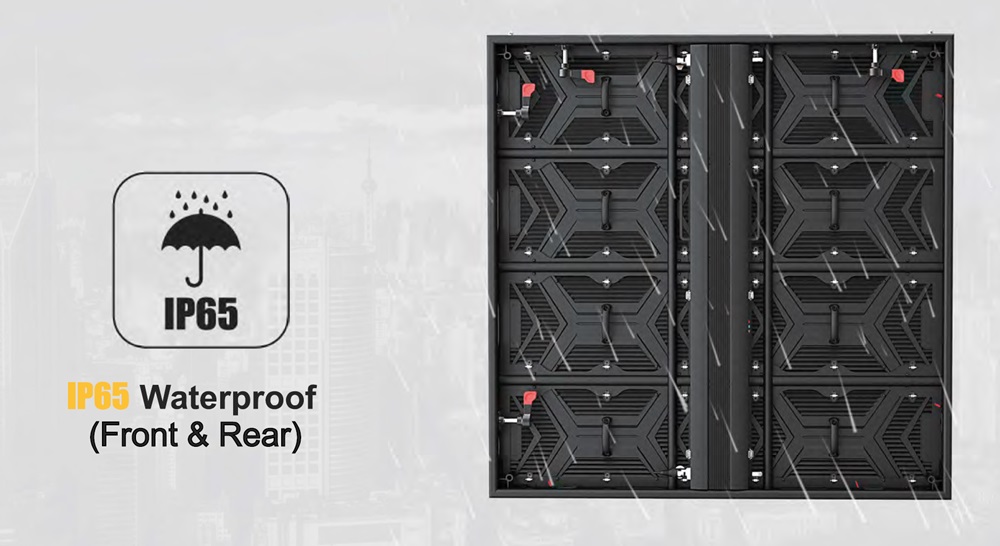

– IP65 waterproof grade

Video

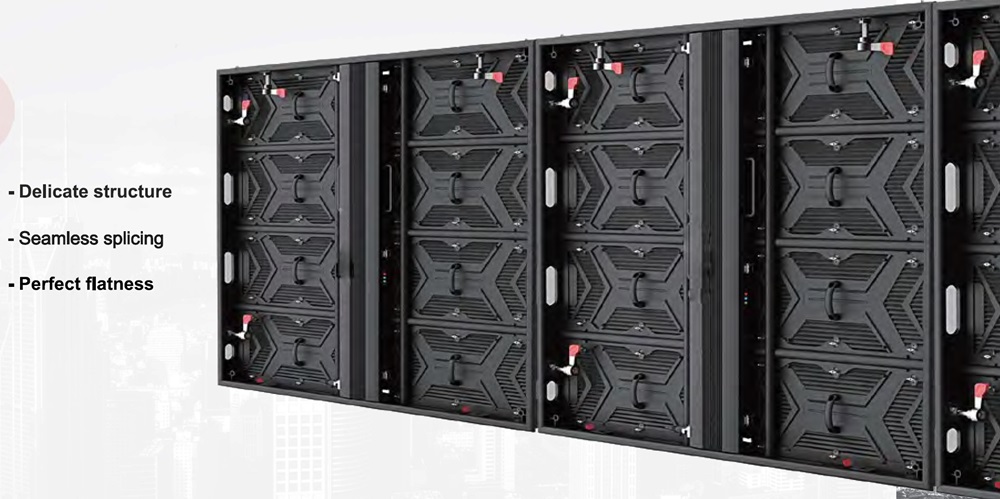

1712460022_LED1000X1000FixedInstallationBiilboard(12)

Parameters

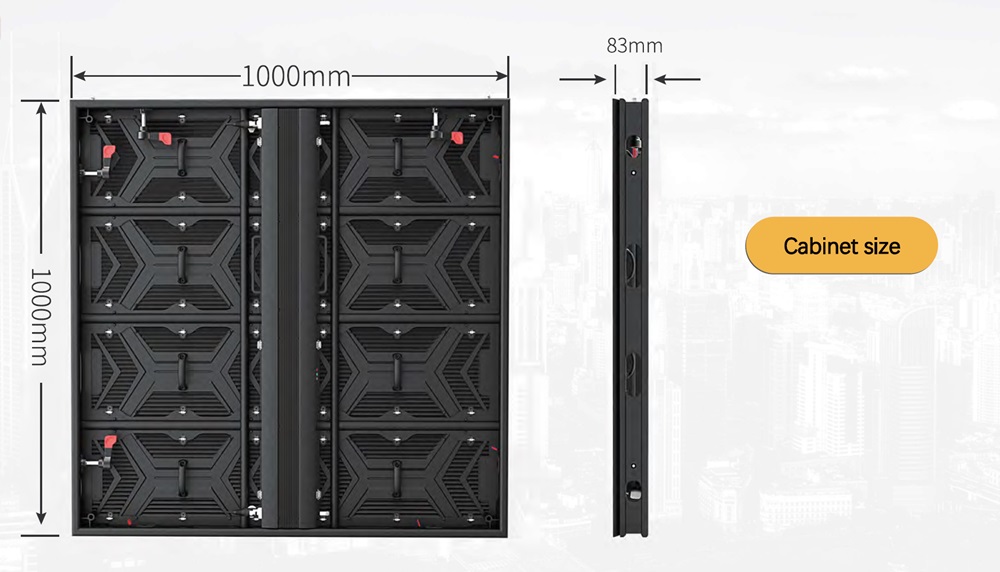

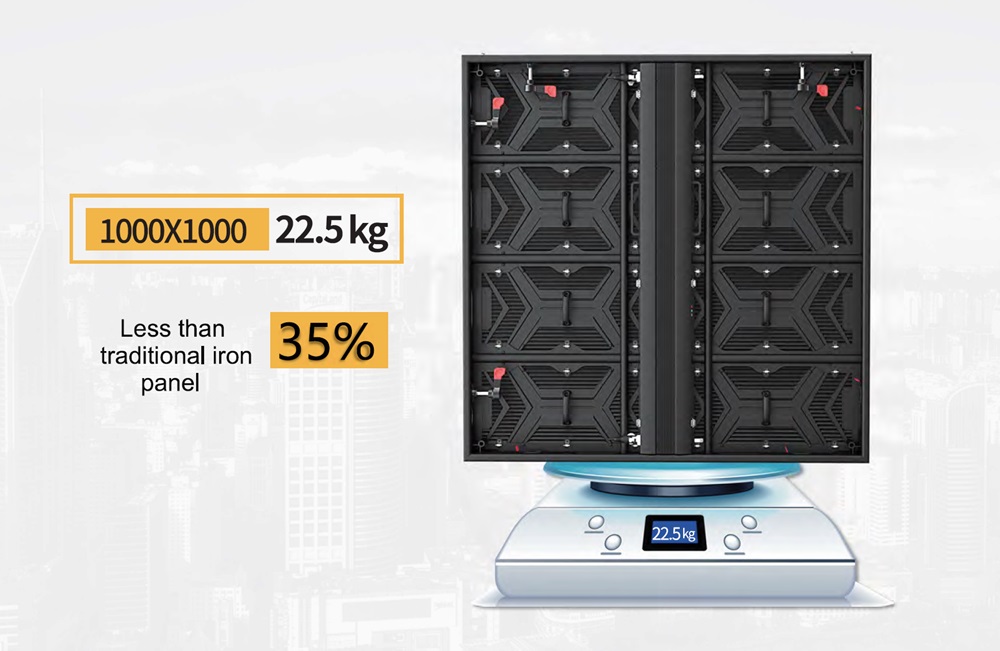

1000X1000mm Cabinet Design

Unique panel design with 500*250mm， and 1000*1000mm cabinet size,Ultra thin thckness with 83mm design

1712458649_LED1000X1000FixedInstallationBiilboard(5)

1712458709_LED1000X1000FixedInstallationBiilboard(6)

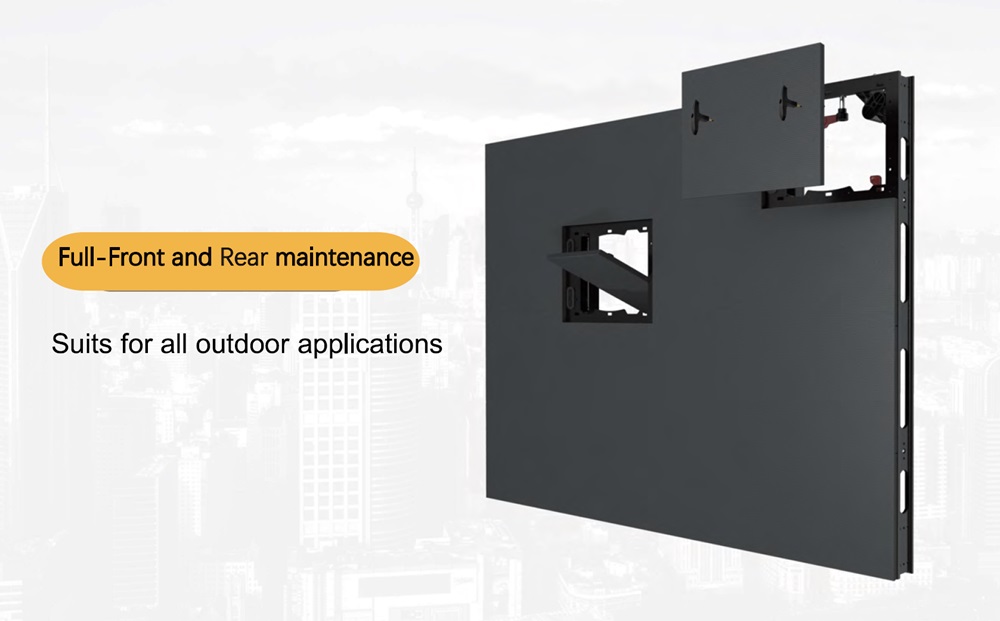

Front and rear maintenance

Dual service mode of front and rear design to save you Maintenance Cost.The LED panel can be assemble and disassemble easily and quickly.

1712459928_LED1000X1000FixedInstallationBiilboard(11)

1712459493_LED1000X1000FixedInstallationBiilboard(8)

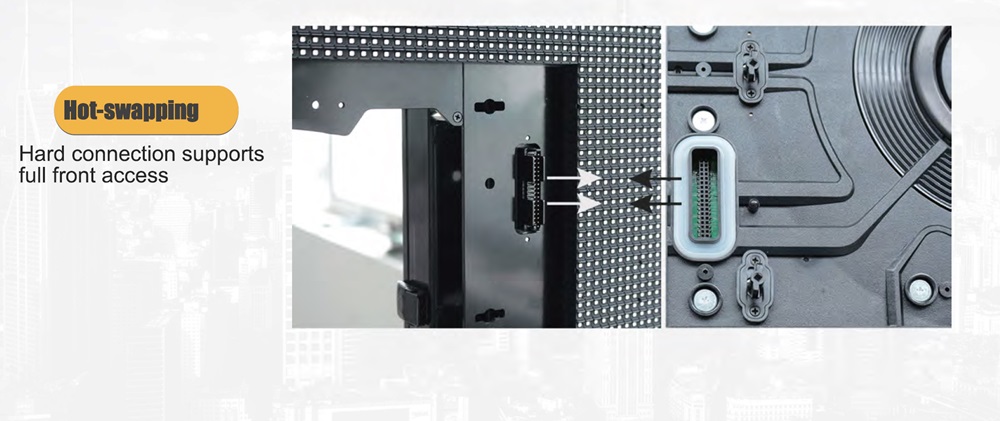

Hot-swapping technology

Hard connection supports full front access

1712459676_LED1000X1000FixedInstallationBiilboard(9)

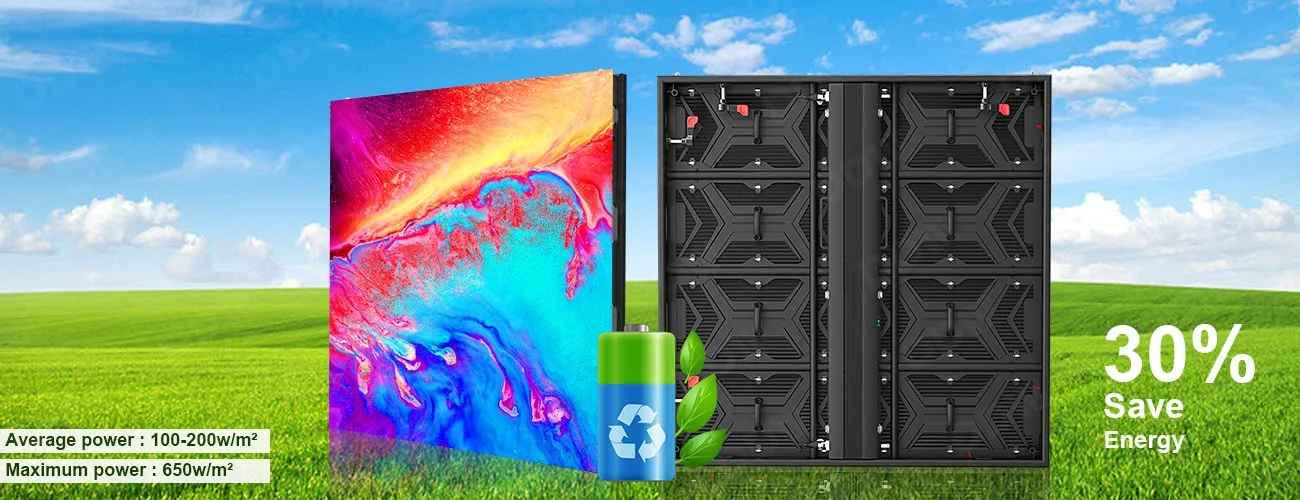

30% energy saving and low power consumption

30% energy saving than conventional LED display, the maximum power is only 650w/m²

Installation

Installation Diagram

Wall hanging/single column

P8-P6-SMD-3535-32-16-Large-Outdoor-LED-Display-Screen-Pixel-RGB-Module-for-Building-Facades-imageonline.co-9447580

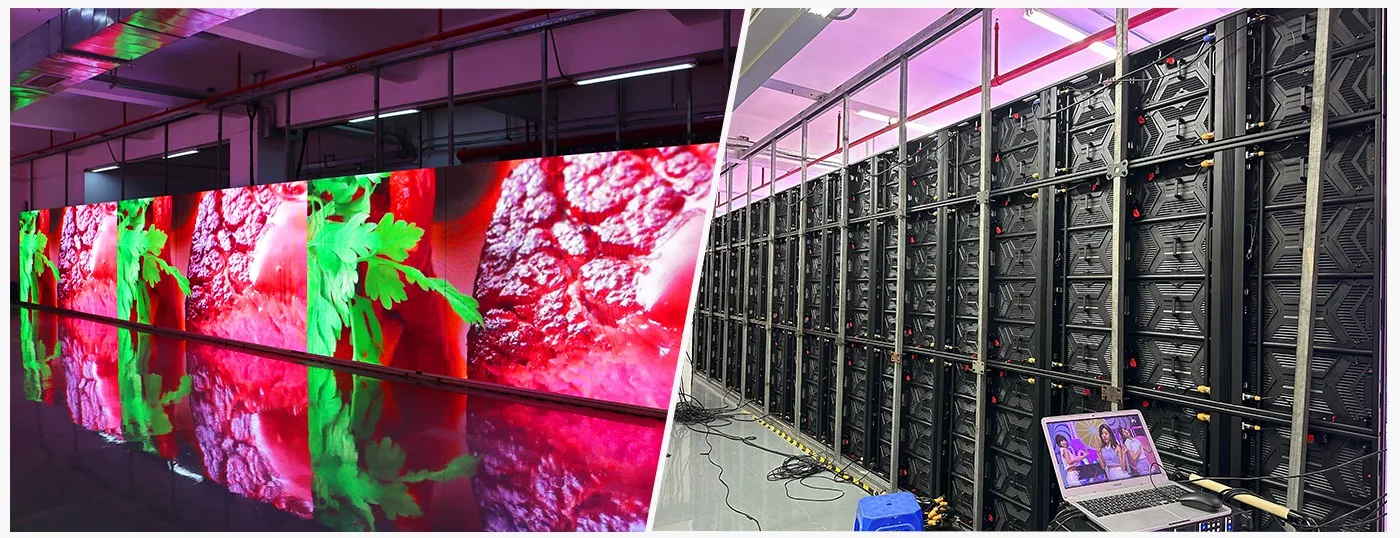

Aging test

Outdoor Common Cathode Energy Saving LED Screen Specifications

Pixel Pitch	P3.91	P4.81	P6.25	P7.81	P10.42
SMD Type	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Physical Density(dots/㎡)	65536	43264	25600	16384	9216
Module Resolution	128X64	104X52	80X40	64X32	48X24
Panel Dimension(W xH/mm)	500X250
Module Size (mm)	1000X1000X83
Panel Resolution	256X256	208X208	160X160	128X128	96X96
Module quantity(W xH)	2X4
Panel Weight(kg)	22.5
Maintenance Mode	Front & Rear
Cabinet material	Aluminum
Brightness(Nits)	6000
Color temperature(K)	1000-18500 Adjustable
Viewing Angle(H/V)	140°/160°
Best viewing distrance	4-100m	4-100m	6-150m	8-150m	10-200m
Contrast Ratio	10000 : 1
Frame -changing Frequency(Hz)	50/60
Drving Mode	1/16 scale	1/13 scale	1/8 scale	1/8 scale	1/8 scale
Grey Level	16bit
Refresh Rate (Hz)	3840
Max power consumption(W/㎡)	650
Avg power consumption(W/㎡)	100-200
Grude	IP65
Power supply requirements	AC90-264V,47-63Hz
Working Temp/Humidity(℃/RH)	-20~60℃/10%~85%
Storage Temp/Humidity(℃/RH)	-20~60℃/10%~85%
