Outdoor Rental LED Display Plus
$218.00
- Description
- Additional information
Description
Outdoor Rental LED Screen Plus
Outdoor Rental LED Display-P3.9, P4.8
Great Cabinet Design
Flexible Installation
More Creativity
IP66
High Quality Material
High Quality PCB
High Brightness
Stunning Vision
Product Description

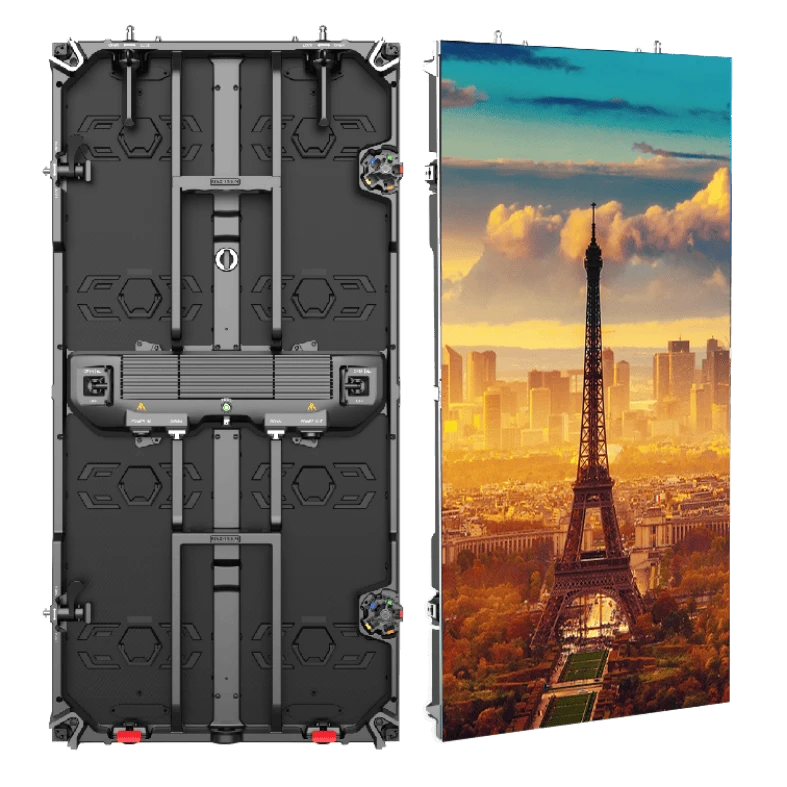

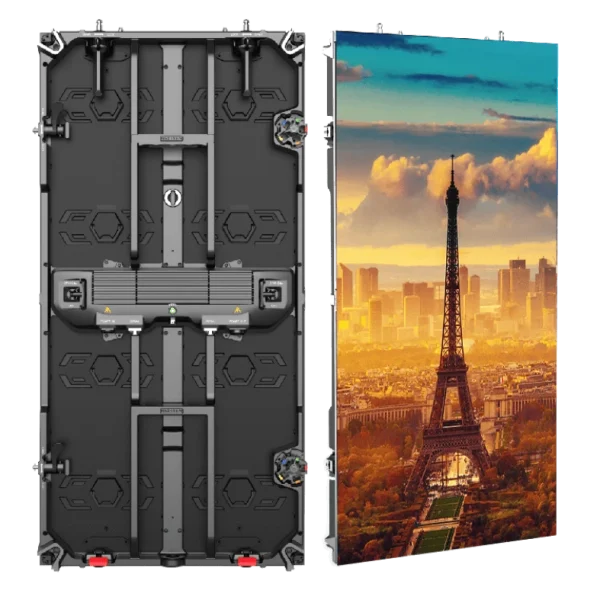

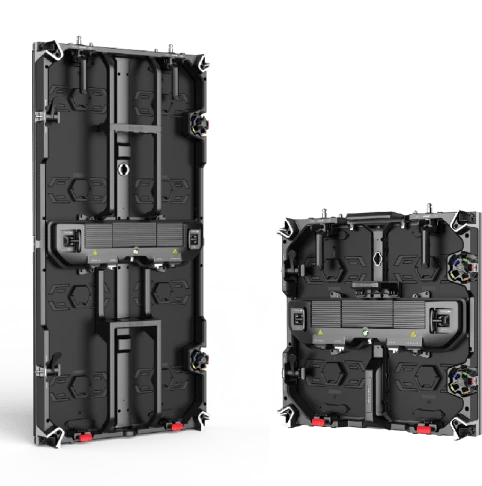

Cabinet Size
Size: 500mm x1000mm x 74.3mm or 500mm x 500mm x 74.3mm Weight: 12.5kg/panel or 9kg/panel Maintenance: Front / Rear

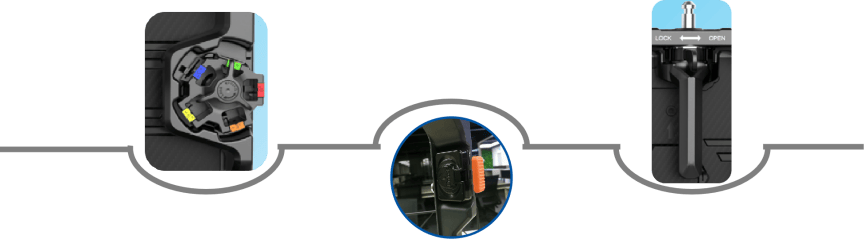

Unique Lock System
Side Curve Lock: unique unilateral arc lock design with -6, -3, 0, +3, +6 degrees of internal and external arc splicing, meet various stage needs, to do the creative screen design. Automatic lock System: innovation lock system for installation within 5s by one-man installation without tool.

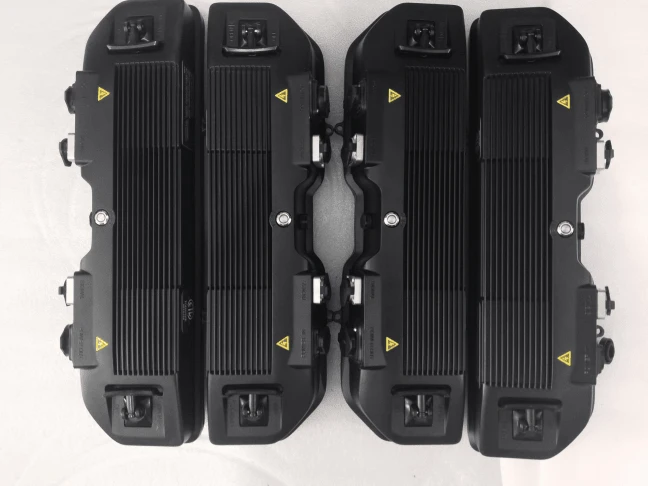

Excellent Power Box
Detachable independent control box with PSU and receiving card for fast replacement. We add breathable valve in every power box to adjust the air pressure. Louver heat sink structure, increasing its heat dissipation area, more effective. Waterproof rings prevent water damaging the components and prolong its lifetime.

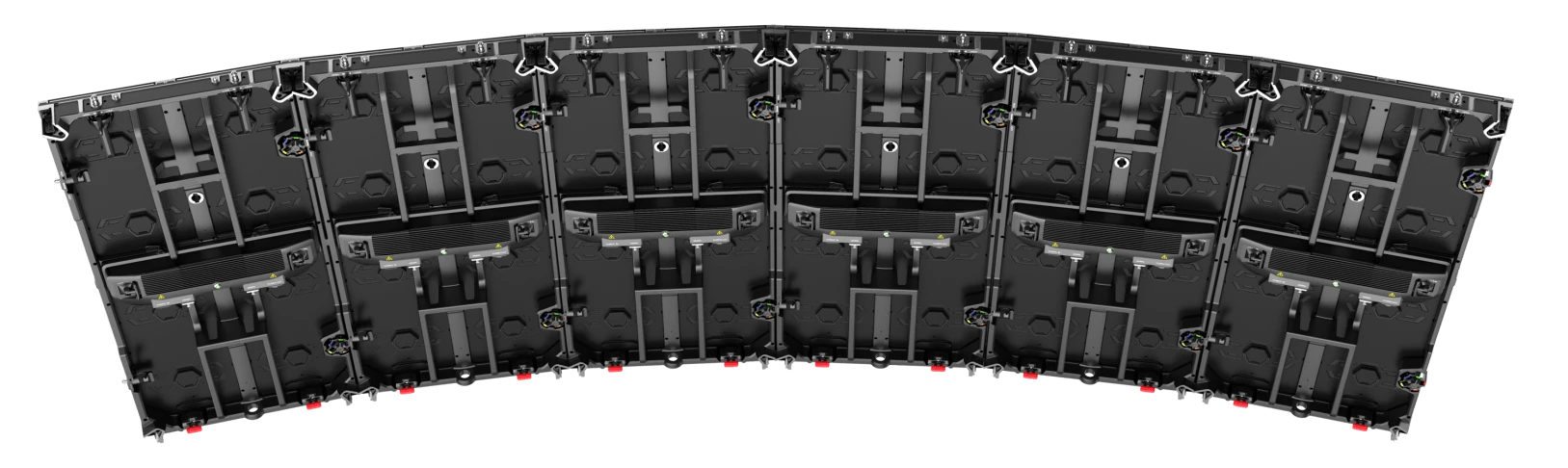

More Angles, More Creativity
The LED screen can be any shape, for example, round shape, flat shape, which enables more possibilities of your stage design.

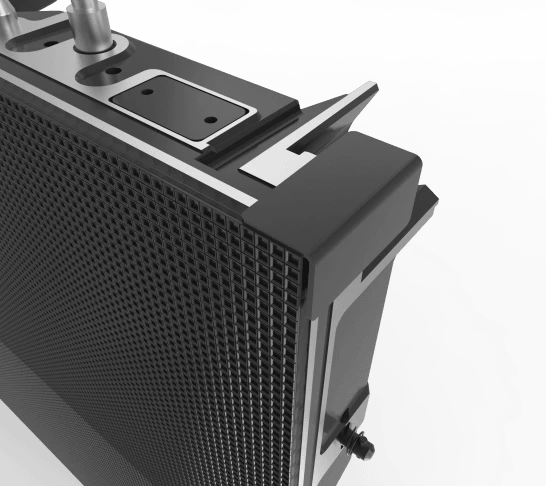

Double Corner Protection
There are protectors on the corners of the modules and cabinet reduce damage rate and repair cost of the cabinet and SMD. We add additional die-casting aluminum corner to further strengthen the protection of leds.

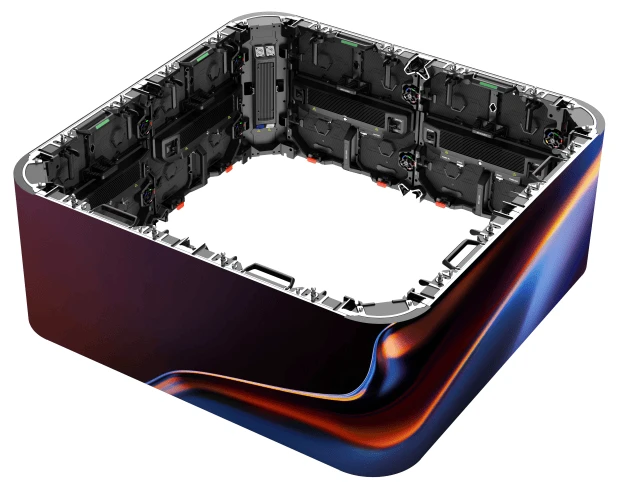

Seamless Round Corner
500mmx1000mm cabinet can do 90 degree round corner with 0 gap, the peripheral degree is 125.9. 500mm x 500mm cabinet also can do gapless 90 degree round corner.

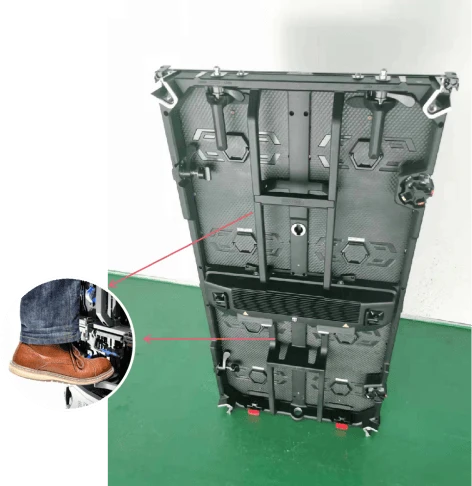

Climbable Handle
The strong handle can be used as a ladder to climb up for fixing the problems if the faulty LED panel is several meters off the ground.

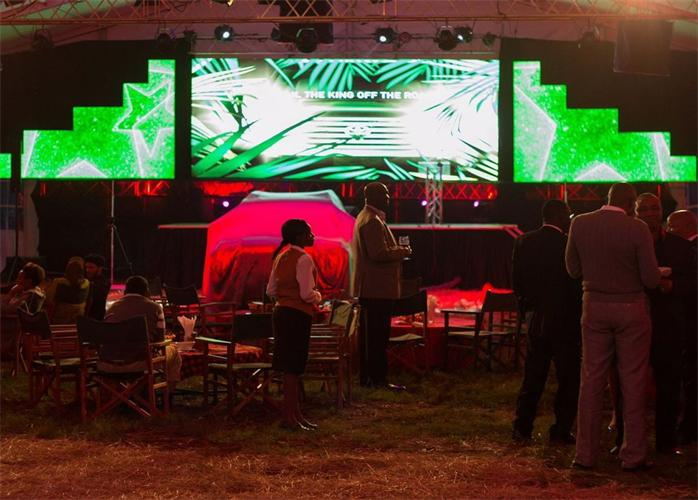

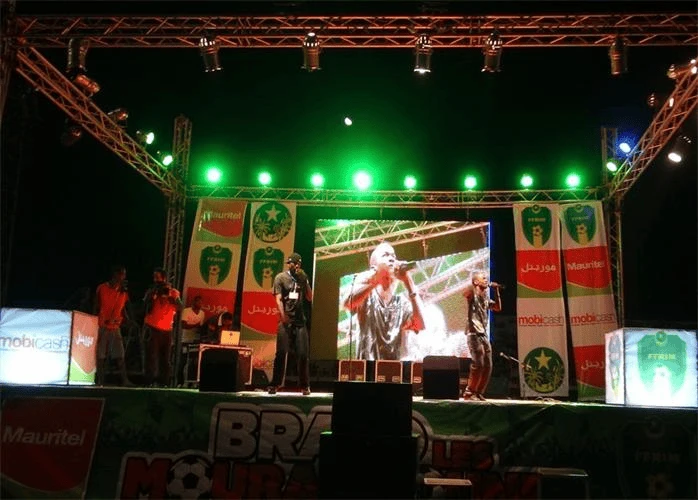

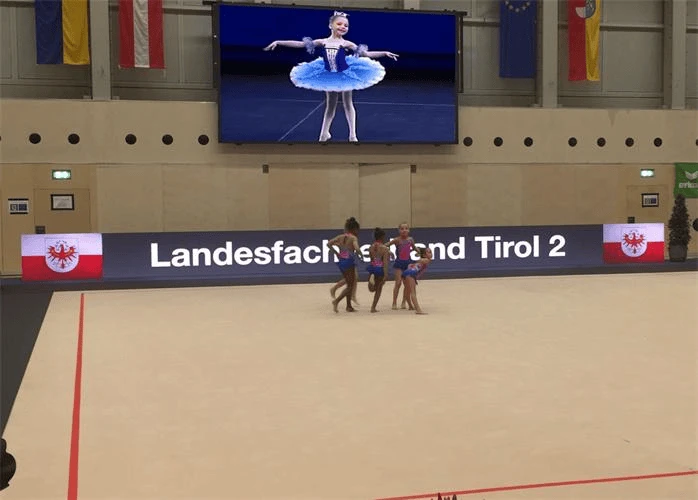

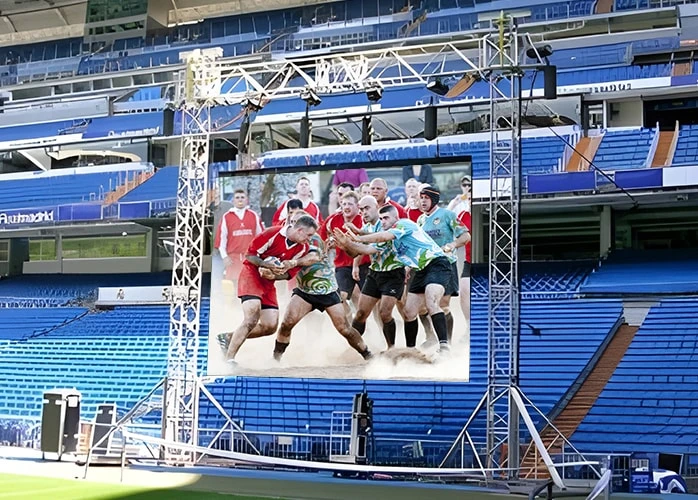

Application Fields
To fit every different scene, the outdoor full color LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:
Cinemas; Stages; Advertisements.
Outdoor Rental LED Display Plus Parameter
|
Item |
P3.9 |
P4.8 |
|---|---|---|
| Pixel Pitch | 3.906mm | 4.807mm |
| LED Type | SMD1921 | SMD1921 |
| Module Resolution | 64dots × 64dots | 52dots × 52dots |
| Driving Mode | 1/16scan | 1/13scan |
| Module Pixels | 4,096dots | 2,704dots |
| Module Size | 250mm × 250mm | 250mm × 250mm |
| Cabinet Size | 500mm × 500mm or 500mm × 1,000mm | 500mm × 500mm or 500mm × 1,000mm |
| Cabinet Resolution | 128dots × 128dots or 128dots × 256dots | 104dots × 104dots or 104dots × 208dots |
| Pixel Density | 65,536dots/㎡ | 43,264dots/㎡ |
| Minimum Viewing Distance | ≥3.9 m | ≥4.8 m |
| Brightness | ≥5,500nits | ≥5,500nits |
| IP Grade | IP66 | IP66 |
| Refresh Rate | ≥3,840Hz | ≥3,840Hz |
| Gray Scale | ≥15bits | ≥15bits |
| Viewing Angle | H:160° / V: 90° | H:160° / V:90° |
| Maximum Power Consumption | 700W/㎡ | 700W/㎡ |
| Average Power Consumption | 210W/㎡ | 210W/㎡ |
| Input Voltage | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 9kg/panel or 12.5kg/panel | 7.5kg/panel or 12.5kg/panel |
| Operating System | Windows (Win7,Win8,etc.) | Windows (Win7,Win8,etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
Additional information
| Weight | 35 kg |
|---|
