Outdoor Stadium LED Displays Perimeter LED Screen 1600*900mm Outdoor Pixel Pitch 4mm 4.44mm 5mm 5.71mm 6.67mm 7.81mm 10.41mm Platinum Sports Stadium Perimeter Series Outdoor Football Stadium LED Display Screen Solution Dimension 960*960mm

Aluminum Platinum Series Outdoor Fixed LED Display Screen DOOH Solution Dimension 960*960mm/1280*960mm/800*1200mm DOOH Advertising IP68 Outdoor Front Access LED Display Billboard
Stadium LED Screens Sports Stadium Perimeter LED Display 1600×900 Platinum Sports Stadium Perimeter Series Outdoor Football Stadium LED Display Screen Solution Dimension 960*960mm

Outdoor Stadium LED Displays Perimeter LED Screen 1600*900mm Outdoor Pixel Pitch 4mm 4.44mm 5mm 5.71mm 6.67mm 7.81mm 10.41mm Platinum Sports Stadium Perimeter Series Outdoor Football Stadium LED Display Screen Solution Dimension 960*960mm

Original price was: $399.00.Current price is: $350.00.

In stock
0 out of 5

Original price was: $399.00.Current price is: $350.00.

SKU: Perimeter LED Screen for Stadium Category: Tag:
Add to wishlist

Description

62fe27774ba27

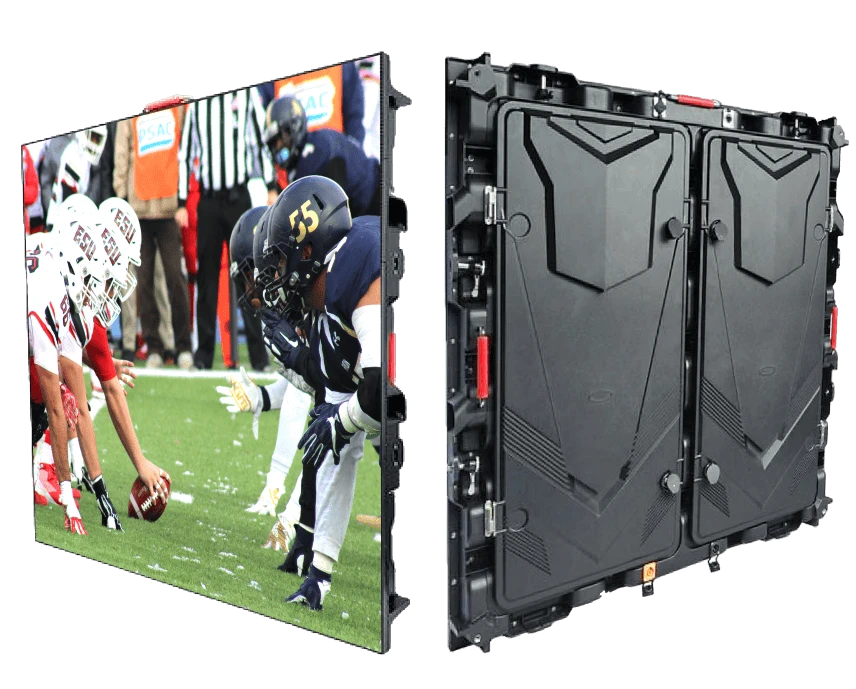

Sports Stadium LED Screens Billboards

Perimeter LED Screen for Stadium-P6.6, P8, P10

610a8565ec70e-2

Soft plastic mask

610a857236549-3

multifunctional

610a857ea45e6-1

High quality SMD LED

610a8589e6054-2

14bits ~ 22bits

610a85975908e

Large Viewing Angle

610a85a337d65-1

IP65

610a85b13417e-2

3,840Hz~40,000Hz

610a85bf46182-2

6,000nits ~ 10,000nits

Product Description

Application Fields

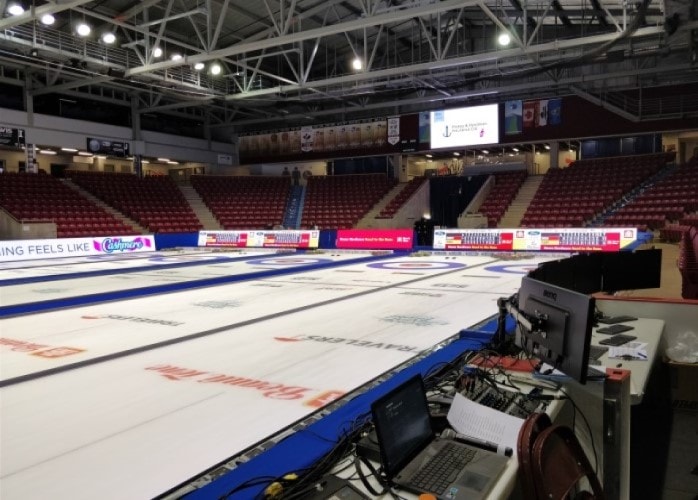

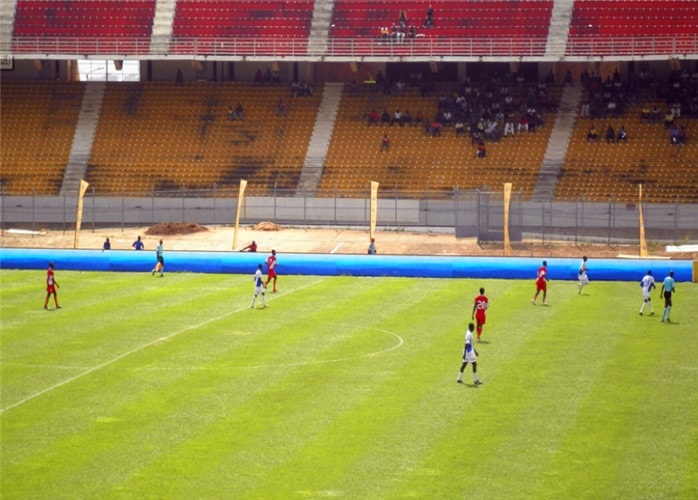

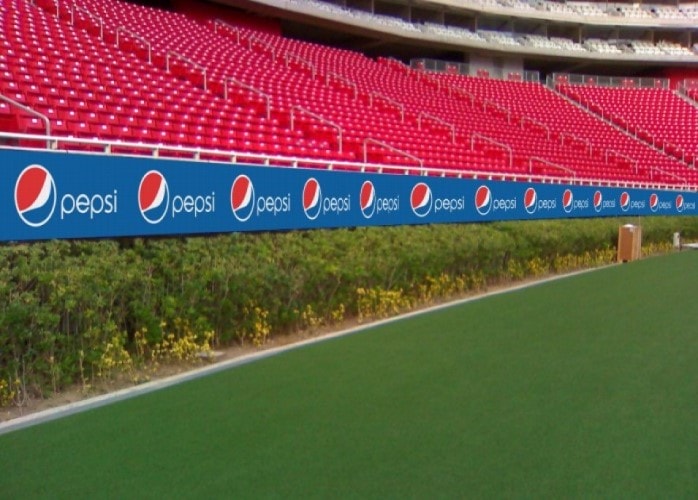

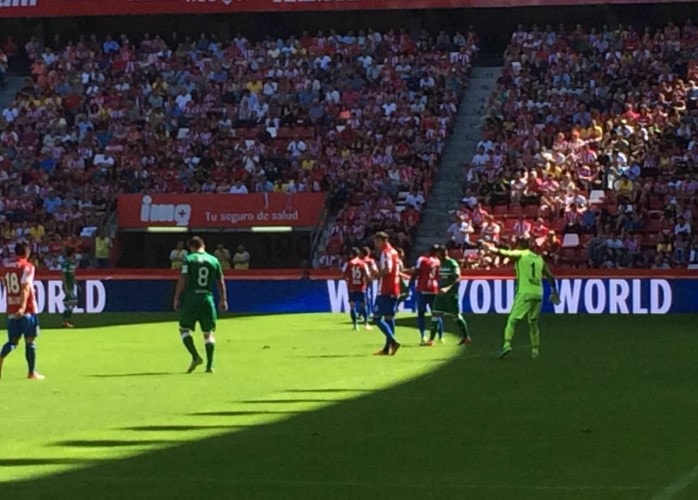

On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors. It is always used in the stadium as:

Perimeter Banner Screen; Score Board; Live Feed Video Screen.

610a834d27f10-1
610a8359198e7-1
610a8364a0785-1
610a83706da8a-1

Stadium Perimeter LED Display Screen Parameter

Item P6.6 P8 P10
Pixel Pitch 6.67mm 8mm 10mm
LED Type NationStar SMD2727 NationStar SMD2727 NationStar SMD2727
Module Resolution 48dots × 24dots 40dots × 20dots 32dots × 16dots
Driving Mode 1/6scan  1/5scan 1/2scan
Module Pixels 1,152dots 800dots 512dots
Module Size 320mm × 160mm 320mm × 160mm 320mm × 160mm
Cabinet Size 960mm × 960mm 960mm × 960mm 960mm × 960mm
Cabinet Resolution 144dots × 144dots  120dots × 120dots 96dots × 96dots
Pixel Density 22,500dots/㎡ 15,625dots/㎡ 10,000dots/㎡
Minimum Viewing Distance ≥6m ≥8m ≥10m
Brightness 6,000nits～10,000nits 6,000nits～10,000nits 6,000nits～10,000nits
IP Grade IP65 IP65 IP65
Refresh Rate 7,680Hz～18,000Hz 7,680Hz～18,000Hz 7,680Hz～18,000Hz
Gray Scale 14bits～22bits 14bits～22bits 14bits～22bits
Viewing Angle H:160° / V:120° H:160° / V:120° H:160° / V:120°
Maximum Power Consumption 720W/㎡ 720W/㎡ 720W/㎡
Average Power Consumption 210W/㎡ 210W/㎡ 210W/㎡
Input Voltage AC110V～AC240V @ 50Hz / 60Hz AC110V～AC240V @ 50Hz / 60Hz AC110V～AC240V @ 50Hz / 60Hz
Operating Temperature ﹣20℃～65℃ ﹣20℃～65℃ ﹣20℃～65℃
Operating Humidity 10%～90% 10%～90% 10%～90%
Cabinet Material Aluminum die-casting Aluminum die-casting Aluminum die-casting
Cabinet Weight 48kg/panel 48kg/panel 48kg/panel
Operating System Windows (Win7, Win10, etc.) Windows (Win7, Win10, etc.) Windows (Win7, Win10, etc.)
Signal Source Compatibility HDMI1.3, DP1.2, SDI, HDMI2.0, etc. HDMI1.3, DP1.2, SDI, HDMI2.0, etc. HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Additional information

Weight 50 kg
