Outdoor Transparent LED Display Screen
$269.00
- Description
- Additional information
Description
Transparent LED Display Screen

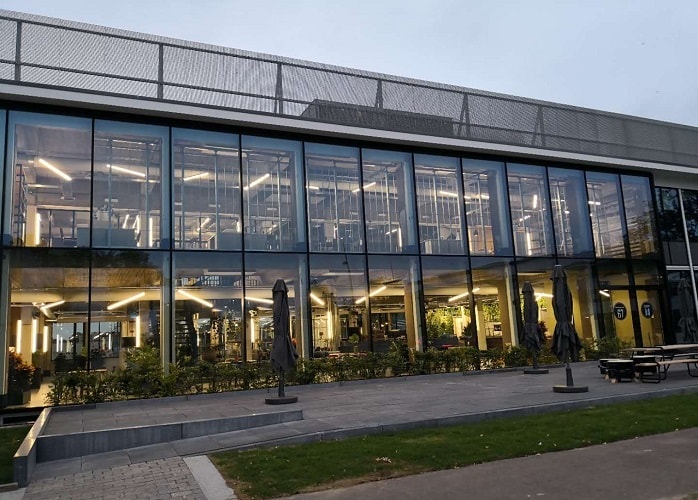

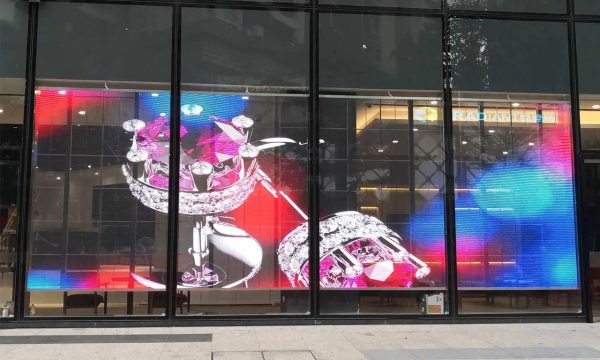

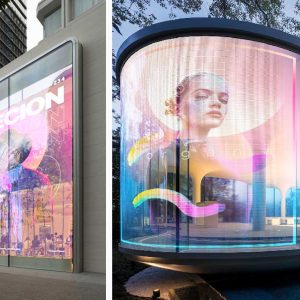

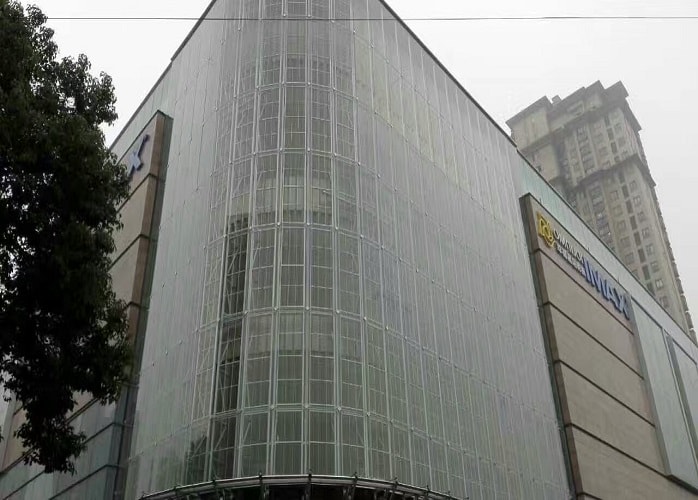

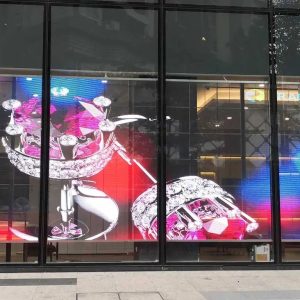

Curtain LED display is one of the modes of using LED displays for commercial outdoor advertising. Our transparent led curtain display is ideal solution for large-screen outdoor installations, especially glass facades of building. Here we provide high quality
translucent curtain LED screen with different pixel pitch from P1.9 – P10.
High Transparency
Economical and Eco-friendly
Standard Cabinet Design
Fast and Easy Installation
High Brightness
Light and Slim
Modular Design
Flexibility
Product Description
Curtain LED Display
An LED curtain screen is generally considered better than ordinary LED displays. Below are the major benefits of an LED curtain screen uncommon in normal LED displays:

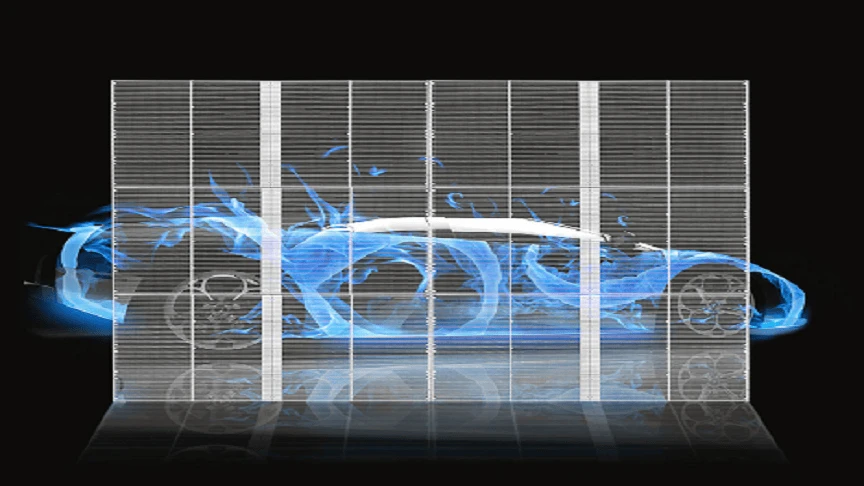

High Transparency
Transparency of our Adhesive Transparent LED Film Screen series transparent LED display is up to 52% or even 82%, which offers a range of creative applications for the live event and installation market.Outdoor transparent LED screen is available, which has IP65 level of waterproof and dustproof. The pixel pitch is P3.9.
High Brightness & Economical and Eco-friendly
Its brightness of our transparent LED display products is up to 5000nits or even higher. So the display content will still look very clear even if in the sunlight. Using its excellent video performance to capture the audience’s attention and bring them unforgettable visual experience;The power consumption is 1/3 lower than normal screen.
Light and Slim

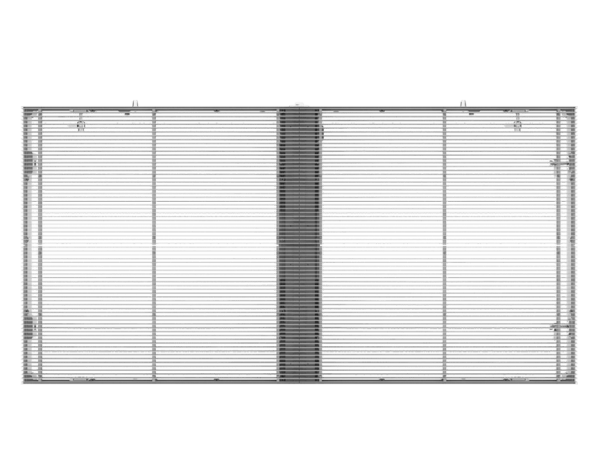

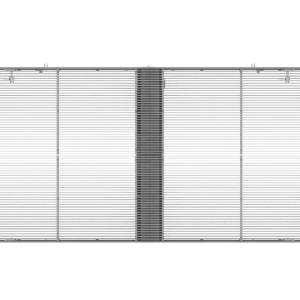

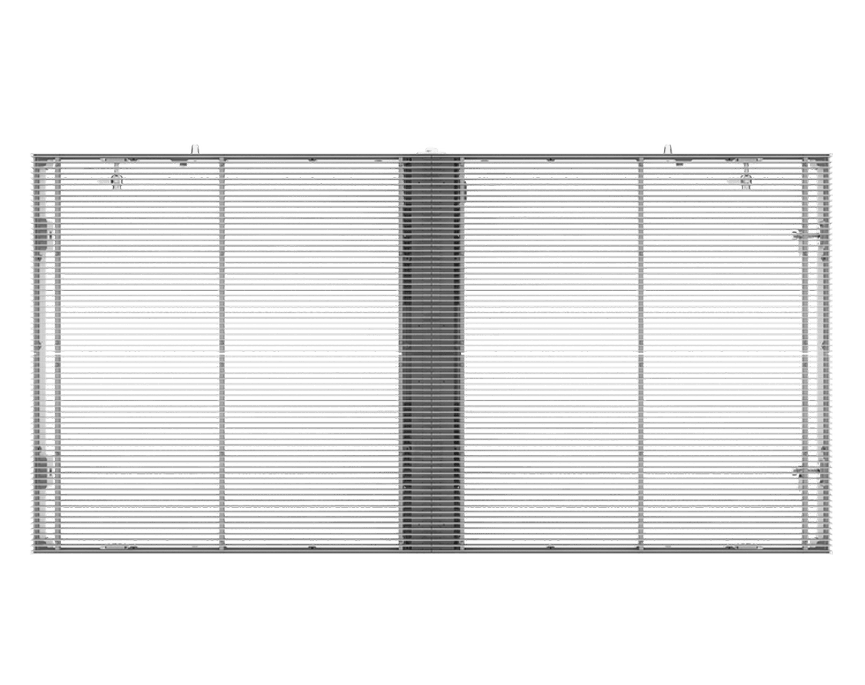

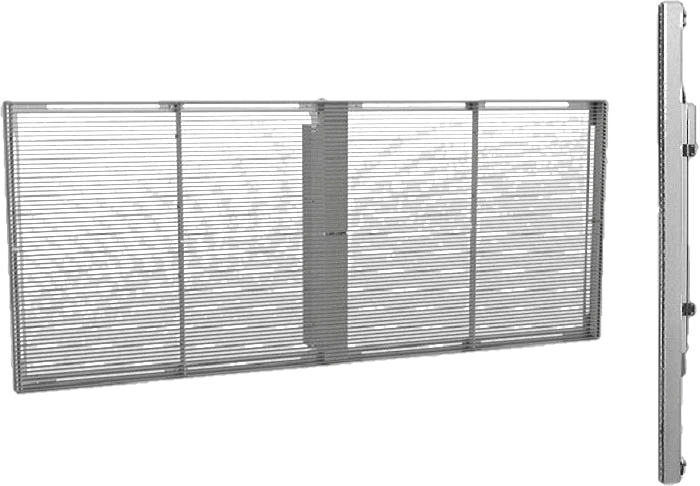

80mm cabinet thickness and 4.3kgs weight make Holographic Invisible Screen & Transparent LED Display Screen lighter and thinner than most of other transparent LED displays in the market.Standard & Customized Cabinet Design: Standard cabinet design 1000mm*500mm brings easier installation. Meanwhile, the customized design is available.
Compared to the traditional LED display screen, an outdoor LED curtain display and its unit box have extremely light dimensions. Mesh LED displays don’t typically require too many steel structures.

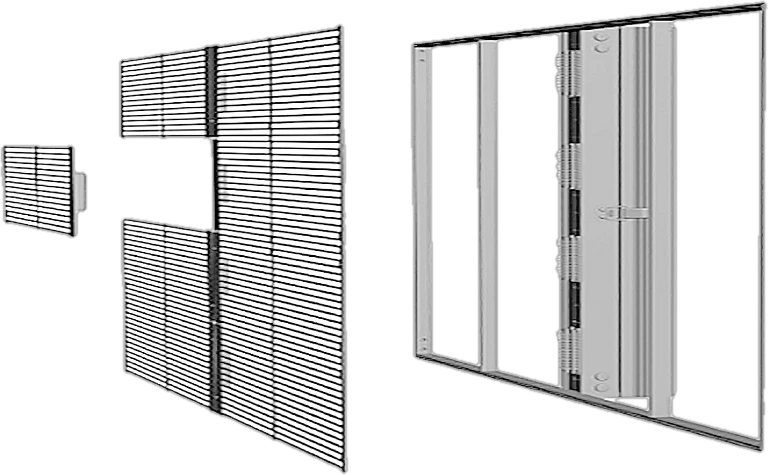

Modular Design
The modular power box and PCB make repair easy and replacement of spare parts cost-effective. The module PCB helps to control the flatness of the screen compared with the side emitting LED PCB strip.
Fast and Easy Installation

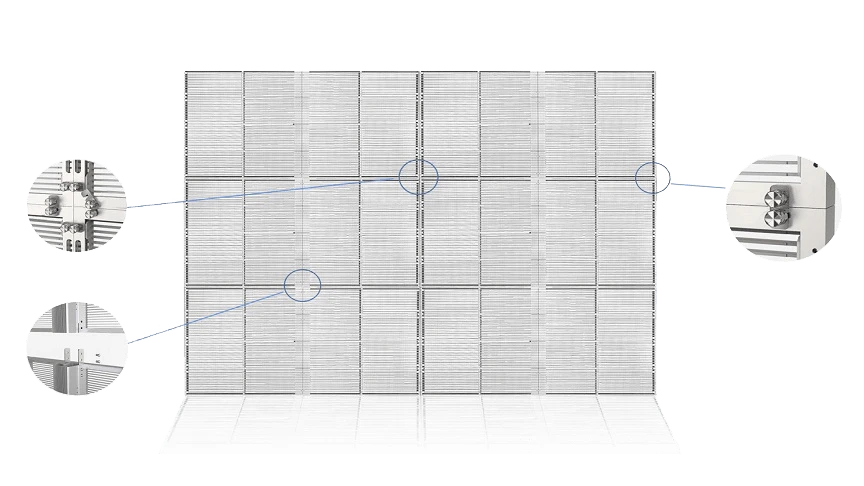

Our transparent LED display comes with a wide range of accessories; connection locks, transport flight cases and hanging options. The fast lock assembly contributes to efficient handing, transportation and ease of installation.
Flexibility

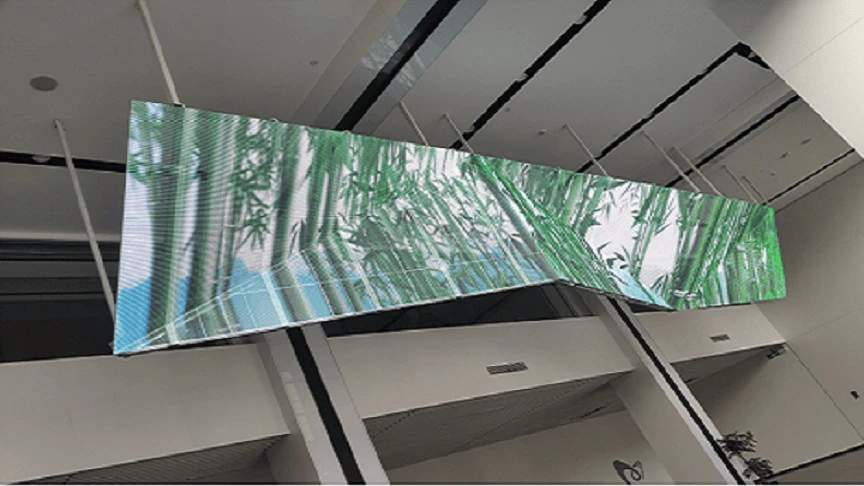

Owning to high flexibility of cabinet and high density of pixel pitch, units may be multi-angle folded to satisfy creative HD design.
Application Fields

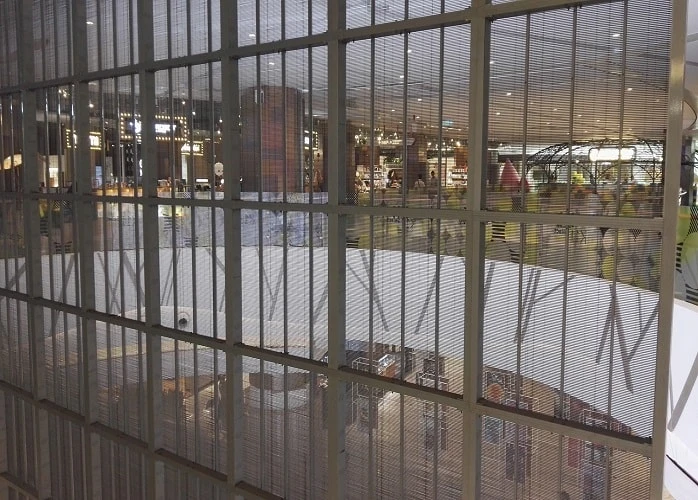

There is a wide variety of outdoor LED curtain screen resolutions in the market. Outdoor curtain LED displays have been gaining popularity, mostly due to major technological advancements like increased brightness levels and better picture quality. They are widely used in Museums, Shopping malls and Exhibition events.
High-quality Transparent LED Display Screen Parameter
| Item | P1.9 | P2.8 | P3.9 |
|---|---|---|---|
| Pixel Pitch | 1.953mm (W) / 3.906mm (H) | 2.841mm (W) / 5.681mm (H) | 3.91mm (W) / 7.81mm (H) |
| LED Type | SMD1415 | SMD1921 | SMD1921 |
| Module Resolution | 256dots × 32dots | 176dots × 22dots | 128dots × 16dots |
| Driving Mode | 1/14scan | 1/11scan | 1/8scan |
| Module Pixels | 8,192dots | 3,872dots | 2,048dots |
| Module Size | 500mm × 125mm | 500mm × 125mm | 500mm × 125mm |
| Cabinet Size | 1,000mm × 500mm | 1,000mm × 500mm | 1,000mm × 500mm |
| Cabinet Resolution | 512dots × 128dots | 352dots × 88dots | 256dots× 64dots |
| Pixel Density | 131,072dots/㎡ | 61,951dots/㎡ | 32,768dots/㎡ |
| Minimum Viewing Distance | ≥1.9 m | ≥2.8 m | ≥3.9 m |
| Transparency | 61% | 63% | 73% |
| Brightness | ≥1,500nits~3,000nits | ≥5,000nits | ≥5,000nits |
| IP Grade | IP43 | IP43 | IP43 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 14bits～22bits | 14bits～22bits | 14bits～22bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 800W/㎡ | 800W/㎡ | 800W/㎡ |
| Average Power Consumption | 230W/㎡ | 230W/㎡ | 230W/㎡ |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Â Aluminum | Â Aluminum | Â Aluminum |
| Cabinet Weight | 4.3kg/panel | 4.3kg/panel | 4.3kg/panel |
| Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
Additional information
| Weight | 35 kg |
|---|
