XR LED Display Film Studios XR Led Screen for Virtual Production

XR LED Display Film Studios XR Led Screen for Virtual Production

$275.00

In stock
0 out of 5

$275.00

SKU: XR Virtual LED Display Screen Category: Tag:

Description

63217f8f17e5d

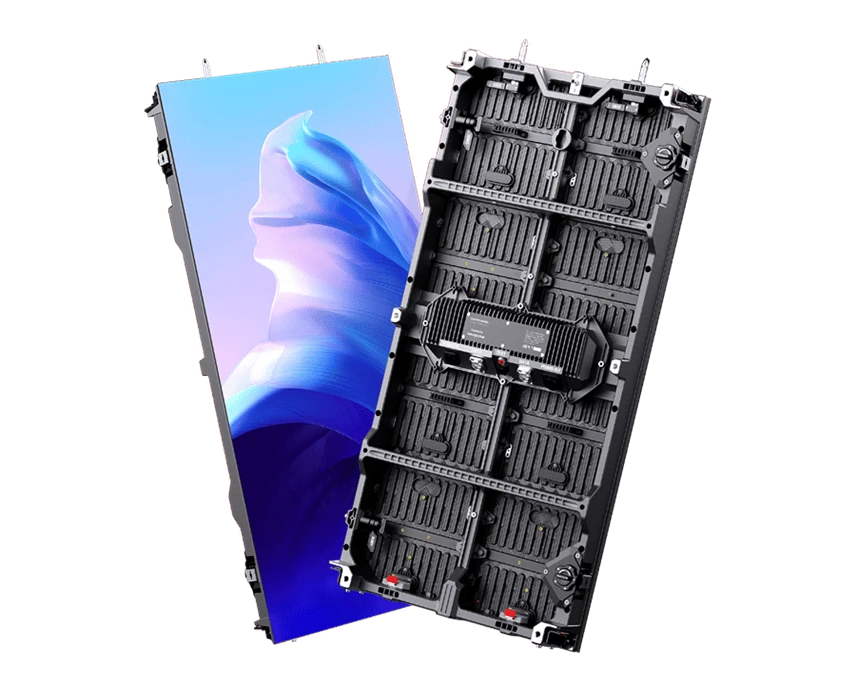

LED Wall Display for Virtual Production XR Stage Film Studios

High-quality XR LED display-P2.6, P2.9

610dfa449544d-1

Stunning vision

610dfa614b96c

Good cooling design

610dfa6d71749

Excellent cabinet design

63218c42edfd8

XR technology

610dfa90d4793-1

Easy maintenance

610dfa9d146eb-1

7680Hz refresh rate

Product Description

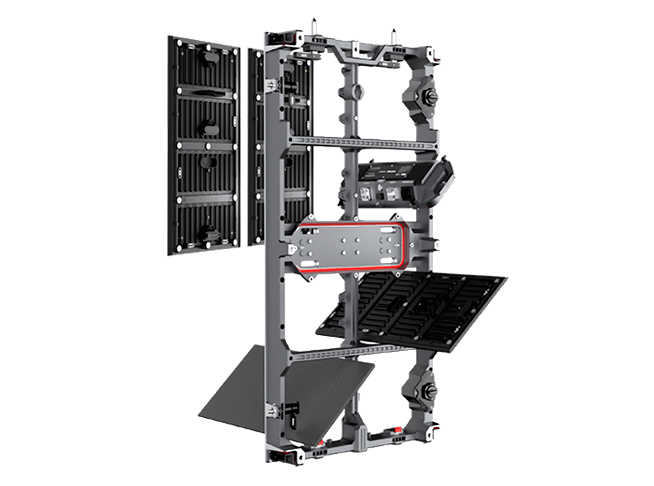

Easy maintenance

To meet different needs of live events projects, our XR LED Wall Virtual Production series use front and rear module maintenance design. If there is any problem with the LED panel, you can replace the module in a few seconds. That greatly reduces the “downtime” during the event.

The pixel pitch P1.5, P1.9, P2.6, and P2.9 are available.

6314912303338-1

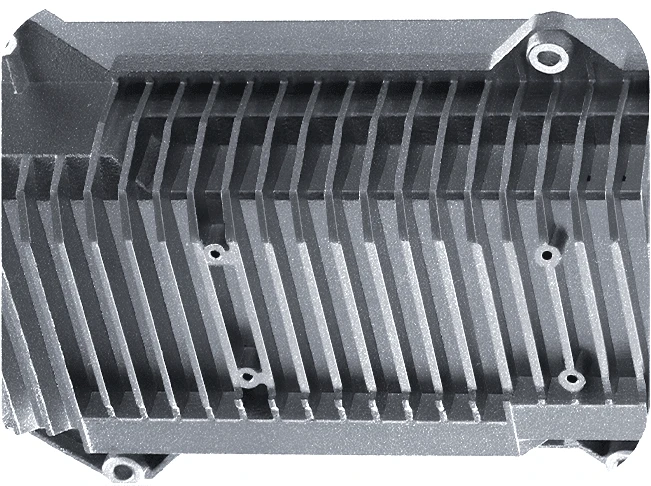

Good cooling design

The thermal properties of the PSU (the house is comprised of a big cool plate & a whole chassis) rapidly dissipate heat, reducing power consumption and improving component operations.

634625a6e58e9

Excellent cabinet design

Smart latch for tighter assemble with no gap. Curveable latch for multi-shaped design. Anti-collision protectors of the cabinet protect the modules and the LED lamp. Captive and toolless design for tightening the thermal properties & easier installation and replacement.

6314918a24e98

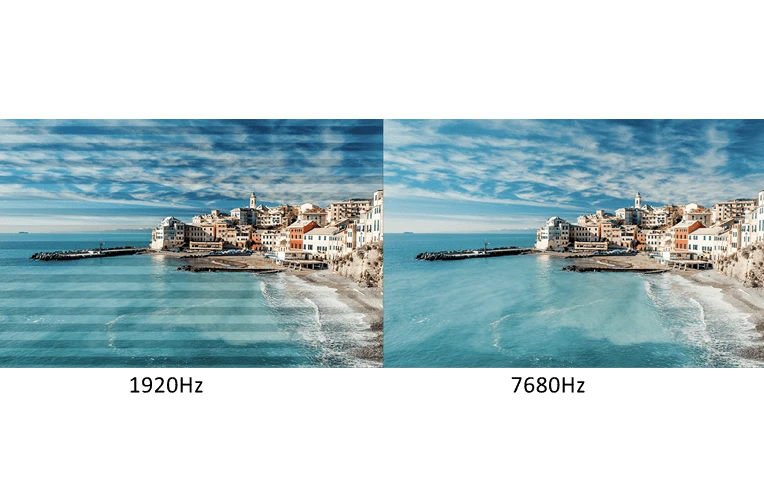

7680Hz refresh rate

The high refresh rate ensures the smoothness of every frame of the images, thus the LED display won’t appear flicking on the highspeed camera.

632189d9bef31

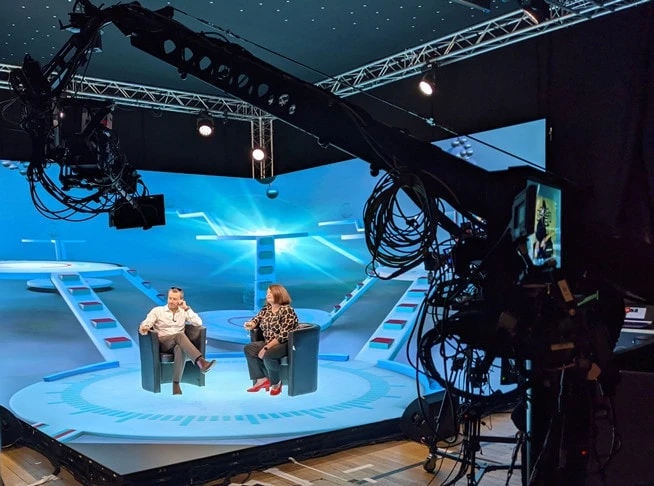

XR technology

Our XR LED Screen Wall Virtual Production series have been specifically developed for used in film & TV industries as well as extended reality applications. Premteco’s intelligent electronnic design capabilities performed acritical role in the XR’s high-performance abilities, creating a display that is meticulously close to real-life imagery.

632189ebba69e

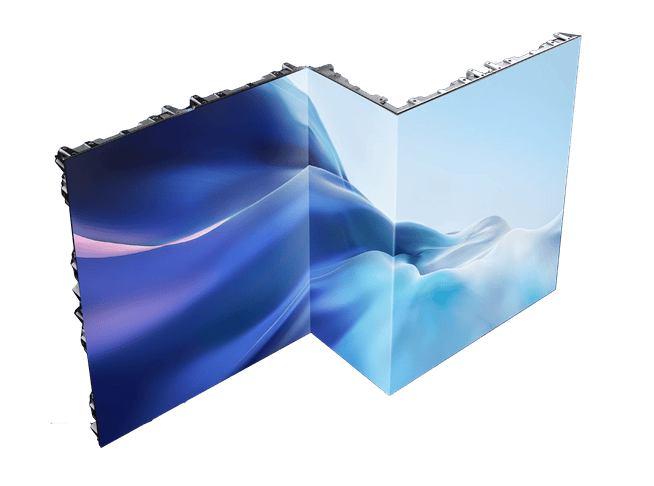

Creative application

Our XR Virtual LED Screen Max series allow you to realize many creative solutions. In addition to standard designs, panels of Rental XR LED Display for Virtual Production Max series can curve, be ceiling mounted, at right angles, let your imagination be the solution.

632189faf1c74

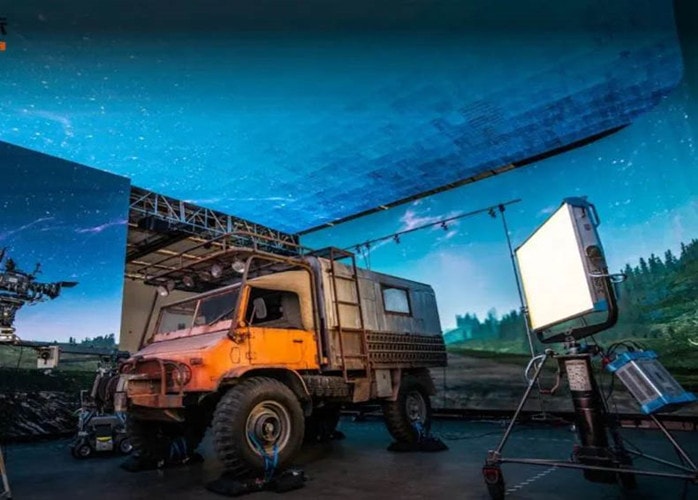

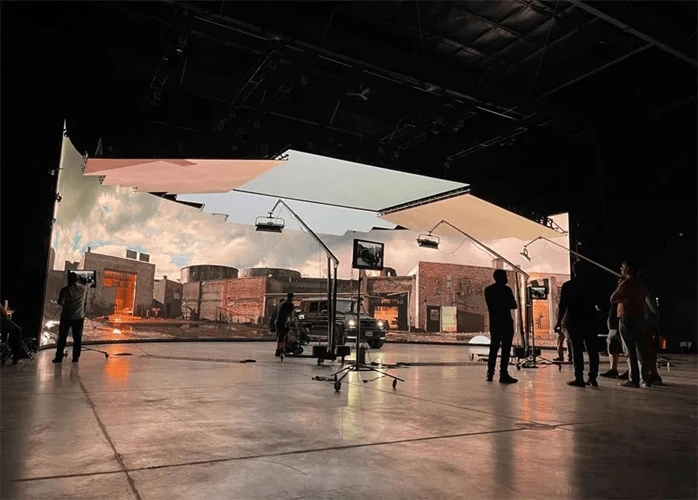

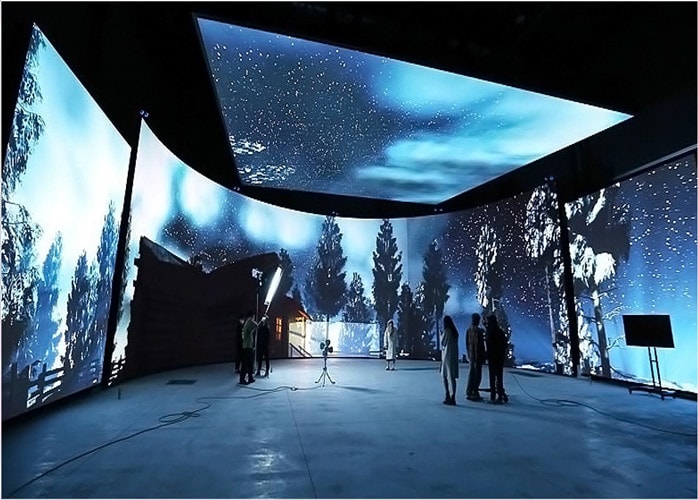

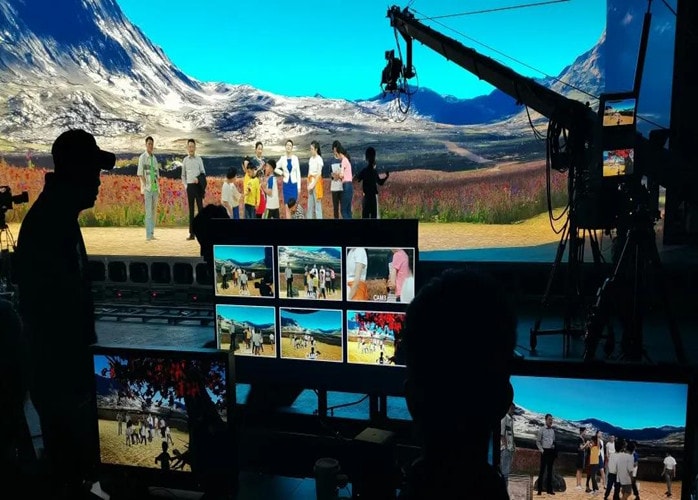

Application Fields

To fit every different scene, the outdoor full color LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:

Program; Show; Film Studio.

63218a5e683ae
63218a7c8dea8
63218a964da7f
63218aa7256cc

XR Virtual LED Screen Film Studios & Rental XR LED Display for Virtual Production Parameter

Item P2.6 P1.9
Pixel Pitch 2.604mm 1.953mm
LED Type SMD1515 SMD1415
Module Resolution 96dots × 192dots 128dots × 128dots
Driving Mode 1/16scan 1/32scan
Module Pixels 18,432dots 16,384dots
Module Size 250mm × 500mm 250mm × 500mm
Cabinet Size 500mm × 1,000mm 500mm × 1,000mm
Cabinet Resolution  192dots × 384dots 256dots × 512dots
Pixel Density 147,456dots/㎡ 262,144dots/㎡
Minimum Viewing Distance ≥2.6 m ≥1.9 m
Brightness ≥1000nits ≥1000nits
IP Grade IP30 IP30
Refresh Rate 7,680Hz 7,680Hz
Gray Scale ≤16bits ≤16bits
Frame Frequency 236Hz 236Hz
Viewing Angle H:160° / V:160° H:160° / V:160°
Maximum Power Consumption 420W/㎡ 420W/㎡
Average Power Consumption 140W/㎡ 140W/㎡
Input Voltage AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature ﹣20℃~65℃ ﹣20℃~65℃
Operating Humidity 10%~90% 10%~90%
Cabinet Material Die-casting Magnesium Die-casting Magnesium
Cabinet Weight 12kg/panel 12kg/panel
Operating System Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Additional information

Weight 35 kg
