2ft by 1ft Front Service Outdoor Ultra-Thin LED Display
$285.00
- Description
- Additional information
Description
Ultra Outdoor 2ftx1ft LED Display
Outdoor Front Access LED Display-P4.7, P6.3, P9.5
IP 67
Fanless Design
90-degree angle
Smart, light and thin
10000nits
Low mounting cost
Quick problem shooting
Rapid Heat Dissipation
Product Description

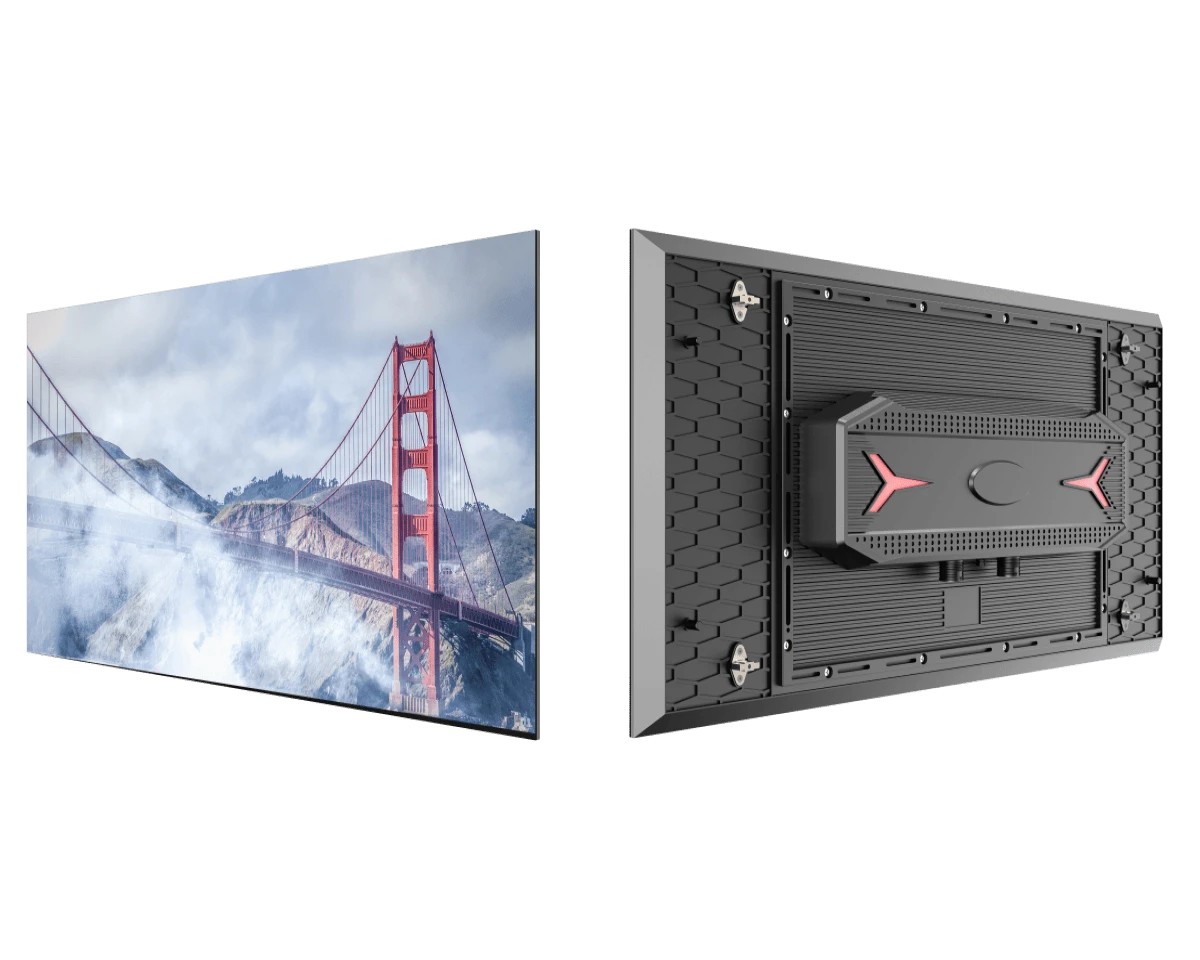

Smart, light and thin

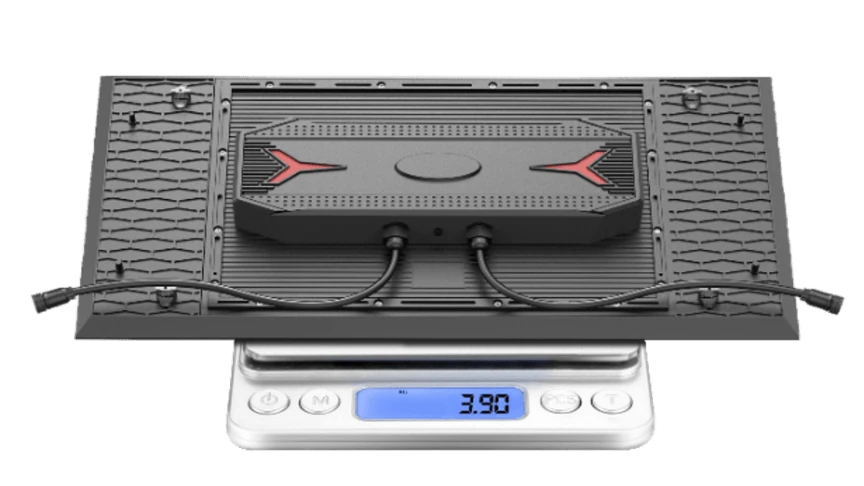

The panel size is 2 ft x 1 ft. The thickness of our Outdoor Fixed LED Screen Ultra Series is 63mm including the module, and it only weighs about 3.9 kgs. With its metallic appearance and unique design, the decorative effect of the cabinet is more appreciated, reflecting its nobility and cost.

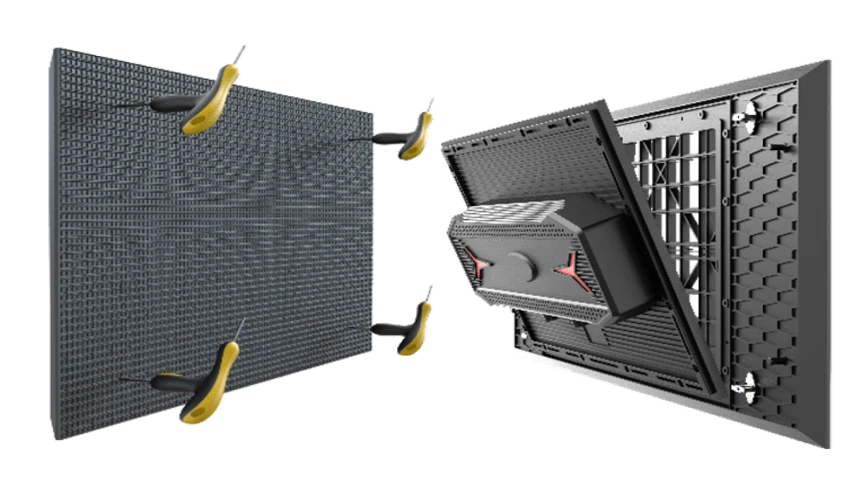

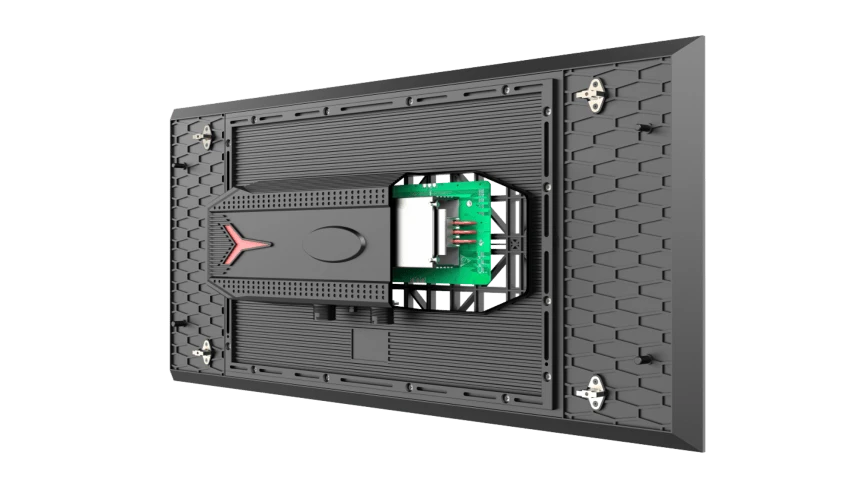

Quick problem shooting
The power supply, receiving card and module are an integral component. This kind of concise and easy design allows remove and replace modules fast in an emergency, especially when the technician wonder which part has issues. Fast problem solving saves a large amount of labor cost.
Rapid Heat Dissipation
Aluminium module back shell and power supply casing accelerates heat dissipation. Therefore, the LED screen can work properly without air conditioner even when the weather temperature is as high as 55 degrees. Meanwhile, fanless design enables the screen to work more reliably in dusty environment such as roadside and high humidity places such as seashore.

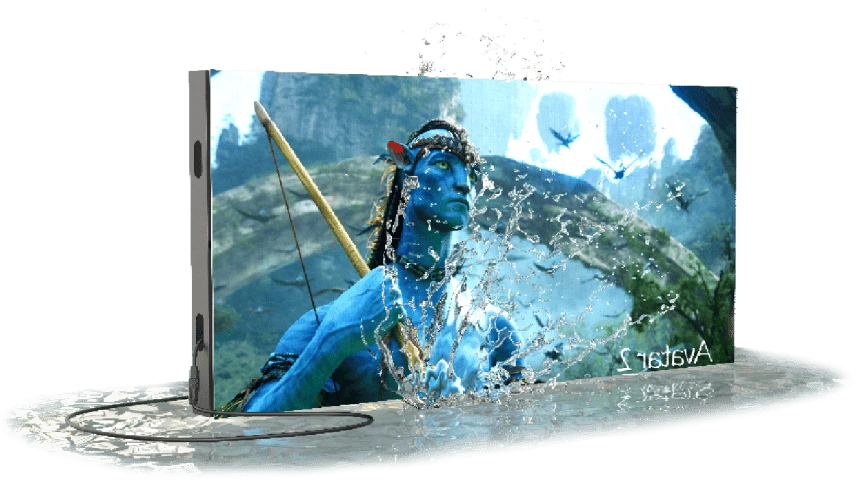

High reliability, wide application and brightness up to 10,000 nits
With IP68 design, the item is an ideal DOOH product which suits any kind of working environment: dusty roadside, humid seashore, high temperature locations, rainy regions, etc. Meanwhile, the screen can be used 10000 nits brightness for strong sunlight.

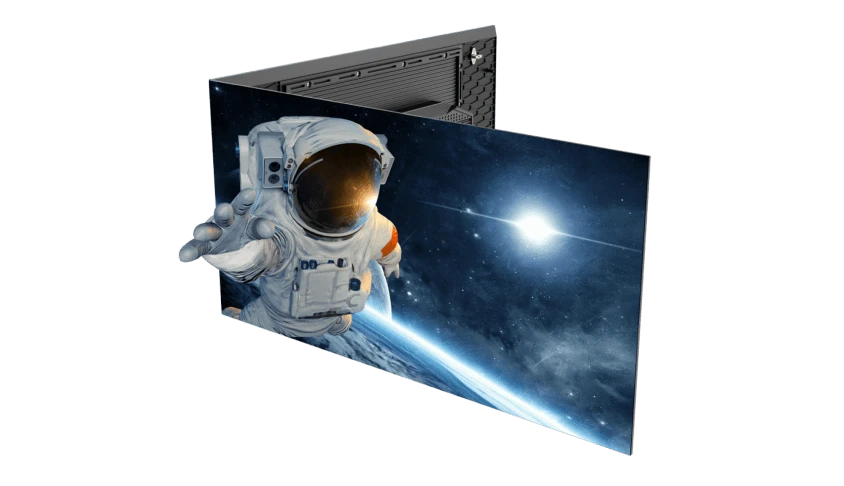

45° cutting angle design
With 45° cutting angle design, the 2ftx1ft Ultra LED display cabinets can be assembled at seamless 90˚ angles, so in addition to passive visualizations, the screen also can be used for 3D visual effect or a rectangle wall. With friendly design of the shell structure, it brings a strong three-dimensional visual impact.

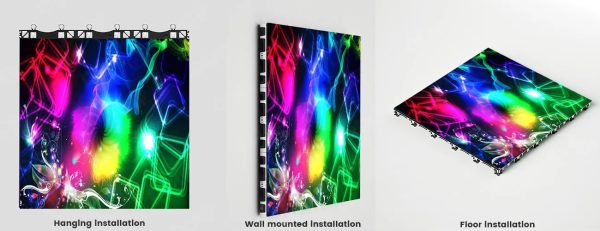

Low mounting cost
With this choice design, all you have to do is build a very simple framework. And then lock the units on the frame. High grade locking system, minimalist cable connector design and light cabinet make it easy and quick to install, at the same time, for your savings.

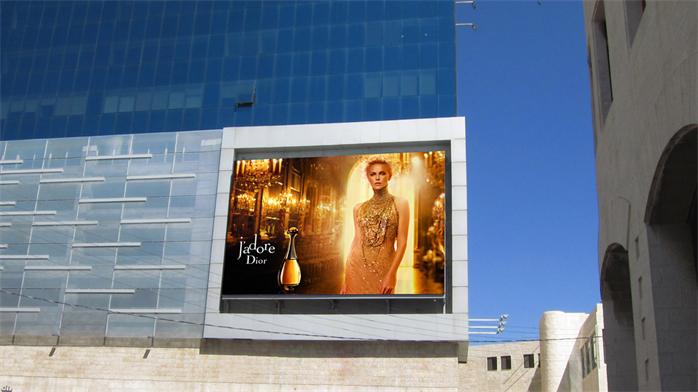

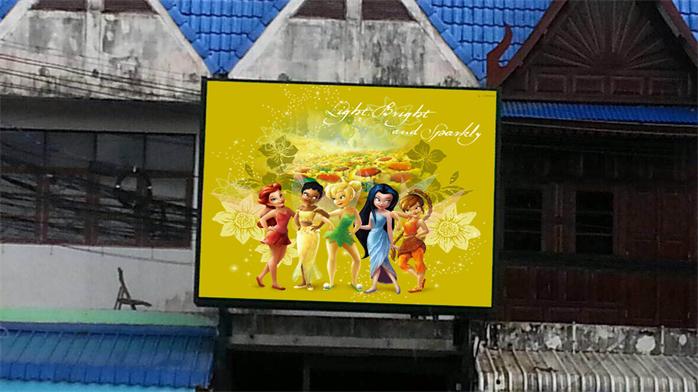

Application Fields
This product is usually used in:

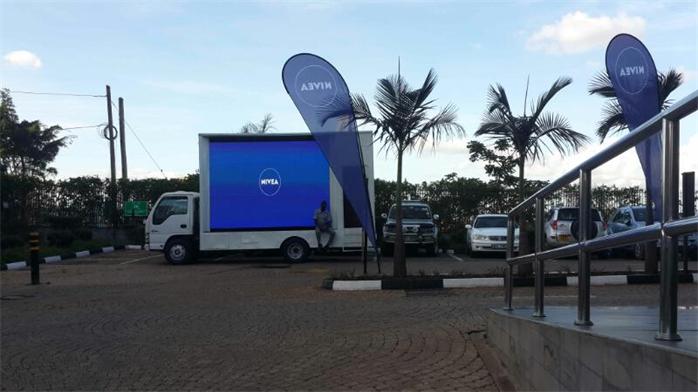

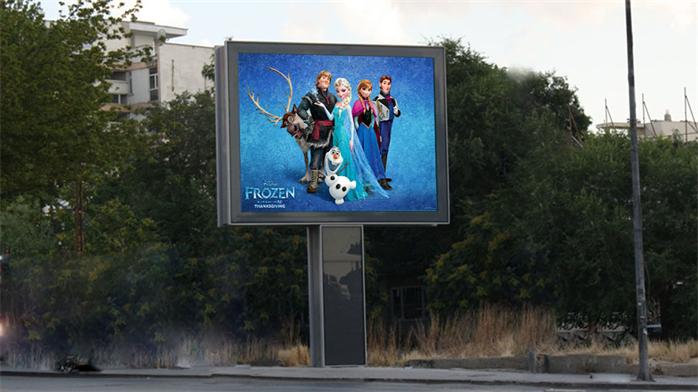

Truck Trailers; Scoreboards; Digital Out Of Home(DOOH).
Outdoor Light Weight And Slim Front Service 2ftx1ft IP68 Modular LED Screen Panel With Ultra High Brightness Parameter
| Item | P4.7 | P6.3 | P9.5 |
|---|---|---|---|
| Pixel Pitch | 4.7625mm | 6.35mm | 9.525mm |
| LED Type | SMD1921 | SMD2727 | SMD2727 |
| Module Resolution | 128dots x 64dots | 96dots x 48dots | 64dots x 32dots |
| Driving Mode | 1/8scan | 1/6scan | 1/2scan |
| Module Pixels | 8192dots | 4608dots | 2048dots |
| Module Size | 2ft x 1ft | 2ft x 1ft | 2ft x 1ft |
| Cabinet Size | 2ft x 1ft | 2ft x 1ft | 2ft x 1ft |
| Cabinet Resolution | 128dots x 64dots | 96dots x 48dots | 64dots x 32dots |
| Pixel Density | 44,088dots/m² | 24,800dots/m² | 11,022dots/m² |
| Minimum Viewing Distance | ≥4.7 m | ≥6.3 m | ≥9.5m |
| Brightness | 6,500nits | 6500nits ~ 8000nits | 6,500nits ~ 10,000nits |
| IP Grade | IP67 | IP67 | IP67 |
| Refresh Rate | 3,840Hz～40,000Hz | 3,840Hz～40,000Hz | 3,840Hz～40,000Hz |
| Gray Scale | 14bits～22bits | 14bits～22bits | 14bits～22bits |
| Viewing Angle | H:110° / V:110° | H:110° / V:110° | H:110° / V:110° |
| Maximum Power Consumption | 800W/m² | 550W/m² | 550W/m² |
| Average Power Consumption | 260W/m² | 180W/m² | 180W/m² |
| Input Voltage | AC110V – AC220V @ 50Hz/60Hz | AC110V – AC220V @ 50Hz/60Hz | AC110V – AC220V @ 50Hz/60Hz |
| Operating Temperature | ﹣20℃～50℃ | ﹣20℃～50℃ | ﹣20℃～50℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 3.9kg | 3.9kg | 3.9kg |
| Operating System | Windows (Win7, Win10etc.) | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
Additional information
| Weight | 30 kg |
|---|
