Concave Convex Curved Flexible LED Screen 500×500 Soft LED Display 500×1000
$137.00
- Description
- Additional information
Description
Curved and Flexible LED Displays Series
Indoor Outdoor Flexible Rental LED Display P1.5, P1.9, P2.6, P2.9, P3.9, P4.8
Multiple Curves
Great Flatness
Slim Shape
High Reliability
High Resolution
3840HZ-7680HZ
Product Description

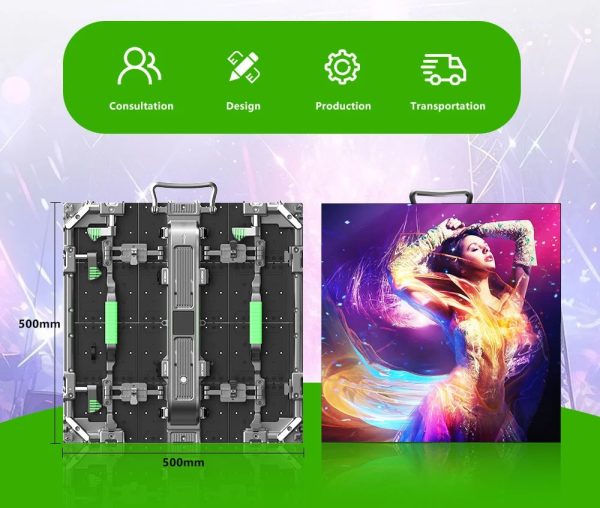

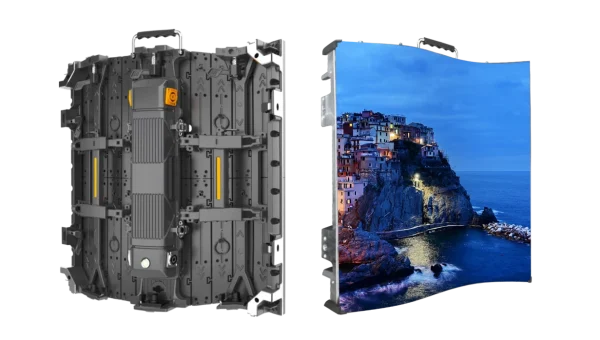

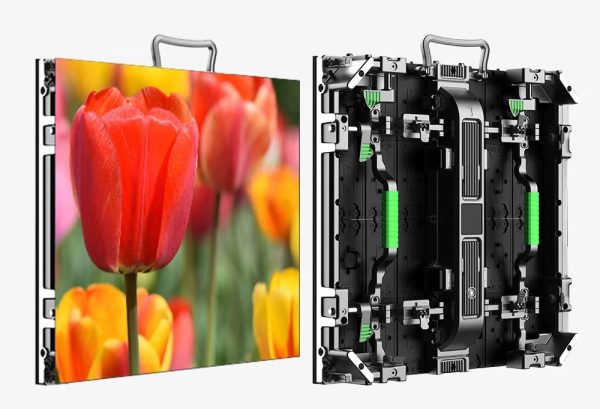

Cabinet Design
Flexible rental LED display refers to an LED display designed for many situations. Flexible rental LED displays feature a modular design that can be easily connected and configured into various sizes and shapes, such as arc (inner and outer arc), cylindrical or irregular shapes. It is the best choice for various stages now. Our Rental Soft Flexible LED Screen Series display offers unparalleled flexibility, allowing for smooth convex and concave curves without any flat sections. Perfect for creating dynamic, eye-catching displays.

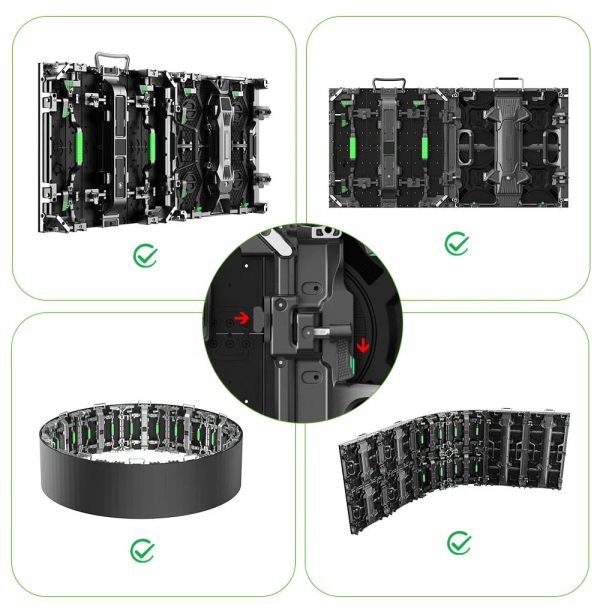

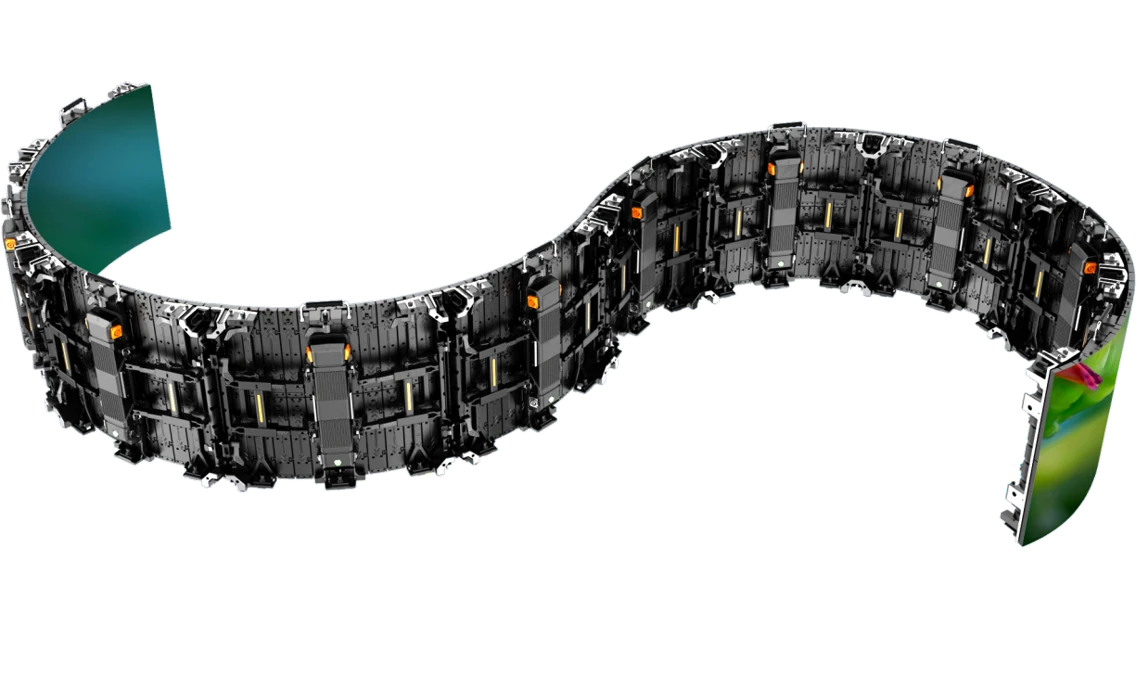

Flexible Feature

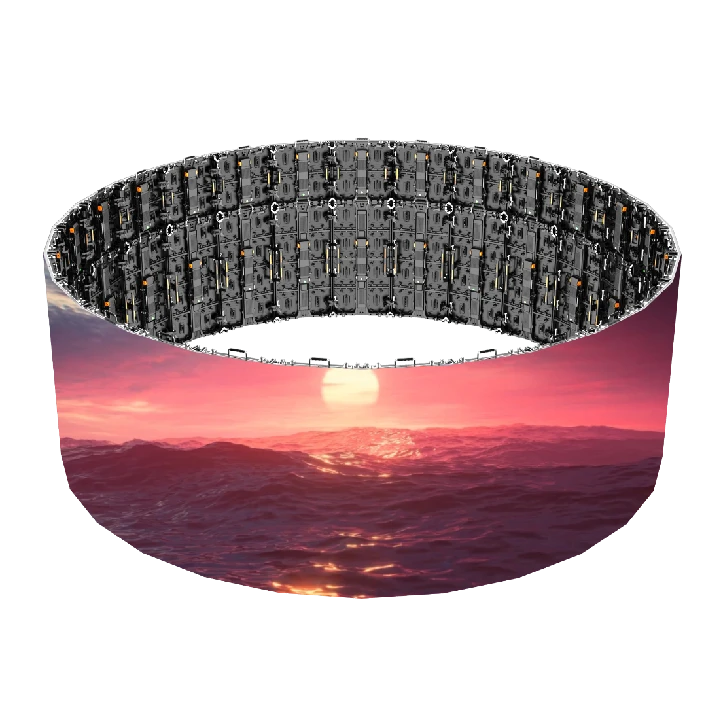

A flexible LED display, flexible is one of its features, is a type of display technology that can be bent or curved to fit various shapes and surfaces. It offers versatility and the ability to create unique and eye-catching visual installations. Flexible LED displays come in two different styles, the convex and the concave LED displays and 8 cabinets can make a circle. For unique design and aesthetic taste, the curved flexible LED display screen has a unique and eye-catching appearance. Its fashionable and modern design adds a touch of exquisiteness to any environment, whether it is a home theater, a game room or a corporate environment.

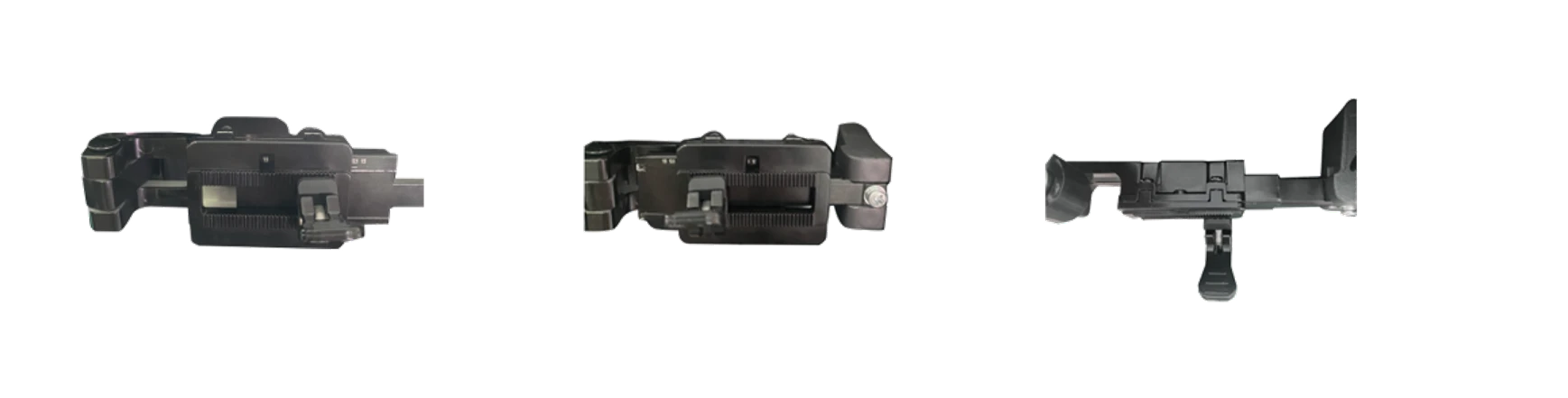

Curved lock
Curved lock is very secure and strong. It can be designed to be curved to form a curved screen from -45°(convex) to +45°(concave). This innovative curved connection lock design not only significantly enhances the functionality of the rental LED screen, but also enables it to install in many situation. The curved shape enhances the viewing experience by wrapping the visuals around the viewer, creating a more immersive and engaging presentation.

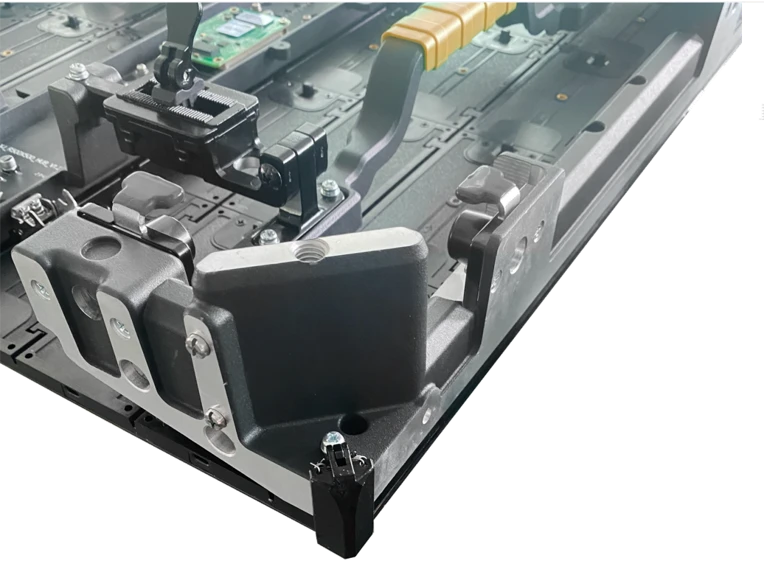

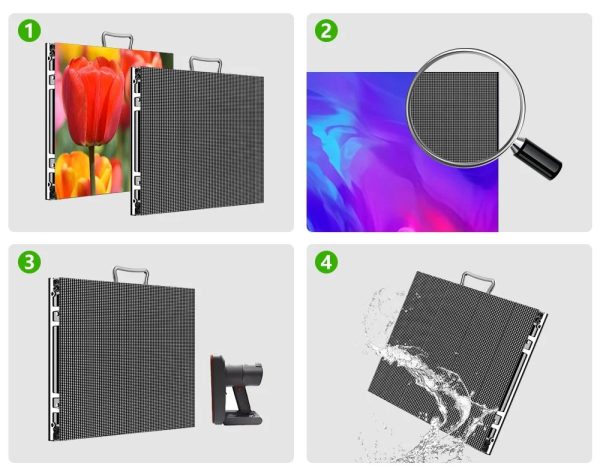

High Protection Corner
Intelligent corner protection module, all-round protection module, anti-collision, less maintenance. The corner protection can make the installation safer and less likely to be broken. With the corner protection, the installation is also more convenience. This is really a useful feature of our Curved LED Video Wall series.
Front Access Service
The front maintenance mode does not need to leave a maintenance channels, supports independent front maintenance, and saves the maintenance space on the back of the monitor. It does not need to dissamble the wire, support fast maintenance work, disassembly is simpler and more convenient. It can achieve greater use of environmental space and reduce the difficulty of post-maintenance work.

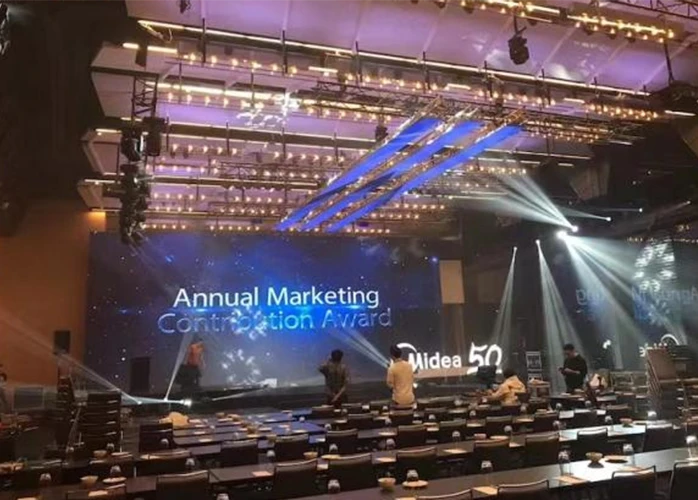

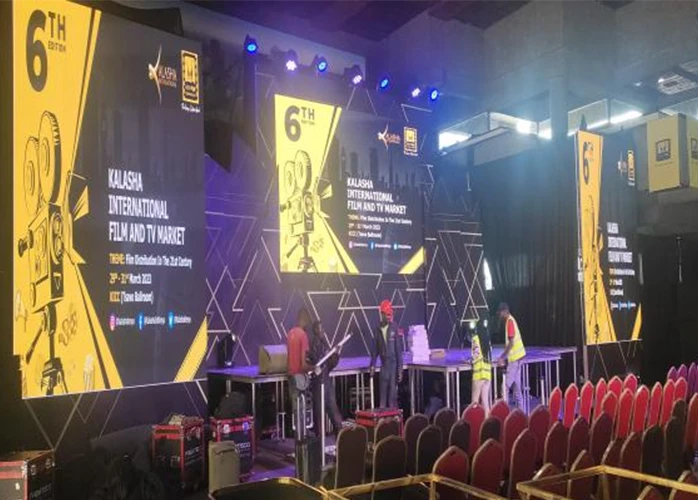

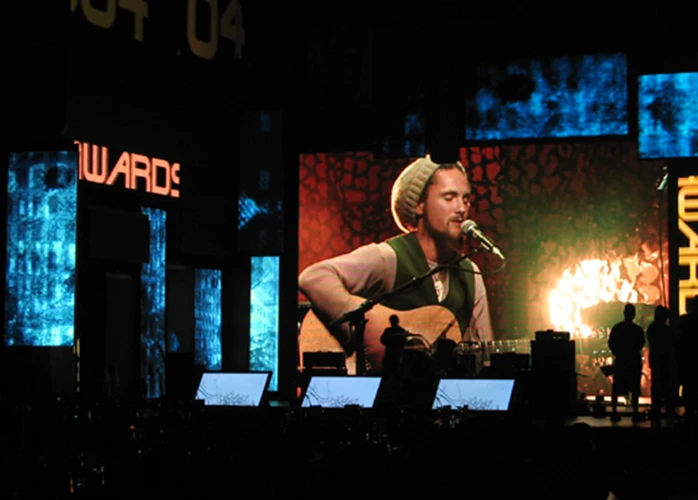

Application Fields
In order to fit each different scene, the flexible LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:
Activity Stages; Exhibition hall; XR virtual shooting; Sports Events.
Rental Flexible LED Screen | Curved LED Display | Soft & Bendable For Various Shapes Parameter
| Leeman Pro Series Outdoor Rental & Fixed Installation LED Display Screen 500×1000 And 500×500 | |||||
| Model NO. | P1.953 | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel Pitch | 1.95mm | 2.6mm | 2.9mm | 3.91mm | 4.81mm |
| LED Chip Lamp | NationStar Gold Wire | NationStar Gold Wire | NationStar Gold Wire | NationStar Gold Wire | NationStar Gold Wire |
| LED type | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2525 |
| Flatness between modules | ≤ 0.1mm | ≤ 0.1mm | ≤ 0.1mm | ≤ 0.1mm | ≤ 0.1mm |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module size (W*H) | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Module resolution (W*H) | 128*128dots | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Cabinet size(W*H*D) | 500*500*75mm | 500*500*75mm | 500*500*75mm | 500*500*75mm | 500*500*75mm |
| Cabinet resolution (W*H) | 256*256dots | 192*192dots | 168*168dots | 128*128dots | 104*104dots |
| Cabinet weight | 14.5kg/pc | 14.5kg/pc | 14.5kg/pc | 14.5kg/pc | 14.5kg/pc |
| Density | 262144dots/m² | 147456dots/m² | 112896dots/m² | 65400dots/m² | 43264dots/m² |
| IC | ICN2153SÂ ICN2165 | ICN2153SÂ ICN2165 | ICN2153SÂ ICN2165 | ICN2153SÂ ICN2165 | ICN2153SÂ ICN2165 |
| Scan | 32S | 32S | 21S | 16S | 13S |
| Best viewing distance | >1.9m | >2.6m | >3m | >4m | >5m |
| Best viewing angle | 160°/ 120° | 160°/ 120° | 160°/ 120° | 160°/ 120° | 160°/ 120° |
| Brightness | 5500-6000cd/m² | 5500-6000cd/m² | 6000-6500cd/m² | 6000-6500cd/m² | 6500-7000cd/m² |
| Working voltage | AC:110-240V  50~60Hz | AC:110-240V  50~60Hz | AC:110-240V  50~60Hz | AC:110-240V  50~60Hz | AC:110-240V  50~60Hz |
| Maximum power | ≤600W/ m² | ≤600W/ m² | ≤600W/ m² | ≤600W/ m² | ≤600W/ m² |
| Average power consumption | 100W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² |
| ~300W / m² | ~300W / m² | ~300W / m² | ~300W / m² | ~300W / m² | |
| Screen temperature rise(running state) | ≤ 5 degrees | ≤ 5 degrees | ≤ 5 degrees | ≤ 5 degrees | ≤ 5 degrees |
| Operation of Environmental Temperature/°C | -10°C~60°C | -10°C~60°C | -10°C~60°C | -10°C~60°C | -10°C~60°C |
| Operating Temperature | 10%~90%RH | 10%~90%RH | 10%~90%RH | 10%~90%RH | 10%~90%RH |
| No condensation | No condensation | No condensation | No condensation | No condensation | |
| Screen color temperature | 2000K～9500K | 2000K～9500K | 2000K～9500K | 6500K～9500K | 7000K～10000K |
| Driving method | 1/32Â scanning | 1/32Â scanning | 1/32Â scanning | 1/16Â scanning | 1/16Â scanning |
| Gray scale | 16bits～24bits | 16bits～24bits | 16bits～24bits | 16bits～24bits | 16bits～24bits |
| Refresh frequency | ≥3840Hz – 7680Hz | ≥3840Hz – 7680Hz | ≥3840Hz – 7680Hz | ≥3840Hz – 7680Hz | ≥3840Hz – 7680Hz |
| IP grade | Front:IP68 | Front:IP68 | Front:IP68 | Front:IP68 | Front:IP68 |
| Back:IP66 | Back:IP66 | Back:IP66 | Back:IP66 | Back:IP66 | |
| Continuous working time | ≥7×24hrs | ≥7×24hrs | ≥7×24hrs | ≥7×24hrs | ≥7×24hrs |
| Lifetime | 100,000hrs | 100,000hrs | 100,000hrs | 100,000hrs | 100,000hrs |
| Installation method | Back Frame Installation / Hoisting / Inner Arc Installation | ||||
| Pixel correction | Equipped with point – by – point brightness and chromaticity correction | ||||
| Contrast ratio | 6000:1 | ||||
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | ||||
| Control mode | Synchronization control | ||||
| Control distance | Super five double stranded network cable, more than 100 meters using optical fiber transmission | ||||
| Software interface | Windows XP /7/8/10 IOS | ||||
| Signal input | HDMI, SD, DP, DVI, VGA, USB, LAN（Extensible interface） | ||||
| Cabinet material | Waterproof Die-casting Aluminum | ||||
| PowerCon | Neutrick Power connector with cable | ||||
| EtherCon | Neutrick Power connection with cable | ||||
| Maintenance method | Dual Service, Front Maintenance and Back service | ||||
| Warranty time | 5 years warranty time and free lifetime technical support | ||||
| Certification | UL CE ETL ROHS EMC FCC ISO, IECEE, CB | ||||
Additional information
| Weight | 35 kg |
|---|
