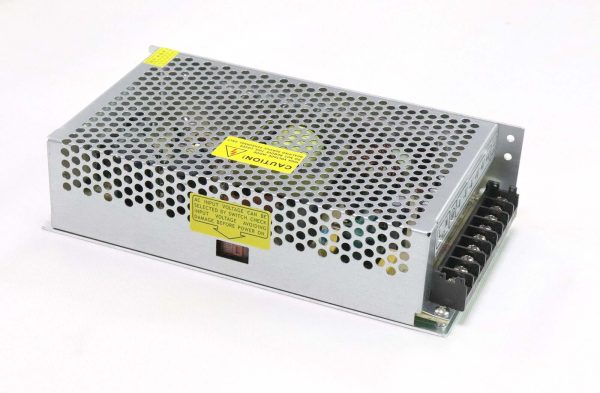

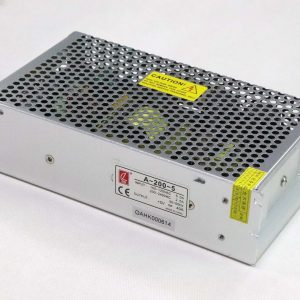

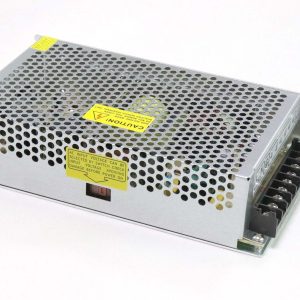

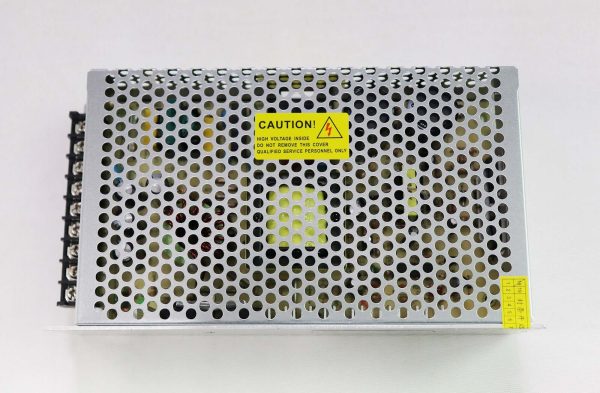

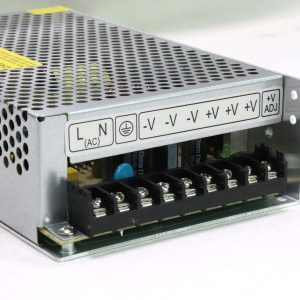

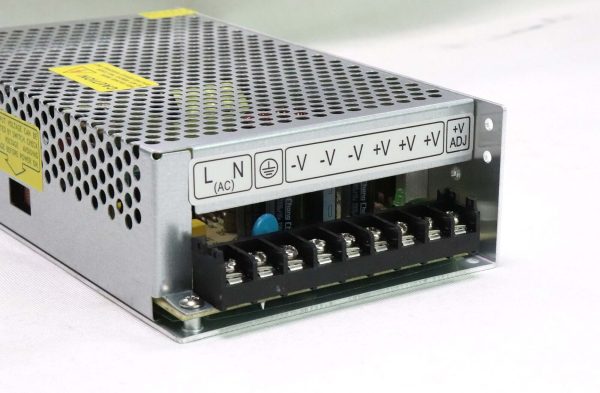

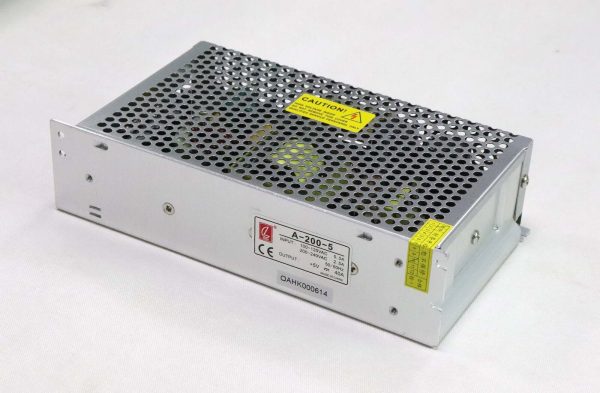

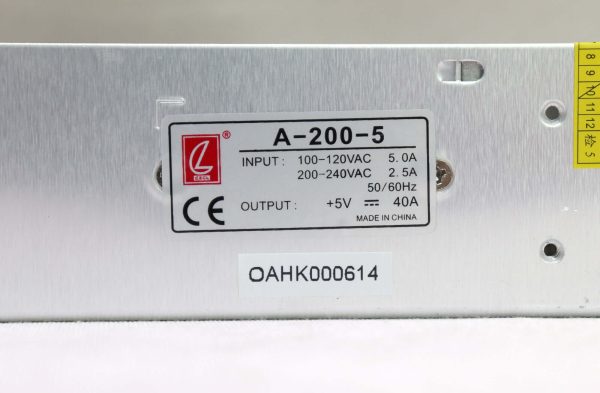

CZCL A-200W-5 5V 40A LED Switching Power Supply

Description

CZCL A-200W-5  5V 40A LED Switching Power Supply Features:

Low output ripple&noise
Low cost，high reliability
Forced air cooling by Built-in DC fan
Protections：Over load/Short circuit
Built-in EMI filter
CASE:812; Size:222×115×50mm
1 year warranty

CZCL A-200W-5  5V40A LED Switching Power Supply Parameters

Input frequency———————-47-63Hz
AC input voltage range————-100-120VAC or 200-240VAC
Output over load protection———110%-150% shut off, AC recycle to re-start
AC inrush current——————–Cold start，40A/230VAC
Line regulation（full load）———–≤0.5%
DC adjustment range—————-±10% rated output voltage
Rise，hold up time——————-50mS，20mS at full load（typical）
Working temperature——————10~+40℃@ 100%，+60℃@ 60% load
Withstand voltage——————-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG,0.5KVAC,1min
Safety standards———————Design refer to GB4943，UL60950-1,EN60950-1
Storage temperature—————- -20℃~+85℃，20%~95%RH(non condensing)
EMC standards—————— —–Design refer to GB9254，EN55022 class A
Cooling method———————– Forced air cooling by Built-in DC fan

Download Specification：
CZCL A-200W-5 5V40A LED Switching Power Supply Specification
