Flexible Adhesive Transparent LED Film Screen
$185.00
- Description
- Additional information
Description
Soft Adhesive Transparent LED Film Screen
LED flexible transparent film screen-P4,P5,P6,P6.25,P8.,P10,P15,P20
High transparency
Economical and environmentally friendly
Good heat dissipation
Quick and easy installation
High brightness
Light and thin
Any cutting
Various applications
Product Description

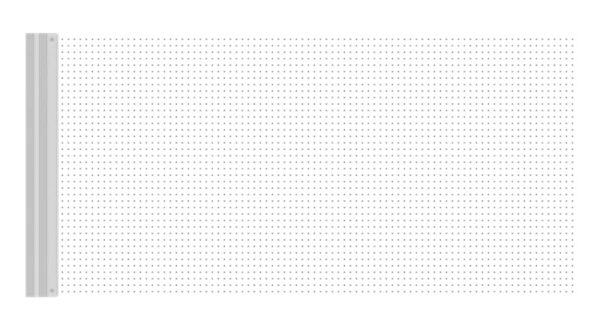

Light-Weighted and Thin

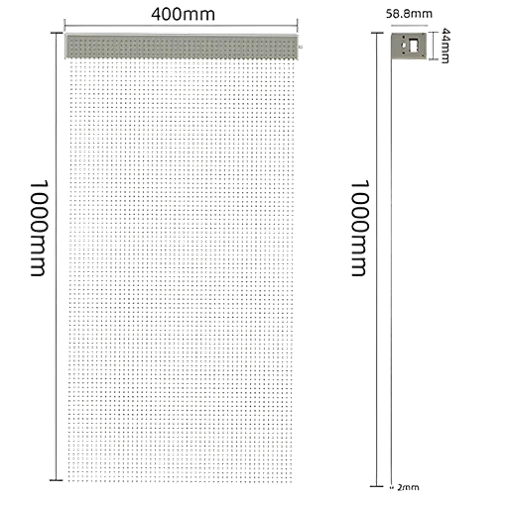

Single module size: 1000mm*400mm; Thickness: 58.8mm, save space; Light weight: 1.3kg/panel; The substrate for these displays is usually a flexible polymer material, like polyimide or transparent conductive polyester film. The LEDs are mounted on this substrate using techniques that make them durable against bending and flexing.
Outstanding display quality
Breakpoint continuation:The combination of light and drive, independent research and development, high reliability, industry leading.High gray scale display (true 16bit):RGB channel adopts 32-level current linear regulation, and maintains true 16-bit grayscale display under any current, which is applicable to the consistency of indoor, semi-outdoor and outdoor current requirements.

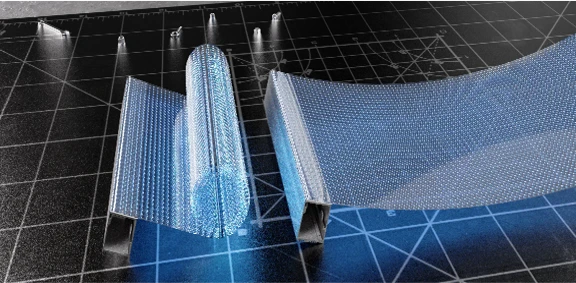

Extreme Flexibility
It can be applied to any type of surface.Soft flexible led film screen technology, can be suitable for curved, curved, cylindrical shaped scene applications
High transmittance
The implementation of integrated MiniLED lamp beads and an invisible grid circuit enhances its permeability. The transmittance exceeds 90%, allowing ample daylight through the glass without significantly impacting visibility.
Excellent material
It has Grade V1 flame retardant properties, which means it has a high level of resistance to flames. Additionally, it has UV resistance that allows it to withstand exposure to sunlight without yellowing for over 8 years. This makes it a durable and long-lasting option.
Easy and Fast Installation
No steel structure is required, just stick the thin screen slightly and connect the power signal. Innovative glue-filling process allows for the direct attachment of the screen body to the glass surface. Through strong colloid adsorption, the screen body is able to adhere firmly to the glass. Furthermore, over time, the viscosity of the adhesive increases due to the inherent characteristics of the colloid.

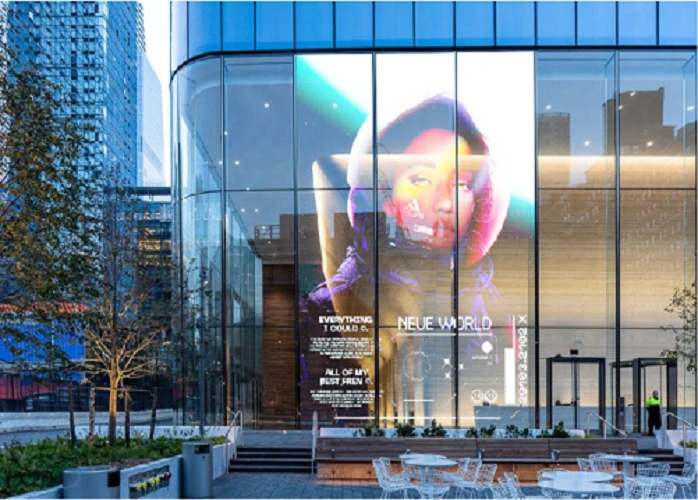

Application Fields
Flexible Adhesive LED Transparent Film Screen Parameter
| Item | P4 | P5 | P6 |
|---|---|---|---|
| Pixel Pitch | 4mm | 5mm | 6mm |
| LED Type | SMD1313 | SMD1313 | SMD1515 |
| Driving Mode | static scan | static scan | static scan |
| Module Size | 1000mm ×240mm | 1000mm × 320mm | 816mm ×384mm |
| Module Resolution | 250dots × 60dots | 200dots × 64dots | 136dots × 64dots |
| Cabinet Size | 1000mm ×240mm × 2.5mm | 1,000mm × 320mm × 2.5mm | 816mm × 384mm × 2.5mm |
| Cabinet Resolution | 250dots × 60dots | 200dots ×64dots | 136dots× 64dots |
| Pixel Density | 62,500dots/㎡ | 40,000dots/㎡ | 27,777dots/㎡ |
| Minimum Viewing Distance | ≥4m | ≥5m | ≥6 m |
| Transparency | 80% | 85% | 90% |
| Brightness | 2000nits | 2000nits | 2000/4000nits |
| IP Grade | IP43 | IP43 | IP43 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 14bits～22bits | 14bits～22bits | 14bits～22bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 600W/㎡ | 600W/㎡ | 600W/㎡ |
| Average Power Consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～55℃ | ﹣20℃～55℃ | ﹣20℃～55℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Weight | 1.3kg/panel | 1.3kg/panel | 1.3kg/panel |
| Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
Additional information
| Weight | 30 kg |
|---|
