Flexible Holographic Transparent LED Screen

Outdoor LED Screen Video Wall Rentals
Indoor LED Screen Rentals and LED Video Wall

Flexible Holographic Transparent LED Screen

$158.00

In stock
0 out of 5

$158.00

SKU: Holographic LED Screen Display Category: Tag:
Add to wishlist

Description

646fc92c88552

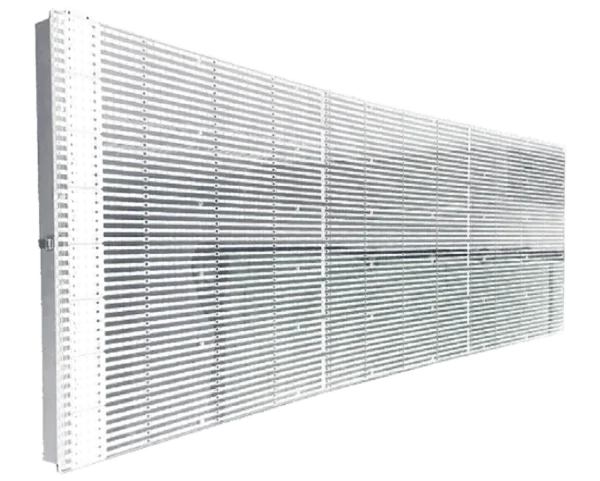

Holographic LED Screen

Innovative LED Transparent Glass Display-P3.9,P7.8,P10.4,P15.6,20.8

646fd25696ac4

High Transparency

610e01178bc0c

Economical and Eco-friendly

646fd2e659a89

Good Heat Dissipation

646fd271a3399

Fast and Easy Installation

610e014b24fe2

High Brightness

610e015683c4c

Light and Slim

646fd29a92d5b

Arbitrary cutting

646fd32a94ff0

Various Application

Product Description

High Transparency

Transparency of our Ultra-Thin Holographic LED Screen series transparent LED display is up to 82%, which offers a range of creative applications for the live event and installation market.

646fcaef500ef

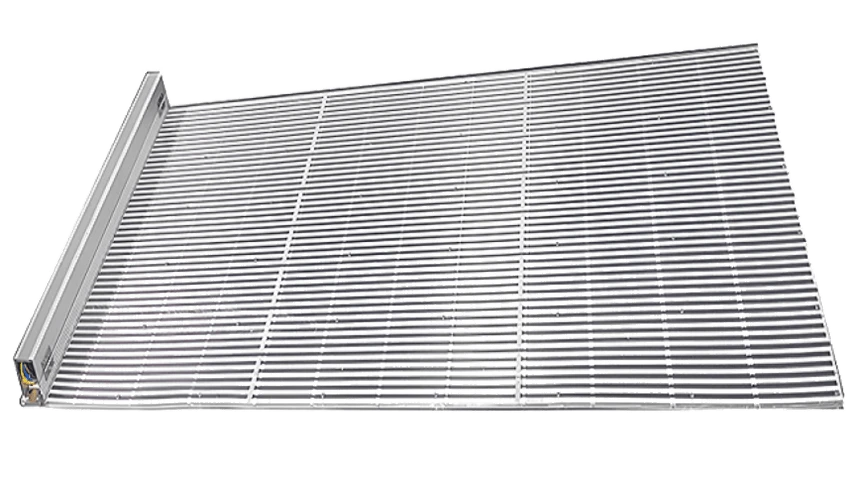

Light-Weighted and Thin

66mm cabinet thickness and 7-8kgs weight make 3DHolographic film LED screen lighter and thinner than most of other transparent LED displays in the market. The modules is covered by PC, which has good heat resistance, high transparency, dustproof and certain waterproof function.

646fbbe9ccf70

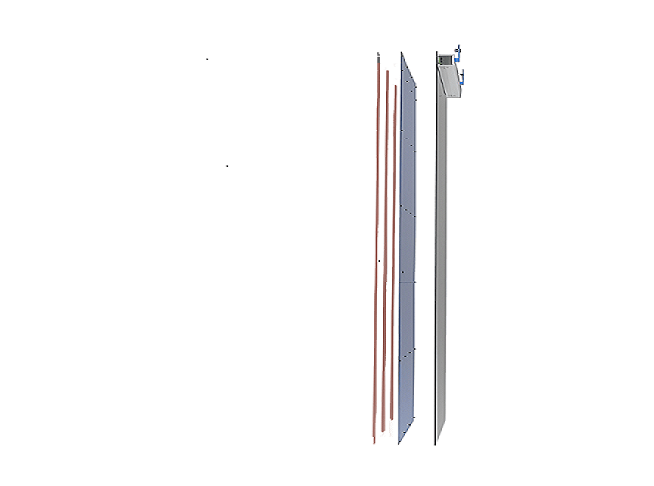

Extreme Cabinet Length

Maximum length of cabinet is up to 2.5m. Maximum length with totally pure transparency is up to 5m. This gives viewers a strong feeling of broader and more transparent vision.

646fbbffafb77

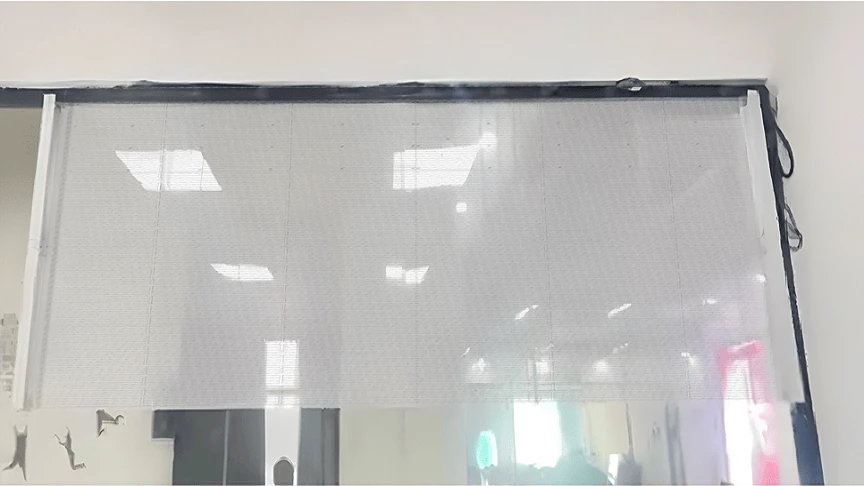

Arbitrary cutting in Cabinet Length

Our Holographic 3D LED Display serie supports arbitrary cutting in cabinet length according to clients’ different needs.

646fbc2c3e753-1

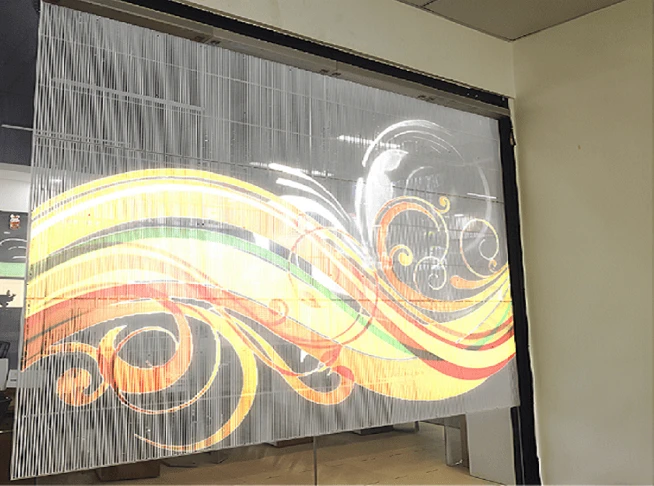

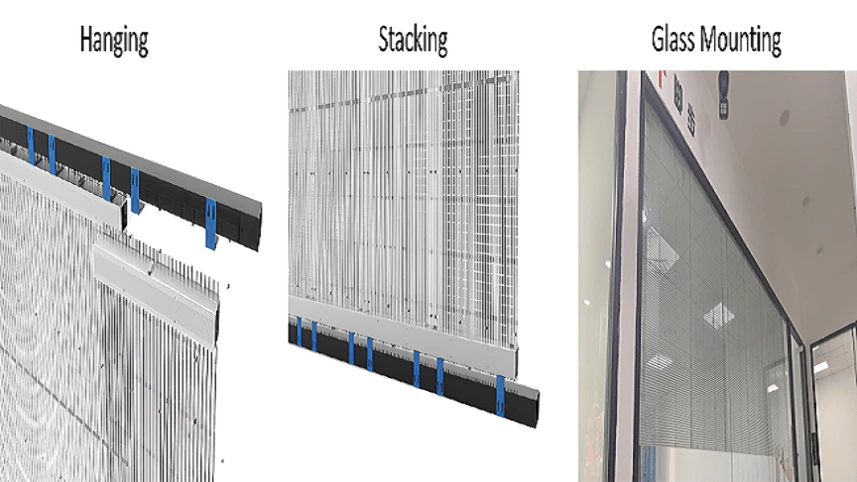

Fast and Easy Installation

No need structure, fast and easy installation, environment-friendly and energy-saving.

646fcb4b12242

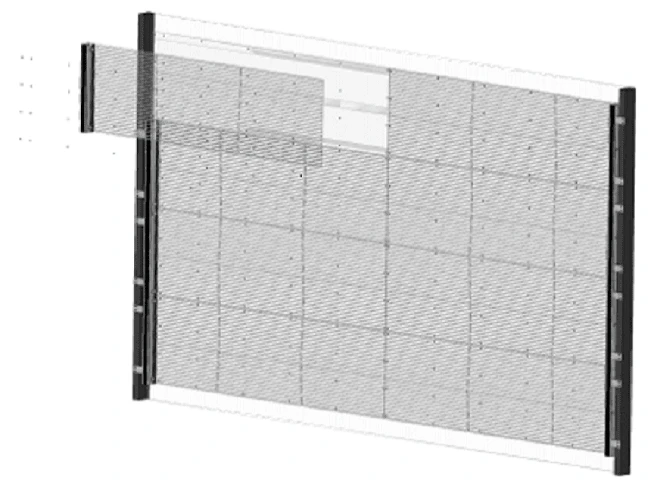

Easier Maintenance

Fully back access is available. There is no need to tear the whole cabinet off the screen when maintaining. Components like modules, power supply, receiving card can be removed from the back separately since they are screwed. It makes the maintenance more convenient and practical.

646fbc8319787

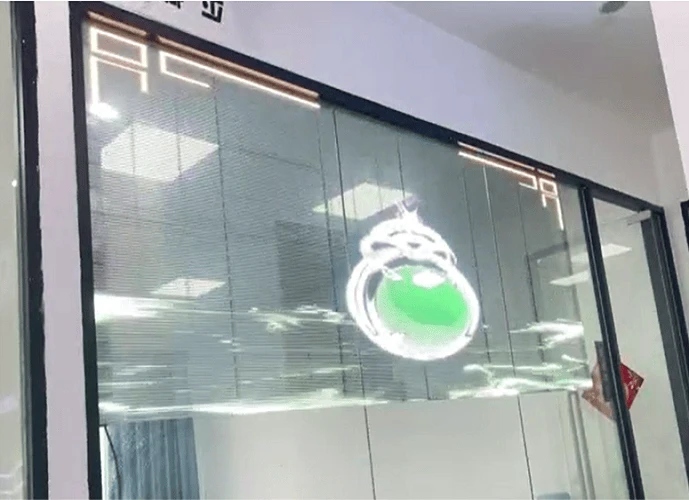

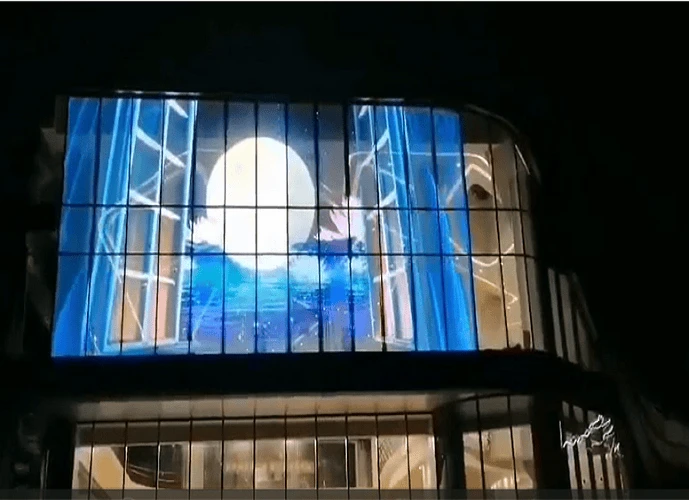

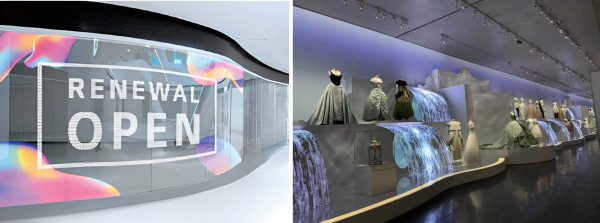

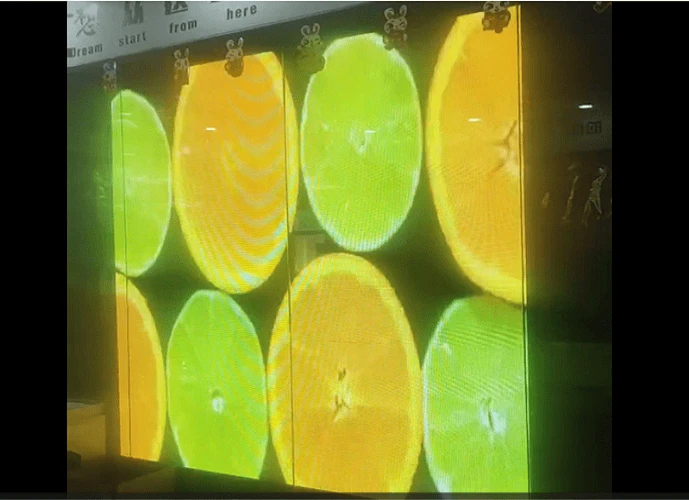

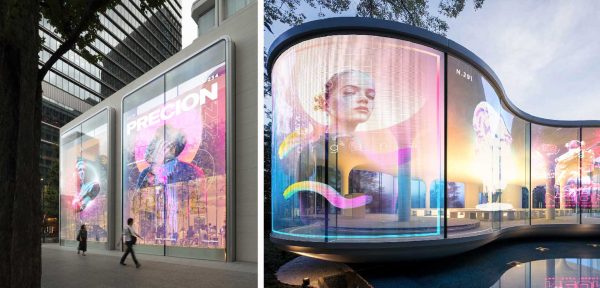

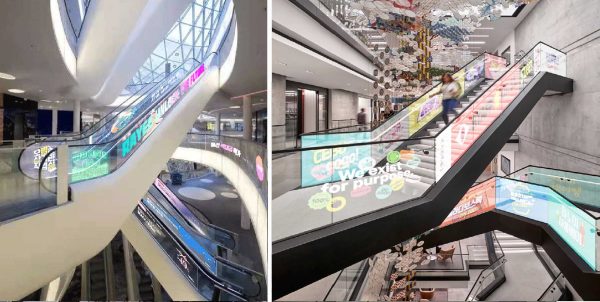

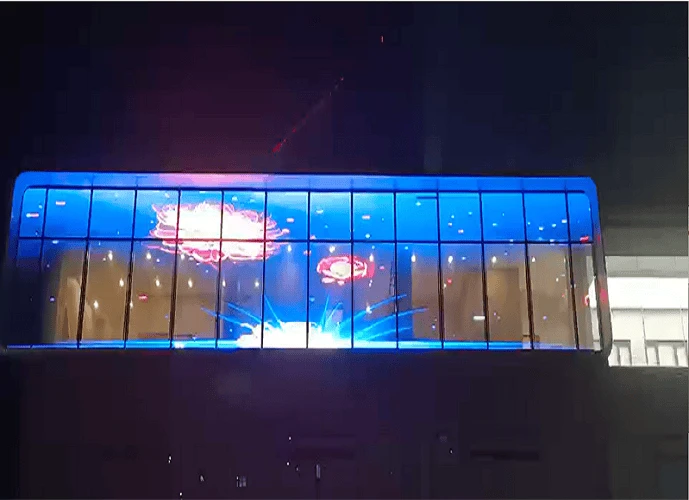

Application Fields

646fbd4415d53
646fbd526ce83
646fbd60076db
646fbd714e4e9

Holographic Invisible Screen & Transparent LED Display Screen Parameter

Item P3.9 P7.8 P10.4
Pixel Pitch 3.9mm (W) / 7.8mm (H) 7.8mm (W) / 7.8mm (H) 10.4mm (W) / 10.4mm (H)
LED Type SMD1921 SMD1921 SMD1921
Driving Mode 1/7scan 1/4scan 1/2scan
Module Size 1500mm × 62.5mm 1687.5mm × 62.5mm 1500mm × 62.5mm
Module Resolution 378dots × 8dots 216dots × 8dots 144dots × 6dots
Cabinet Size 1500mm × 500mm x 66mm 1687.5mm × 500mm x 66mm 1500mm × 500mm x 66mm
Cabinet Resolution 378dots × 64dots 216dots × 64dots 144dots× 48dots
Maximum Panel Length 2.5m 2.5m 2.5m
Pixel Density 32,256dots/㎡ 16,384dots/㎡ 9,216dots/㎡
Minimum Viewing Distance ≥3.9 m ≥7.8 m ≥10.4 m
Transparency 56% 48% 60%
Brightness 3,500-6,000nits 3,500-6,000nits 3,500-6,000nits
IP Grade IP30 IP30 IP30
Refresh Rate 3,840Hz～7,680Hz 3,840Hz～7,680Hz 3,840Hz～7,680Hz
Gray Scale 14bits～22bits 14bits～22bits 14bits～22bits
Viewing Angle H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption 600W/㎡ 600W/㎡ 600W/㎡
Average Power Consumption 200W/㎡ 200W/㎡ 200W/㎡
Input Voltage AC110V～AC220V @ 50Hz / 60Hz AC110V～AC220V @ 50Hz / 60Hz AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature ﹣20℃～65℃ ﹣20℃～65℃ ﹣20℃～65℃
Operating Humidity 10%～90% 10%～90% 10%～90%
Cabinet Material  Aluminum +PC  Aluminum +PC  Aluminum +PC
Cabinet Weight 8.75kg/panel 8kg/panel 7.25kg/panel
Operating System Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Additional information

Weight 30 kg
