Description

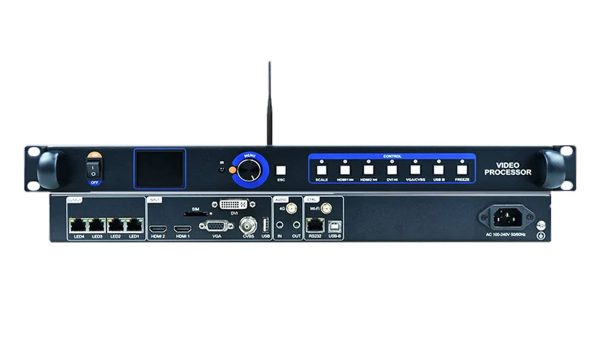

HD-VP410H is a three-in-one video processor that integrates traditional video processor, 4-way Gigabit network port output, and U disk playback functions. It not only simplifies the construction of the on-site environment, but also improves the reliability of the product. It supports 5 channels of synchronous signal input and 1 channel of USB input, and can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that require synchronous playback; in addition, the device also supports point-to-point input/output to allow the LED display to display A clearer picture.

Connection Diagram

Characteristics

Input
Supports 2 channels of HDMI, 1 channel of DVI, 1 channel of VGA, and 1 channel of CVBS signal input, which can be switched at will;
1 USB input supports direct playback of videos and pictures in various mainstream formats in the root directory of the USB flash drive, and supports up to 1080P high-definition video playback;
Supports 1 channel TRS 3.5mm standard two-channel audio input and HDMI audio input.
Output
Standard configuration is 4-way Gigabit network ports, which can be directly cascaded to the receiving card;
The maximum control is 2.6 million pixels, with a maximum horizontal support of 3840 pixels and a maximum vertical support of 2500 pixels;
1 channel TRS 3.5mm standard two-channel audio output.
Features
Support U disk playback, plug and play;
Support limited conversion and full output;
Pixel-to-pixel display effect;
Support non-rectangular load;
Video signal can be switched, cropped, and scaled at will;
Support 16 scene presets and calls;
Support brightness and color temperature adjustment;
Support RS232 serial port protocol control, docking central control equipment;
Support Wi-Fi Station mode, AP mode, Wi-Fi station+AP mode;
Support mobile phone APP wireless control;
Support infrared remote control (optional);
Support 4G module (optional);
Supports SDI signal loop output (optional).

Download Specification:
Huidu HD-VP410H three-in-one video processor Specification
