Indoor Fine Pitch COB LED Display Pixel Pitch P0.625 P0.78 P0.93 P1.25 P1.56 P1.87

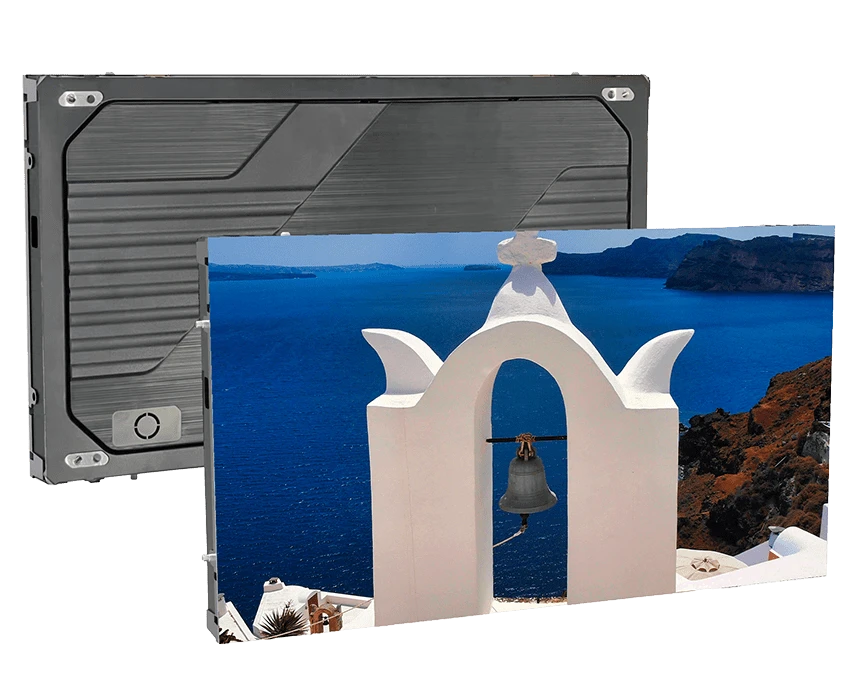

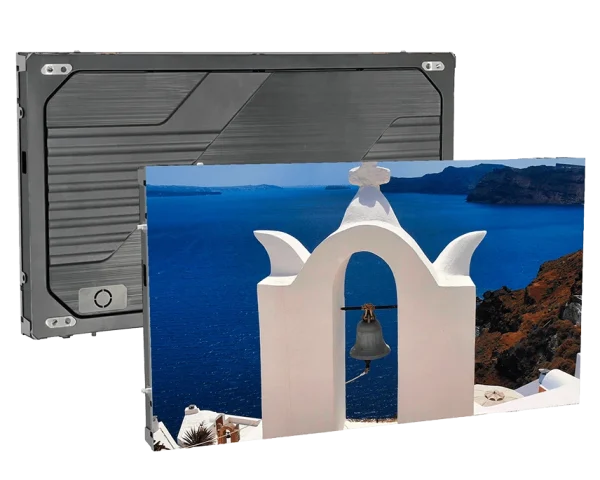

Slim and Lightweight Design

Our P0.625 COB ultra high definition LED display screen adopt die-casting aluminum cabinet , designed to be 4kg/panel, lighter than conventional cabinets in the market, its humanized design offers higher strength, lightweight construction and precision.

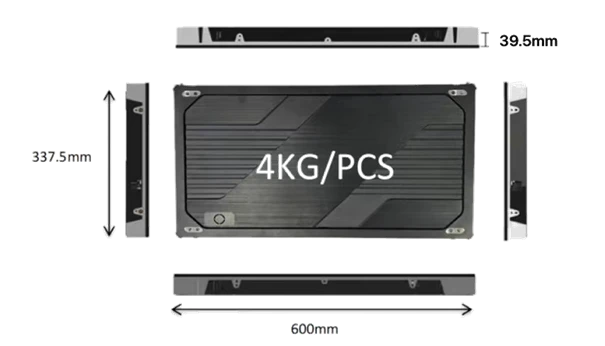

600(w)mm x 337.5(h)mm or 600(w)mm x 675mm(h) 39.5mm thickness 4kgs weight

The pixel pitch P0.625, P0.78, P0.93, P1.25, P1.56 and P1.87 are available.

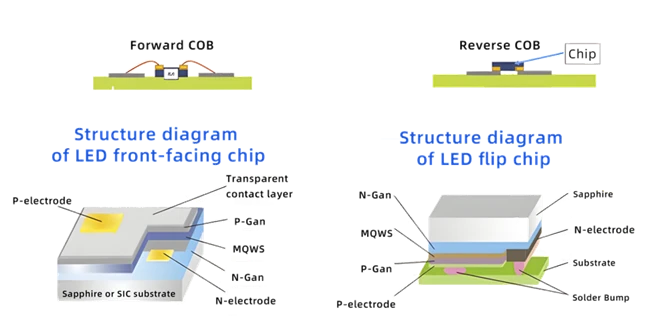

Flip Chip Technology

Our COB Ultra Indoor Fine Pixel Pitch LED Display uses advanced flip COB technology.

1)Flip COB structure is simpler, has simplified manufacturing process, no gold wire and better heat dissipation.

2)Higher protection, reliability and RGB light mixing effect.

3)Chip level micro-spacing, ultra high-definition display and light source is not dazzling.

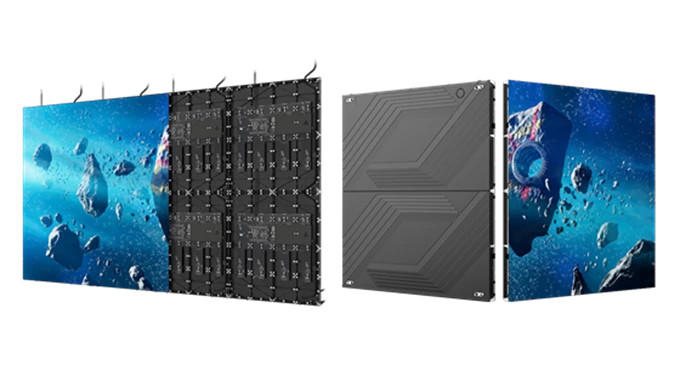

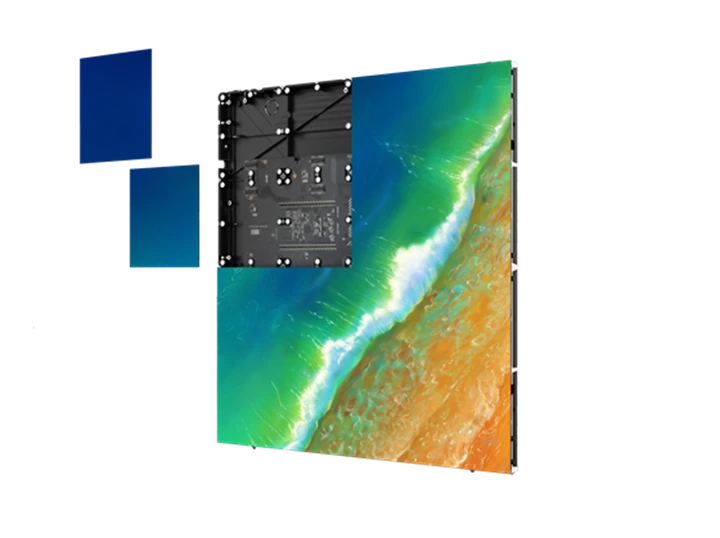

Fully Front Access Magnetic Design ＆ Easy Maintenance

The module of cabinet are installed and removed fully from the front, which can realize the full front maintenance of the cabinet.The upper, lower, left and right connection of the cabinet is locked and leveled by the connecting piece, and easy to install.

Special Cabinet Size: 600x675mm

In order to fit some special screen are as and meet the needs of customers, we also designed a special cabinet size 600×675mm for the P1.875 LED display screen, which is very popular with customers.

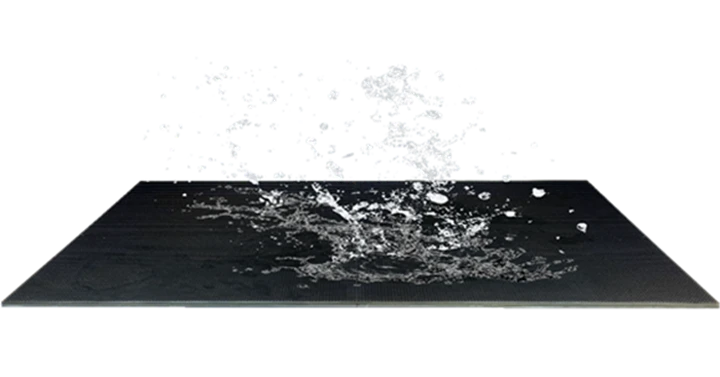

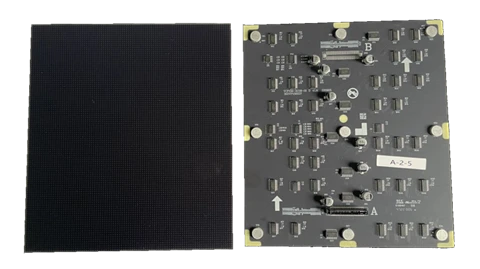

Strong Module with IP54

Compared with ordinary indoor LED products, we adopt IP54 high protection level.

1)Allow the water clean on surface.

2)Isolate electronic parts from humidity and dust.

3)Have higher shockproof level, greater reliability and high level surface protection.

Exquisite Cabinet Design

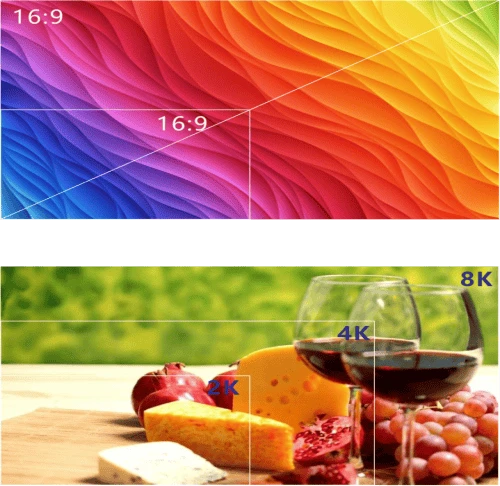

COB encapsulated micro-pitch LED display adopts 16:9 golden ratio cabinet size design, accurately matching the standard resolution of 16K/4K/8K. The screen image’s quality is better, higher definition, more delicate, and has better visual effects.

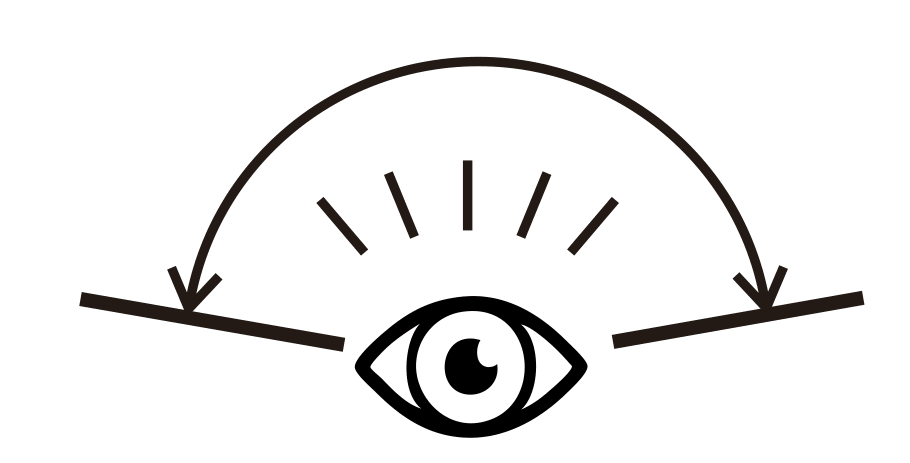

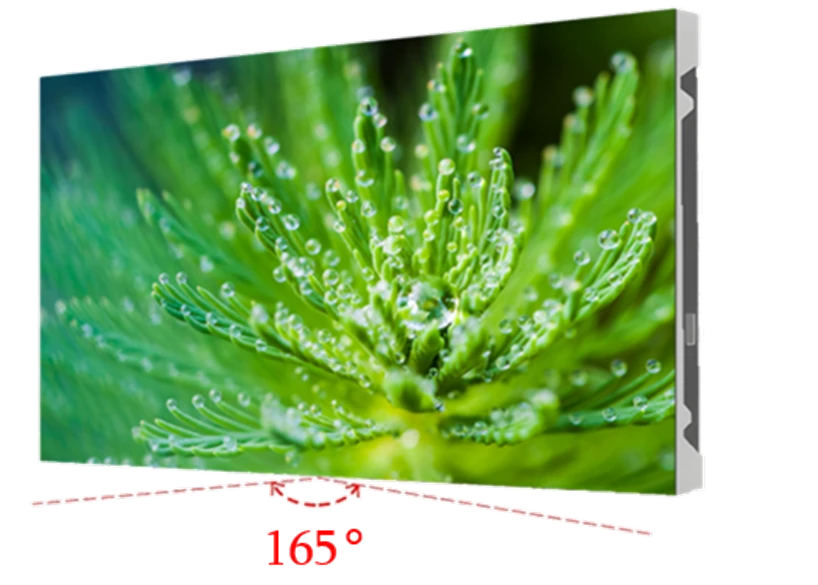

Larger Viewing Angle

More than 165 degrees of ultra-wide viewing angle allow more viewers to fully immerse themselves in its captivating visual display. Regardless of the angle from which it is viewed, one can experience its breathtaking visual effects.

Extraordinary Visual Effects

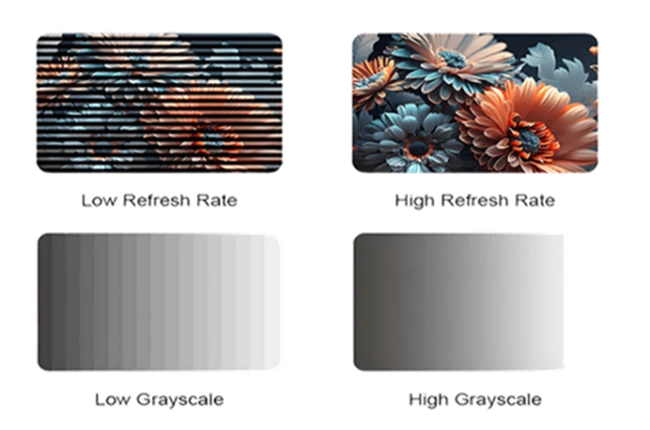

Thanks to the high refresh rate (3840-7680Hz), grey scale (up to14-22bits) and static color contrast: 10000:1, our COB LED Display Module series delivers exceptional visual performance. The image is more stable and the clearer, bring us amazing visual effects. In addition, the light from our COB LED Screen looks softer to our eyes.
