Indoor GOB LED Display Panel Module
$205.00
- Description
- Additional information
Description
Indoor GOB LED Display Screen
Excellent Indoor LED panel-P1.9, P2.5, P2.6, P2.9, P3.9, P4.8
Die-casting Aluminum
Cost-Effective
Front  Access
Quick Installation
Thin Screen
384Hz ~ 7680Hz
Easy Maintenance
14bits～24bits
Product Description

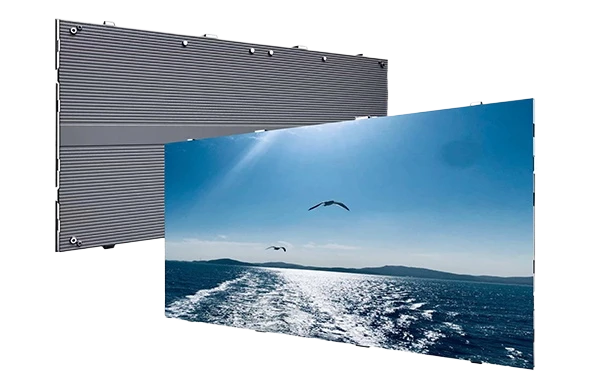

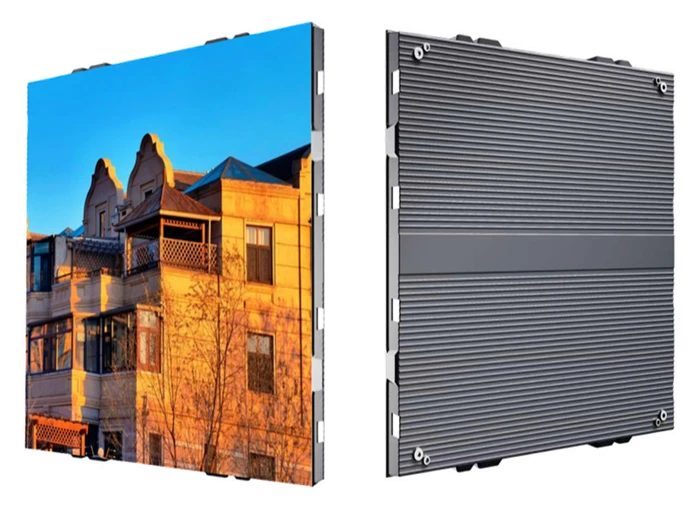

Die-Casting Aluminum Design
As customers have higher requirements for LED displays, more and more cabinets have been developed to meet market demands. Compared with the traditional bulky cabinet, the die-casting aluminum cabinet with humanized design is stronger, more light-weight and precise. This LED panel is highly praised for better user experience. The pixel pitches of this LED screen are SMD P1.9, P2.6, P2.9, P3.9.

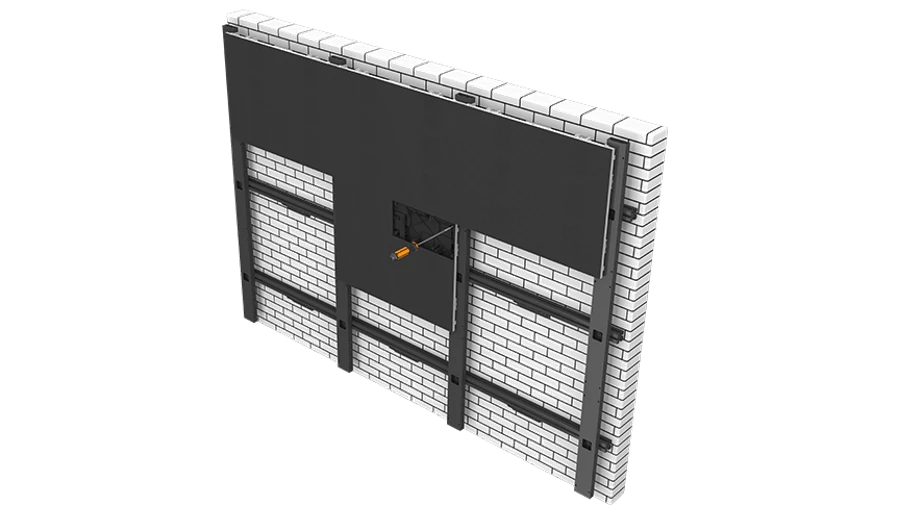

Fully Front Access Service
The cabinet, module, power supply and other components are with fully front access service, therefore super easy disassembly of the fine pitch LED screen is allowed.The cabinet can be accessed from front side for maintenance and installation.
Various installation is available

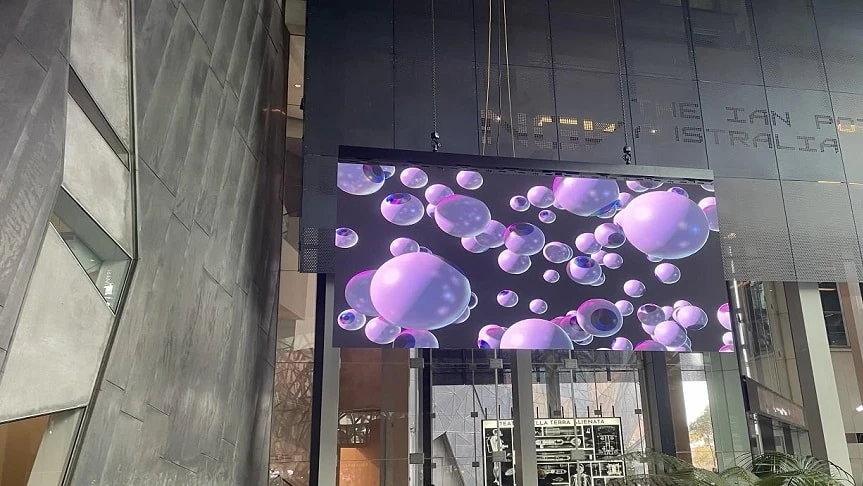

Our GOB LED Display Panel Max is light and thin. It can not only be fixed on the wall but also can realize hoisting with the hanging bar. Thanks to the excellent cabinet structure design, the installation method is flexible, and the screen can fit well into different projects.
High Refresh Rate 3840Hz to 7680Hz
The high refresh rate ensures the smoothness of every frame of the images, thus the LED display won’t appear flicking on the highspeed camera.
Seamless Connection
High precision CNC fabrication and the cabinet precision within 0.05mm bring seamless assembly. Besides,signal cables and power cables are inside of the cabinets and the LED screen without external cables brings more stability.

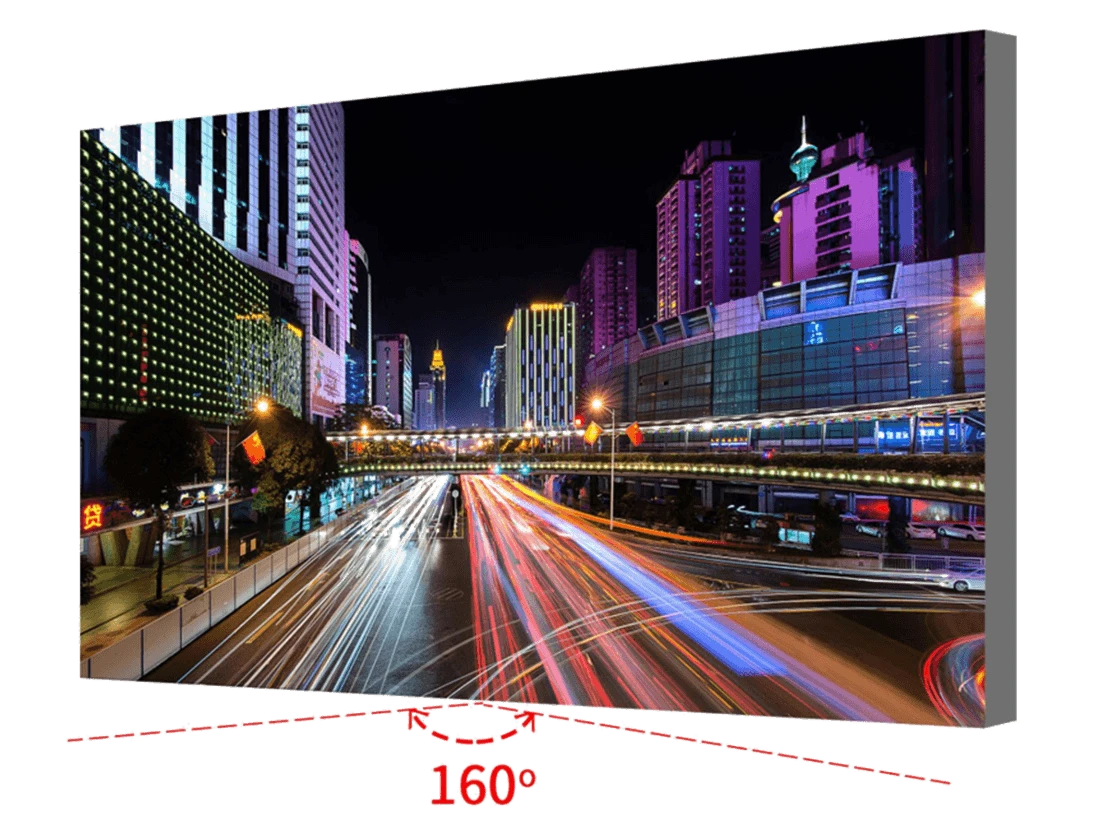

Large Viewing Angle
The smoothness of the LED screen’s surface is truly remarkable, giving people a sensation as if they were touching the texture of future technology. Moreover, its wide horizontal and vertical viewing angles of up to 160° allow more viewers to fully immerse themselves in its captivating visual display.

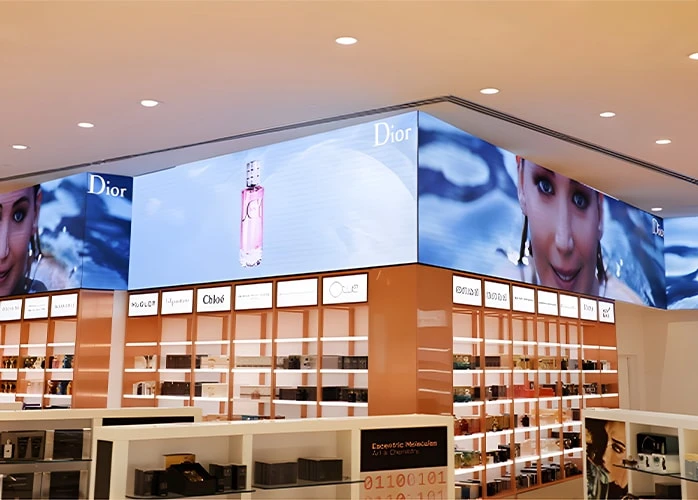

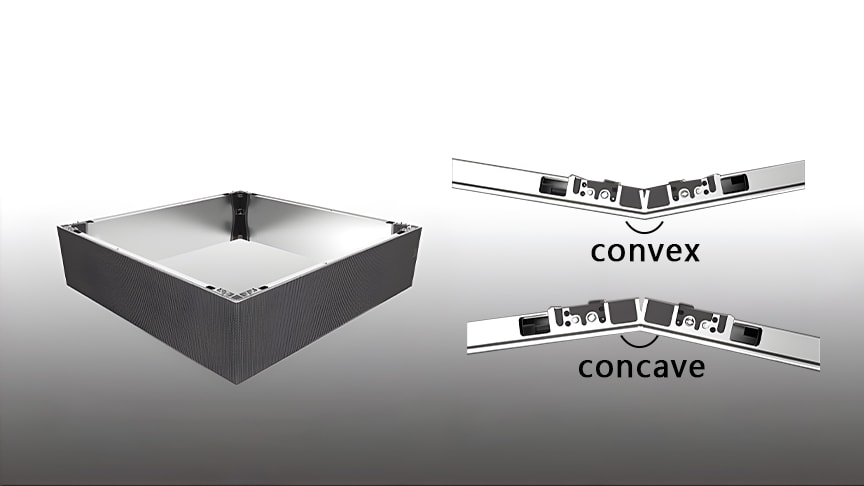

Installation-various shaps
Flexible in different shapes installation: 90 degree installation with cutted panel. Concave and Convex installation possible

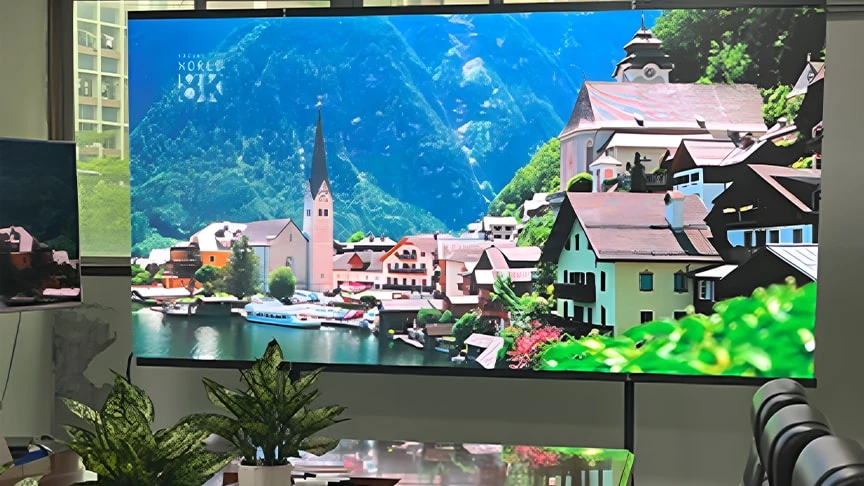

Excellent Visual Effect
The images and video visual effects are amazing. Our GOB LED Display Module Max series has an excellent visual performance because we adopt high-quality black LED. The color contrast ratio is even better than 10000:1. Armed with HDR technology and color enhancement technology, the white balance of the screen reaches a 100% sRGB and stunning visual performance. Even in high light environments the screen also looks very clear, and the visual effect looks perfect.

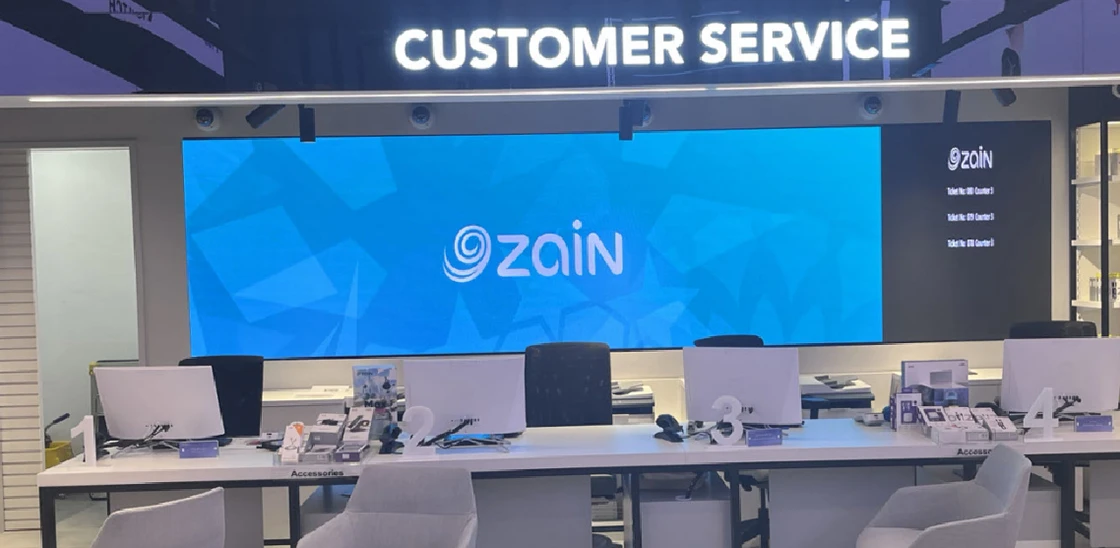

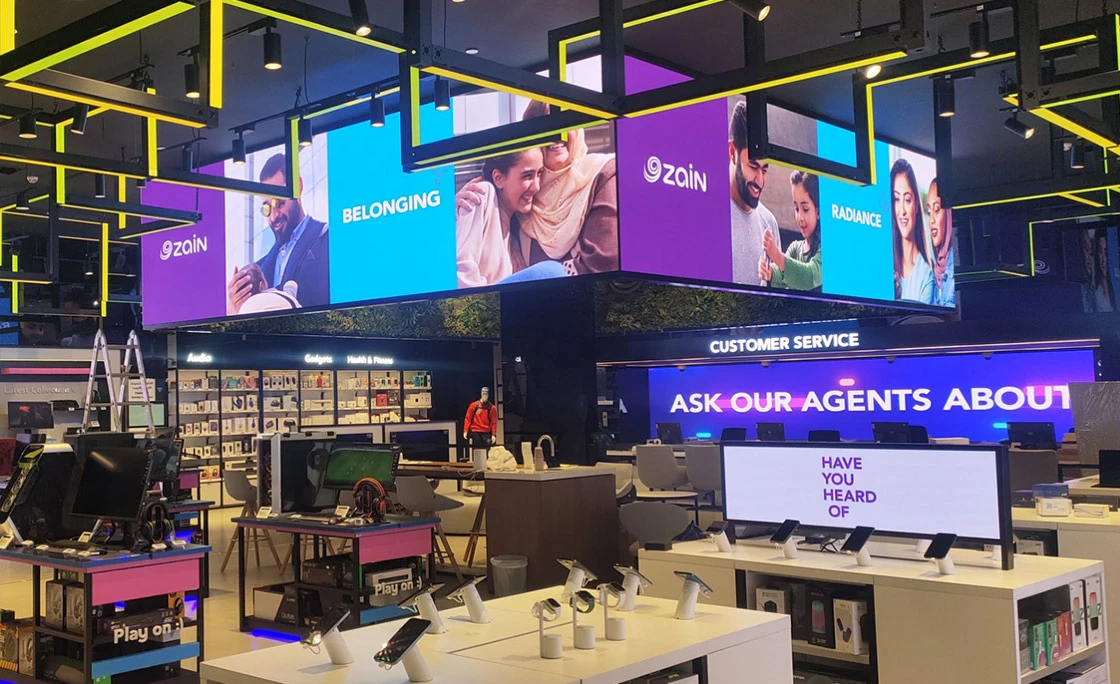

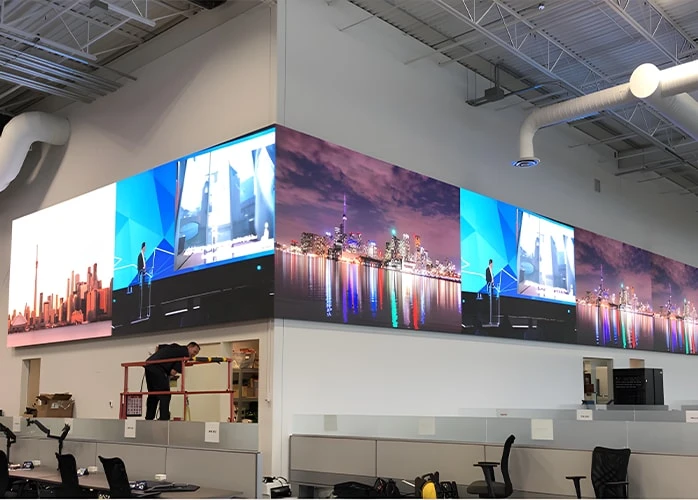

Application Fields
This indoor LED panel is usually be used for:

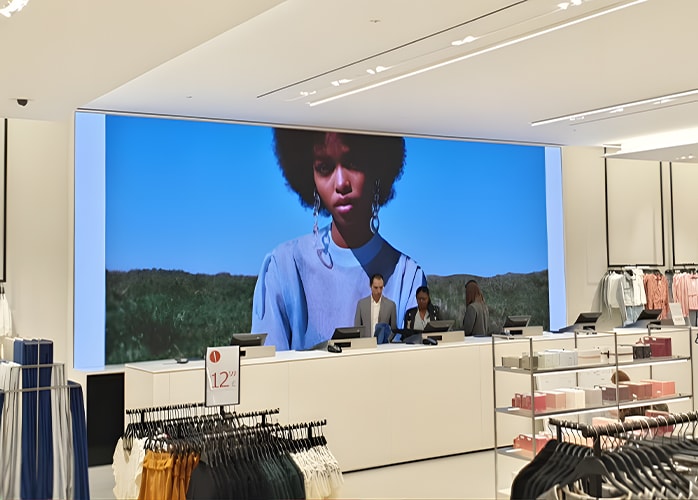

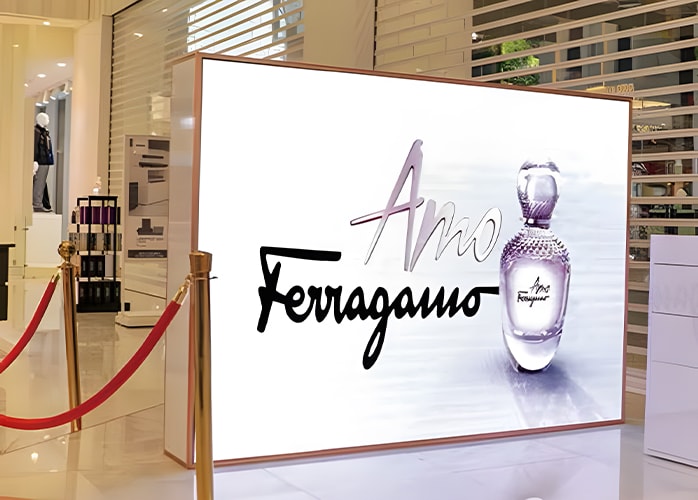

Fashion shop; Meeting room video wall; Church digital screen;Â Indoor advertising;Â Airport, etc.
GOB Indoor Rental LED Display Parameter
| Item | P1.9 | P2.5 | P2.6 |
|---|---|---|---|
| Pixel Pitch | 1.953mm | 2.500mm | 2.604mm |
| LED Type | SMD1010 | SMD2121 | SMD2121 |
| Module Resolution | 128dots x128dots | 100dots x 100dots | 96dots x 96dots |
| Driving Mode | 1/32scan | 1/25scan | 1/32scan |
| Module Pixels | 1,6384dots | 10,000dots | 9,216dots |
| Module Size | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm |
| Cabinet Size | 500mm x500mm | 500mm x 500mm | 500mm x 500mm |
| Cabinet Resolution | 256dots x 256dots | 200dots x 200dots | 192dots x 192dots |
| Pixel Density | 262,144dots/㎡ | 160,000dots/㎡ | 147,456dots/㎡ |
| Minimum Viewing Distance | ≥1.95 m | ≥2.5 m | ≥2.6 m |
| Brightness | 600-1000nits | 600-1000nits | 600-1000nits |
| IP Grade | IP43 | IP43 | IP43 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 14bits～22bits | 14bits～22bits | 14bits～22bits |
| Viewing Angle | H:140° / V:140° | H:140° / V:140° | H:140° / V:140° |
| Maximum Power Consumption | 100W/ ㎡ | 100W/ ㎡ | 100W/ ㎡ |
| Average Power Consumption | 65W/ ㎡ | 65W/ ㎡ | 65W/ ㎡ |
| Screen Lifespan | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Input Voltage | AC110V – AC220V @ 50Hz/60Hz | AC110V – AC220V @ 50Hz/60Hz | AC110V – AC220V @ 50Hz/60Hz |
| Operating Temperature | ﹣20℃～50℃ | ﹣20℃～50℃ | ﹣20℃～50℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 24kg/m² | 24kg/m² | 24kg/m² |
| Operating System | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
Additional information
| Weight | 30 kg |
|---|
