Innovative Holographic Transparent LED Screen

Innovative Holographic Transparent LED Screen

$168.00

In stock
0 out of 5

$168.00

SKU: holographic transparent flexible led screen Category: Tag:

Description

6683ba99deedd-1

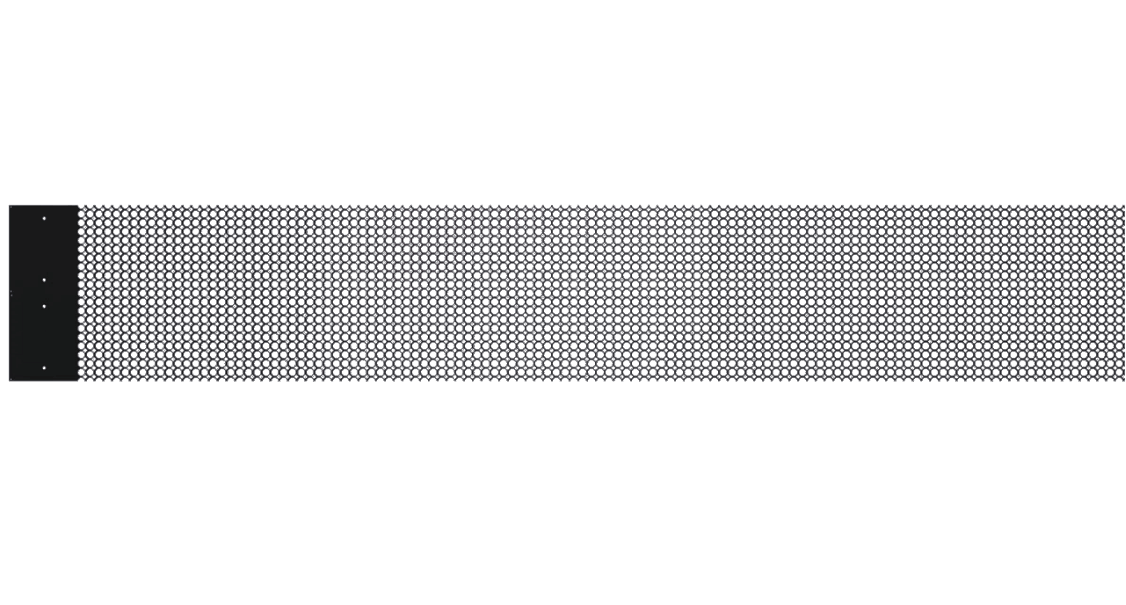

LED Holographic Transparent Screen Series

Innovative Holographic Transparent Screen

610e010d2be70-2

High Transparency

610e01178bc0c-1

Economical and Eco-friendly

610e0133946a7

Standard Cabinet Design

610e013fd0ac7

Fast and Easy Installation

610e014b24fe2-1

High Brightness

610e015683c4c-1

Light and Slim

610e0163ead1b

Modular Design

610e0177ecc37

Flexibility

Product Description

Innovative Holographic Transparent Screen

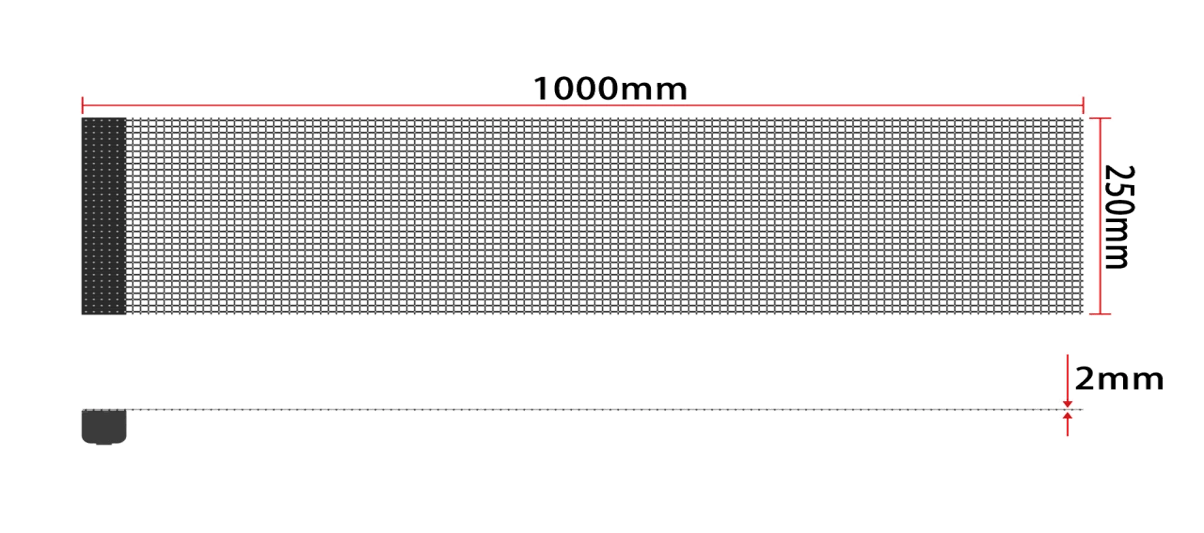

Thickness: Only 2mm Weight: 2kg/㎡ Single panel up to 1.5 meters in length, easily achieves concealed installation of the power box, ensuring unobstructed viewing. It effortlessly adheres to various glass surfaces, instantly transforming ordinary glass into dazzling displays.

6683bc55cfd52

Meterial Advantages

The PCB of Holographic LED Screen series are based on FR4 fabric, which has good heat resistance and stable electrical insulation performance, and can continuously maintain insulation performance in high-frequency and high-pressure environment. In addition, FR4 material has extremely high thermal stability and can still maintain the stability and mechanical properties of the material in high-temperature environment.

6683bc75e0462

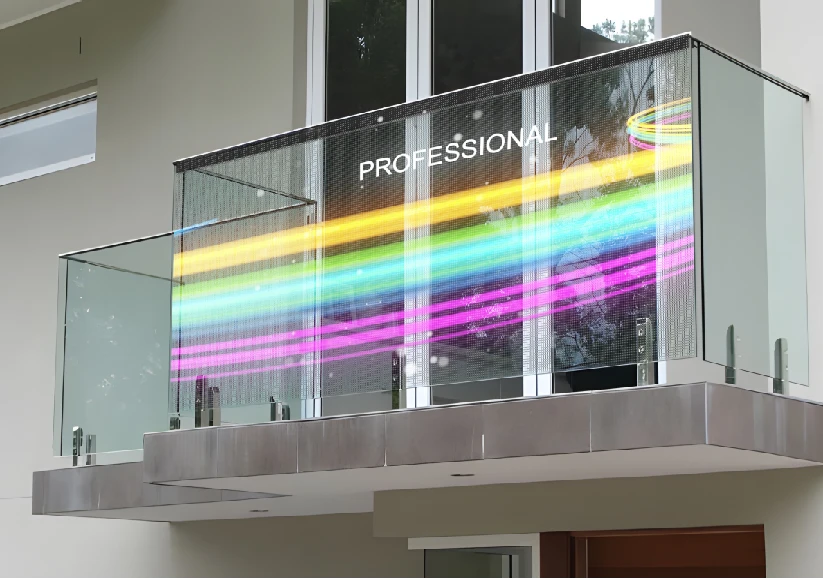

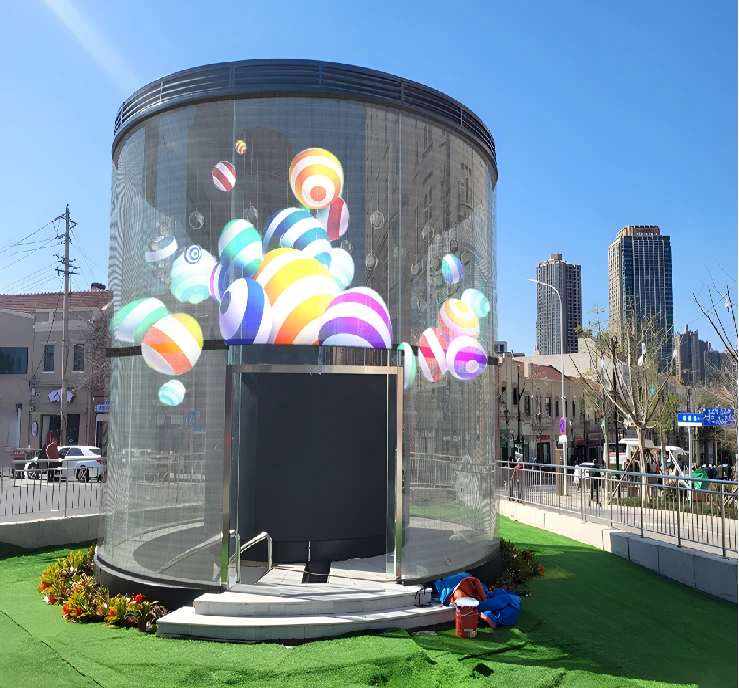

High Transparency

Flexible Holographic LED Screen series products have a light transmittance of over 99%, which greatly reduces the blocking of sunlight. This excellent light transmittance enhances the customer’s visual experience and constantly brings positive feedback to our products.

6683bc7f907d4

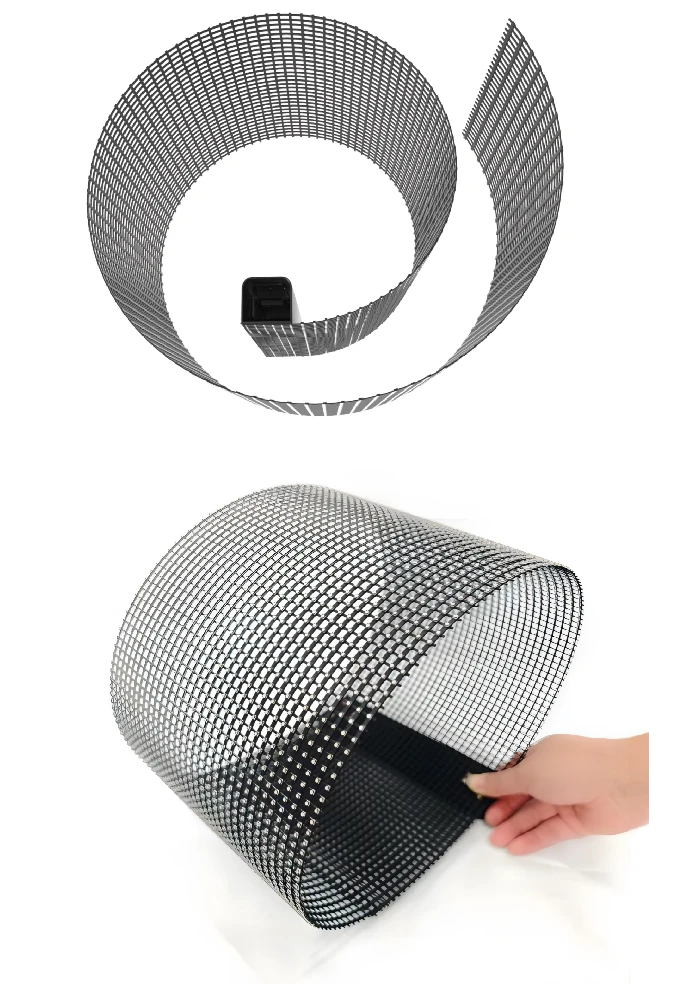

Flexible & Cuttable

Leeman Holographic Transparent Flexible LED Panel series can be directly fixed on the glass without any installation structure, which greatly reduces the installation, transportation and labor costs. In addition, this screen has the characteristics of flexibility, shearing, customization, high elasticity, good heat resistance and strong viscosity which can be attached to the curved glass, suitable for indoor and semi-outdoor occasions.

6683bc9c5f755

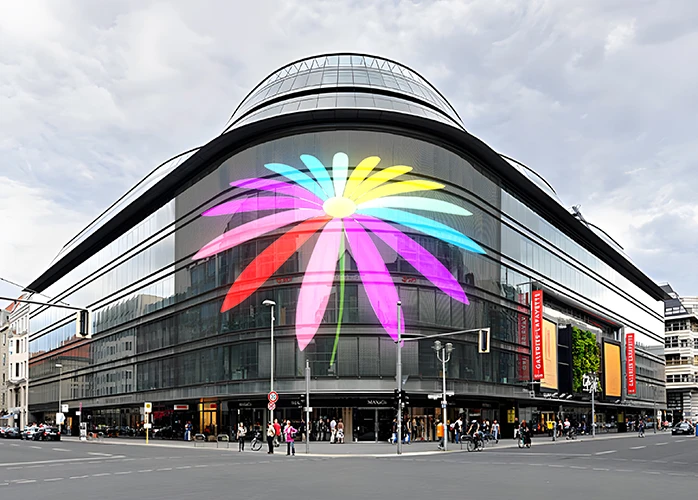

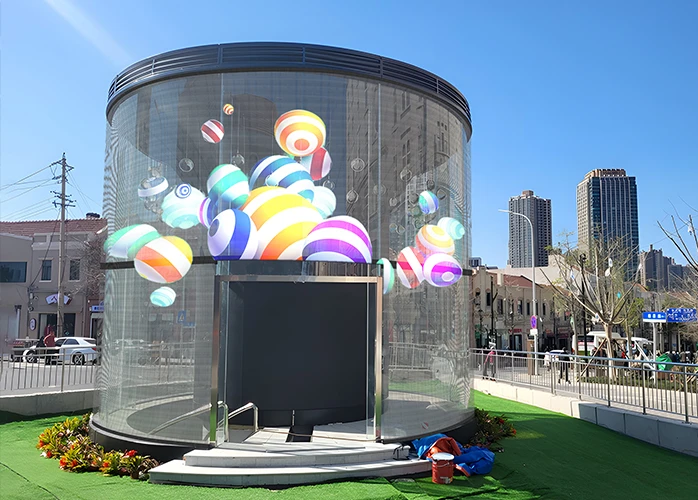

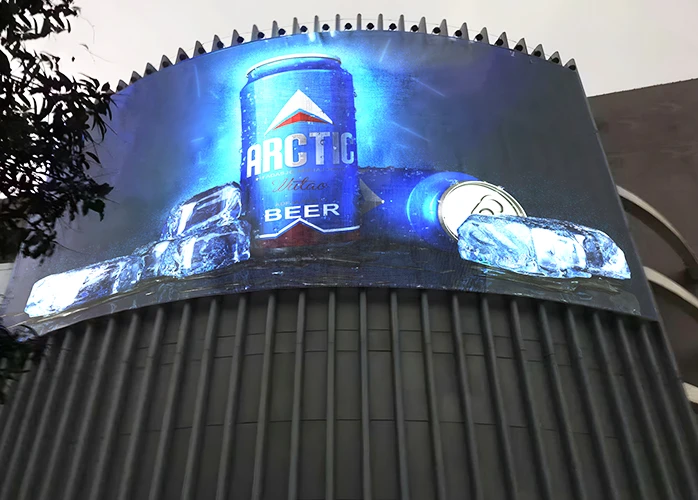

Application Fields

There is a wide variety of outdoor LED curtain screen resolutions in the market. Outdoor curtain LED displays have been gaining popularity, mostly due to major technological advancements like increased brightness levels and better picture quality. They are widely used in Museums, Shopping malls and Exhibition events.

6683c193030e5
6683c1af0876a
6683c1be3681c
6683c1cc0126b

Holographic Transparent Flexible LED Panel Soft LED Screen Parameter

Item P2.5 P3.5 P3.91
Item 2.5mm (W) / 2.5mm (H) 3.508mm (W) / 3.508mm (H) 3.91mm (W) / 3.91mm (H)
LED Type SMD1010 SMD1515 SMD1515
Driving Mode Static Static Static
Module Size 1000mm × 250mm/1500mm*250mm 1490mm*224mm 1492mm × 250mm/1000mm*250mm
Module Resolution 400dots*100dots/600dots*100dots 425dots*64dots 382dots*64dots/256dots*64dots
Maximum Panel Length 2.5m 3.5m 3.91m
Pixel Density 160,000dots/㎡ 81225dots/㎡ 65536dots/㎡
Minimum Viewing Distance ≥2.5 m ≥3.5 m ≥3.91 m
Transparency 60% 65% 75%
Brightness 800-2,000nits 800-2,000nits 800-4,500nits
IP Grade IP45 IP45 IP45
Refresh Rate 3,840Hz 3,840Hz 3,840Hz
Gray Scale 14bits~22bits 14bits~22bits 14bits~22bits
Viewing Angle H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption 800W/㎡ 800W/㎡ 800W/㎡
Average Power Consumption 200W/㎡ 200W/㎡ 200W/㎡
Input Voltage AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature ﹣20℃~65℃ ﹣20℃~65℃ ﹣20℃~65℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Weight 2kg/㎡ 2kg/㎡ 2kg/㎡
Operating System Windows (Win10,Win7,etc.) Windows (Win10,Win12,etc.) Windows (Win10,Win12,etc.)

Additional information

Weight 30 kg
