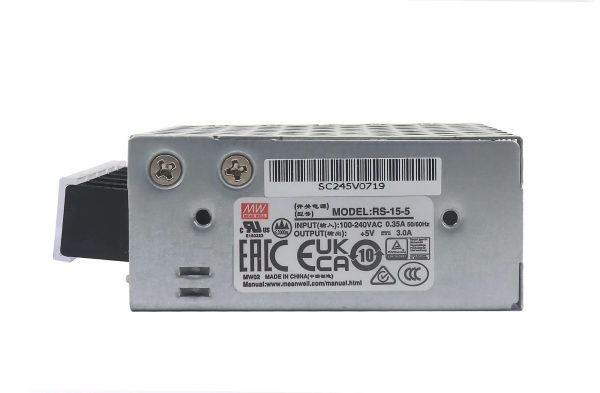

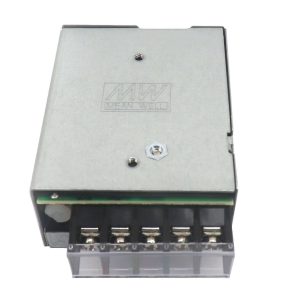

Meanwell RS-15-5 Single-output Enclosed Power Supply for LED Screen

Features :
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
LED indicator for poweron100% full load burn-in test
No load power consumption<0.5w
All using 105°℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 secondHigh
operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

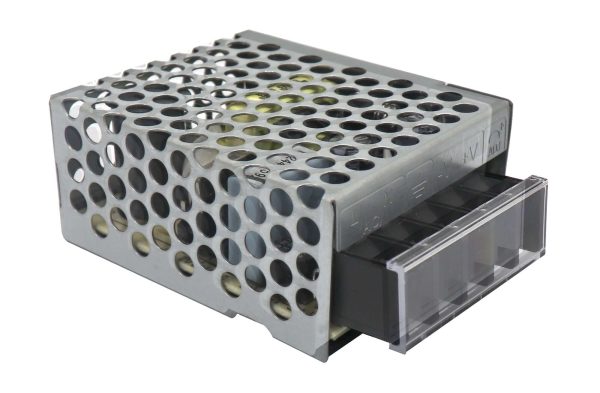

· RS Series is a single-output enclosed type power supply with 30mm of low profile design.

· In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation

· of RS-15 that the whole series operates from -30°C through 70°C under air convection without a fan.

· Delivering an extremely low no load power consumption (less than 0.2W), it allows the end system to

· easily meet the worldwide energy requirement. RS-15 has the complete protection functions and 5G anti­

· vibration capability; it is complied with the international safety regulations such as TUV EN62368-1
